Name: Polini crankshaft "Racing" 60 mm long-stroke | Vespa PX200, P200, Rally 200, Cosa 200
Brand: Polini
SKU: 39306
Price: 308.40 EUR
Availability: LimitedAvailability

New

Description

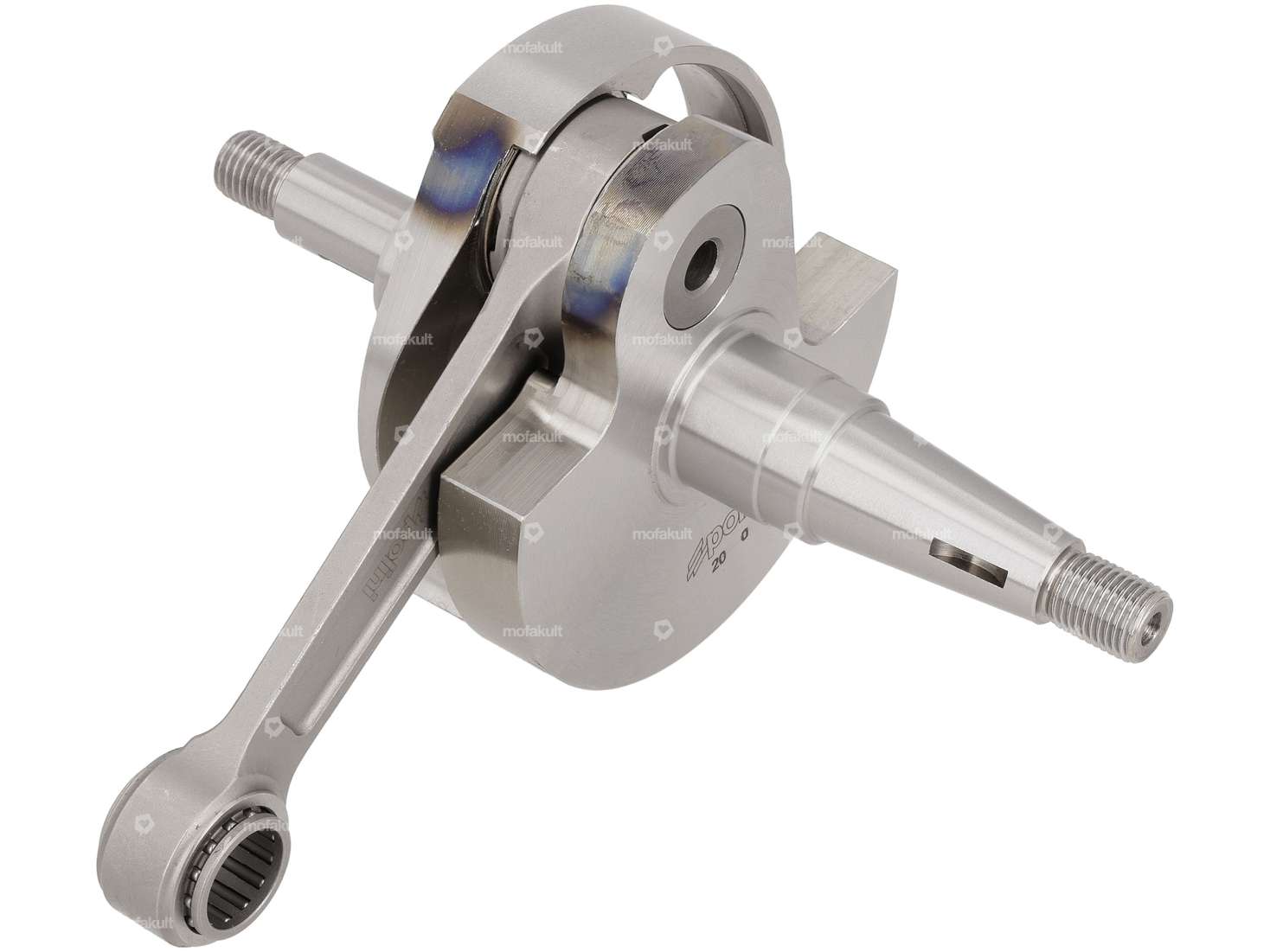

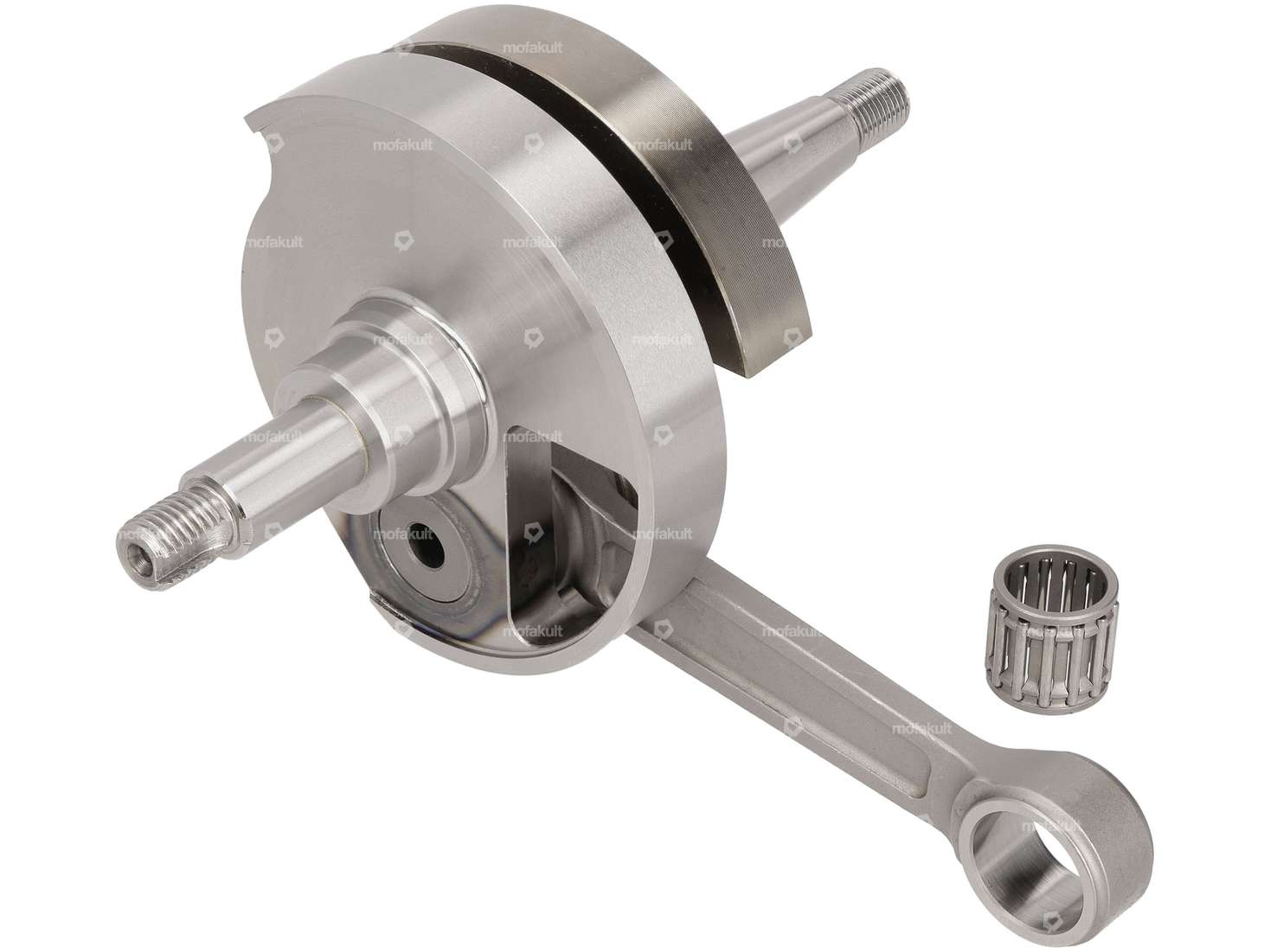

Polini long stroke crankshaft «Racing» with 60 mm stroke, suitable for your Vespa P 200E, PX 200 Lusso, Cosa 200 and Rally 200.

The racing shaft is designed for rotary valve engines and comes finely balanced, with a flow-optimized cheek, stable connecting rod and extended intake control angle. An excellent basis if you want to set up your engine for a clean long stroke.

Details

Manufacturer	Polini
Material	Steel
Area of application	Racing
Cheek type	standard
Thread type	MF12x1.25 (fine pitch thread), MF12x1.5 (fine pitch thread)
Crankshaft stroke	60 mm
Connecting rod length center-center	110 mm
Total length of crankpin on clutch side	58.8 mm
Total length crankpin ignition side	77.7 mm
Ø crank webs	97.9 mm

Ø piston pin (B)	16 mm
Ø Connecting rod eye	20 mm
Ø Bearing seat (clutch side)	25 mm
Ø Bearing seat (ignition side)	25 mm
Thread length	14.5 mm, 15.5 mm
Dimension needle bearing	16x20x20
Wide crank webs	39 mm
Control time according to O.T	138 °, 5 °

Suitable for the following models

Vespa

Vespa PX, T5, Cosa - P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998
