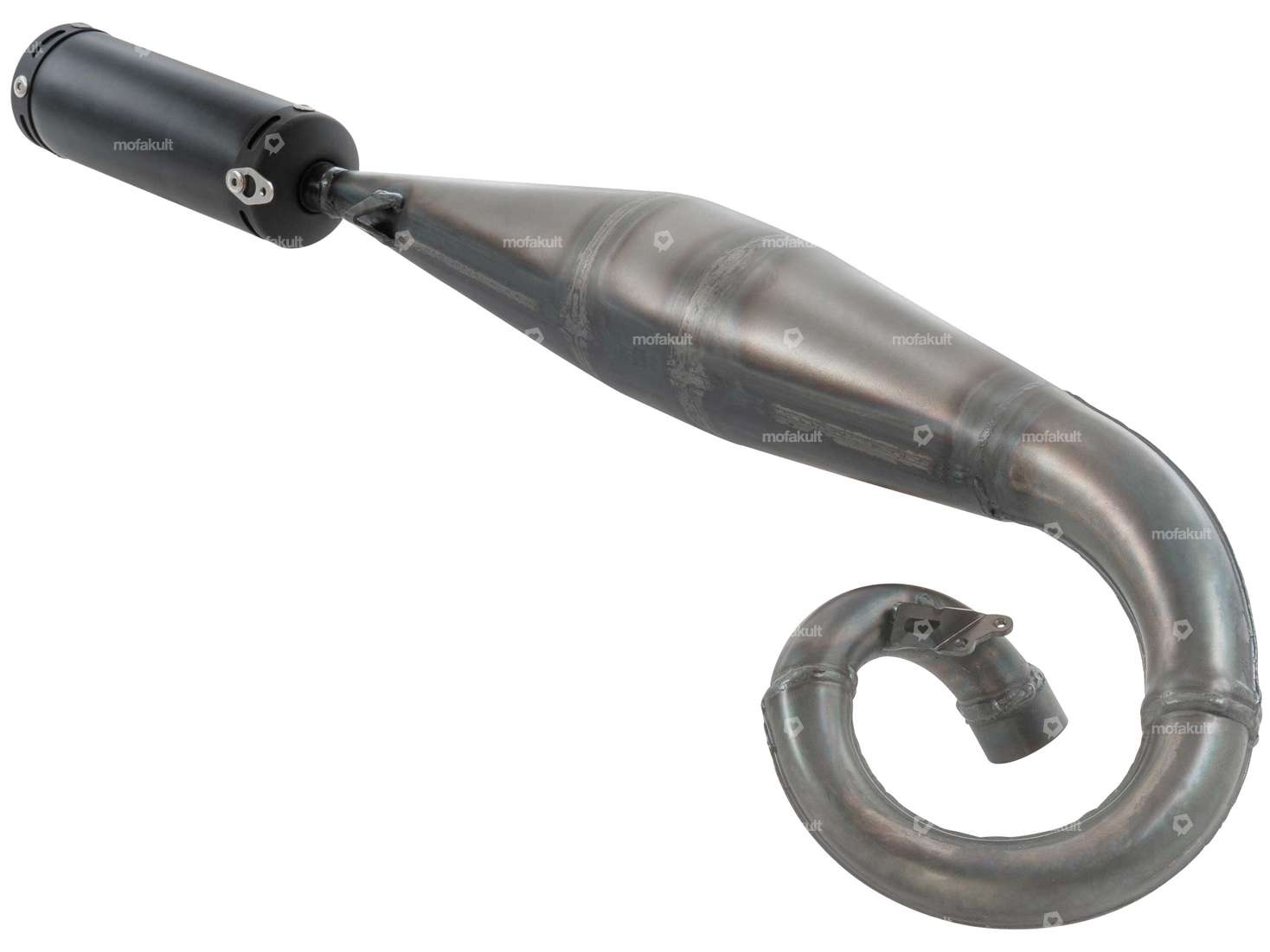

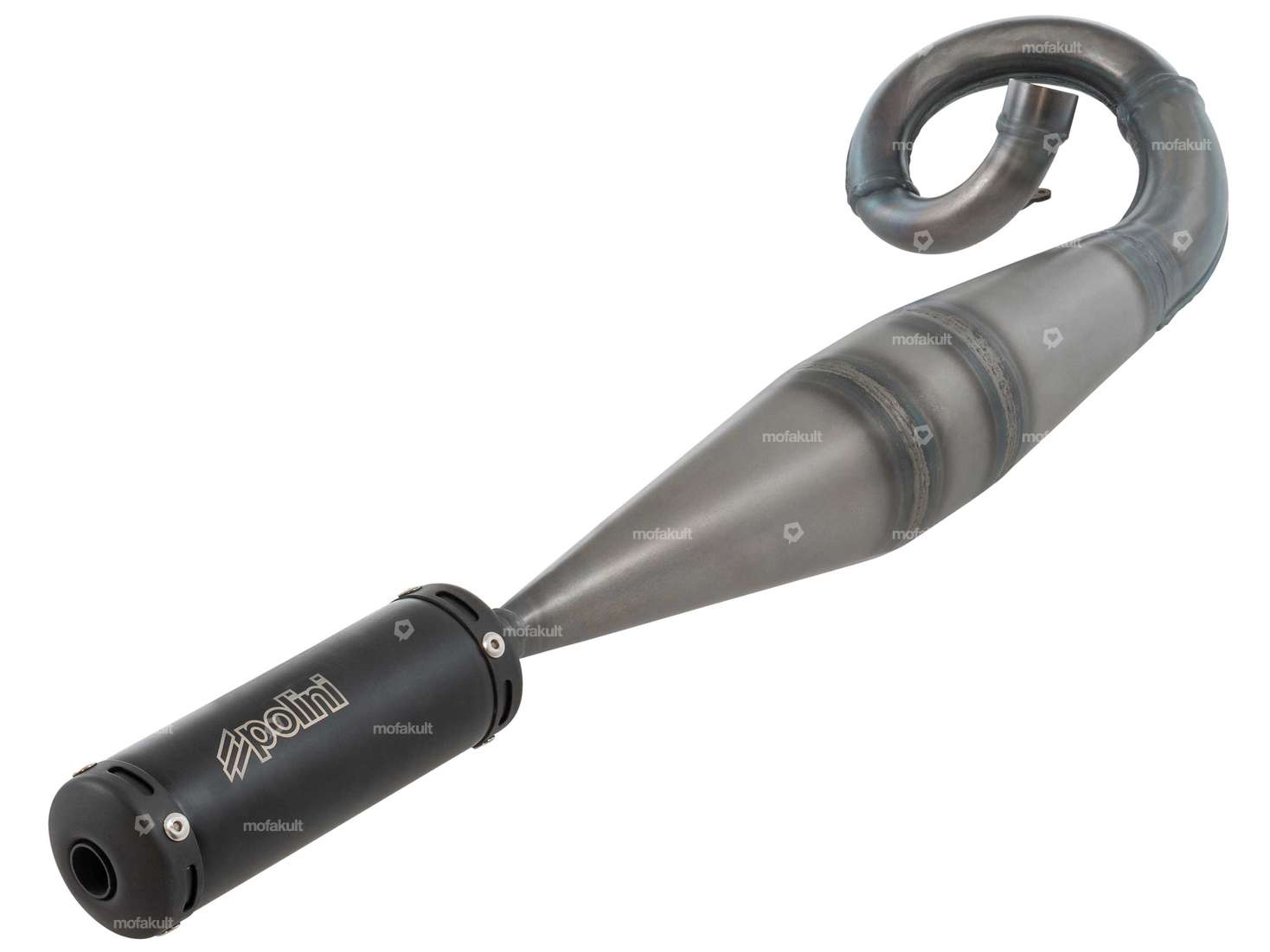

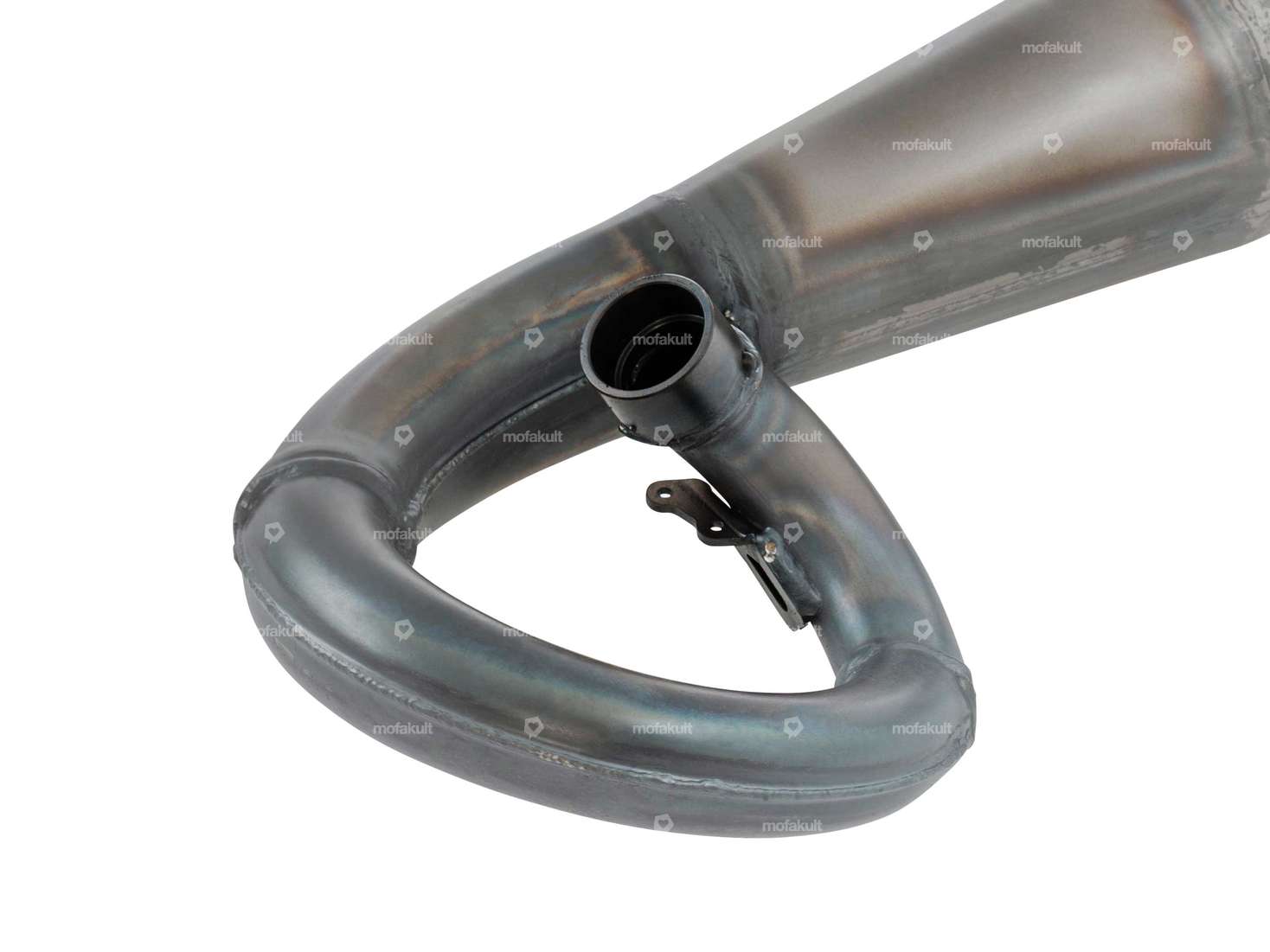

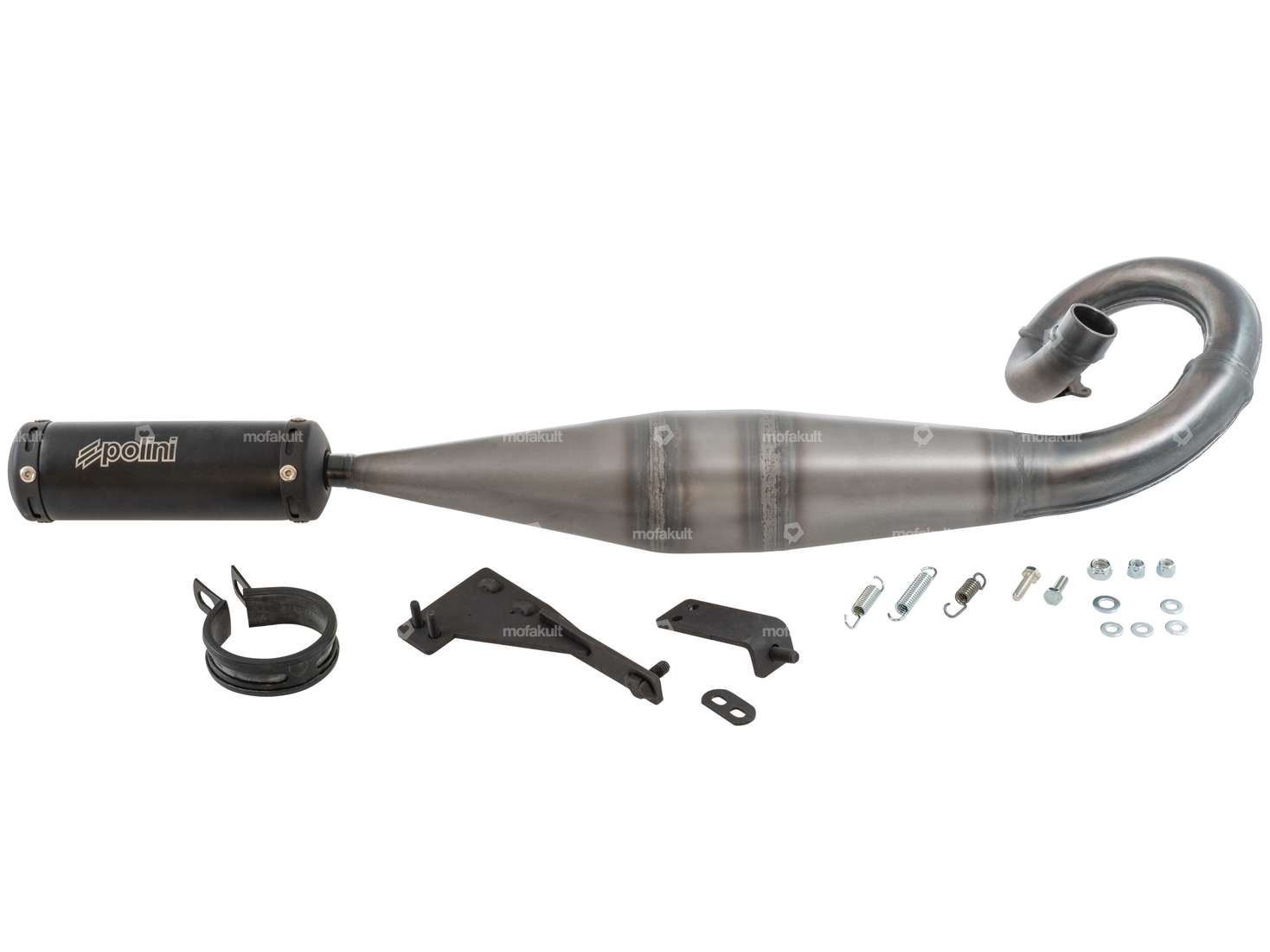

Polini EVO exhaust (27 mm connection) | Piaggio Ciao, SI, Bravo, Boxer

Polini EVO REED engine case | Piaggio Ciao, SI, Bravo, Grillo

Stock number: 6202 · Manufacturer: Polini · Material: Aluminum · Crankshaft stroke: 43 mm · Ignition type: Electronic

Polini EVO Electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Ø Internal flywheel: 80.5 mm · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 138.5 mm · Number of fixing points: 2 pcs · Weight: 554 g · Area of application: High End · Area of application: Racing · Area of application: Tuning

Polini EVO REED crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Grillo

Manufacturer: Polini · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1.25 (fine pitch thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.6 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44.7 mm · Length 3rd paragraph: 64 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 784 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

Polini 47 mm cylinder kit EVO 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Gray cast iron · Camouflaged: No · Displacement: 75 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 47 mm · Ø cylinder neck: 49.8 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Hole spacing outlet: 23 mm · Hole spacing outlet: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole pattern [mm]: 43 x 52 · Thread outlet: M5x0.8 (standard thread) · Decompressor: Yes · Area of application: High End · Area of application: Tuning

Polini EVO clutch bell (torque converter) Vario CNC | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Surface: burnished · Ø inside: 93 mm · Ø outside: 103 mm · Gearbox type: Vario · Weight: 532 g

Polini gearbox housing Evolution Variomatic | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Surface: varnished · Gearbox type: Vario · Area of application: High End · Area of application: Racing · Area of application: Tuning

Polini 47 mm EVO cylinder head | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Ø cylinder: 47 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 43 x 52 · Candle thread: long

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Color: silver · Resistance: 1000 Ω · Subcategory: Spark plug connector · Suppressed: Yes · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

ProGrip grips 732 black (Road)

Manufacturer: ProGrip · Material: Rubber · Surface: raw · Color: black · Ø inside: 22 mm · Ø inside: 24 mm · Ø outside: 30 mm · Ø outside: 52 mm · Total length: 125 mm

Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Color: silver · Ignition type: Electronic · Ø inside: 24 mm · Width: 104 mm · Ø outside: 140 mm · Height: 174 mm · Total length: 220 mm

Polini clutch spring set Mono | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Manufacturer: Polini · Material: Spring steel · Surface: varnished · Color: blue · Total length: 23.4 mm · Area of application: Tuning

Dell'Orto 19 mm PHBG DS carburetor cable choke

Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: PHBG DS · Choke control: Cable choke · Width: 90 mm · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection · Ø fuel hose connection: 6 mm · Nozzle size: 75 · Ø Air filter connection: 32 mm · Height: 130 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mixed oil connection: Yes · Choke nozzle size: 60 · Size of secondary nozzle: 45 · Area of application: Tuning

Polini Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Number of weights: 6 pcs · Number of weights: 12 pcs · Weight Standard weights: 4.4 g · Weight Standard weights: 5.6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm · Gearbox type: Vario

Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Weight: 813 g · Cheek type: Full cheeks · Material: Steel · Thread type: M10x1.5 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.95 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Area of application: Racing · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.4 mm · Thread length: 15 mm · Length 1st paragraph: 21.3 mm · Length 2nd paragraph: 43.7 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Number of gears: 1 pcs

Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Ø Internal flywheel: 80.5 mm · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Mounting type: Screws · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Number of fixing points: 2 pcs · Ø cable: 7 mm · Weight: 804 g · Weight: 890 g · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

GPO light coil | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Area of application: Original · Area of application: Standard · Ø mounting hole: 4.4 mm · Hole spacing: 50 mm · Mounting type: Screws · Number of fixing points: 2 pcs

19 mm intake flange engine case Malossi MP-One | Piaggio

Material: Aluminum · Ø inside: 19 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Ø External connection: 24 mm · Area of application: Tuning
