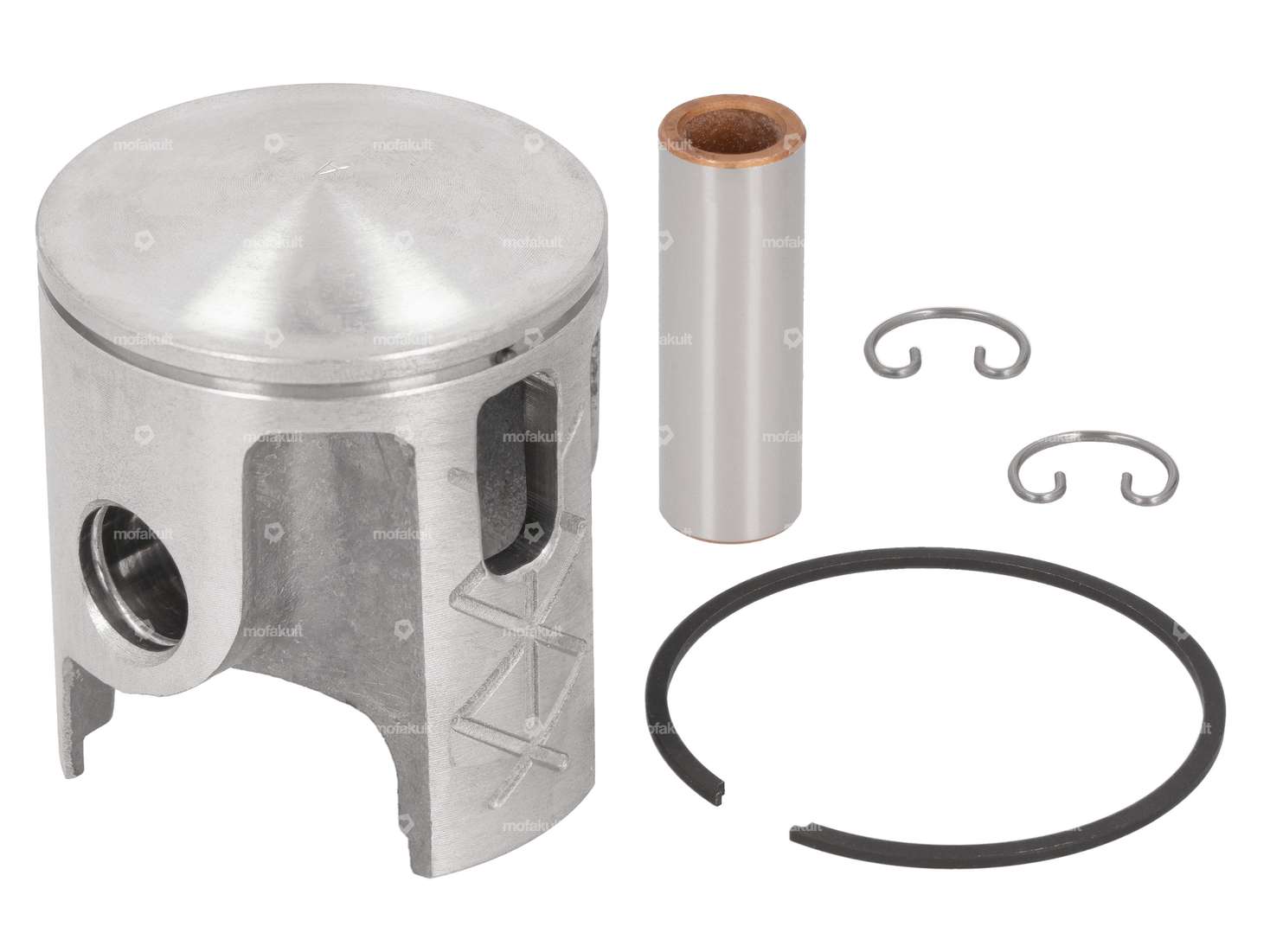

Polini piston 43.5 mm type A | Puch

Polini 43.5 mm cylinder kit reed | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Area of application: Racing · Area of application: Tuning · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Inlet window: 26 x 21 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Polini piston 43.5 mm #B | Puch

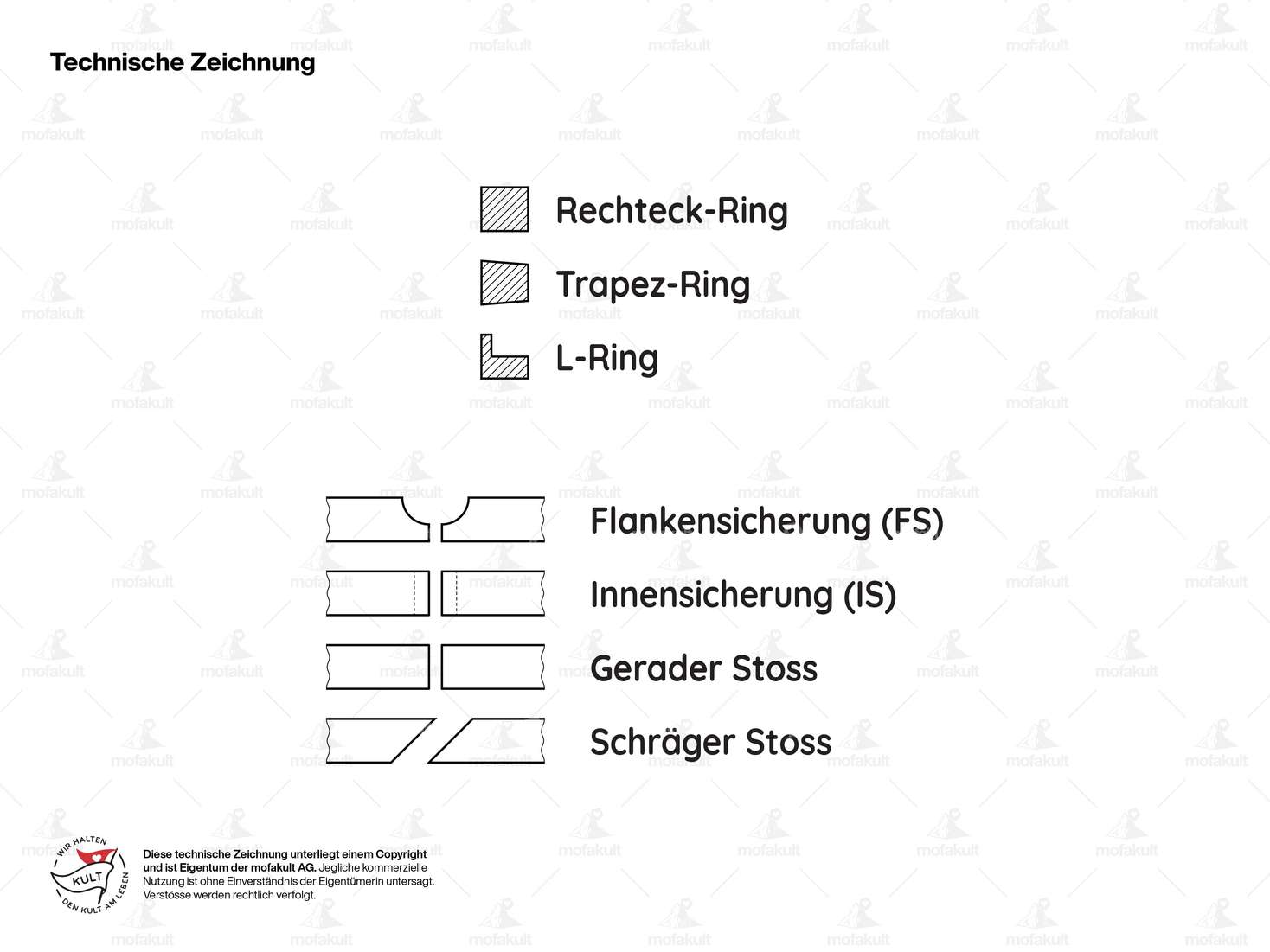

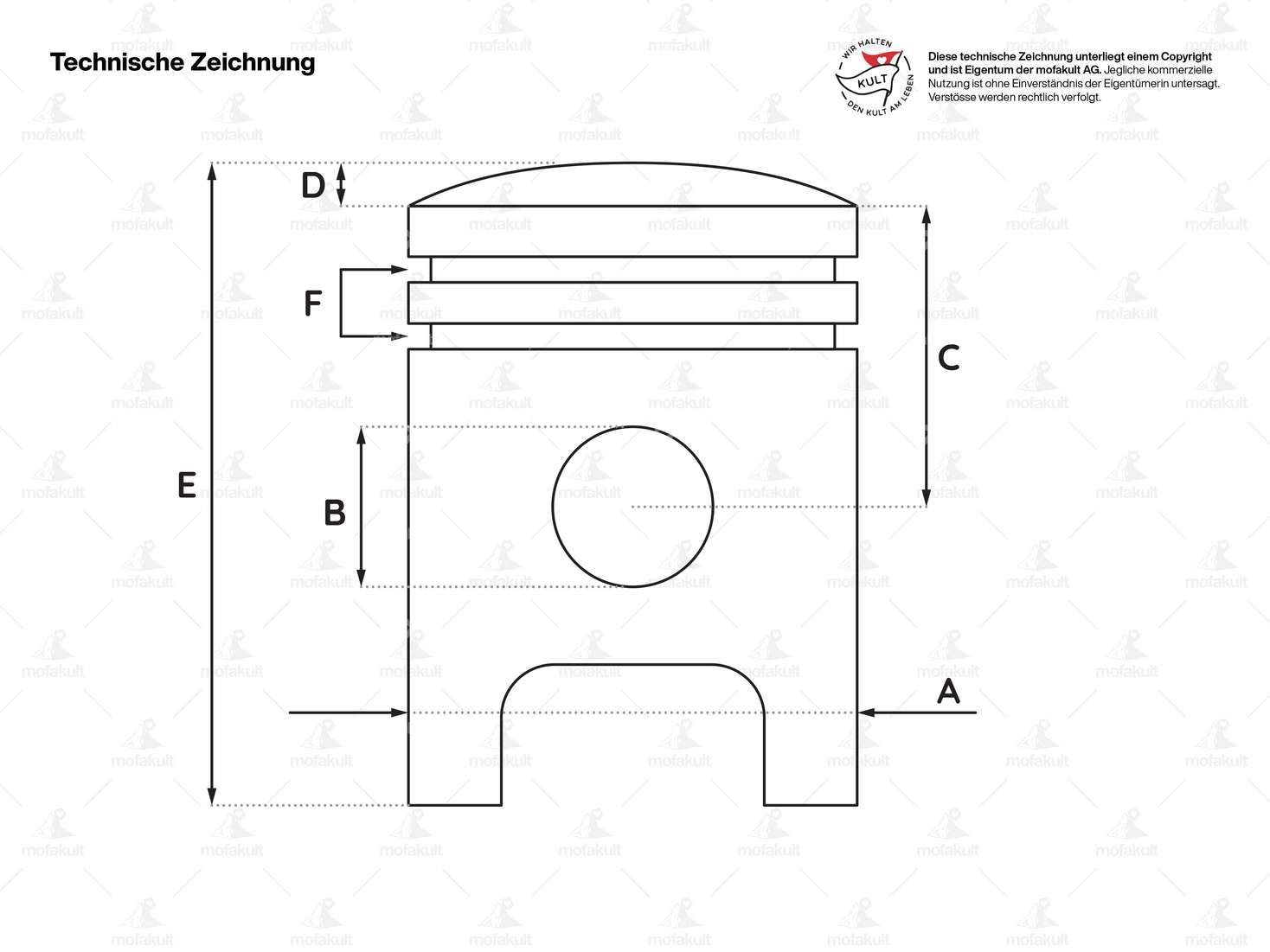

Manufacturer: Polini · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.46 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 93 g

Polini piston 43.5 mm #C | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Ø outside piston (A): 43.47 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Weight piston kit: 92 g

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Sachs OEM no.: 0245 000 000 · Tomos OEM number: 032039 · Pony OEM number: A1632

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm

Polini piston 43.5 mm type D | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Ø outside piston (A): 43.48 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: D · Weight piston kit: 93 g

GPO clutch trigger | Puch E50

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Surface: galvanized (blue) · Nipple length: 5 mm

swiing® revival plain bearing clutch basket | Puch Z50

Ø inside: 15 mm · Ø outside: 17 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Total height: 16.2 mm

Polini gasket set 43.5 mm

Manufacturer: Polini · Area of application: Tuning · Number of components: 5 pcs · Ø cylinder: 43.5 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm

O-ring cylinder head Ø 47 x 2 mm FPM | Puch

Material: FPM / FKM (colloquially known as Viton) · Place of use: Cylinder head · Color: black · Ø outside: 51 mm · Cord thickness: 2 mm · Ø inside: 47 mm · Temperature resistance (min.): 0 - 200 °C

swiing® ingenious gasket set 44 - 45 mm cylinder | Puch

Manufacturer: swiing® ingenious parts · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

swiing® revival drawbar 2-slats High End | Puch Z50

Manufacturer: swiing® revival parts · Material: Aluminum · Area of application: High End · Material: Steel · Color: black · Color: red · Ø outside: 44.8 mm · Total length: 35 mm · Surface: anodized · Surface: blackened

GPO stud bolt special M6 x 106 mm galvanized (10.9 strength) | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 106 mm · Strength class: 10.9 · Thread length: 15 mm · Thread length: 19 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Material: Aluminum · Material: Plastic · Manufacturer: Polini · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thread type: M5x0.8 (standard thread) · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Ø mounting hole: 5.2 mm · Ø inside: 28.6 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Racing · Area of application: Tuning
