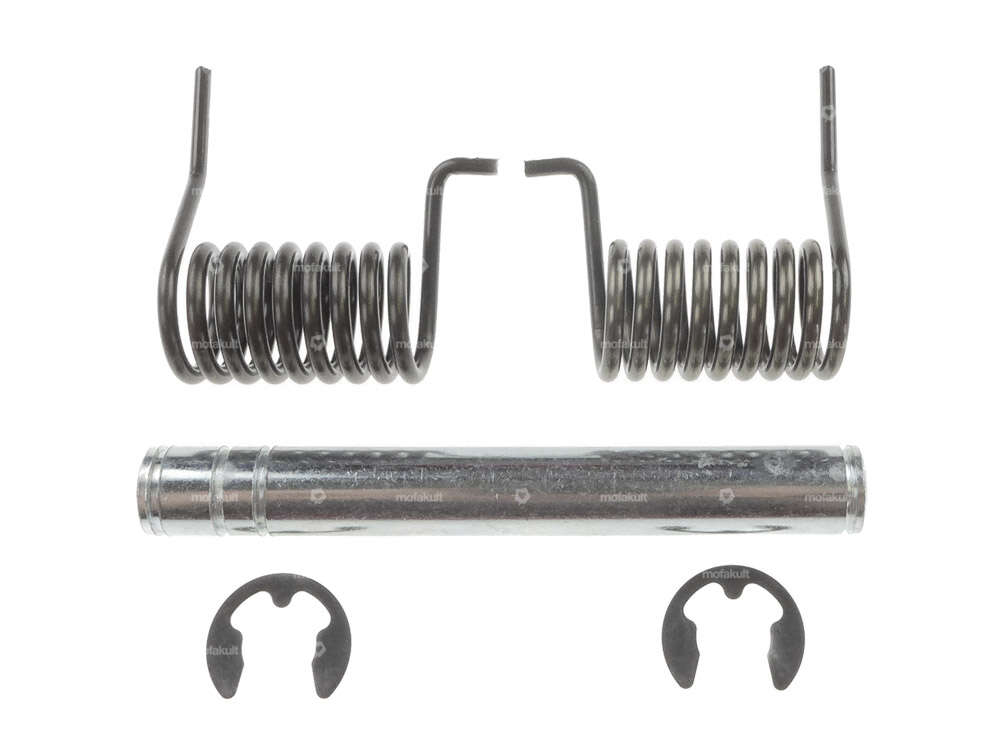

Repair kit stand | Piaggio SI

GPO spring puller

Manufacturer: GPO · Area of application: Special tool · Width: 55 mm · Total length: 155 mm

Stand set | Piaggio SI, Grillo

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 225 mm · Total width of stand base (B): 220 mm · Wide receptacle (C): 89 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 265 mm

Stand springs (pair) | Piaggio SI, Grillo

Spring design: Torsion spring · Length spring hook: 12.2 mm · Leg length: 25 mm · Leg length: 45 mm · Manufacturer: Made in Italy · Material: Spring steel · Diameter: 23.2 mm · Ø inside: 17.2 mm · Ø wire: 3 mm · Total length: 41.6 mm · Width: 40 mm

Olympia headset set | Piaggio SI, Bravo, Boss, SUPERbravo

Ø inside: 22.3 mm · Manufacturer: Olympia · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Thread type: MF27.5x1 (fine pitch thread) · Piaggio OEM number: 190823

Fuel tap vertical M12x1 (with union nut) outgoing right | Piaggio SI

Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Material lever: Plastic · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: right · Spare tube shape: straight · Reserve level: 65 mm · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut

CIF wheel axle set M11x1 x 165 front wheel galvanized | Piaggio Ciao, SI, Bravo

Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Surface: galvanized (yellow) · Total length: 165 mm · Ø shaft: 10.3 mm · Width across flats: 15 mm · Width across flats: 17 mm · Height: 2 mm · Height: 4 mm · Height: 10 mm · Shank length: 18 mm · Thread type: MF11x1 (fine pitch thread) · Ball bearing closed: No · Ø ball [inch] / [mm]: 1/4" (6.35 mm) · Thread length: 73 mm

GPO chain tensioner | Piaggio Ciao

Manufacturer: GPO · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Width: 45 mm · Number of teeth: 8 pcs · Total length: 64 mm · Number of fixing points: 1 pcs · Ø outside sprocket: 33 mm · Thread type: M8x1.25 (standard thread)

GPO speedometer drive 16" | Piaggio Ciao, SI, Bravo

Manufacturer: GPO · Material: Aluminum · Place of use: left · Wheel size: 16 " · Ø outside: 42.3 mm · 4-edge speedometer cable: 2.6 mm · Ø axle: 11 mm · Ø mounting hole: 11.3 mm

Stand bolt Ø 14 mm with circlips | Piaggio Ciao, SI, Bravo, SUPERbravo

Manufacturer: Made in Italy · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 112 mm · Number of fixing points: 2 pcs · Mounting type: Circlip · Piaggio OEM number: 164167 · Piaggio OEM number: 214490

Stand springs (pair) | Piaggio SI, Grillo

Spring design: Torsion spring · Length spring hook: 12.2 mm · Leg length: 25 mm · Leg length: 45 mm · Manufacturer: Made in Italy · Material: Spring steel · Diameter: 23.2 mm · Ø inside: 17.2 mm · Ø wire: 3 mm · Total length: 41.6 mm · Width: 40 mm

Main stand original | Piaggio SI Mix

Manufacturer: Piaggio · Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 225 mm · Total width of stand base (B): 210 mm · Wide receptacle (C): 85.7 mm · Ø Receptacle (D): 13.5 mm · Wide upright foot (F): 20 mm · Total height: 265 mm · Piaggio OEM number: 185869, 550594

Olympia bottom bracket bushing & pedal axle spacer tube | Piaggio SI

Manufacturer: Olympia · Material: Plastic · Color: black · Bearing type: Plain bearing · Ø inside: 16 mm · Ø outside: 25.4 mm · Total length: 15.5 mm · Piaggio OEM number: 141737
