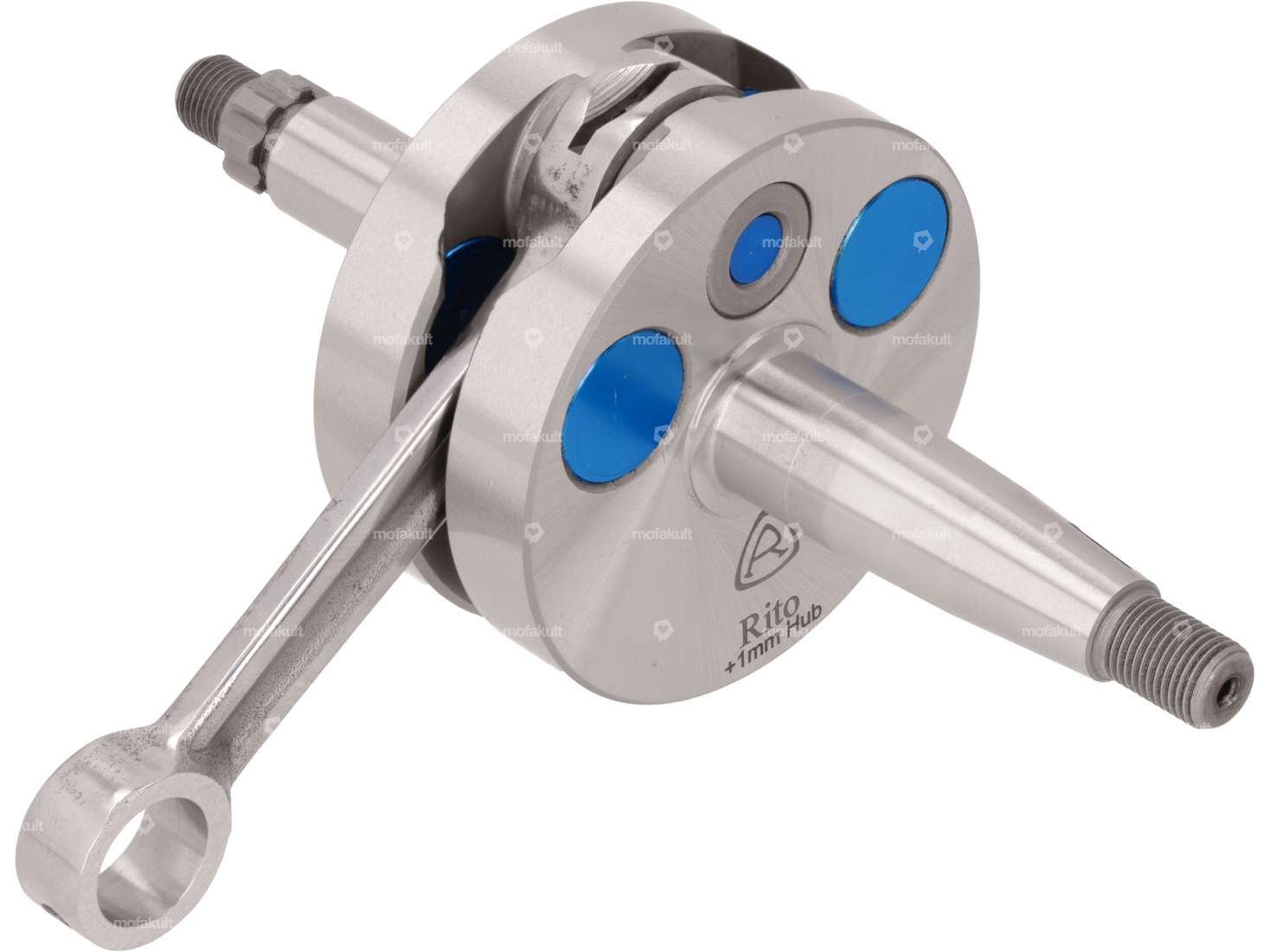

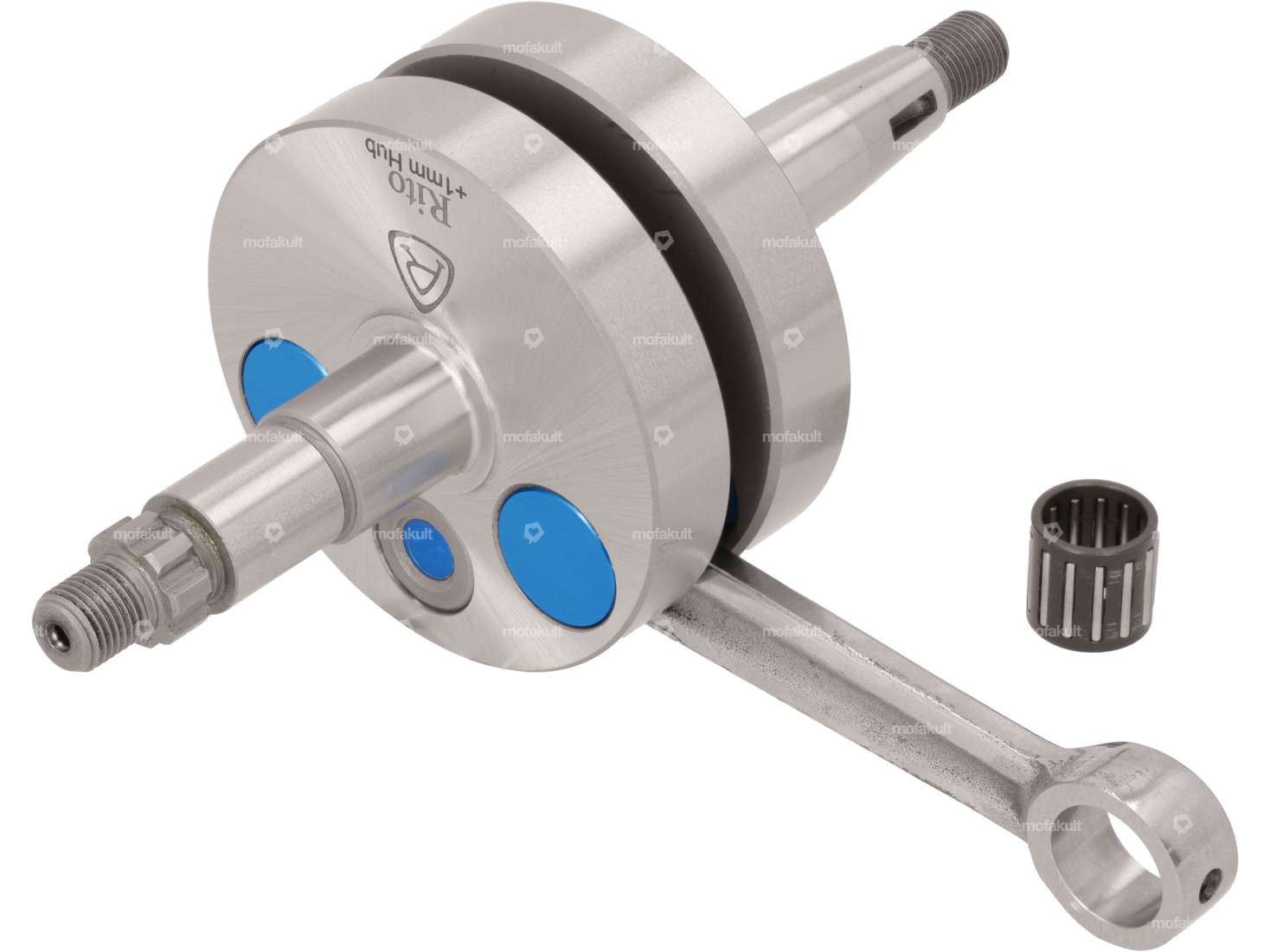

Optimized and lightened full cheek racing crankshaft suitable for manual Puch X30 NS and NL, Velux, MV50, MKII, Maxi HP2 and custom mopeds / mopeds with Z50 engines.
This special crankshaft has 1 mm more stroke and gives your engine more torque and compression to tease the last power reserves out of the cylinder. The precisely fitting, 913 gram full cheek crankshaft has proven itself in our latest test series and delivered uncompromising power.
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Manufacturer | Rito |
| Material | Steel, Aluminum |
| Area of application | High End |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Connecting rod length center-center | 90 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Weight | 913 g |
| Total length of crankpin on clutch side | 58 mm |
| Total length crankpin ignition side | 67.5 mm |
| Ø crank webs | 69.8 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 8.5 mm, 12 mm |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 19 mm |
| Length 2nd paragraph | 18.5 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 18 mm |
| Number of gears | 2 pcs |
| Alternative version of the Puch OEM number | 350.7.10.015.0, 349.1.10.215.0 |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 |
Accessories & related products
swiing® ingenious puller L17 / BO15 / E15 shoulder bearing
Width across flats trigger: 8 mm · Width across flats trigger: 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Number of components: 1 pcs · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Diameter: 24 mm · Diameter: 40.3 mm · Surface: galvanized (blue) · Total length: 120 mm · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Area of application: (Dis)assembly tool
EUR 52.10
swiing® revival spacer set crankshaft L17 | Puch Z50
Ø inside: 17.1 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 17 mm · Ø outside: 23.8 mm
EUR 10.60
Serrated lock washer M10 galvanized
Ø inside: 4.5 mm · Ø inside: 5.5 mm · Ø inside: 6.35 mm · Ø inside: 7.4 mm · Ø inside: 10.8 mm · Ø inside: 12.8 mm · Material: Steel · Surface: galvanized (blue) · Thread size: M10 · Thread size: M12 · Thread size: M4 · Thread size: M5 · Thread size: M6 · Thread size: M7 · Thread size: M8
EUR 0.35
Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C
Manufacturer: Elring · Contents: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm · Color: red · Area of application: Chemistry
EUR 27.20
EUR 388.57/l

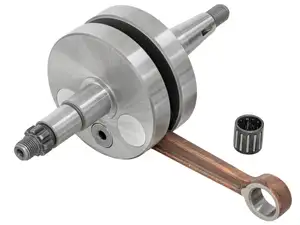

Jasil crankshaft (+2 mm stroke) | Puch X30 NS / NL & Velux (Z50)
