Product description

Spare parts catalog for the Puch Allegro models GS1, GS2 and GS2G

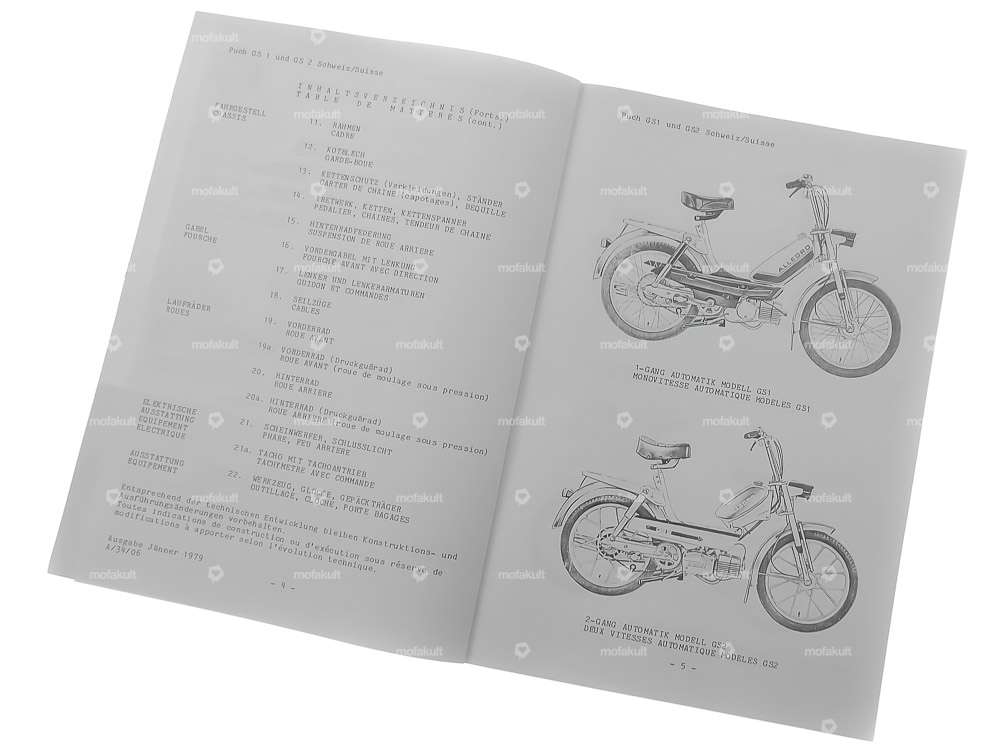

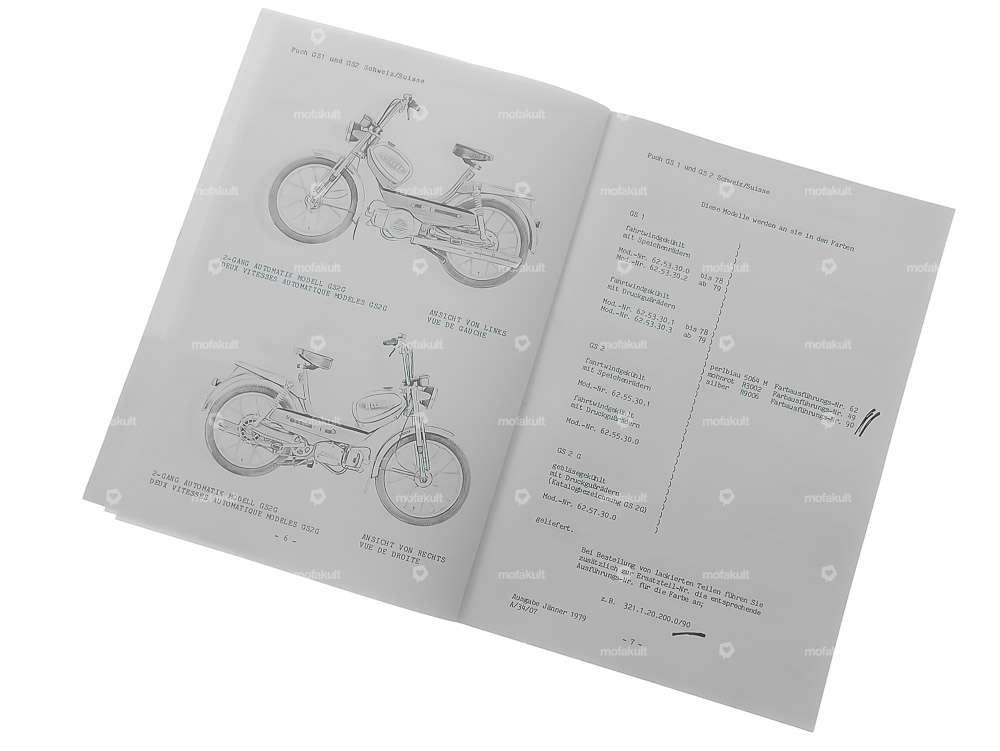

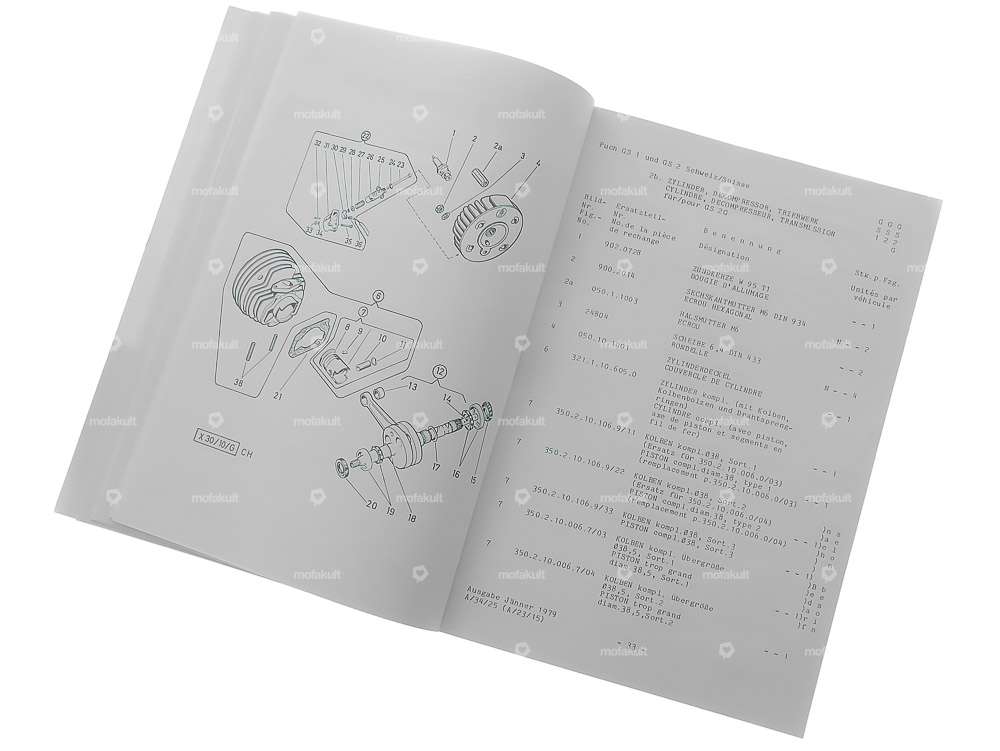

The complete moped was recorded in exploded drawings. Each individual component is provided with the quantity, spare part number and assembly location.

Super Swiss catalog from 1979 with 133 interesting pages.

Product details

Material	Paper
DIN format	A4
Number of pages	133 pcs
Language	German, French

Suitable for the following models

Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)
