For: Puch

34383

Spare parts catalog | Puch Maxi (CH)

EUR 43.80

Incl. 21% VAT.

Description

Nostalgic catalog with all exploded views and part numbers for your Puch Maxi moped / moped with 1-speed engine.

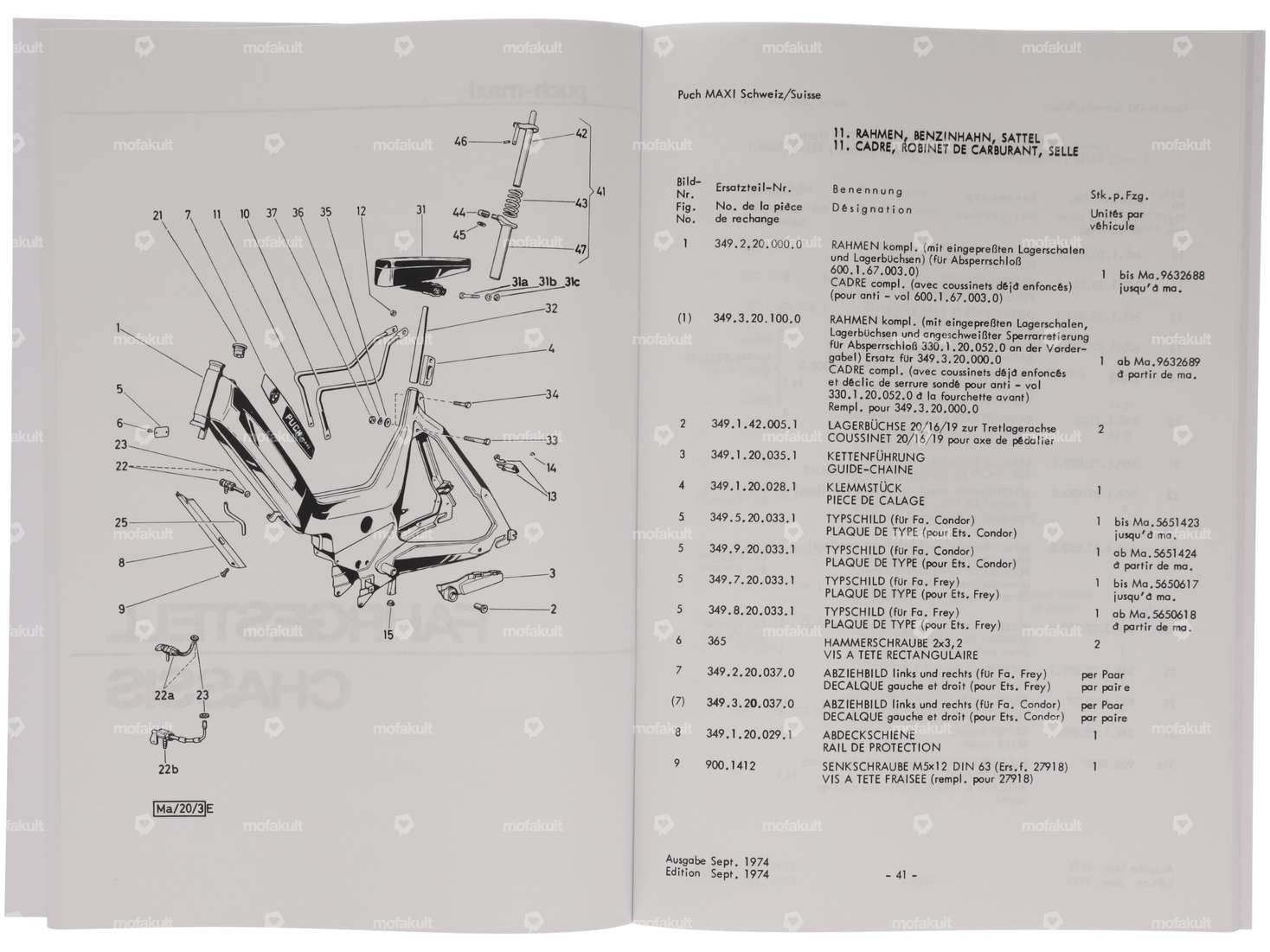

From the cylinder to the carburetor, all engine components are shown in helpful exploded views. Each individual component is provided with part number, spare part number and installation location.

MaterialPaper
DIN formatA4
Number of pages88 pcs
LanguageGerman, French
Puch

E50
