Description

Spare parts list (Austria) for Zündapp KS 50 models. The following types are described in the catalog:

530-65L1 KS 50 watercooled
530-66L1 KS 50 watercooled
530-66L2 KS 50 watercooled
530-66L3 KS 50 watercooled
530-60L1 KS 50 Sport
530-61L1 KS 50 Super Sport

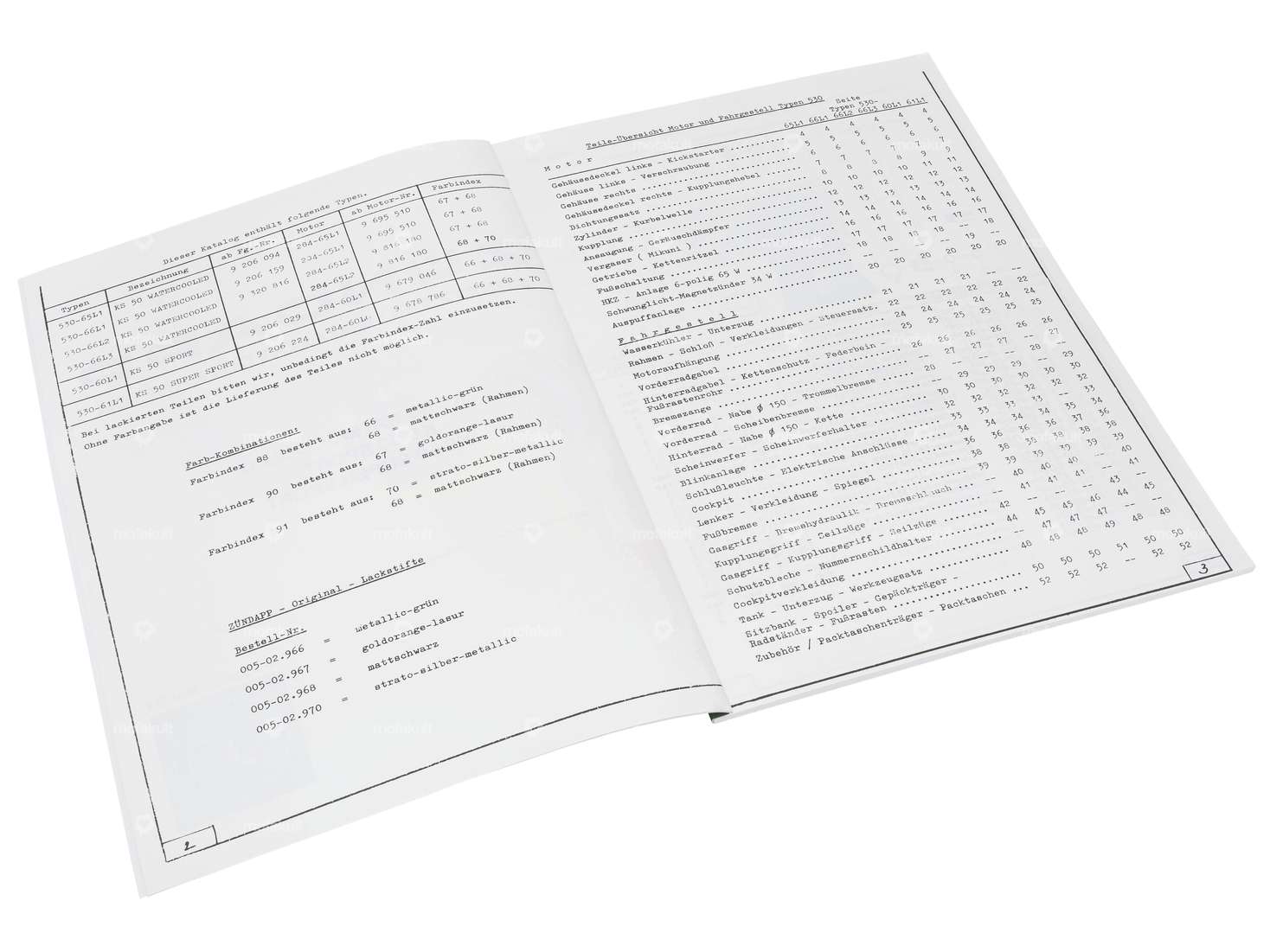

Each individual component is shown with the correct spare part number and installation location in a large number of exploded drawings.

Format: A4 (210 x 297 mm)
Pages: 52
Language: German

High-quality facsimile (reproduction) of the original edition.

Further workshop manuals, spare parts catalogs and repair instructions can be found in the accessories section.

Details

Material	Paper
Color	green
DIN format	A4
Number of pages	52 pcs
Language	German
Width	210 mm
Height	297 mm

Suitable for the following models

Zündapp

Ratings

Take a round …

Accessories & related products

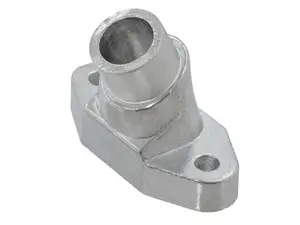

Intake manifold 15 mm Zündapp KS50, Combinette
