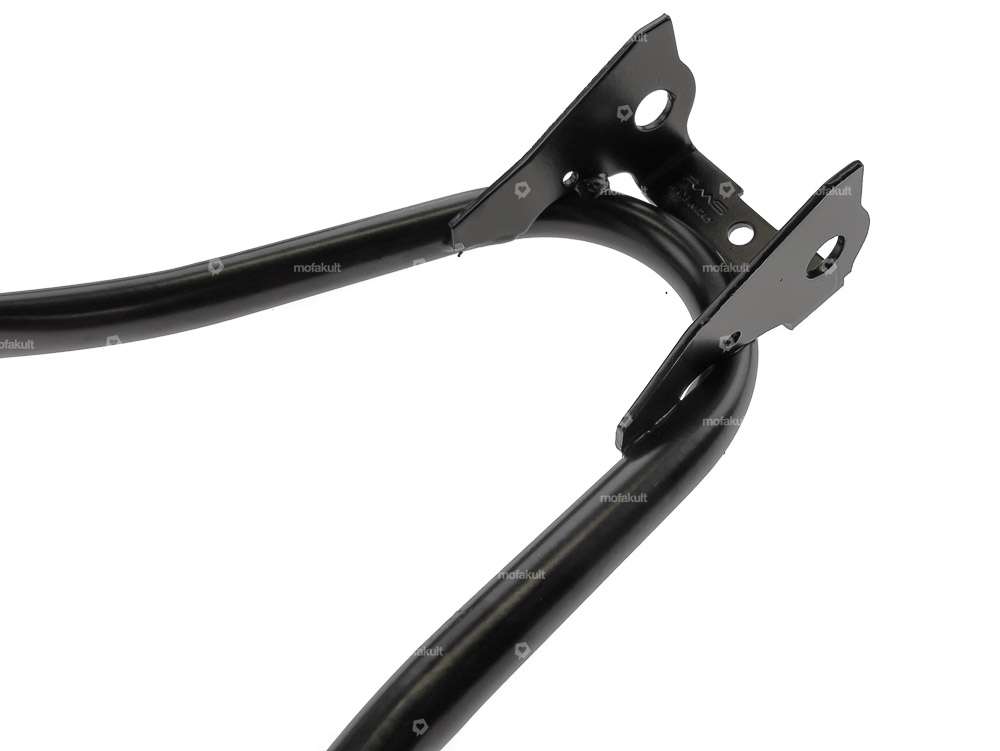

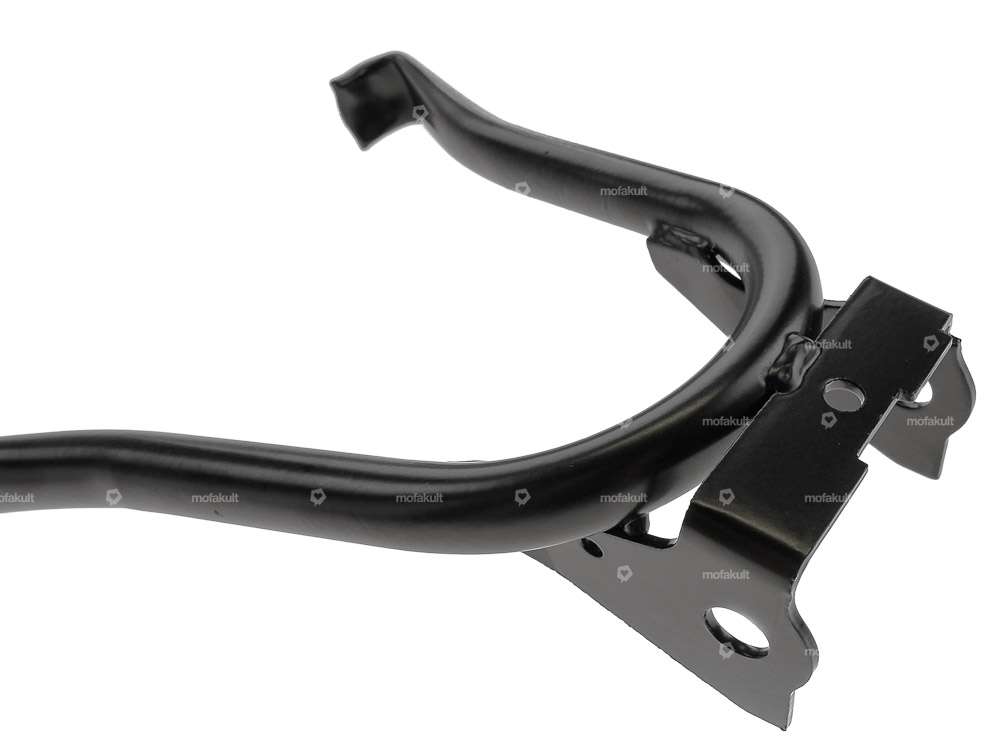

High-quality center kickstand for Piaggio Ciao mopeds / mopeds with 14 mm bolts.
This center kickstand was fitted as standard on the newer PX and C24 models.
The center rod is supplied complete with spring, bolt (Ø14x100 mm) and circlips (fuel rings).
Note: Older spoke wheel models had a 10 mm bolt. However, the hole in the P and SC models was often drilled out so that a spokes with a 14 mm axle can be fitted. Check the dimensions of the bolt before purchasing.
You can find more parts for your Piaggio Ciao as well as the main stem with 10 mm bolt in the accessories section.
A quality product made in Italy.
Original Piaggio spare part number: 25523001
Details
| Manufacturer | Made in Italy |
| Material | Steel |
| Surface | varnished |
| Color | black |

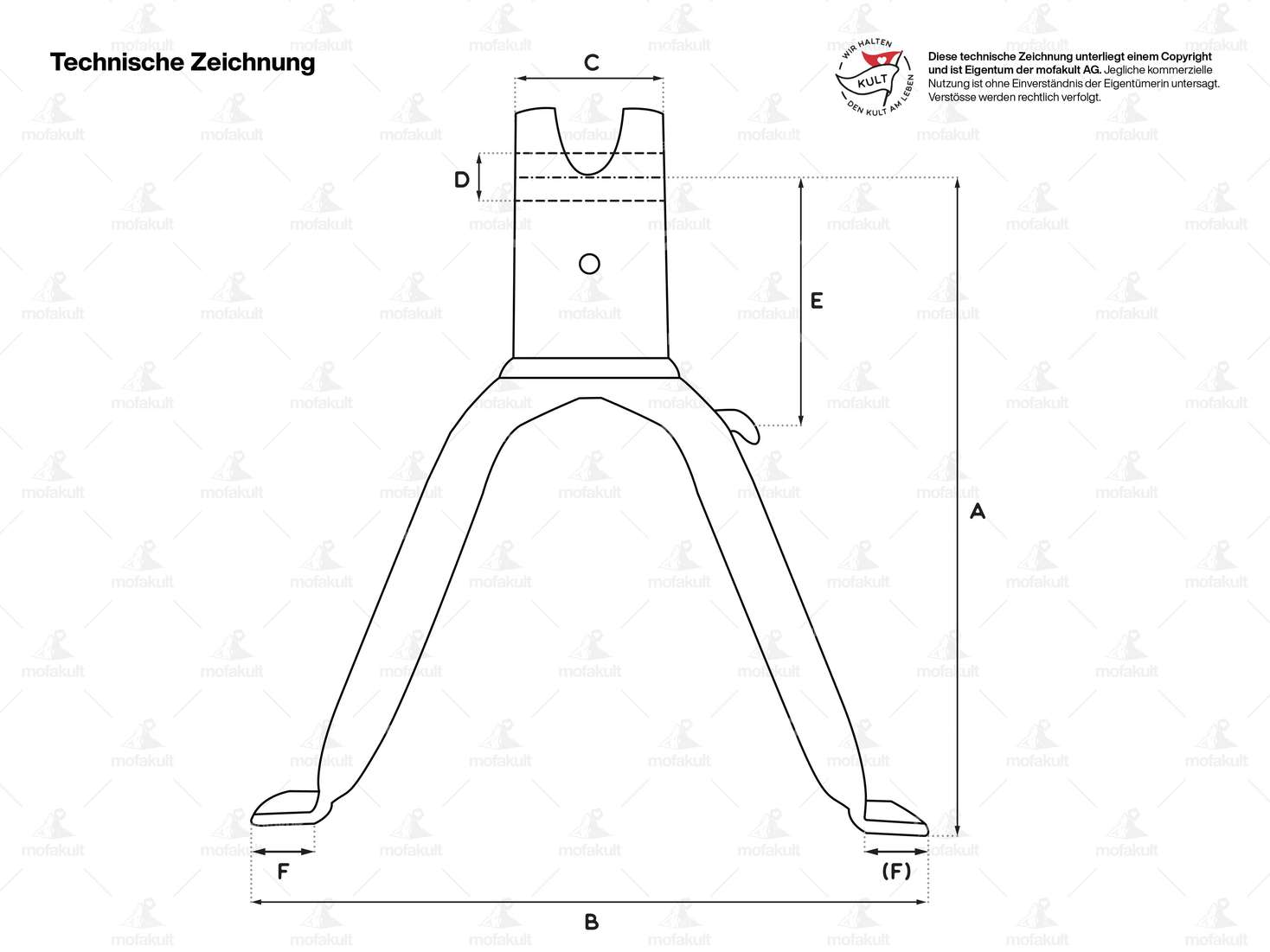

| Stand base - center mount (A) | 232 mm |
| Total width of stand base (B) | 200 mm |
| Wide receptacle (C) | 78 mm |
| Ø Receptacle (D) | 14 mm |
| Wide upright foot (F) | 20 mm |
| Total height | 250 mm |
Suitable for the following models
| Piaggio | Ciao - PX, C24 |
