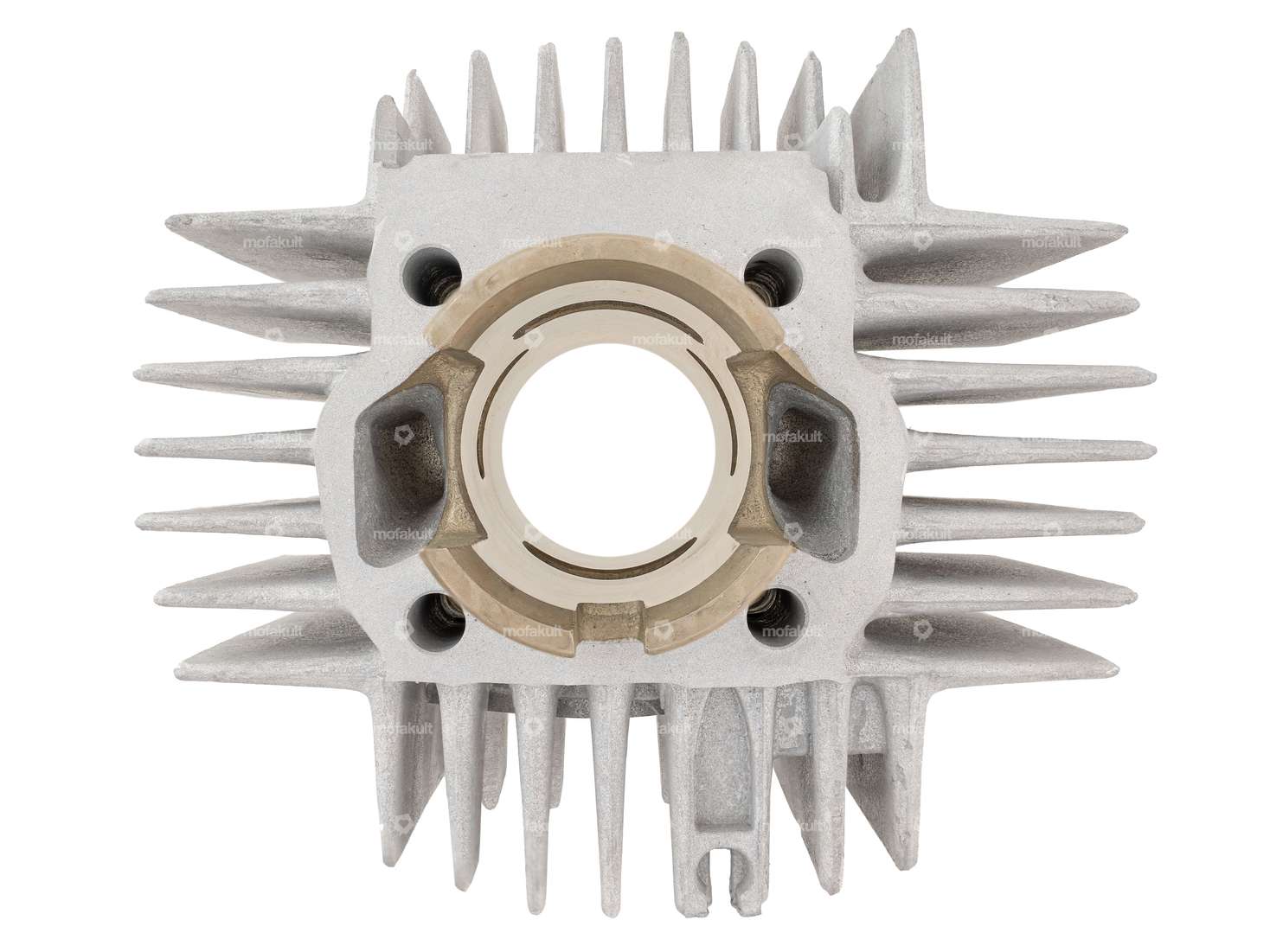

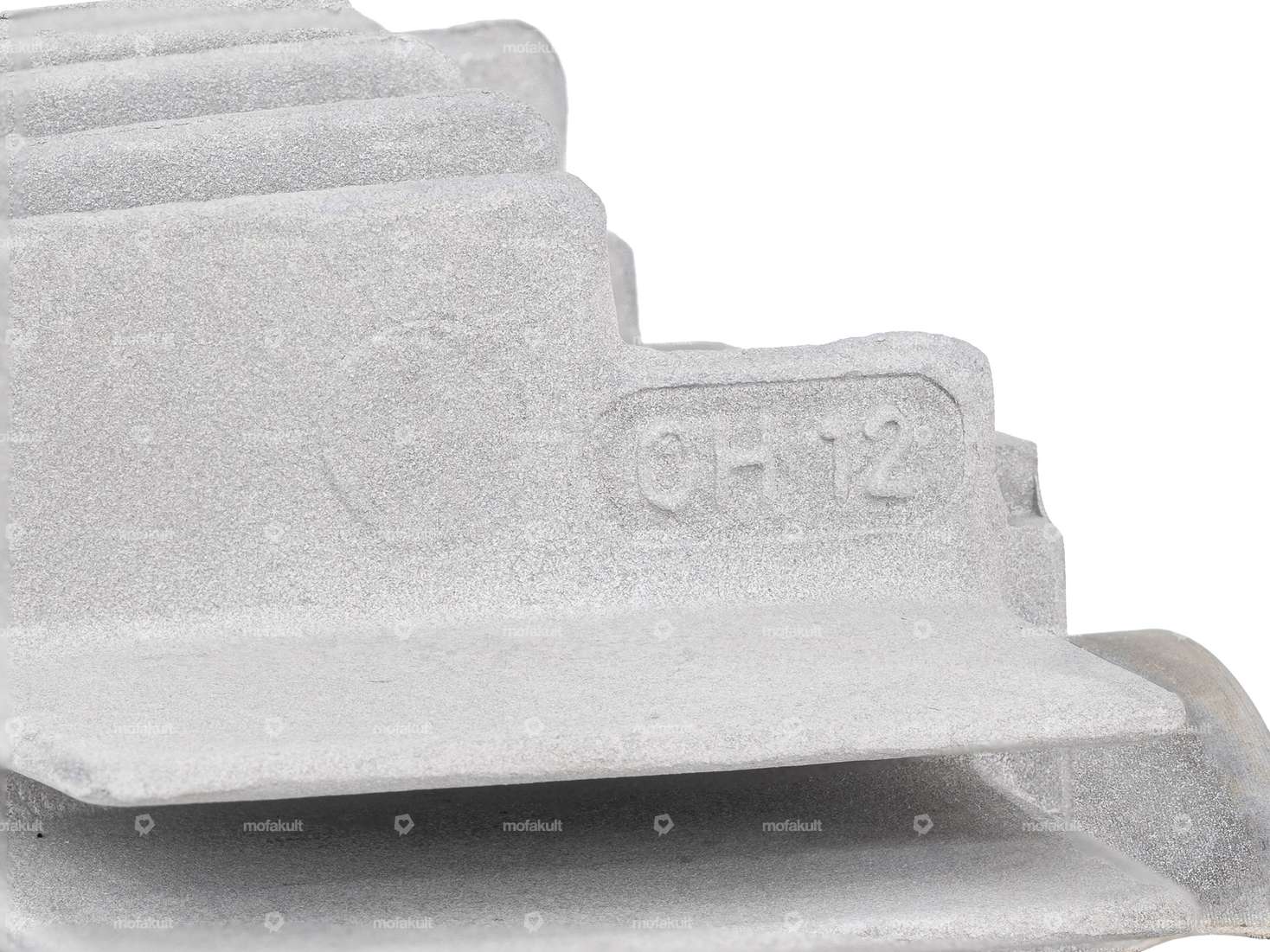

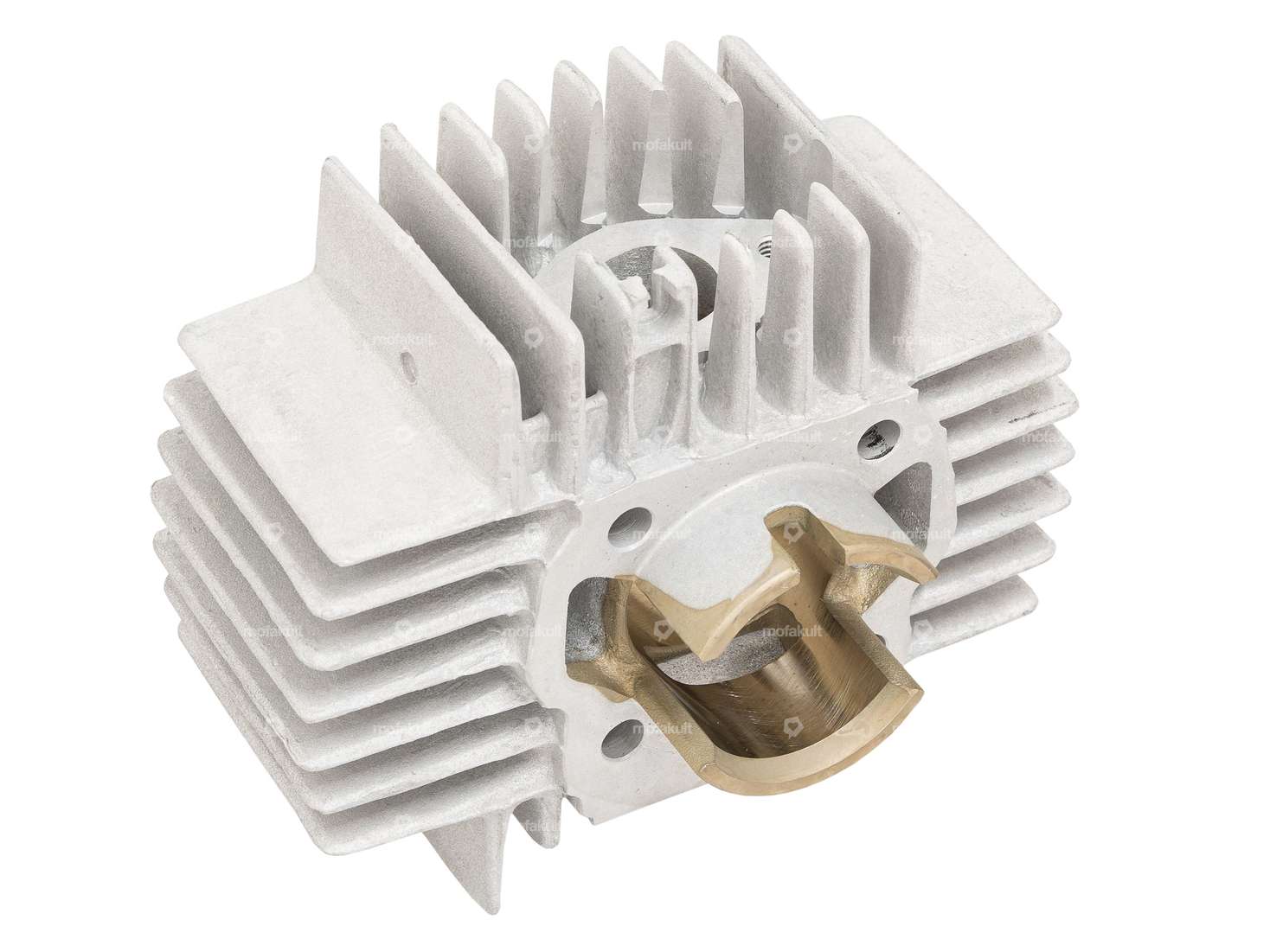

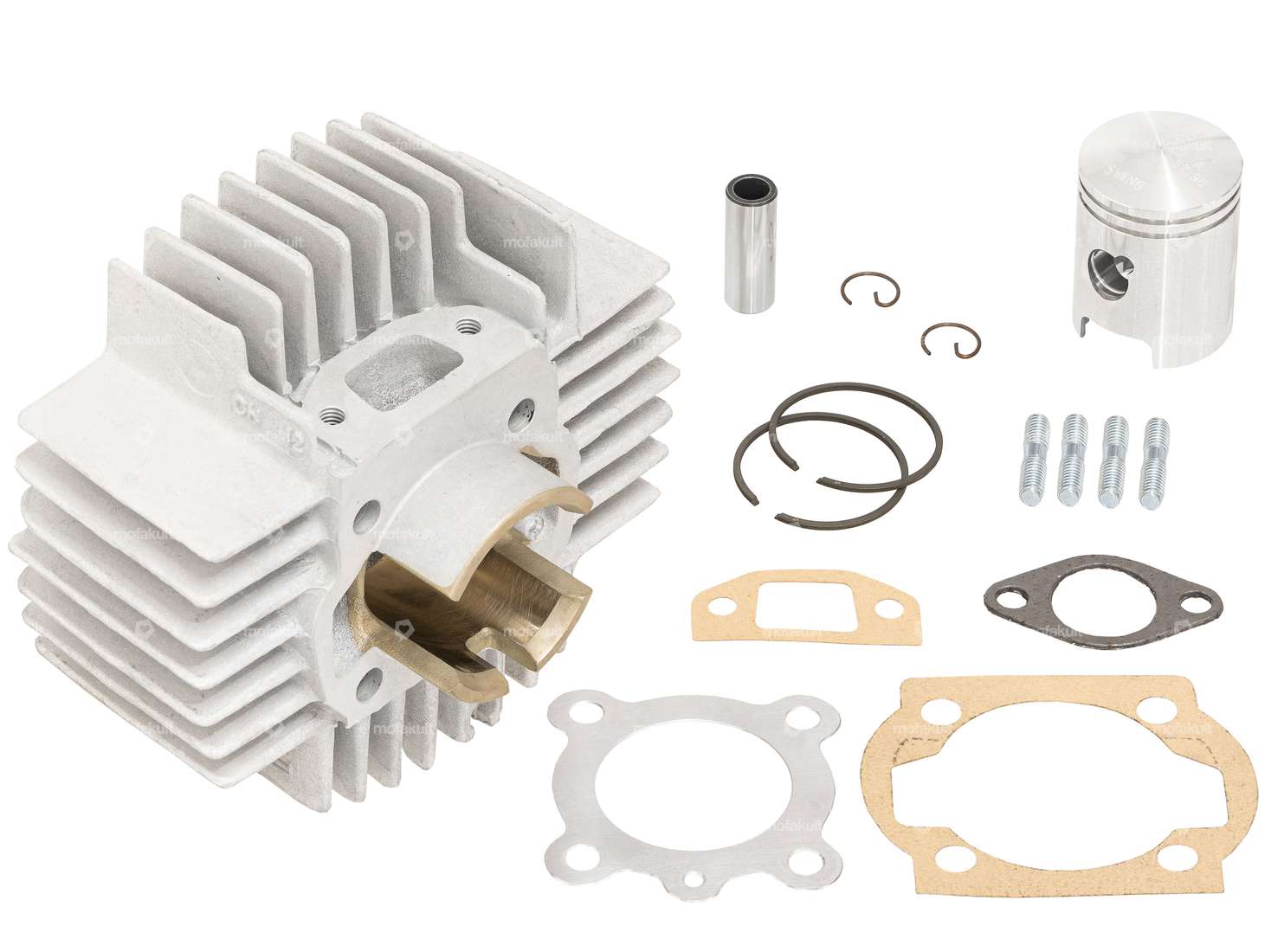

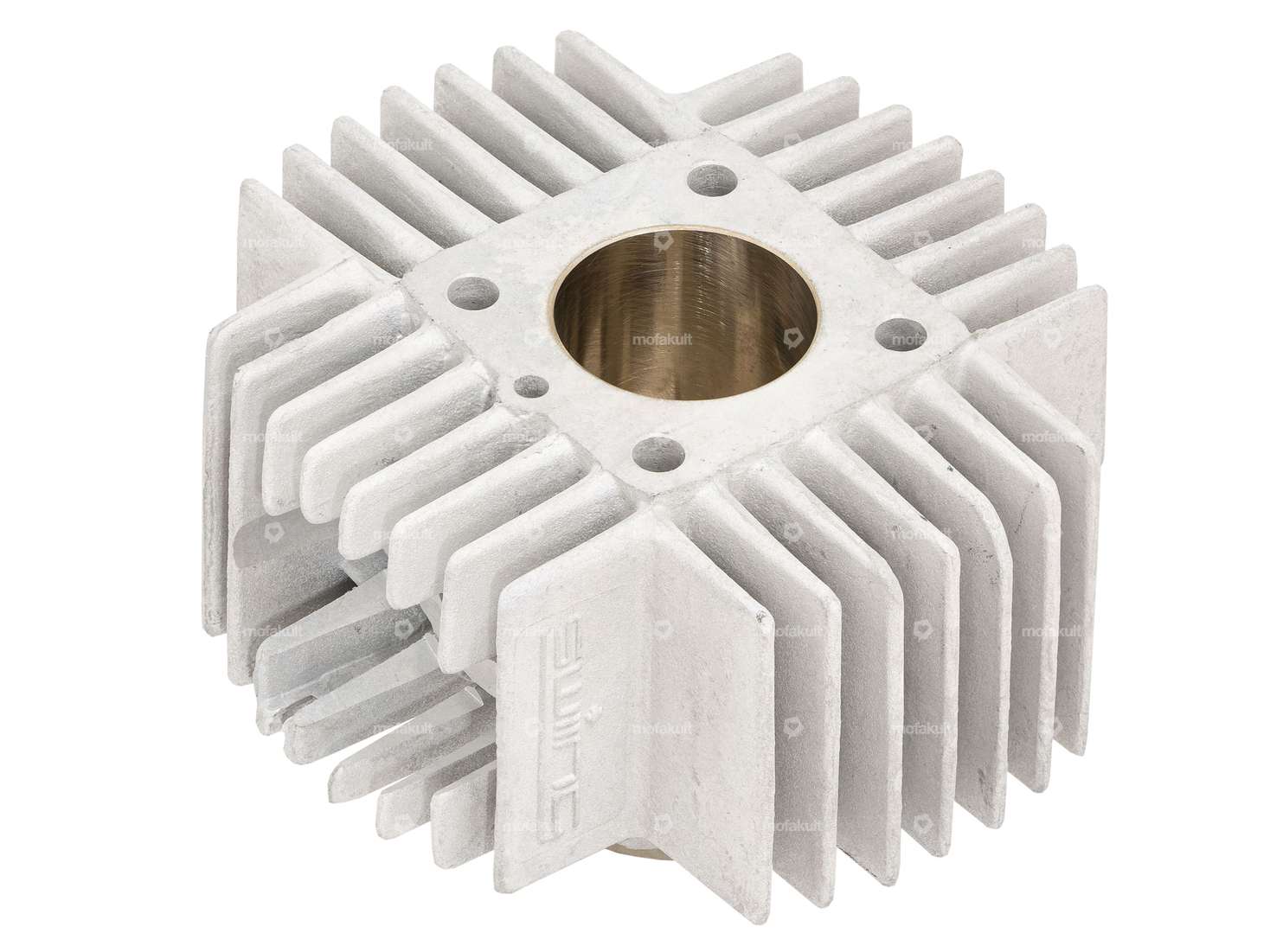

swiing® ingenious 38 mm cylinder kit (CH12 Vertex-Edition) Tuning camouflaged | Puch

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Ø cylinder: 38 mm · Total length: 135 mm · Height: 55 mm · Width: 125 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread length: 20 mm · Thread type: M6x1 (standard thread) · Puch OEM number: 360.1.10.034.1

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Area of application: Standard · Hole spacing inlet: 32 - 38 mm · Ø cylinder: 38 mm · Ø outlet inside: 20 mm · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Number of components: 4 pcs

swiing® revival piston 38 mm Vertex | Puch

Manufacturer: Vertex · Manufacturer: swiing® revival parts · Nominal diameter: 38 mm · Thick piston ring: 1.6 mm · Ø outside piston (A): 37.96 mm · Compression height (C): 22.45 mm · Curvature (D): 3.5 mm · Total piston height (E): 50.45 mm · Number of piston rings (F): 2 pcs · Piston ring impact: Flank safety device (FS) · Piston ring mold: Rectangular ring · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 71 g

BOSCH spark plug W7AC (copper electrode)

Manufacturer: BOSCH · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Electrode material: Copper · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Ø cylinder: 38 mm · Total length: 135 mm · Height: 55 mm · Width: 125 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® ingenious 15 mm carburetor camouflaged | Puch

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Tuning · Choke control: Hand choke · Carburetor type: SRE · Total length: 66 mm · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Width: 50 mm · Height: 95 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.17 · Camouflaged: Yes · Clamping screw torque (max.): 4 N/m · Alternative version of the Puch OEM number: 349.1.15.100.0 · Alternative version of the Puch OEM number: 349.2.15.800.0 · Alternative version of the Puch OEM number: 349.4.15.500.0 · Alternative version of the Puch OEM number: 349.4.15.000.0 · Alternative version of the Puch OEM number: 349.4.15.300.0 · Alternative version of the Puch OEM number: 349.6.15.400.0 · Alternative version of the Puch OEM number: 349.7.15.700.0 · Alternative version of the Puch OEM number: 349.8.15.400.0 · Alternative version of the Puch OEM number: 349.9.15.300.0

swiing® ingenious 15 mm intake manifold camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Ø inside: 15 mm · Total length: 46 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53 mm · Height flange center hole: 43 mm · Camouflaged: Yes · Puch OEM number: 349.2.15.330.1 · Puch OEM number: 349.2.15.130.1

swiing® ingenious 15 mm carburetor set camouflaged | Puch E50

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Component group Carburetor: Carburetor complete · Area of application: Tuning · Choke control: Hand choke · Carburetor type: SRE · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Hole spacing inlet: 38 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Camouflaged: Yes · Clamping screw torque (max.): 4 N/m

GPO 38 mm cylinder head Racing high-compression | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 38 mm · Total length: 135 mm · Height: 55 mm · Width: 125 mm · Ø screw holder: 7.4 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 45 x 45 · Candle thread: short · Decompressor: No
