For: Sachs

27103

swiing® ingenious 38 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

rating iconrating iconrating iconrating iconrating icon
No reviews

Please select a variant

EUR 178.60

Incl. 21% VAT.

Description

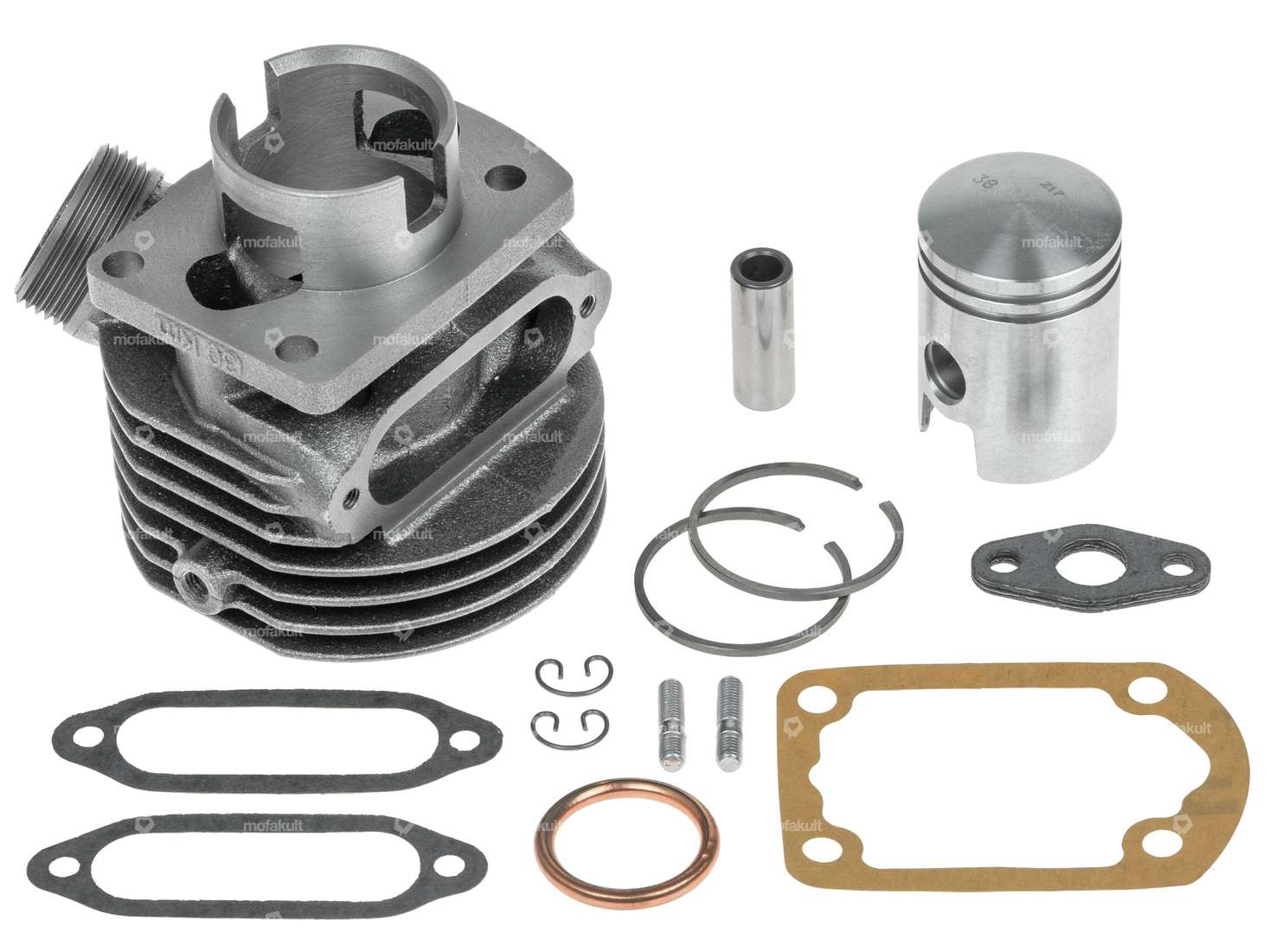

38 mm tuning cylinder kit with reed valve inlet suitable for Swiss Sachs 50/2 (colloquially also 502) mopeds / mopeds.

With optimized timing and larger overflow channels, this optically original cylinder helps your oldie to regain its former freshness.

The cylinder kit is characterized by the following attributes:

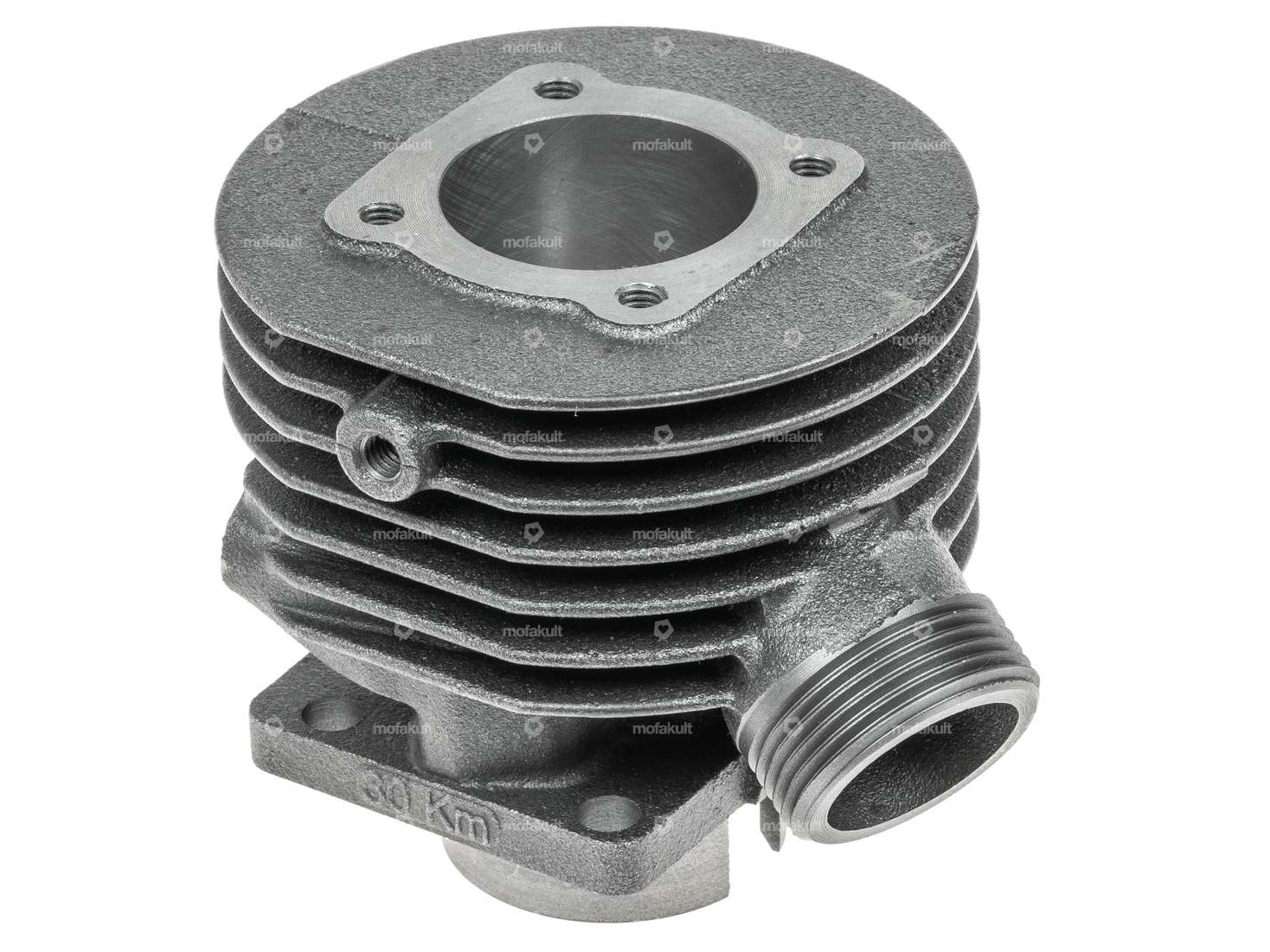

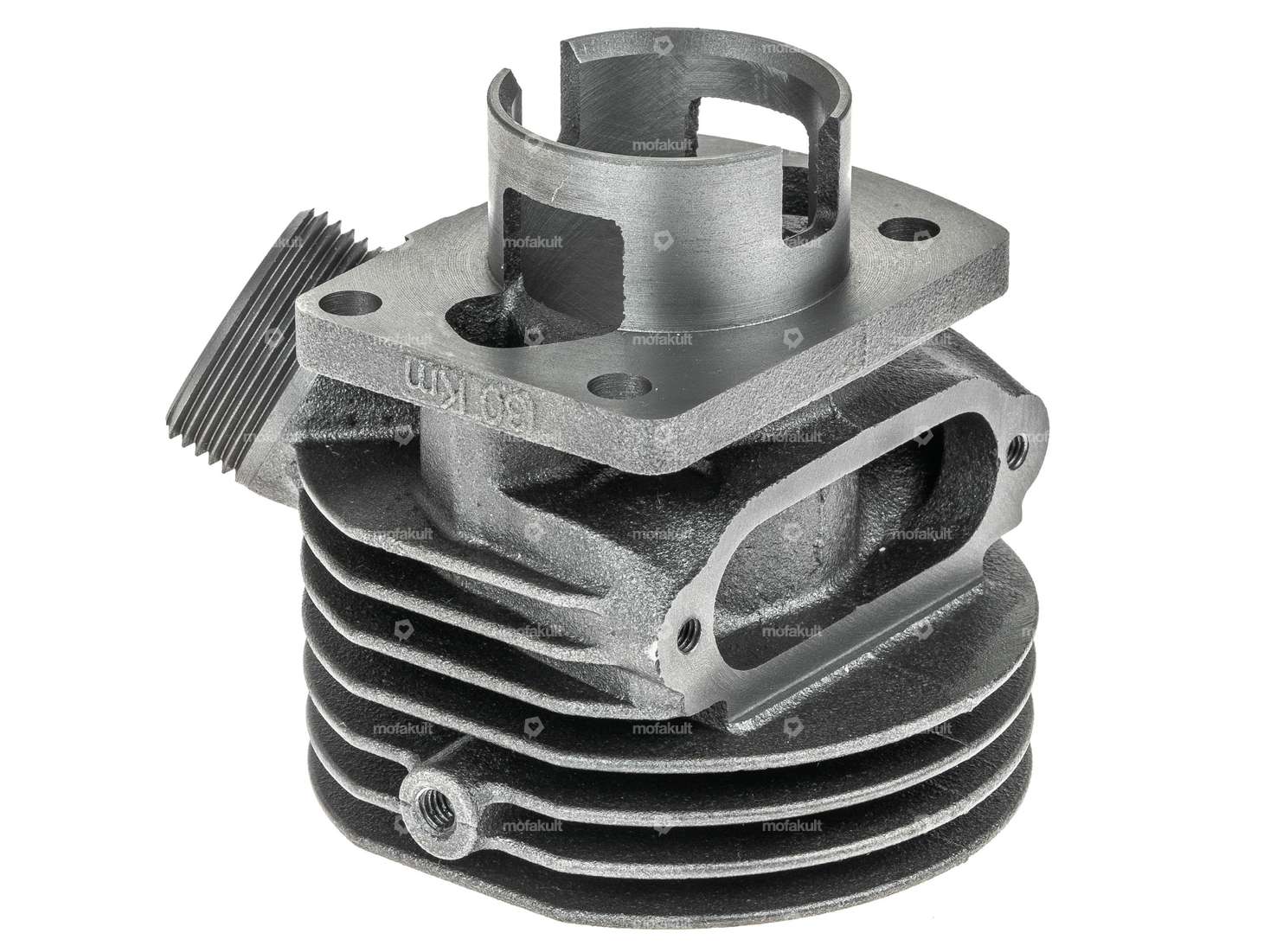

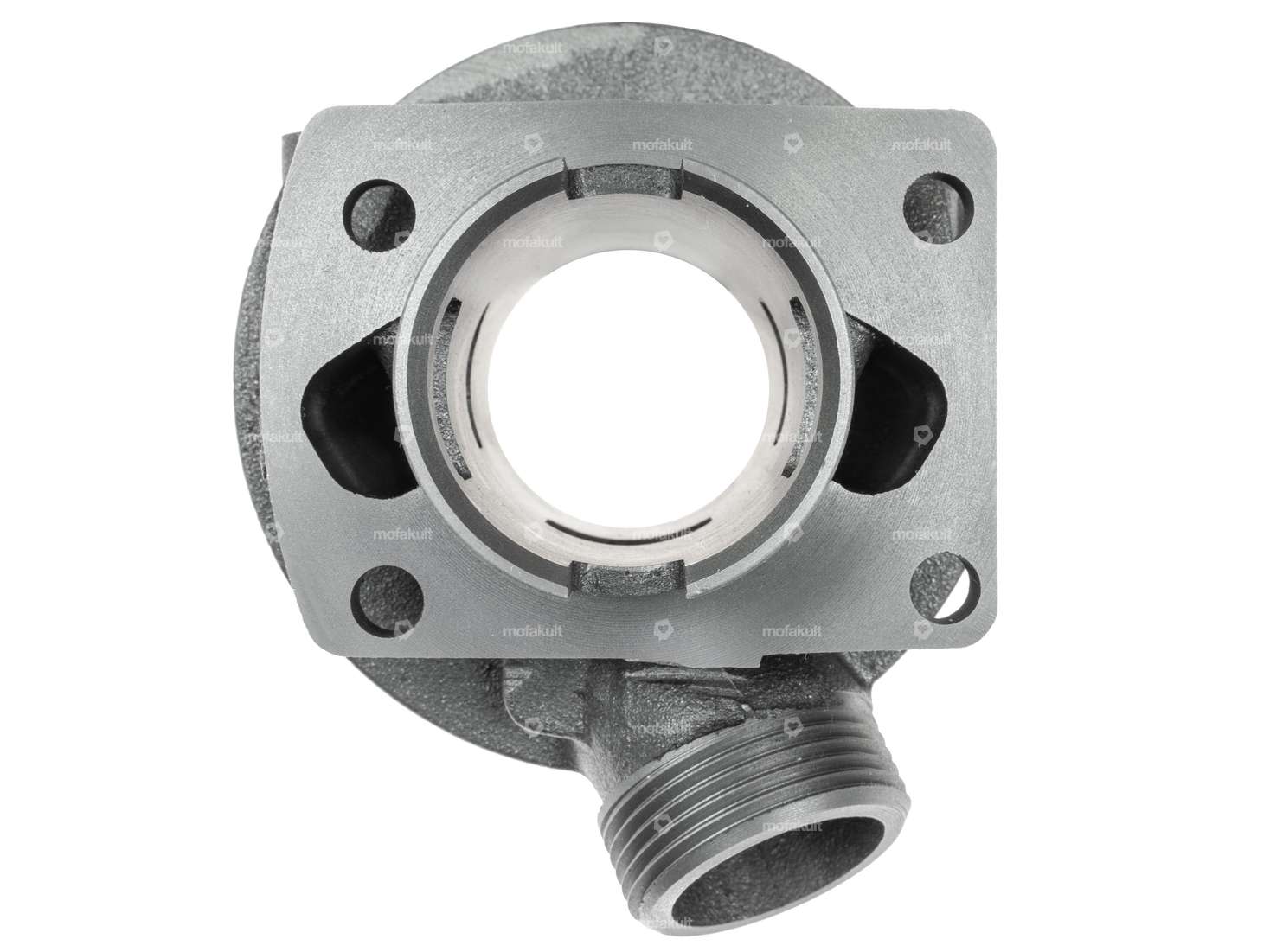

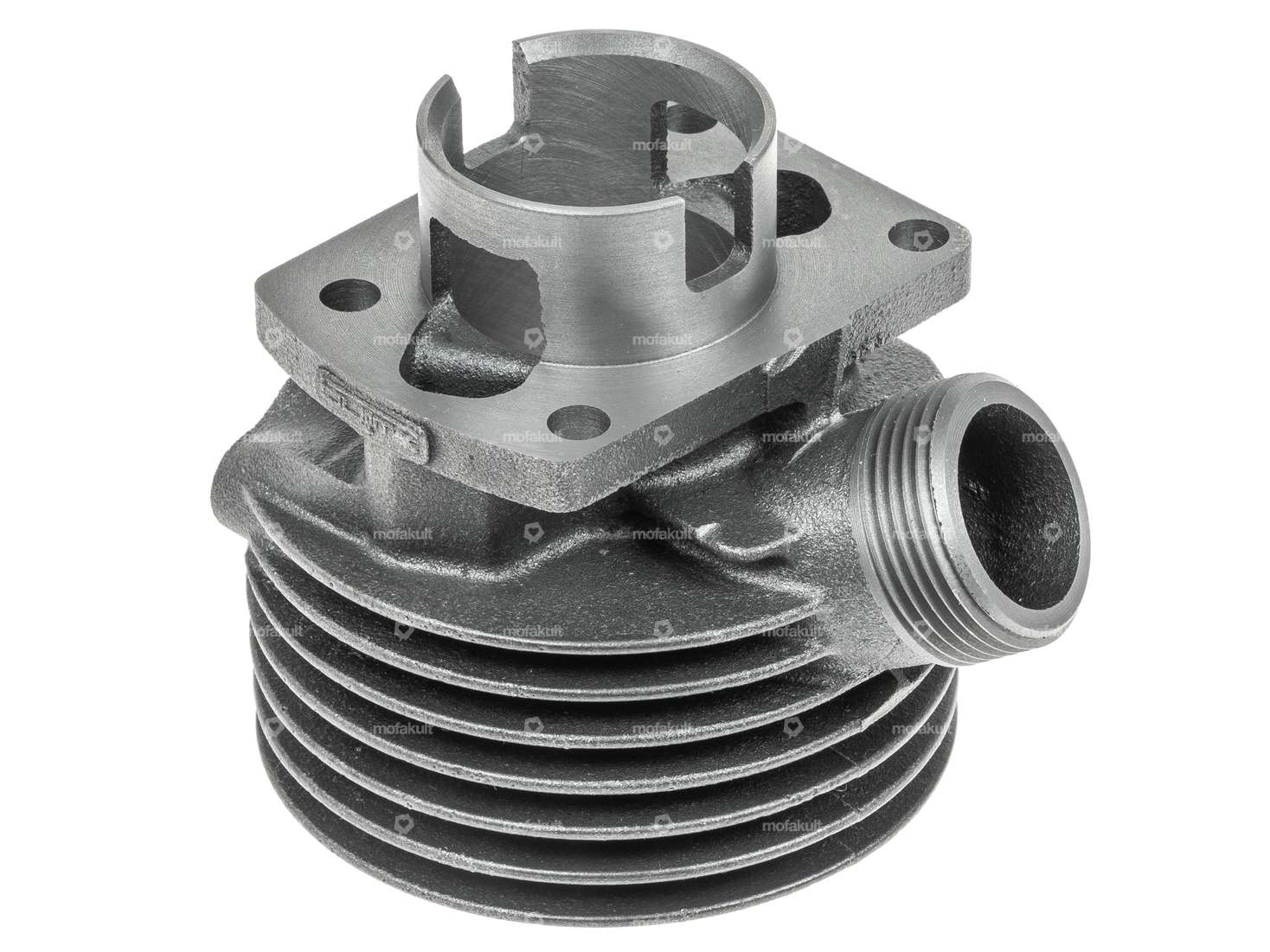

  • Cast iron cylinder with 38 mm bore
  • Membrane control
  • Optimized overflow channels
  • improved control times
  • pore-clean surface

Suitable add-on parts and the more powerful 41 mm tuning cylinder can be found under accessories


Exhaust thread: M35 x 2 mm

Please select in the selection field whether you would like the cylinder kit with or without gasket set.

Exclusive product for the highest demands of the quality brand swiing®.

swiing® ingenious 38 mm cylinder diaphragm | Sachs 50/2 (CH)

swiing® ingenious 38 mm cylinder diaphragm | Sachs 50/2 (CH)

27101

Hole pattern [mm]: 59 x 40 / 37 x 37 · Inlet window: 58 x 19 · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Surface: raw · Displacement: 50 ccm · Nominal diameter: 38 mm · Ø cylinder neck: 43.8 mm · Ø outlet inside: 25.8 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 66.5 mm · Outlet type: slanted · Thread outlet: M35x2 (standard thread) · Number of fixing points: 8 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning

Meteor piston 38 mm | Sachs 50/2, 503 (A2772)

For: Sachs

Meteor piston 38 mm | Sachs 50/2, 503 (A2772)

11667

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Pony OEM number: A2772, A4358 · Sachs OEM no.: 0286 377 010, 0286 378 005 · Weight piston kit: 79 g

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

For: Sachs

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

16088

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm, 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101, 0640 016 102

Quantity: 2

Manufacturerswiing® ingenious parts, Meteor
MaterialGray cast iron
CamouflagedYes
Surfacesandblasted
Displacement50 ccm
Crankshaft stroke42 mm
Nominal diameter38 mm
Number of fixing points4 pcs
Ø piston pin (B)12 mm
Area of applicationTuning
Thread inletM5x0.8 (standard thread)
Outlet typeUnion nut
Thread outletM35x2 (standard thread)
Hole pattern [mm]60 x 40 / 37 x 37
Hole spacing inlet31 mm
Sachs

502 (Saxonette) - AML

50/2 - ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)
