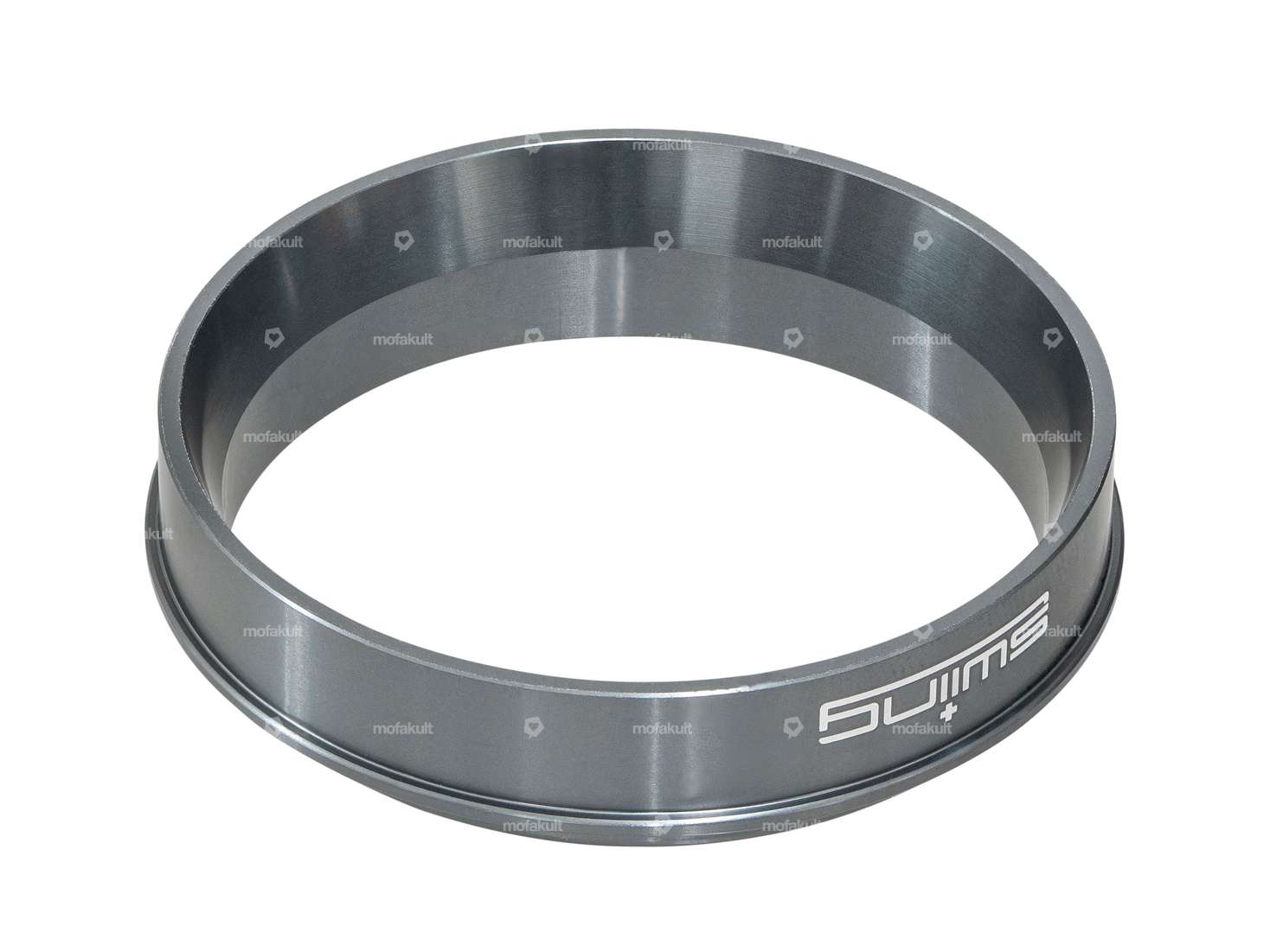

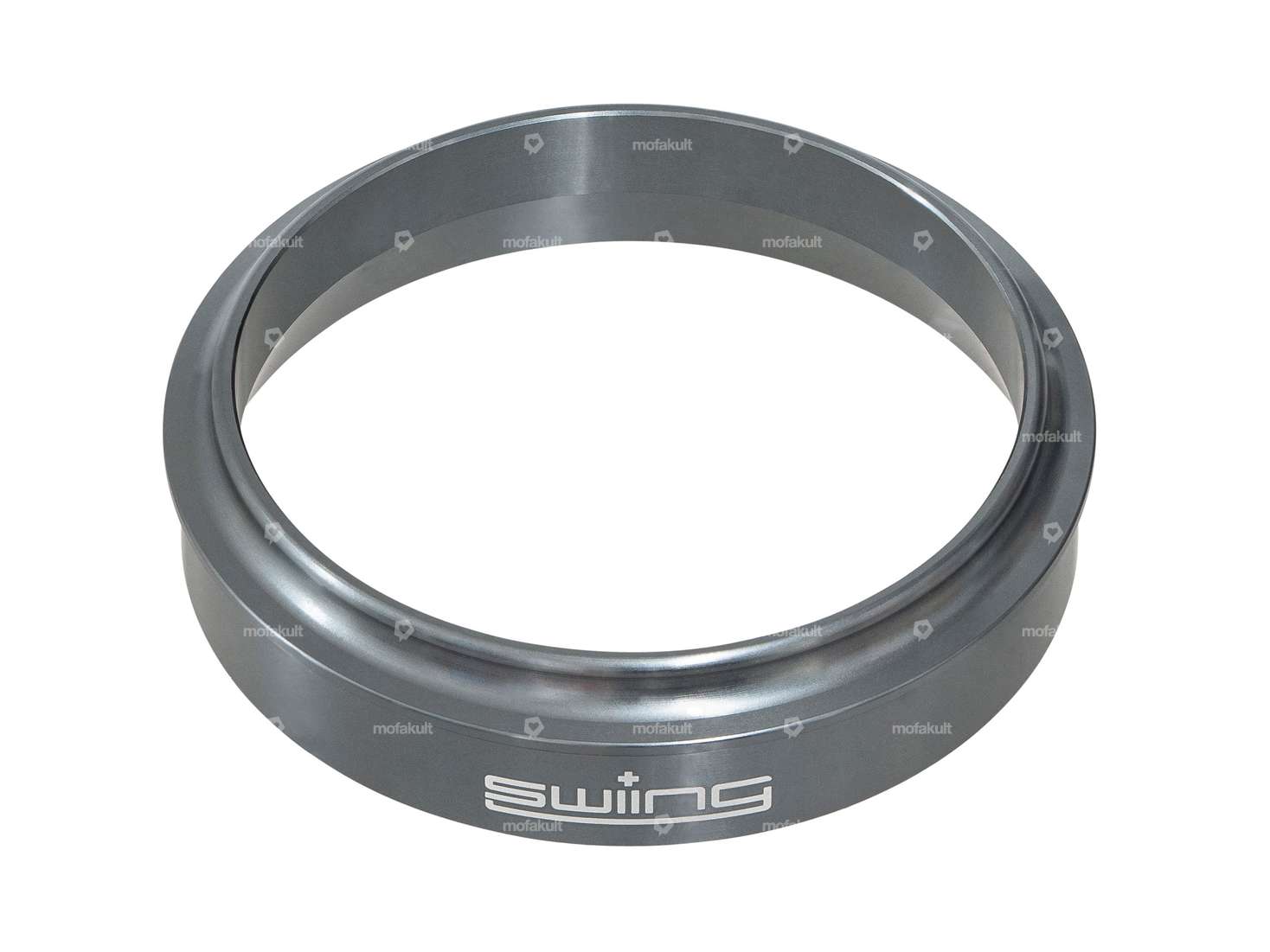

Special aluminum flange, nickel-plated, to mount a larger carburetor on Pony / Cilo Beta 521 mopeds / mopeds.
This ring can be glued to conventional SHA 9 - 13 mm carburetors from Dell'Orto.
Dimension of the ring:
Ø inside: 51 mm
Ø outside: 59 mm
Length: 14 mm
Attention: To be able to mount the carburetor with the original air filter box, the flange must be glued on with Loctite 638 and an air filter mat must be inserted in the air filter box. It is no longer possible to fit the air filter screen!
You can find the attachment parts under accessories.
Exclusive product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | nickel-plated |
| Ø inside | 51 mm |
| Mounting type | glue |
| Ø outside | 59 mm |
| Total length | 14 mm |
| Universal | |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (engine) |
Ratings
Accessories & related products
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Drive: Slot · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread)
EUR 24.10
Loctite 638 Joining shaft-hub high-strength 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: green · Contents: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
EUR 25.30
EUR 2’530.00/l
Dell'Orto 12/10 SHA carburetor (replacement) | Pony Beta 521
Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Choke control: Hand choke · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Total length: 45 mm · Width: 60 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Height: 96 mm · Ø without reducing sleeve: 19 mm · Nozzle size: 37 · Ø Inside entrance: 10 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø Internal connection: 16 mm · Mixed oil connection: No · Vacuum connection: No · Mounting type: Plug connection clamped · Area of application: Tuning
EUR 74.80
Moped fans also bought
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Drive: Slot · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread)
EUR 24.10
NGK B8ES spark plug long thread
Thread type: MF14x1.25 (fine pitch thread) · Manufacturer: NGK · Candle designation: B8ES · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm
EUR 7.50
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Component group Carburetor: Carburetor complete · Color: black · Width: 60 mm · Carburetor type: SHA (Piaggio) · Height: 96 mm · Nozzle size: 66 · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 50.8 mm · Total length: 46 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No
EUR 69.10
GPO mushroom air filter grille Dell'Orto SHA carburetor
Manufacturer: GPO · Material: Metal · Material: Rubber · Area of application: Tuning · Color: Chrome · Color: black · Ø outside: 87 mm · Filter type: Grille · Length rubber part: 17 mm · Length of filter section: 29.4 mm · Ø Internal connection: 60 mm · Mounting type: Bride · Mounting type: Plug connection clamped · Total length: 46.4 mm · Camouflaged: No
EUR 19.50
Hot
Airsal 43.5 mm cylinder kit Beta | Cilo Cross 521 / 512, Pony Cross 521, Pony GTX 521
Nominal diameter: 43.5 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 57 ccm · Crankshaft stroke: 39 mm · Ø cylinder neck: 45.5 mm · Ø Outlet outside: 18 mm · Ø Outlet outside: 21 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 38 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 48 · Camouflaged: No · Area of application: Tuning
EUR 230.50
Hot
SIS Tuning Exhaust | Pony / Cilo Beta 521
Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Ø outside: 60 mm · Total length: 780 mm · Color: Chrome · Color: black · Ø Silencer: 60 mm · Ø Internal connection: 19 mm · Ø Flame tube outside: 22 mm · Exhaust type: Cigar · Mounting type: Welded lug · Number of fixing points: 2 pcs · Flame tube attachment: Flange
EUR 149.80
Dell'Orto 12/10 SHA carburetor hand choke
Nominal diameter: 10 mm · Nominal diameter: 12 mm · Manufacturer: Dell'Orto · Total length: 55 mm · Width: 60 mm · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA (Piaggio) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Height: 111 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 37 · Area of application: Original · Area of application: Tuning
EUR 74.80

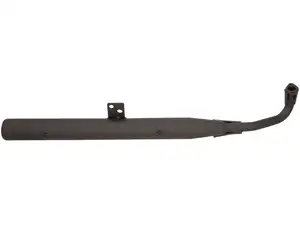

SITO "Diablo" racing exhaust | Pony / Cilo Beta 521
