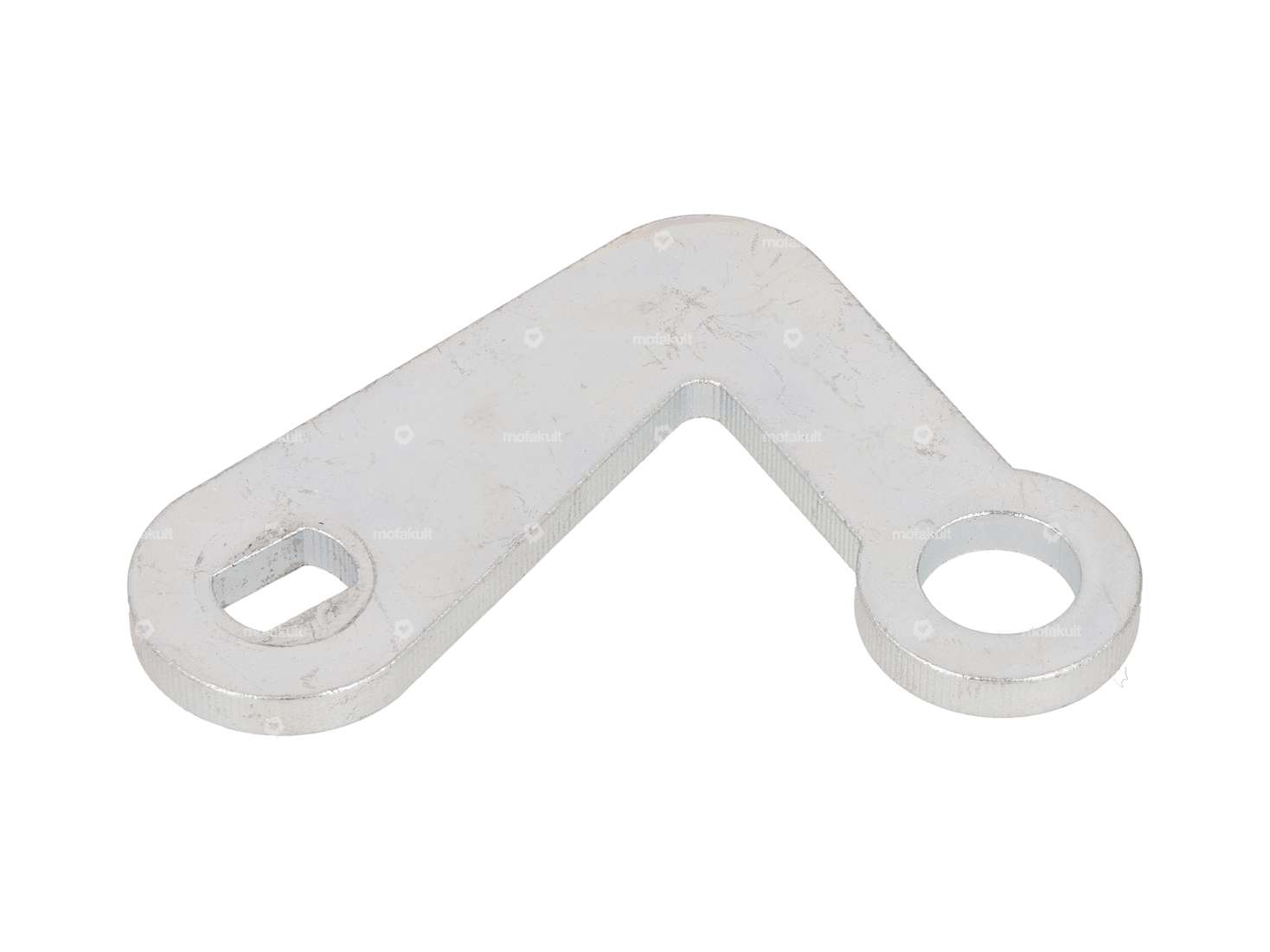

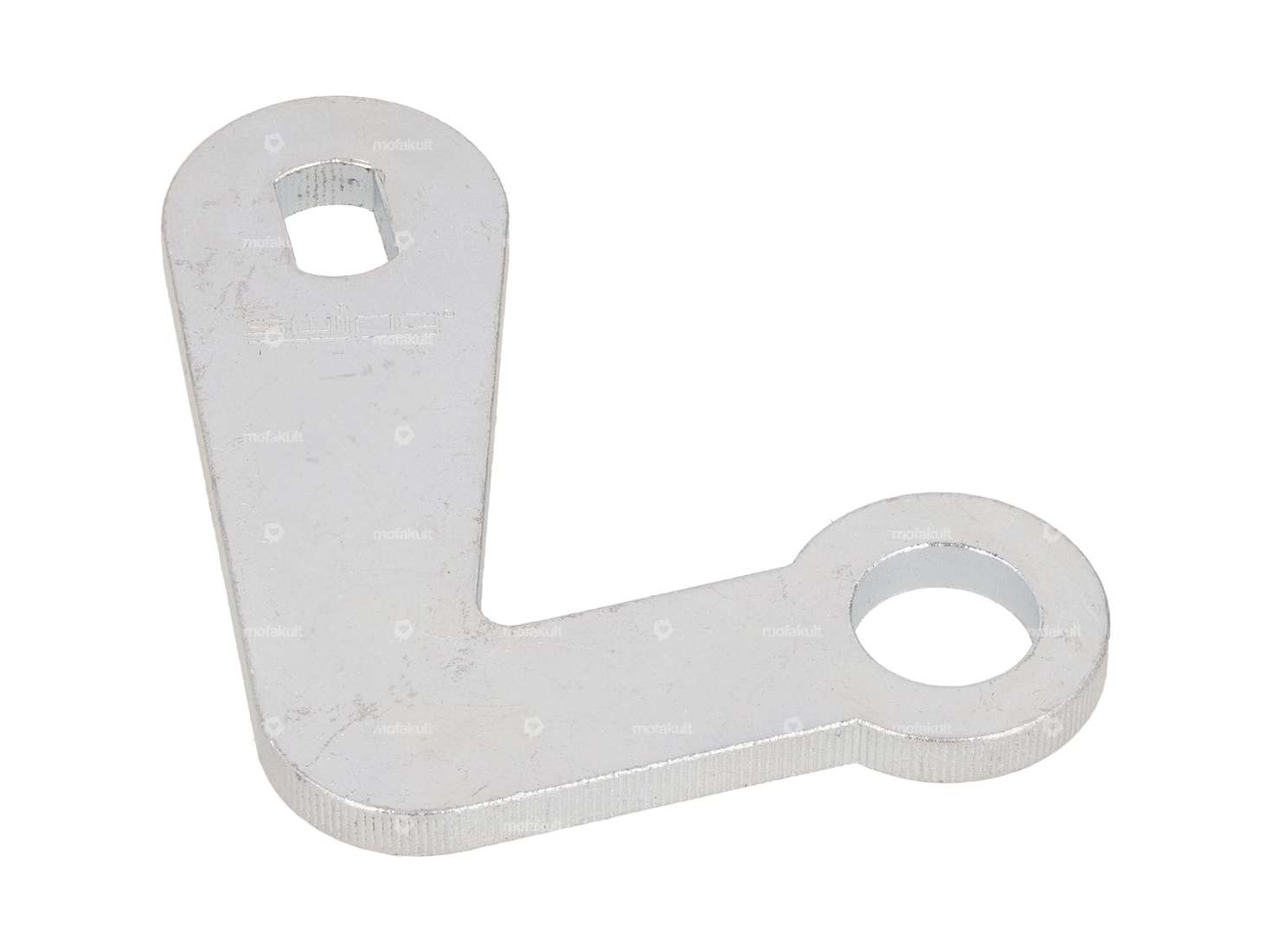

Special brake lever made of galvanized steel to fit the front brake on all Piaggio Ciao mopeds / mopeds that are equipped with a telescopic fork from EBR.
A known problem with telescopic forks from EBR is that the original brake lever of the front brake is in contact with the fork leg and therefore the braking effect cannot be fully developed or does not take place at all.

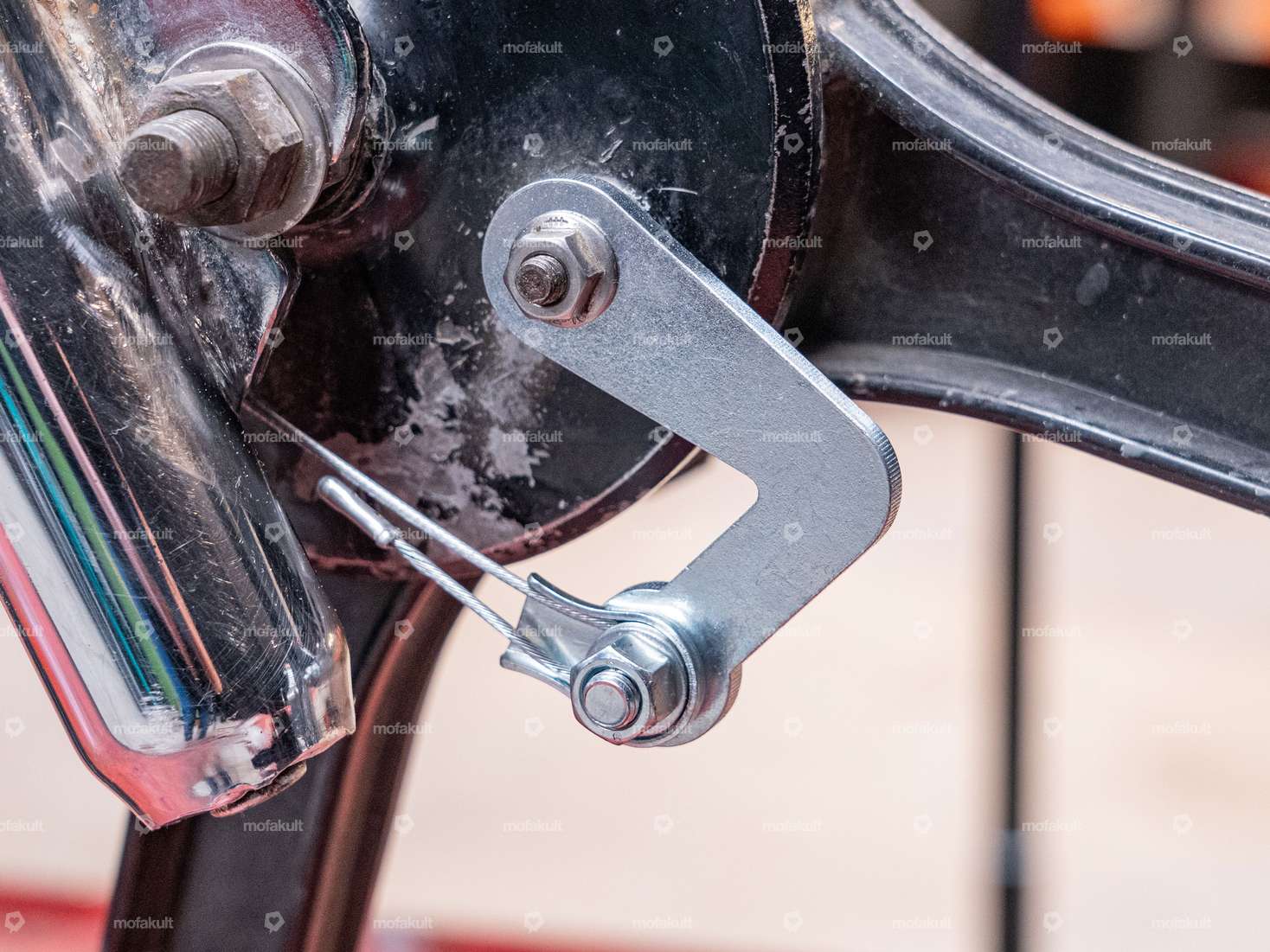

This special brake lever arm solves this problem. Thanks to its unusual shape, the brake cable is pulled at an angle of almost 90 degrees to the pivot point, which guarantees full braking power. The special steel composition is extremely resistant and guarantees long, continuous braking performance.
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Place of use | Brake anchor plate |
| Total length | 60 mm |
| Thickness | 4 mm |
| Piaggio | Ciao - P, SC, PX, C24 |
