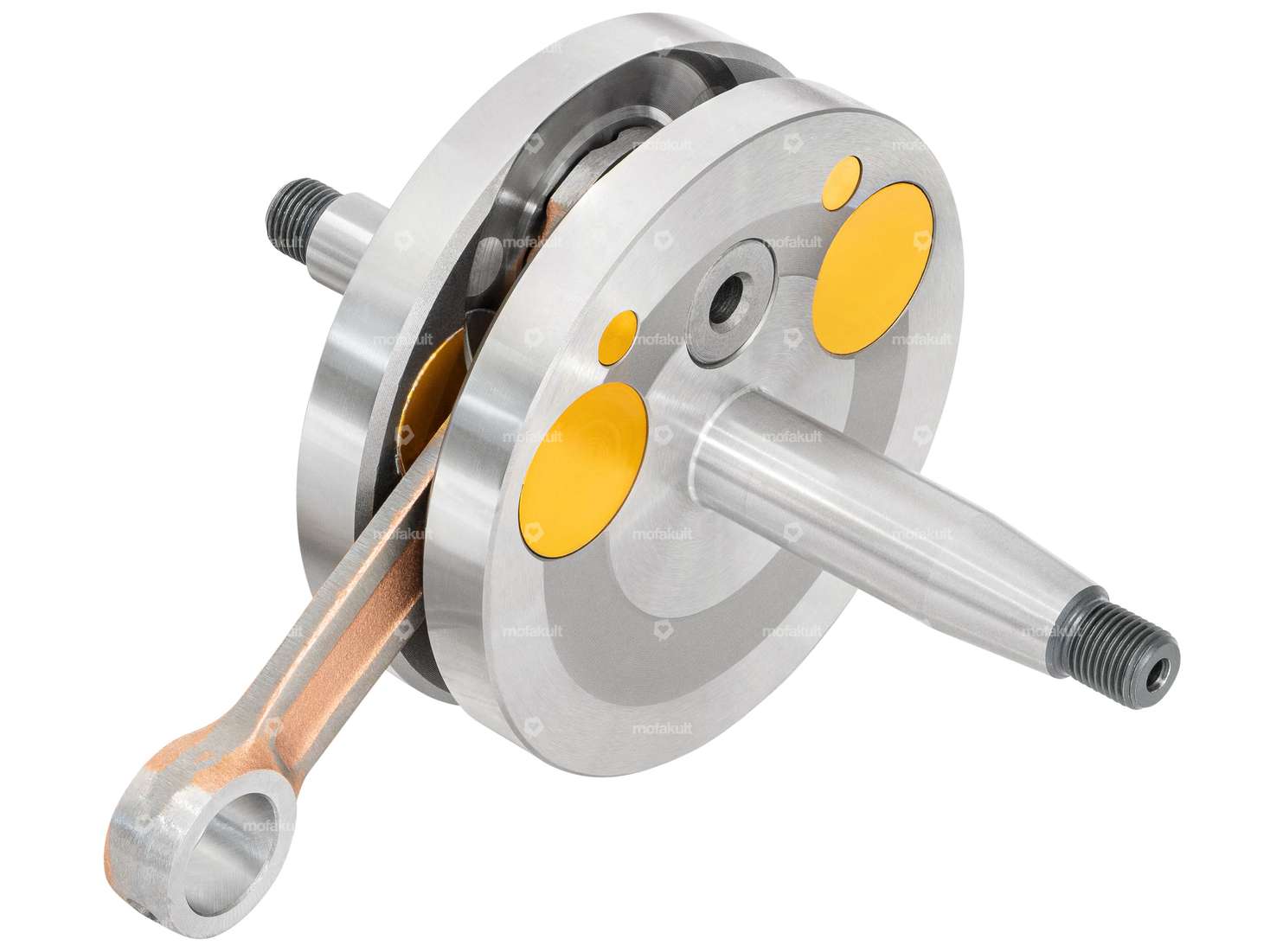

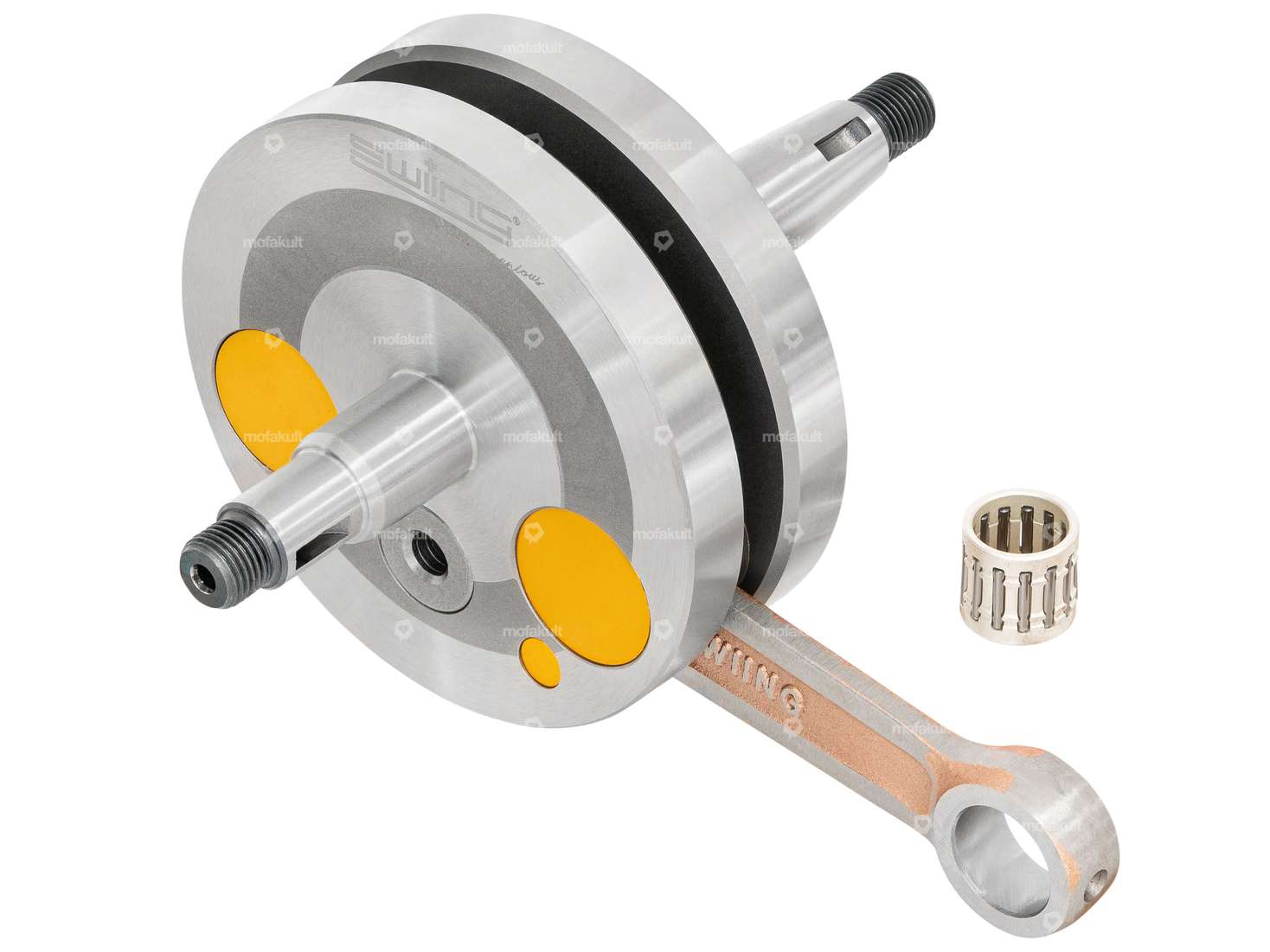

High-end full cheek crankshaft suitable for your moped / moped with manual Sachs 50/2 (502), 50/3 engine. (not to be confused with 503 engines)
High-quality and precisely fitting, 1038 gram full cheek crankshaft, which has proven itself in various load tests. The shaft has an additional slotted connecting rod base for better lubrication and impresses with its excellent balance ratio and good speed stability.
| Manufacturer | swiing® ingenious parts |
| Area of application | High End |
| Cheek type | Full cheeks |
| Crankshaft stroke | 42 mm |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 40.7 mm |
| Total length crankpin ignition side | 63.4 mm |
| Ø crank webs | 85 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 30.1 mm |
| Weight | 1038 g |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 |
