For: Sachs

33342

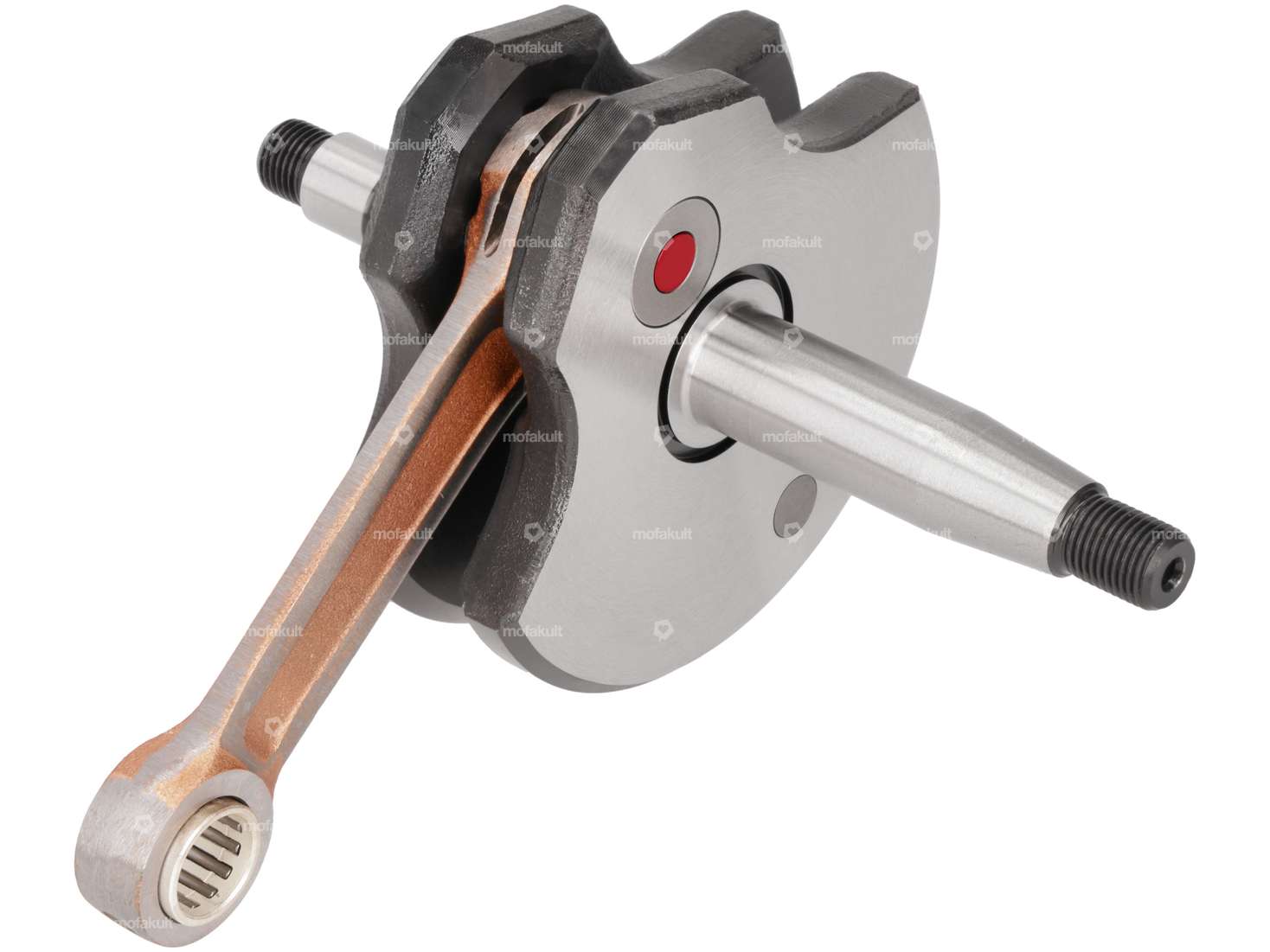

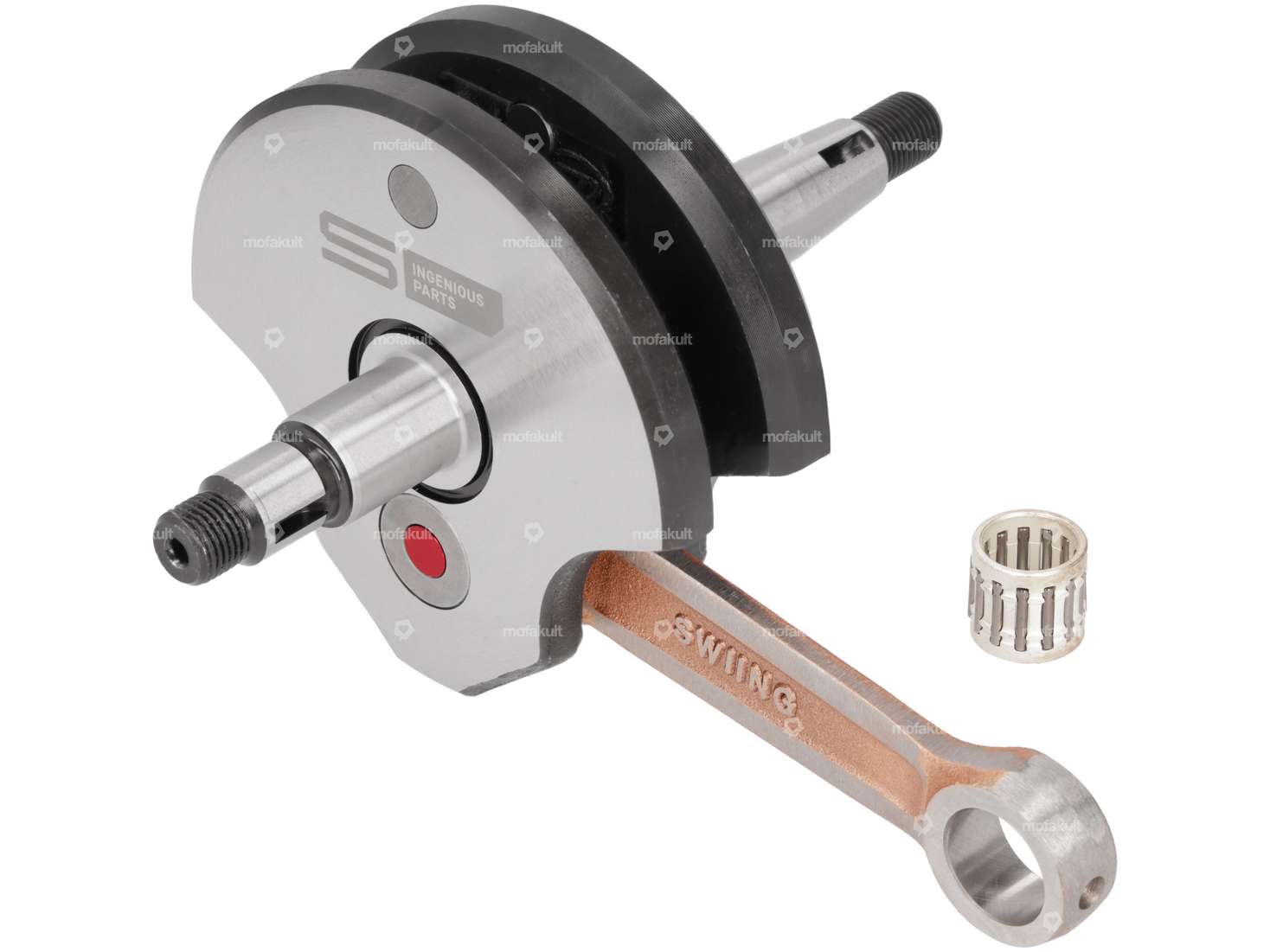

swiing® ingenious crankshaft "Wolfram Edition" | Sachs 50/2, 50/3

EUR 200.80

Incl. 21% VAT.

Product description

High-end crankshaft suitable for manual Sachs 50/2 (502), 50/3 (not to be confused with 503) mopeds / mopeds.

The limited "Wolfram Edition" of the previously offered version 2.0 racing crankshaft is a ä

Manufacturerswiing® ingenious parts
Weight895 g
Thread typeMF10x1 (fine pitch thread)
Cheek typestandard
Crankshaft stroke42 mm
Connecting rod length center-center85 mm
Total length of crankpin on clutch side40.7 mm
Total length crankpin ignition side63.4 mm
Ø crank webs85 mm
Ø Connecting rod eye15 mm
Ø piston pin (B)12 mm
Ø Bearing seat (clutch side)15 mm
Ø Bearing seat (ignition side)15 mm
Dimension needle bearing12 / 15 x 14.2 mm (axe 12)
Wide crank webs30 mm
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS)

50/3
