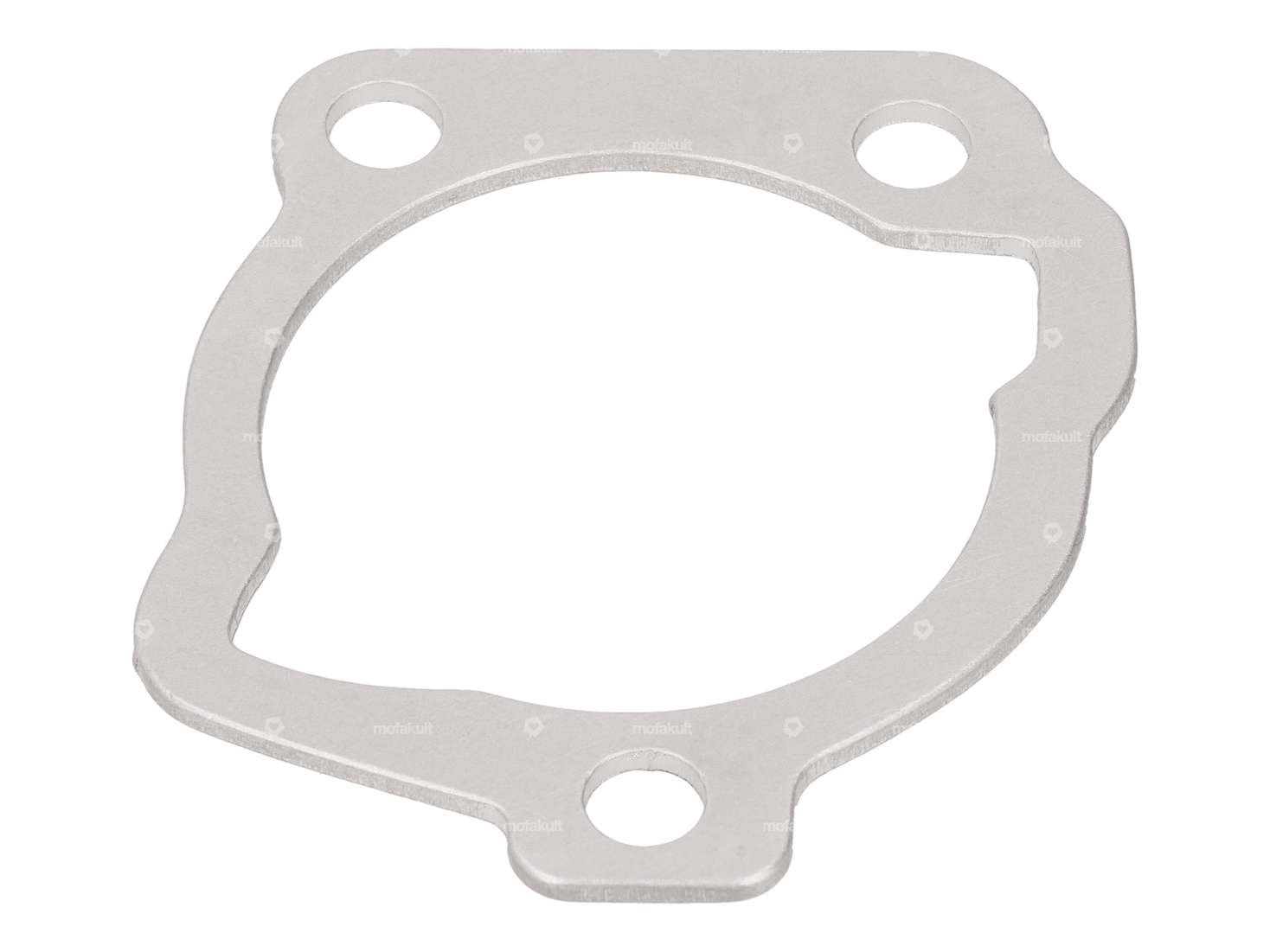

Aluminum stroke plate for your Piaggio Ciao, Si, Bravo, Boxer, Boss, Grillo and Gilera moped / moped.
The spacer is mounted under the cylinder base. The "lifting" of the cylinder increases the intake and exhaust timing. Accordingly, the same distance of the spacer should be turned down at the top of the cylinder
so that the original squish edge dimension and compression ratio are maintained.
Material thickness (selection): 0.5 / 1.0 / 1.5 / 2.0 / 3.0 mm
Material: aluminum
Ø cylinder neck: 46 mm
Number of attachment points: 3 pieces
Matching cylinders, sealant and alternative stroke plates in various thicknesses can be found in the accessories section.
Exclusive product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Thickness | 0.5 mm, 1 mm, 1.5 mm, 2 mm, 3 mm |
| Surface | raw |
| Ø cylinder | 46 mm |
| Place of use | Cylinder base |
| Area of application | Tuning |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
