41.0 mm tuning piston with two 1.5 mm rectangular piston rings with flank lock (FS) for blown swiing tuning cylinders made of aluminum suitable for mopeds / mopeds with Sachs 502, 50/2, 50/3 and 50/4 engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit should only be used for the swiing aluminum racing cylinder, which is listed in the accessories section. The piston is characterized by its high-quality and precise fit.

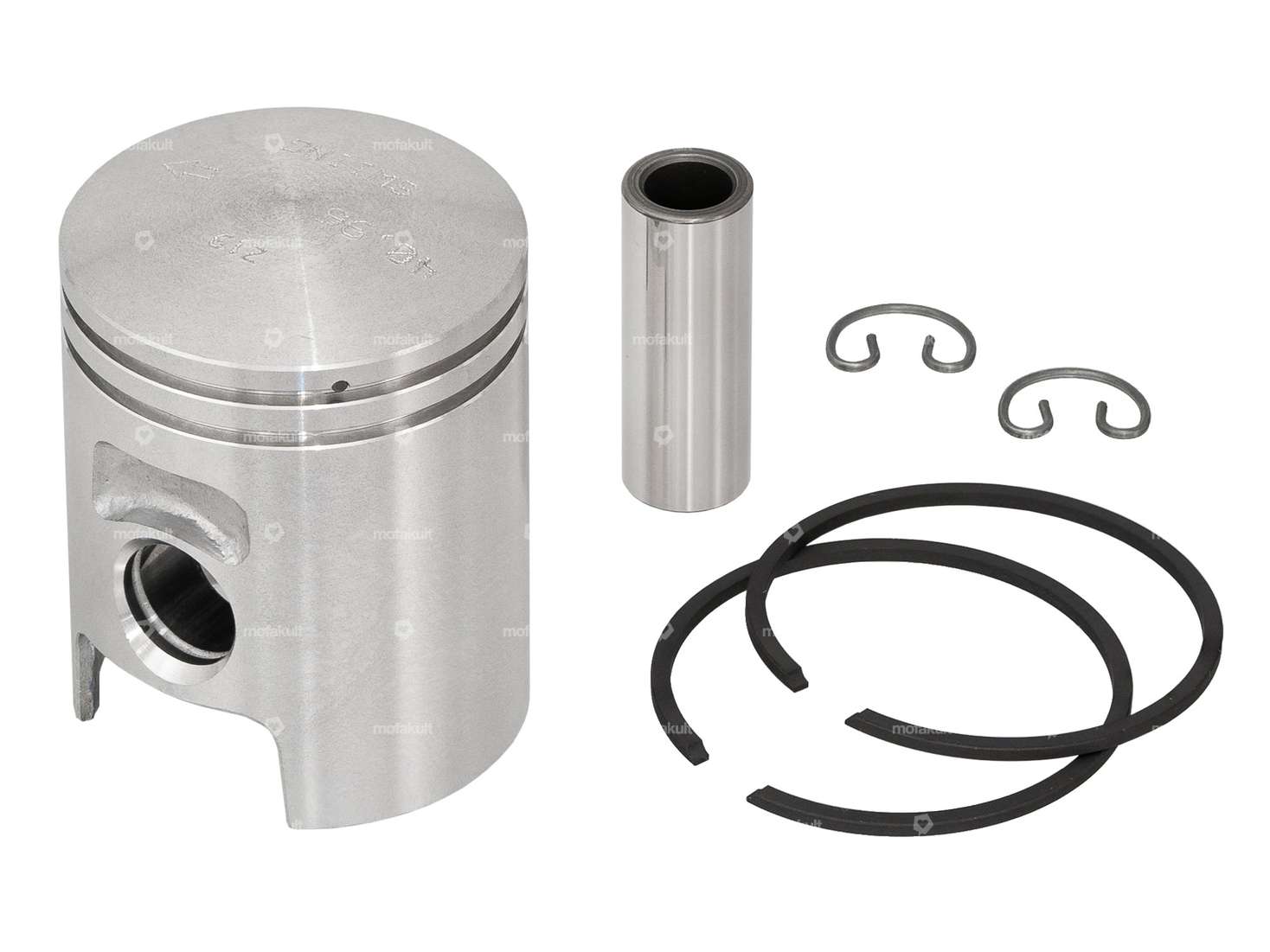

The piston kit contains piston pins, piston clips and piston rings.
You will find the appropriate assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section. You will find the corresponding cylinder among the accessories.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Ø outside piston (A) | 40.96 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3.4 mm |
| Nominal diameter | 41 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 91 g |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL |
