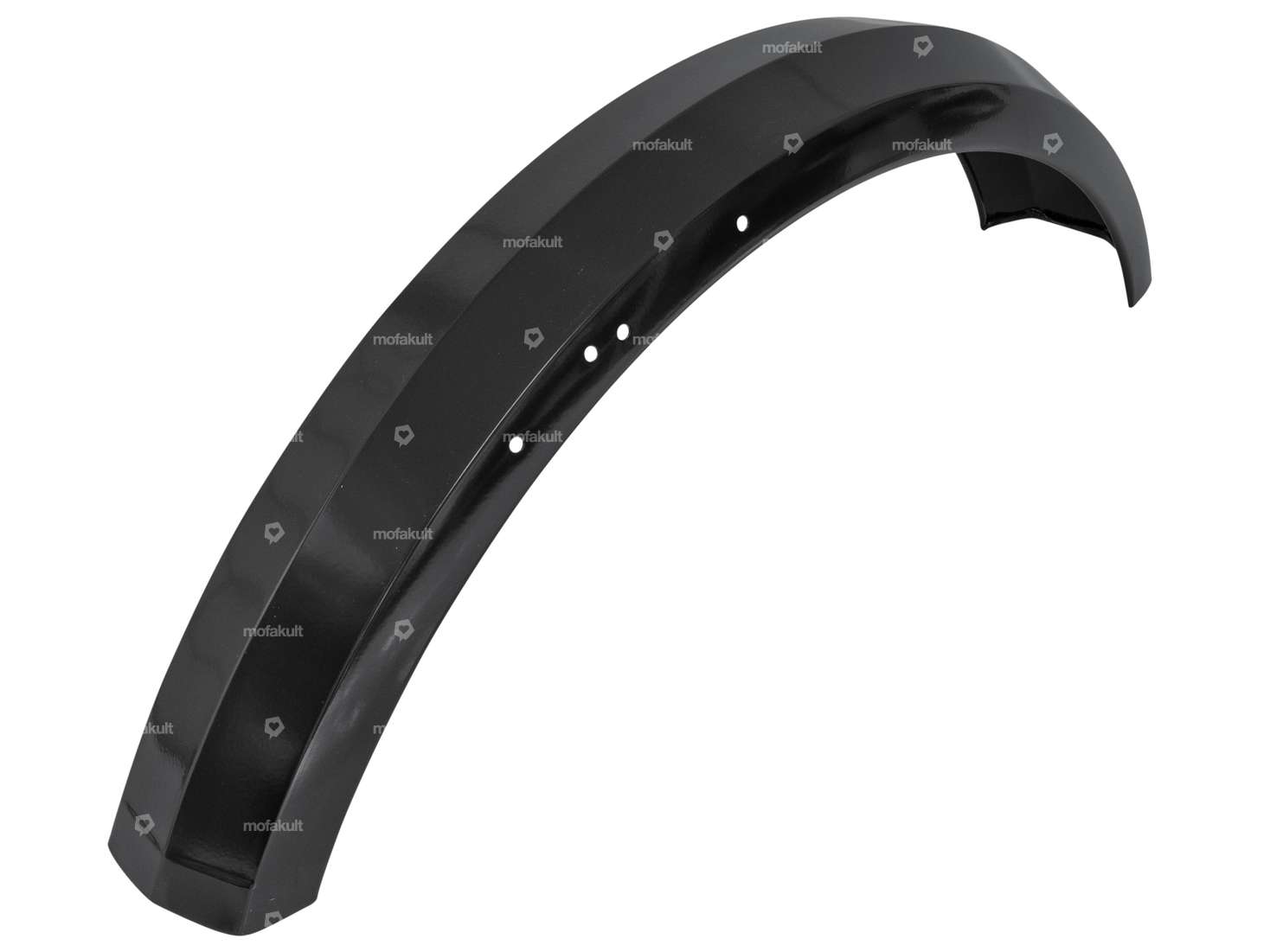

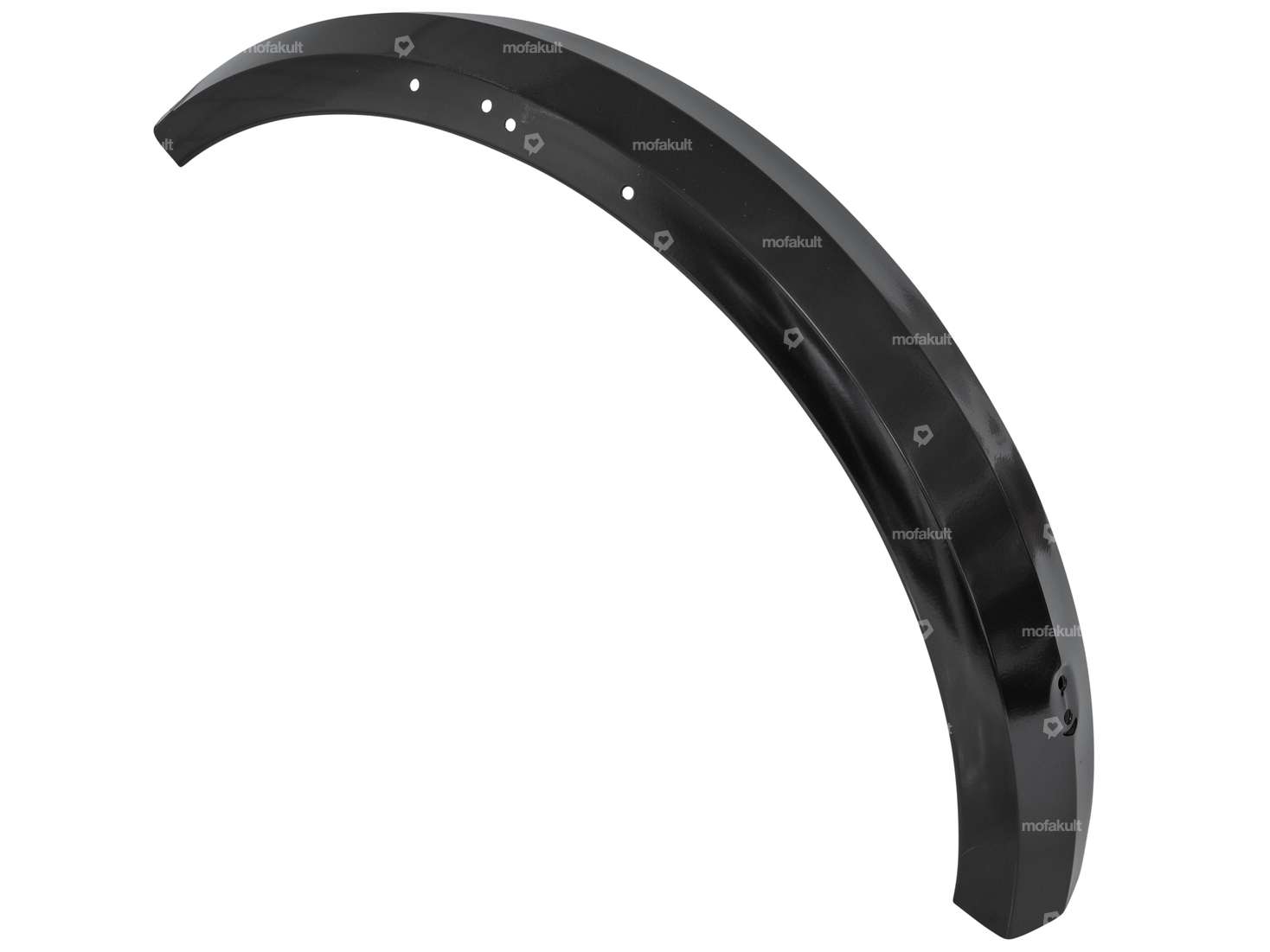

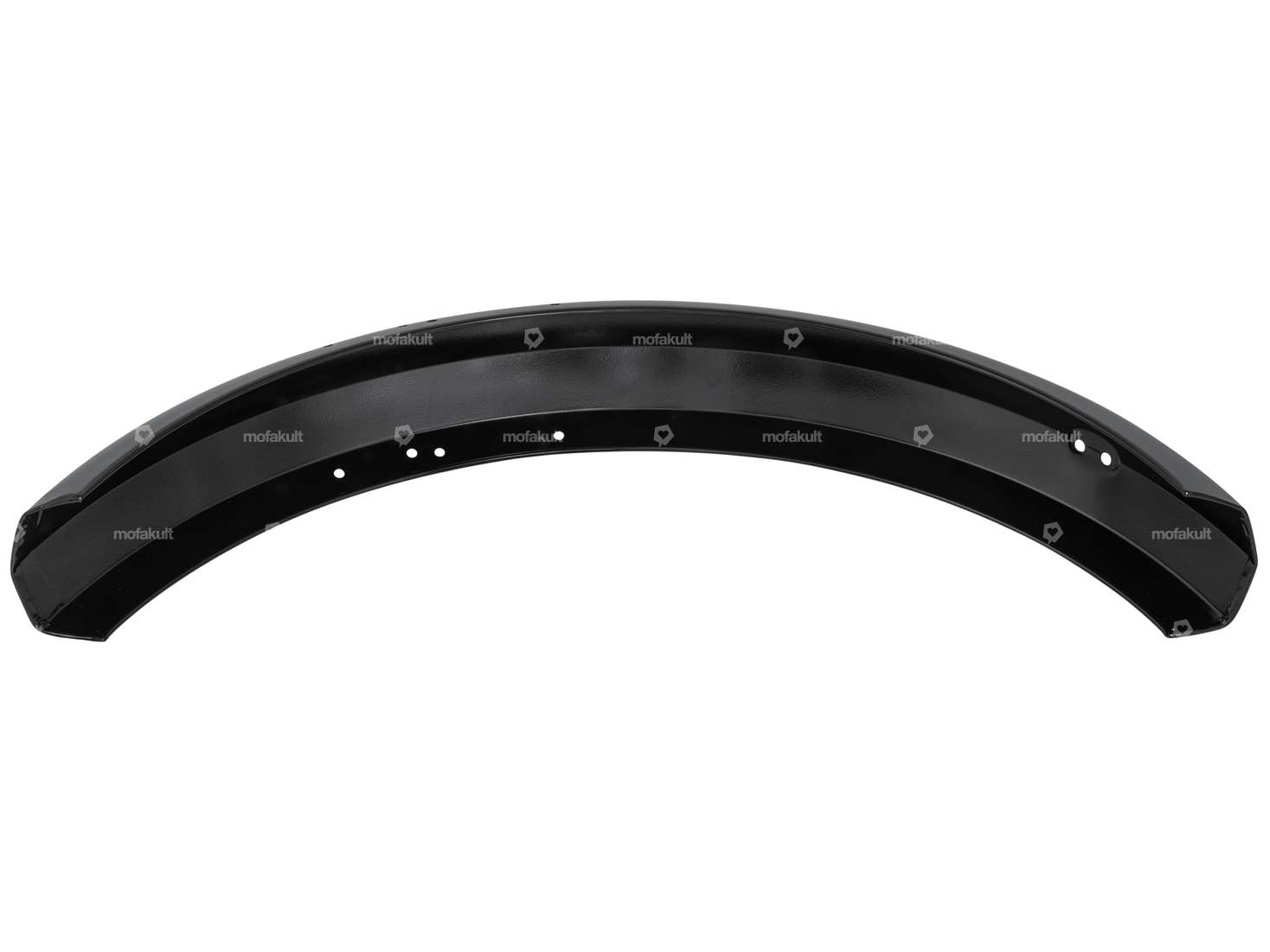

Front, black primed steel mudguard for your Puch Maxi S or N moped with 17-inch rims.
Since the mudguard is folded on both sides, there are no sharp edges, which significantly reduces the risk of injury. Furthermore, it is still possible to use an edge protector or splash guard flap. Corresponding holes must still be drilled if required.
All original holes are provided for mounting the side and lower mudguard struts.
To mount cable guides, holes are also already provided on both sides of the mudguard.
Shape: angular
Width of mudguard profile (A): 82 mm
Height of mudguard profile (B): 35 mm
End: folded closed on both sides
Material: steel, primed black
Total height from support surface to top edge (C): 200 mm
Total length over ends (D): 565 mm
Circumference (E): 740 mm
The mudguard is only primed, meaning there may be slight scratches.
Other parts for your bike fairing, such as paint polish or mounting material, can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | primed |
| Color | black |
| Folding the ends | closed folded |
| Shape of the mudguard | angular |
| Wheel size | 17 " |
| Total length over ends | 565 mm |
| Scope | 740 mm |
| Wide mudguard profile | 82 mm |
| Height of mudguard profile | 35 mm |
| Mounting type | Nuts & bolts |
| Total height from support surface to top edge | 200 mm |
| Puch |
