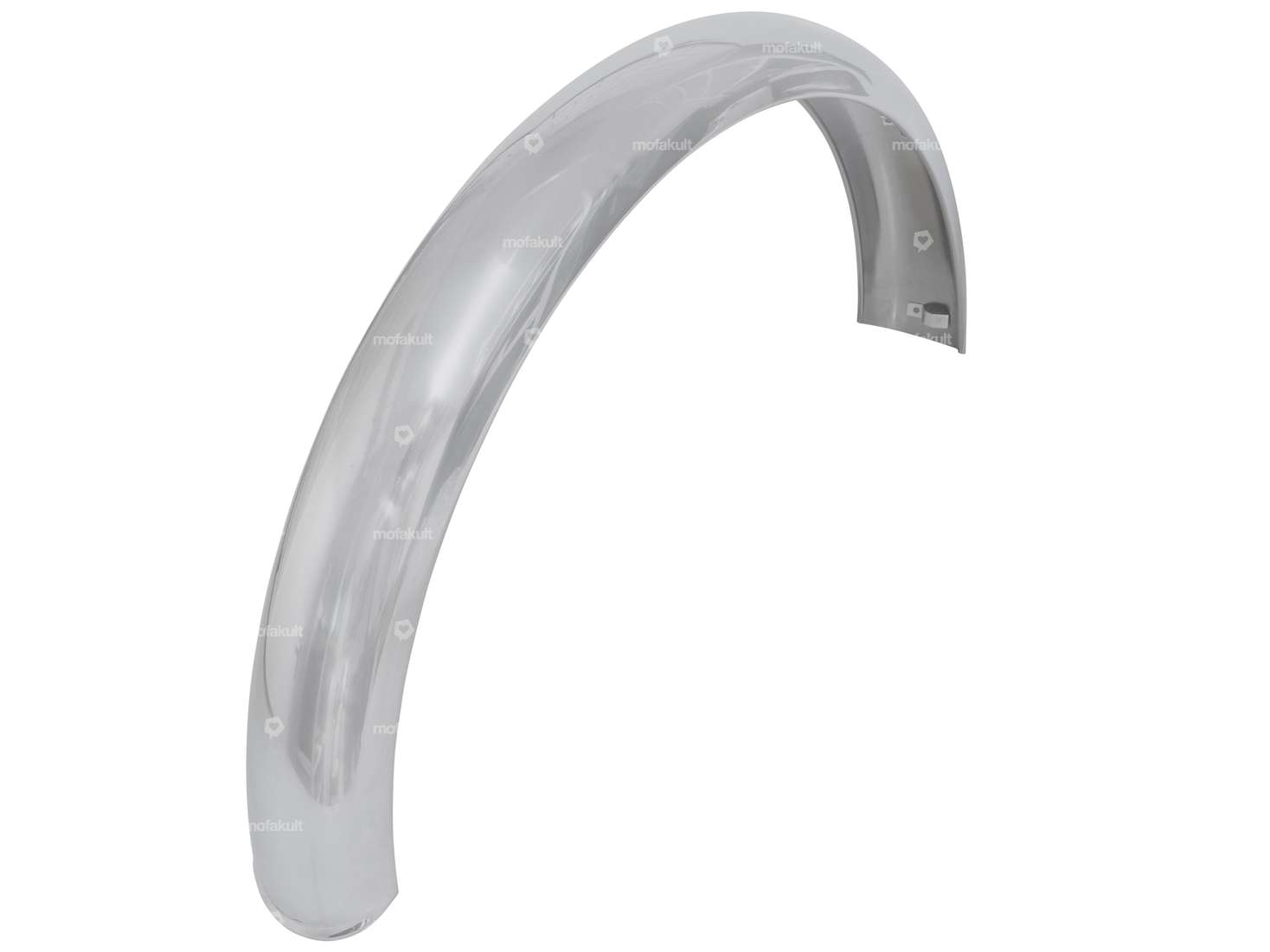

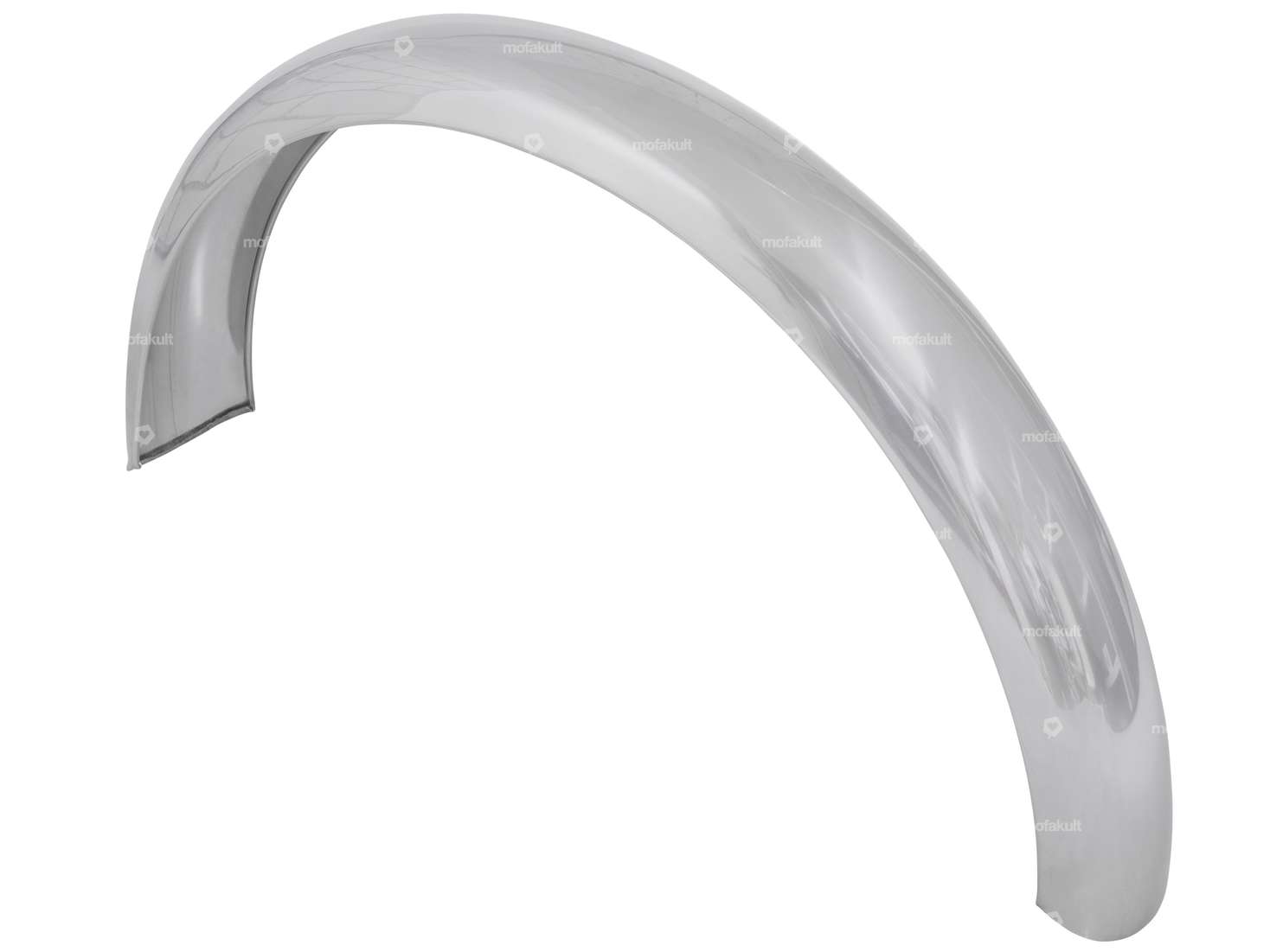

Rear mudguard made of stainless steel for various mopeds with 17-inch rims.
The highly polished surface ensures a first-class look and gives your moped the necessary shine.
Since the mudguard is folded at the rear, there is no sharp edge, which significantly reduces the risk of injury.

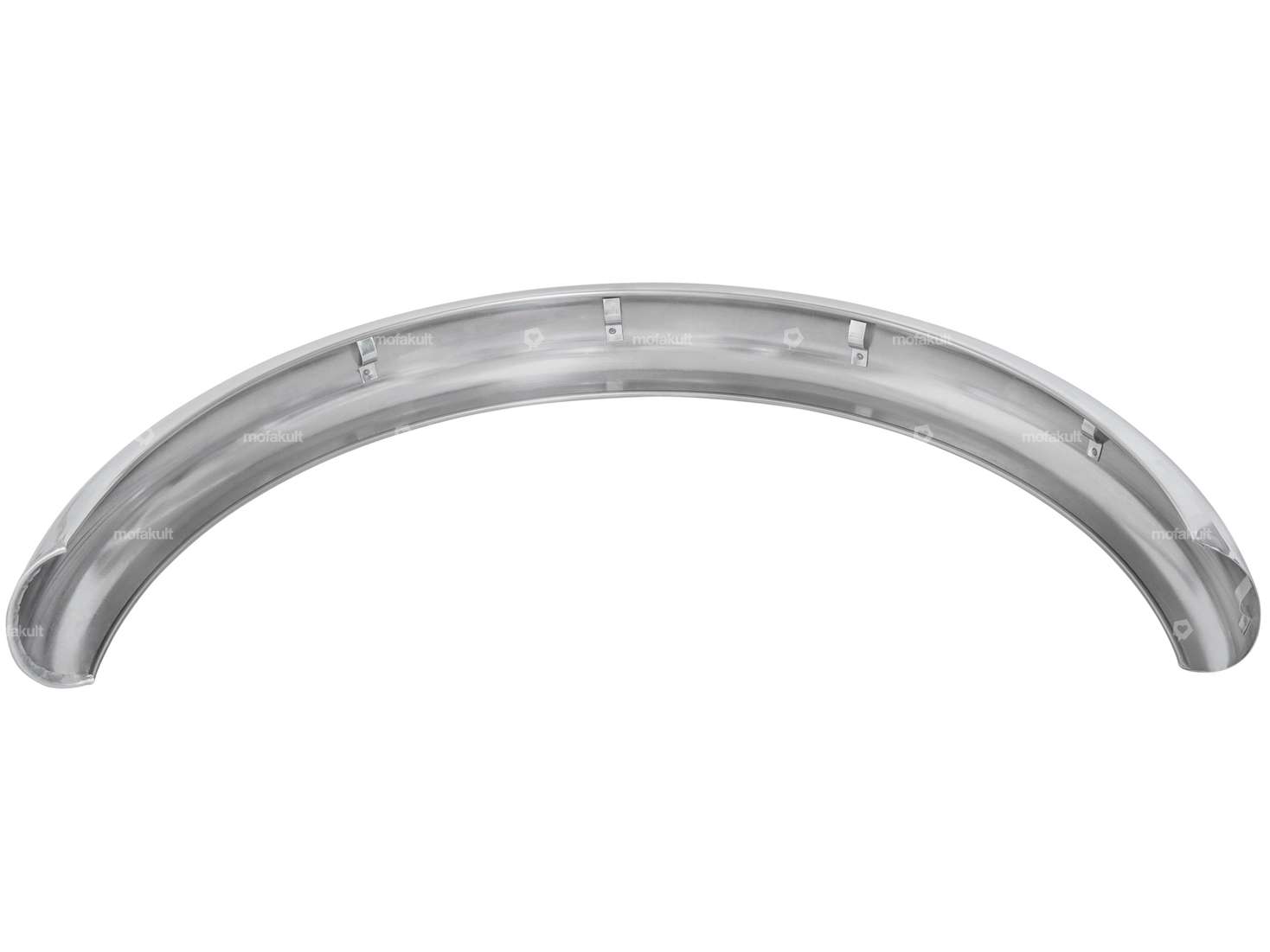

Tabs for cable routing are attached to the inside.
The mudguard deliberately has no holes for struts so that you can drill them individually.
Shape: round
Width of mudguard profile (A): 80 mm
Height of mudguard profile (B): 35 mm
End: closed folded / not folded
Material: chrome steel (colloquially known as stainless steel), highly polished
Total height from support surface to top edge (C): 325 mm
Total length over ends (D): 623 mm
Circumference (E): 1006 mm
Further parts for your wheel fairing, such as stainless steel polish or fastening material, can be found in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
| Surface | polished |
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Color | Chrome |
| Wheel size | 17 " |
| Folding the ends | closed folded, not folded |
| Shape of the mudguard | partly round |
| Total length over ends | 623 mm |
| Scope | 1006 mm |
| Mounting type | Nuts & bolts |
| Wide mudguard profile | 80 mm |
| Height of mudguard profile | 35 mm |
| Total height from support surface to top edge | 325 mm |
