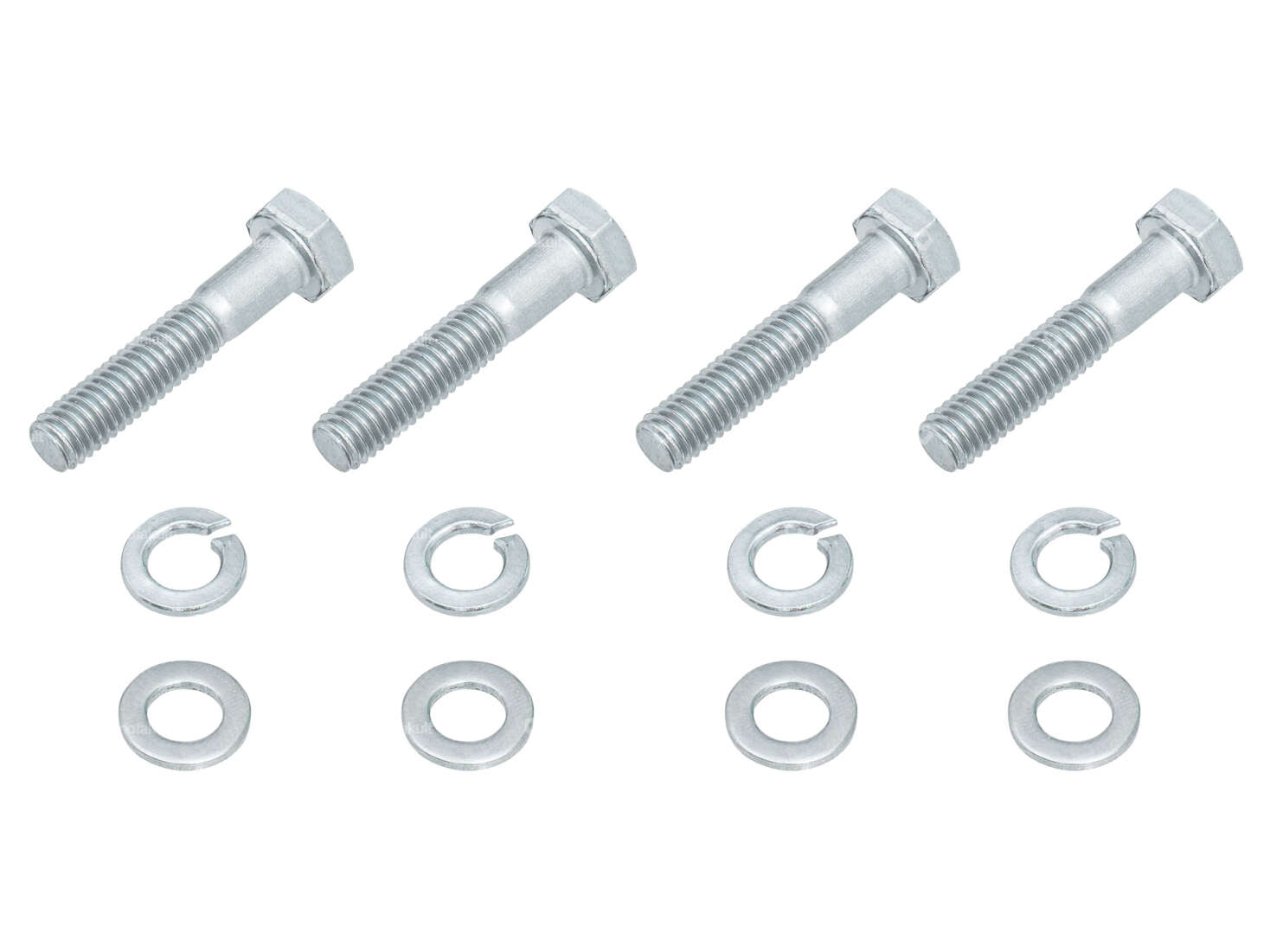

Screw set for fastening the cylinder head of various Sachs mopeds / mopeds with 503, 50/2, 50/3 or 50/4 engine.
Set consisting of four screws, four washers and four lock washers.
Screws: M6x30 mm, with shank
Strength: 10.9
Ø inside plain and spring washers: 6.4 mm
Ø outer plain and spring washers 12 mm
Material: steel, galvanized
You can find the same set with stainless steel screws in the accessories section.
"Nostalgic product for the highest demands of the quality brand swiing®.
"| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Area of application | Standard |
| Ø shaft | 5.85 mm |
| Drive | External hexagon |
| Color | silver |
| Screw head | Hexagon |
| Total length | 34 mm |
| Thread length | 22 mm |
| Shank | Yes |
| Shank length | 8 mm |
| Number of components | 12 pcs |
| Thread type | M6x1 (standard thread) |
| Strength class | 10.9 |
| Width across flats SW | 10 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL 502 1A / 1B (torpedo) |
