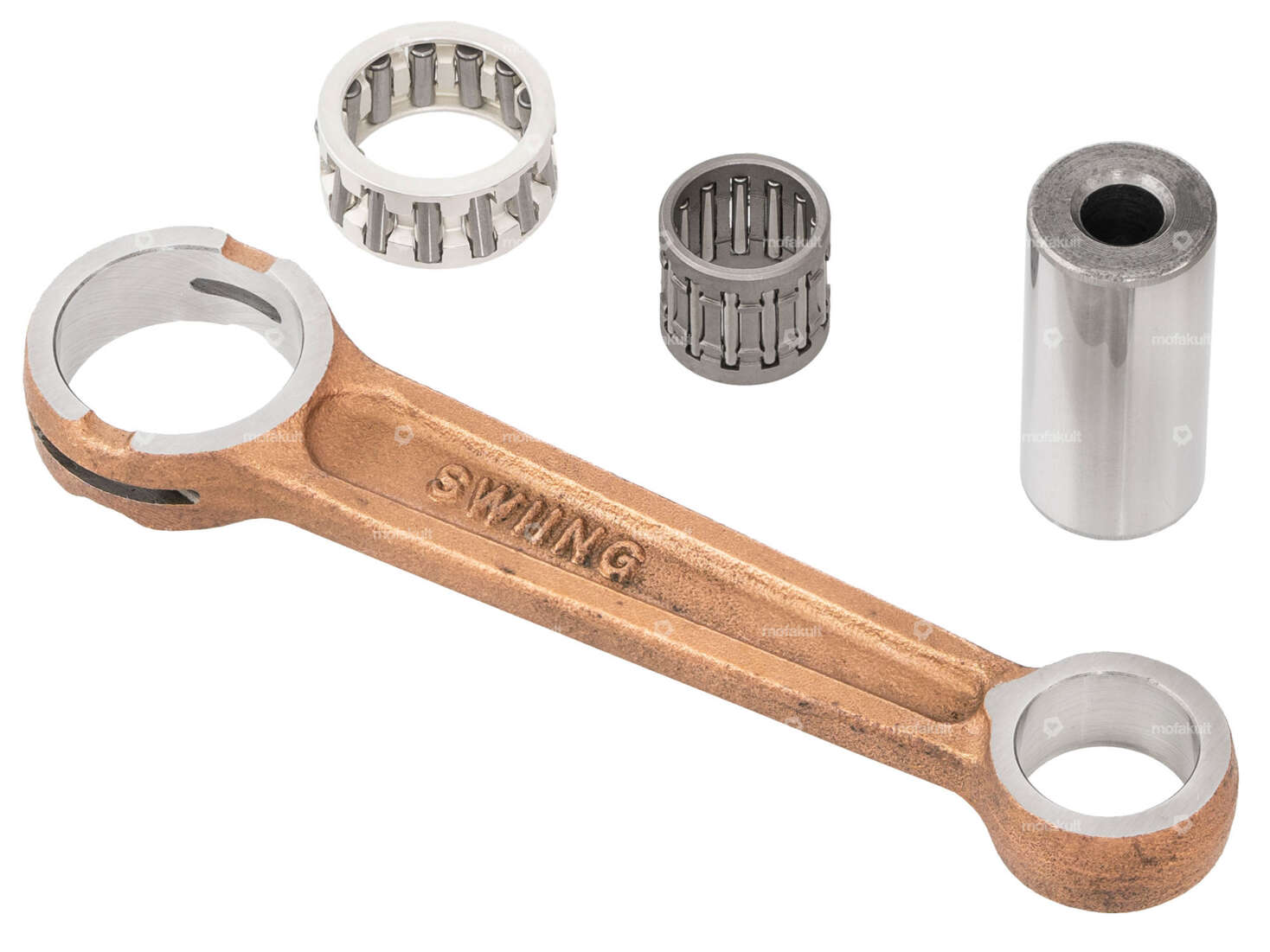

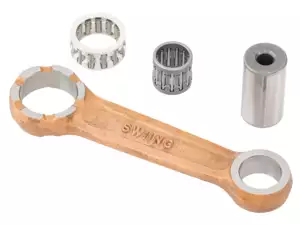

Complete connecting rod suitable for all crankshafts on Puch mopeds / mopeds.
- Dimension connecting rod bolt 1: Ø16 x 34 mm
- Connecting rod length (center - center): 90 mm
- Total length of connecting rod: 114.5 mm
- Thickness: 10 mm
- Outer diameter of the lower connecting rod eye: 24.6 mm
- Outer diameter of the upper connecting rod eye: 20.9 mm
- Lower needle roller bearing (silver ball): Ø21/16 x 9.75 mm
- Upper needle bearing: Ø15/12 x 14.7 mm
- Ø for piston pin: 12 mm
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | copper-coated |
| Connecting rod length center-center | 90 mm |
| Ø Connecting rod bolt | 12 mm |
| Ø lower connecting rod eye outside | 24.6 mm |
| Ø upper connecting rod eye outside | 20.9 mm |
| Total length | 114.5 mm |
| Ø piston pin (B) | 12 mm |
| Ø lower bearing inside | 21 mm |
| Ø inside upper bearing | 15 mm |
| Thickness | 10 mm |
| Dimension lower bearing | 16/21 x 9.75 mm |
| Area of application | Standard |
| Dimension upper bearing | 12/15 x 14.7 mm |
| Connecting rod pin length | 34 mm |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
