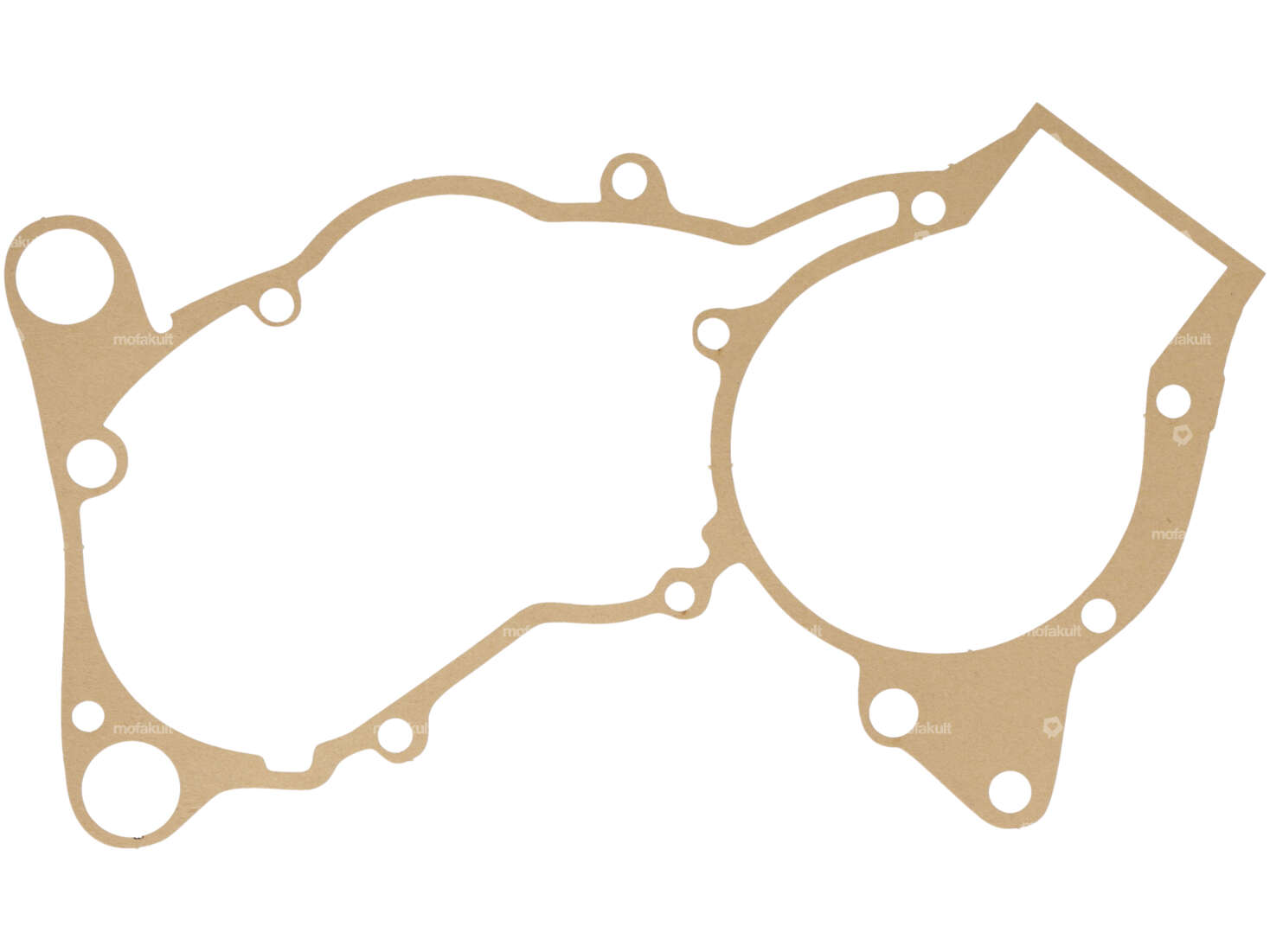

Original gearbox gasket suitable for Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 and Alpa Black River small motorcycles, which have a Zündapp type 247 engine installed.
Material thickness: 0.45 mm
This center gasket, also known colloquially as a gearbox gasket or flat gasket, is made of oil paper and is of the highest quality.
Nostalgic product for the highest demands of the quality brand swiing®.
| Number of components | 1 pcs |
| Manufacturer | swiing® revival parts |
| Material | Sealing paper |
| Thickness | 0.45 mm |
| Number of fixing points | 12 pcs |
| Zündapp Belmondo | |
| Zündapp | 247 Motor |
Ratings
Moped fans also bought
NSK 16005 Ball bearing 25/47/8 Gearbox | Zündapp Belmondo (Type 247)
Bearing type: Deep groove ball bearing · Ø inside: 25 mm · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 47 mm · Stock number: 16005 · Inner ring width: 8 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Material: Steel · Surface: blank · Width: 8 mm · Area of application: Standard
EUR 17.70
SKF 6202 C3 ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Ø inside: 15 mm · Bearing type: Deep groove ball bearing · Width: 11 mm · Ø outside: 35 mm · Puch OEM number: 900.4.6202
EUR 11.70
Oil seal FPM 15/24/7 BS | Zündapp Belmondo (Type 247)
Temperature resistance (min.): -30 - 200 °C · Shaft seal type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Manufacturer: Zündapp · Material: FPM - Fluororubber · Ø inside: 15 mm · Ø outside: 24 mm · Width: 7 mm
EUR 11.50

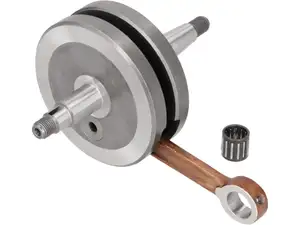

Jasil crankshaft full cheek long stroke | Zündapp Belomondo (Type 247), Bergsteiger M25, M50
Manufacturer: Jasil · Material: Steel · Cheek type: Full cheeks · Area of application: Tuning · Crankshaft stroke: 42 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90.5 mm · Total length of crankpin on clutch side: 41 mm · Total length crankpin ignition side: 65.7 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 13 mm · Dimension needle bearing: 12 /15 x 14.7 mm (axe 12) · Wide crank webs: 30.1 mm · Ø 1st step (on the coupling side): 21.6 mm · Ø 2nd shoulder (on the clutch side): 10 mm · Length of shoulder (ignition side): 34 mm · Weight: 999.5 g
EUR 225.00
