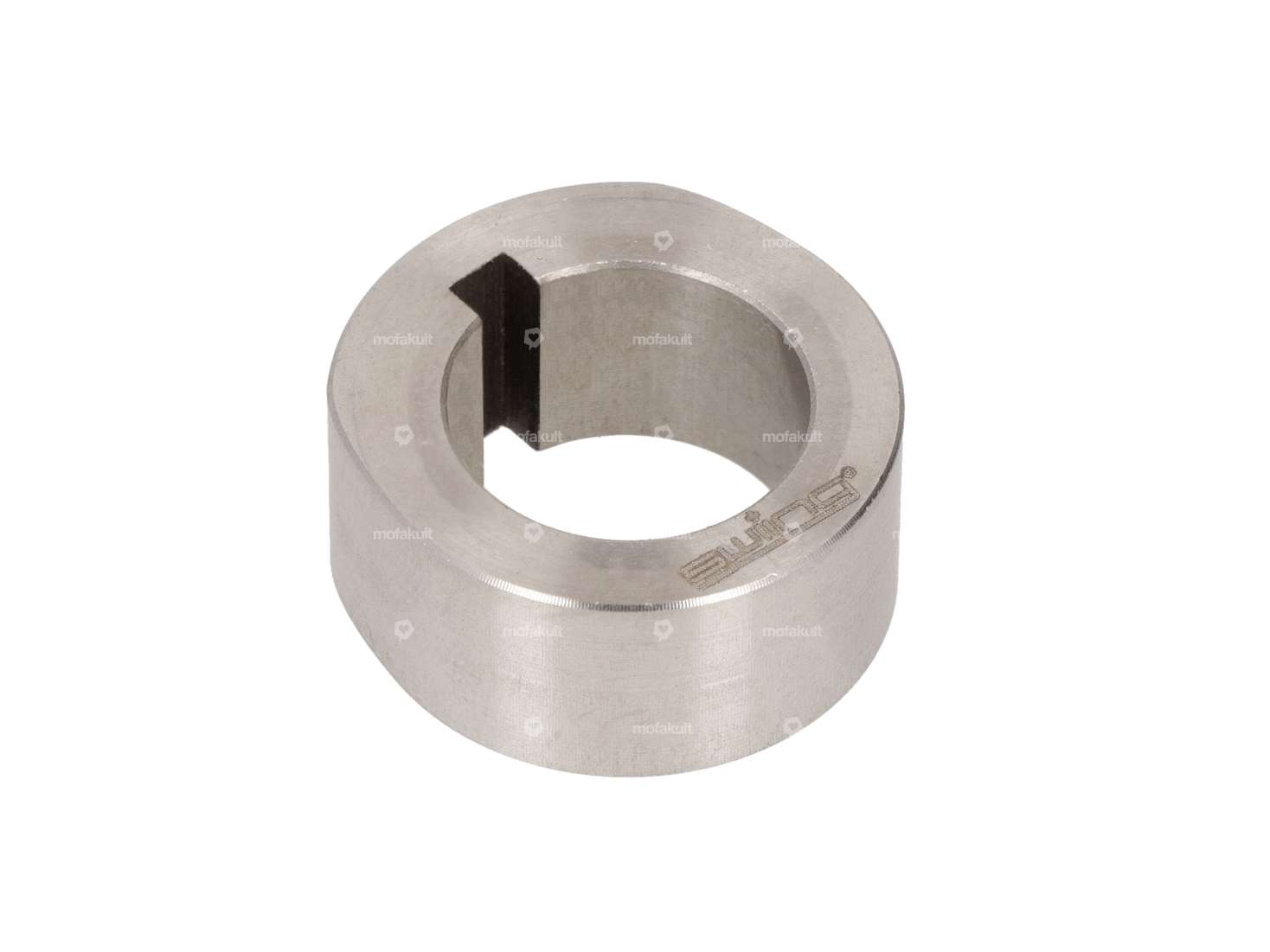

swiing® revival ignition cams Inox | Piaggio Ciao, SI, Bravo, Boxer

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Area of application: (Dis)assembly tool · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Diameter: 12 mm · Diameter: 24 mm · Total length: 100 mm · Number of components: 2 pcs

GPO strobe light / ignition timing gun

Cable length: 100 mm · Cable length: 140 mm · Manufacturer: GPO · Material: Plastic · Area of application: Special tool · Color: black · Tension: 6 V · Tension: 12 V · Width: 55 mm · Height: 190 mm · Total length: 260 mm

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Material: Spring steel · Surface: blank · Area of application: Standard · Ø inside: 14.7 mm · Ø outside: 20.5 mm · Material thickness: 0.2 mm

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Area of application: Original · Area of application: Standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Weight: 698 g · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Thread length: 16 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 °

Mazzucchelli crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Area of application: Original · Area of application: Standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Weight: 695 g · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Thread length: 16 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 °

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm

swiing® ingenious degree disk intake timing | Piaggio Ciao, SI, Bravo, Boxer

Diameter: 90 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Measuring tool · Area of application: Special tool · Thickness: 1 mm · Number of components: 1 pcs

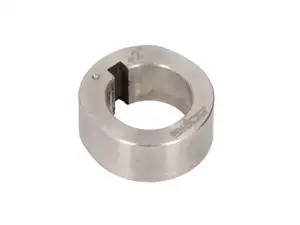

swiing® ingenious ignition cams Athena / Jasil crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Chrome steel (known as Nirosta®) · Surface: electropolished · Total length: 9.5 mm

Shim 16/22/0.5

Material: Steel · Surface: blank / oiled · Ø inside: 16 mm · Ø outside: 21 mm · Nominal diameter inside: 16 mm · Thickness: 0.5 mm

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Material: Spring steel · Surface: blank · Area of application: Standard · Ø inside: 14.7 mm · Ø outside: 20.5 mm · Material thickness: 0.2 mm

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Height: 4.9 mm · Width: 3 mm

SKF 6202 C3 ball bearing 15/35/11

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Ø inside: 15 mm · Stock number: 6202 · Bearing type: Deep groove ball bearing · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202

Nut flywheel with collar original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Drive: External hexagon · Thread type: M8x1.25 (standard thread) · Height: 7.8 mm · Width across flats SW: 13 mm

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm

Ignition cable Ø 5 x 450 mm (1A quality)

Ø cable: 5 mm · Manufacturer: Made in Germany · Material: Copper · Material: Plastic · Color: black · Total length: 450 mm · Suppressed: No · Component group Carburetor: Ignition cable · Pony OEM number: A4603 · Sachs OEM no.: 0965 133 001

Shim 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 16 mm · Ø outside: 22 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm

swiing® revival trays 6202 for bearing puller

Manufacturer: swiing® revival parts · Peel-off tray: 6202 · Area of application: (Dis)assembly tool

VeeRubber 2.25 x 17" tires VRM087 Allround

Manufacturer: Vee Rubber · Tire width [inch]: 2.25 " · Color: black · Width [inch]: 2 1/4 · Wheel size [inch]: 17 " · Old designation: 21 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: VRM-087 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
