For: Cilo

17841

swiing® revival piston 38.5 mm | Cilo 502

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 65.20

Incl. 21% VAT.

Description

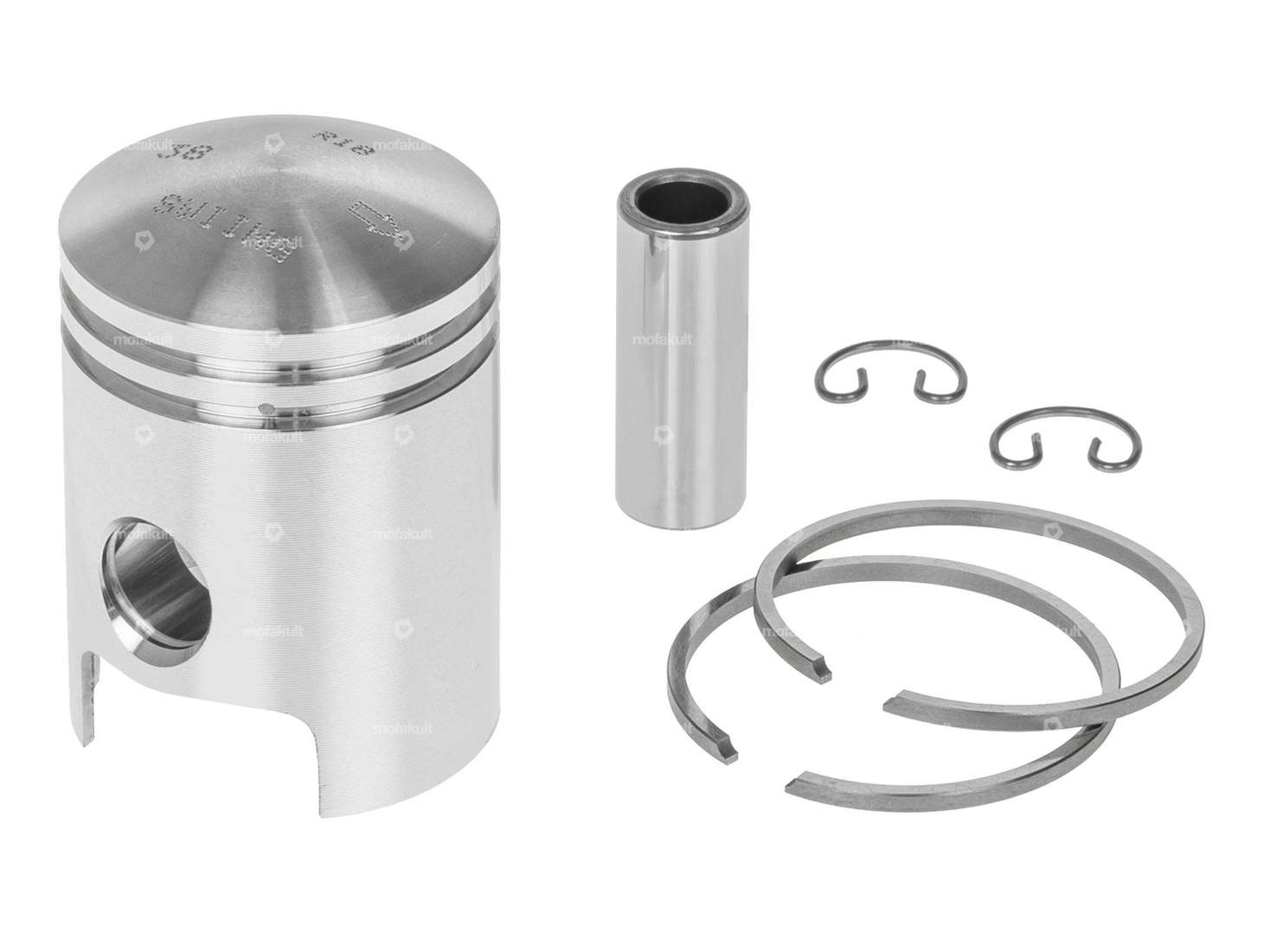

38.5 mm ¨oum dimension piston with two 2 mm rectangular piston rings with flange lock (FS), suitable for the old Cilo 502 mopeds / mopeds.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
Manufacturerswiing® revival parts
Ø outside piston (A)38.44 mm
Ø piston pin (B)12 mm
Compression height (C)28 mm
Curvature (D)5.05 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Weight piston kit80 g
Cilo

502 / 502t

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Ø outside: 12 mm · Number of sensors / lugs: 1 pcs

EUR 1.45

Hot Hot
Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 30.70

EUR 30.70/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.00

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Ø outside: 12 mm · Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Pony OEM number: A1632 · Sachs OEM no.: 0245 000 000 · Tomos OEM number: 032039

EUR 1.45

- 10 %
GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm

EUR 23.60

EUR 21.20

Explore categories from Piston

S-10-60-020-010_Kolbenring
Piston ring
S-10-60-020-020_Kolbenbolzen
Piston pin
S-10-60-020-030_Kolbenbolzenclip
Piston pin clip
S-10-60-020-040_Kolbenkit
Piston kit
S-10-60-020-050_Werkzeug
Tool

Moped fans also bought

Cable end sleeve 5 mm (1A quality)

Universal

10186

Cable end sleeve 5 mm (1A quality)

Material: Brass · Surface: nickel-plated · Color: silver · Ø outside: 5.5 mm · Ø Cable bushing: 2.5 mm · Total length: 12 mm · Ø inside: 5 mm · Area of application: Standard

EUR 0.70

Petrol hose Ø 5/8 x 30 red

Universal

10259

Petrol hose Ø 5/8 x 30 red

Material: Plastic · Color: red · Ø inside: 5 mm · Total length: 300 mm · Ø outside: 8 mm

EUR 2.35

EUR 7.83/m

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Tomos

10273

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Ø Cable bushing: 1.6 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Ø outside: 5 mm · Total length: 6 mm · Screw head: Lens head · Drive: Slot · Thread type: M4x0.7 (standard thread) · Thread length: 4 mm

EUR 2.35

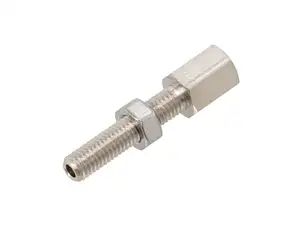

Magura set screw M5x34 mm
