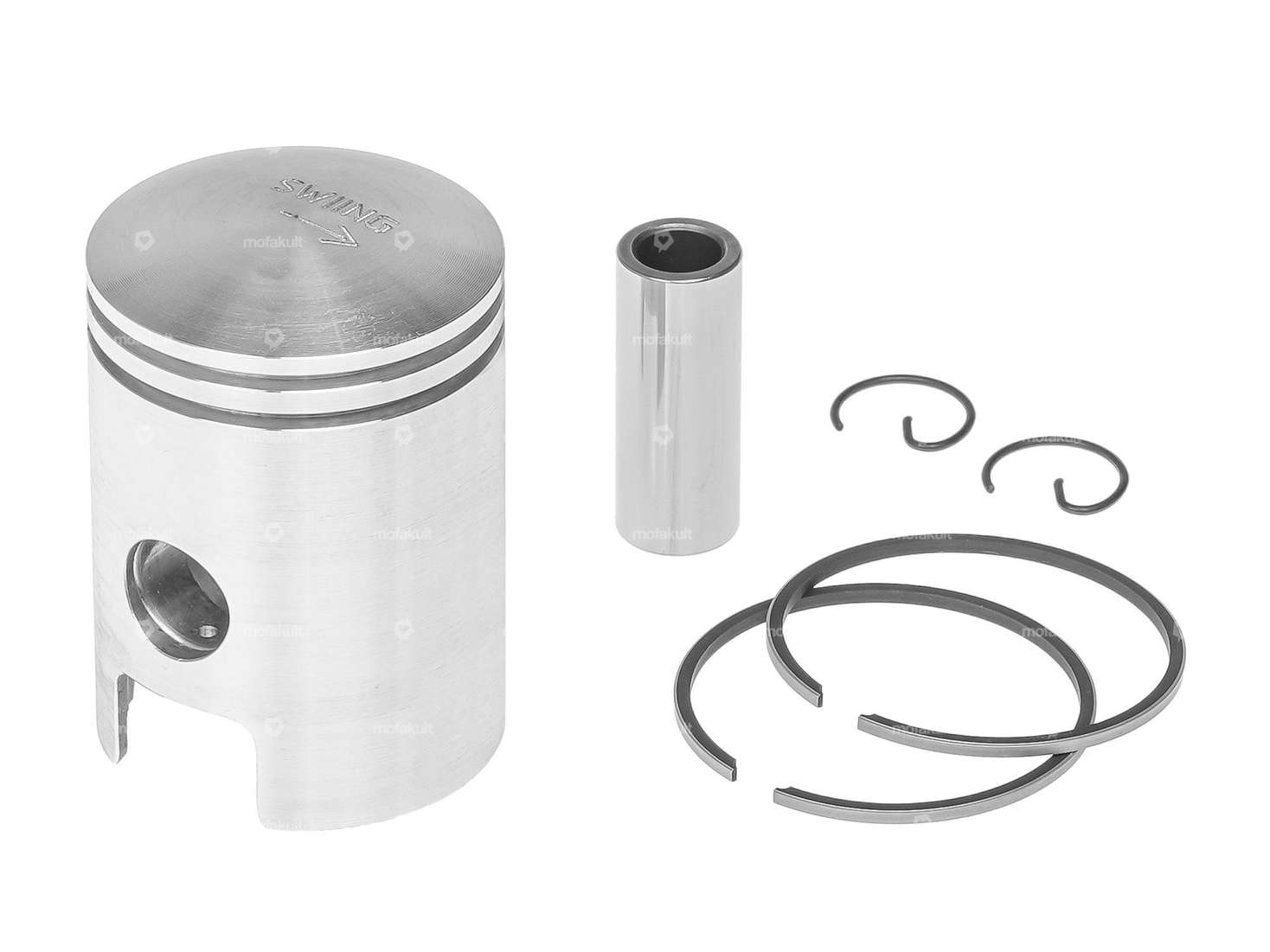

38.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) for swiing aluminum cylinder for Sachs 503 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
| Nominal diameter | 38 mm |
| Manufacturer | swiing® revival parts |
| Ø outside piston (A) | 37.97 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3.6 mm |
| Total piston height (E) | 54.1 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Piston ring height | 1.5 mm |
| Weight piston kit | 73 g |
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Total length: 130 mm · Material: Steel · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 23.60
swiing® ingenious tuning cylinder 38 mm | Sachs 503
Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 60 x 40 / 37 x 37 · Area of application: Tuning · Decompressor: No · Camouflaged: No
EUR 195.40
Not in stock
Moped fans also bought
Not so nice
Fortune 2.25 x 17" tires 2 P.R. Allround
Manufacturer: Fortune · Tire width: 2.25 " · Tire width [mm]: 57.15 · Width: 2 1/4 " · Color: black · Old designation: 21 x 2.25 " · Speed index: N = 140 km/h · Load capacity index: 35 = 121 kg · Profile type: 2 P.R. · Tire type: Allround · White wall: No · Wheel size: 17 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 33.80
swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)
Manufacturer: swiing® revival parts · Material: Sealing paper · Width: 130 mm · Total length: 200 mm · Color: sand-colored · Thickness: 0.35 mm · Number of fixing points: 6 pcs · Number of components: 1 pcs · Pony OEM number: A1888 · Sachs OEM no.: 0250 150 000
EUR 6.40
swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)
Material: Chrome steel (known as Nirosta®) · Manufacturer: swiing® revival parts · Thickness: 0.5 mm · Number of lobes: 1 pcs · Pony OEM number: A1717 · Sachs OEM no.: A1717 · Sachs OEM no.: 0246 049 000
EUR 8.15
swiing® revival gasket cylinder head 38 mm cylinder | Sachs 503, 502, 50/2, 50/3, 50/4
Nominal diameter: 38 mm · Manufacturer: swiing® revival parts · Ø cylinder: 38 mm · Material: Aluminum · Place of use: Cylinder head · Thickness: 0.2 mm · Hole pattern [mm]: 37 x 37 · Area of application: Standard
EUR 5.80

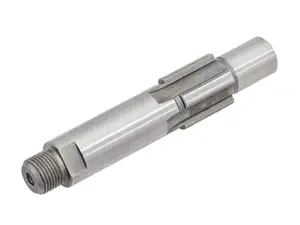

swiing® revival pinion shaft | Sachs 503 2AL, 2BL (A1322)
