swiing revival parts transparent

For: Universal · Puch · Sachs · Zündapp Belmondo

28692

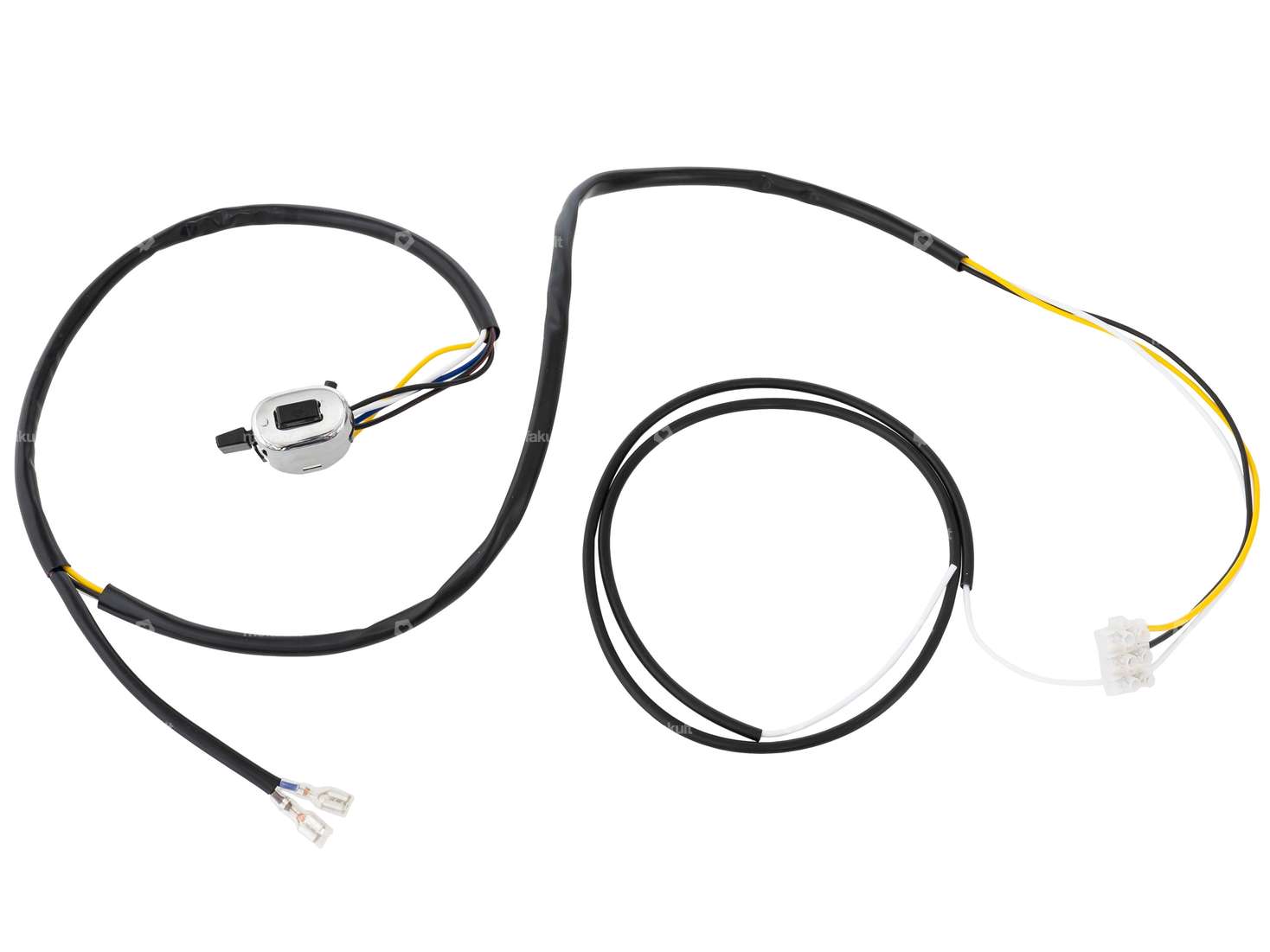

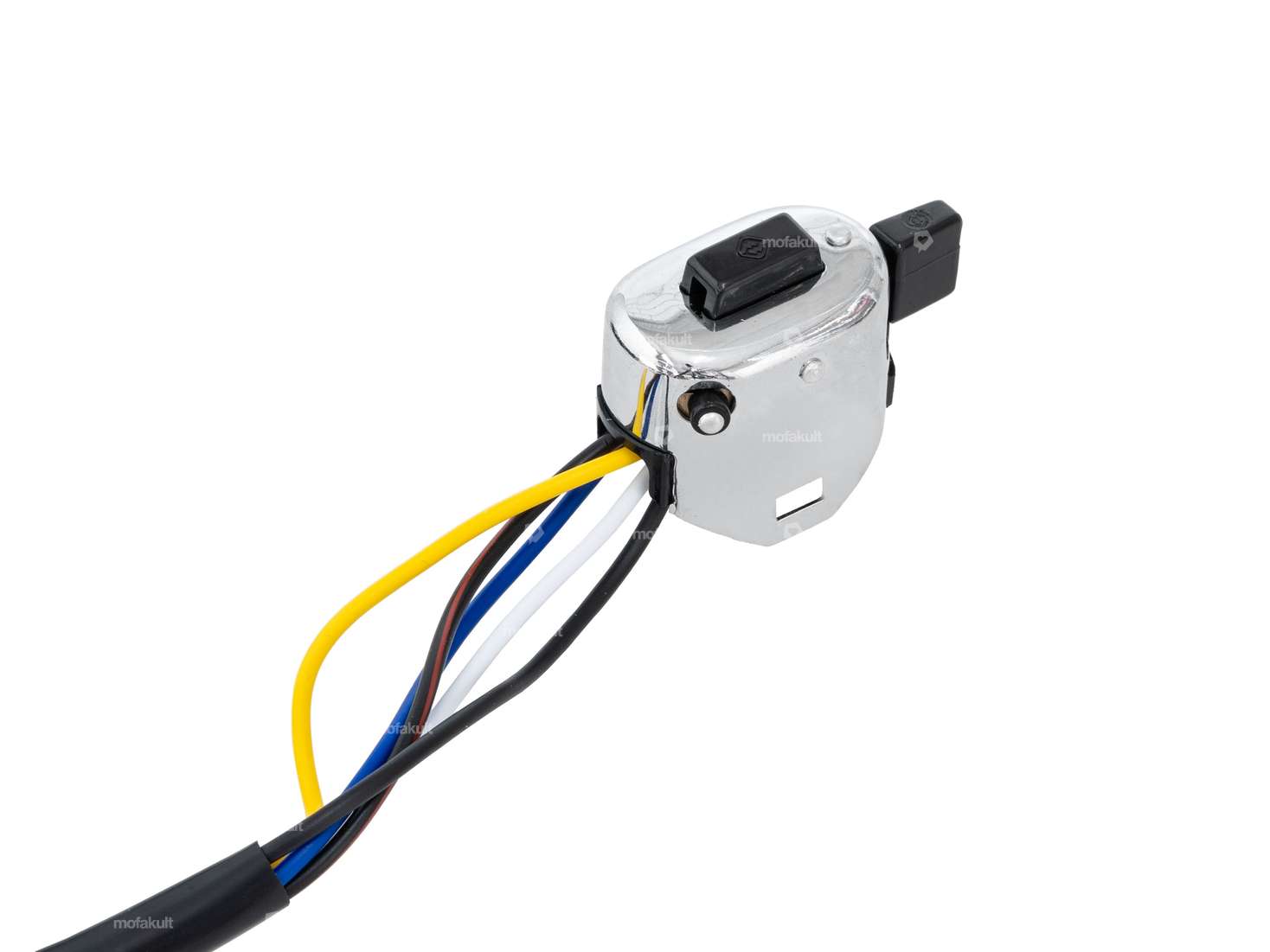

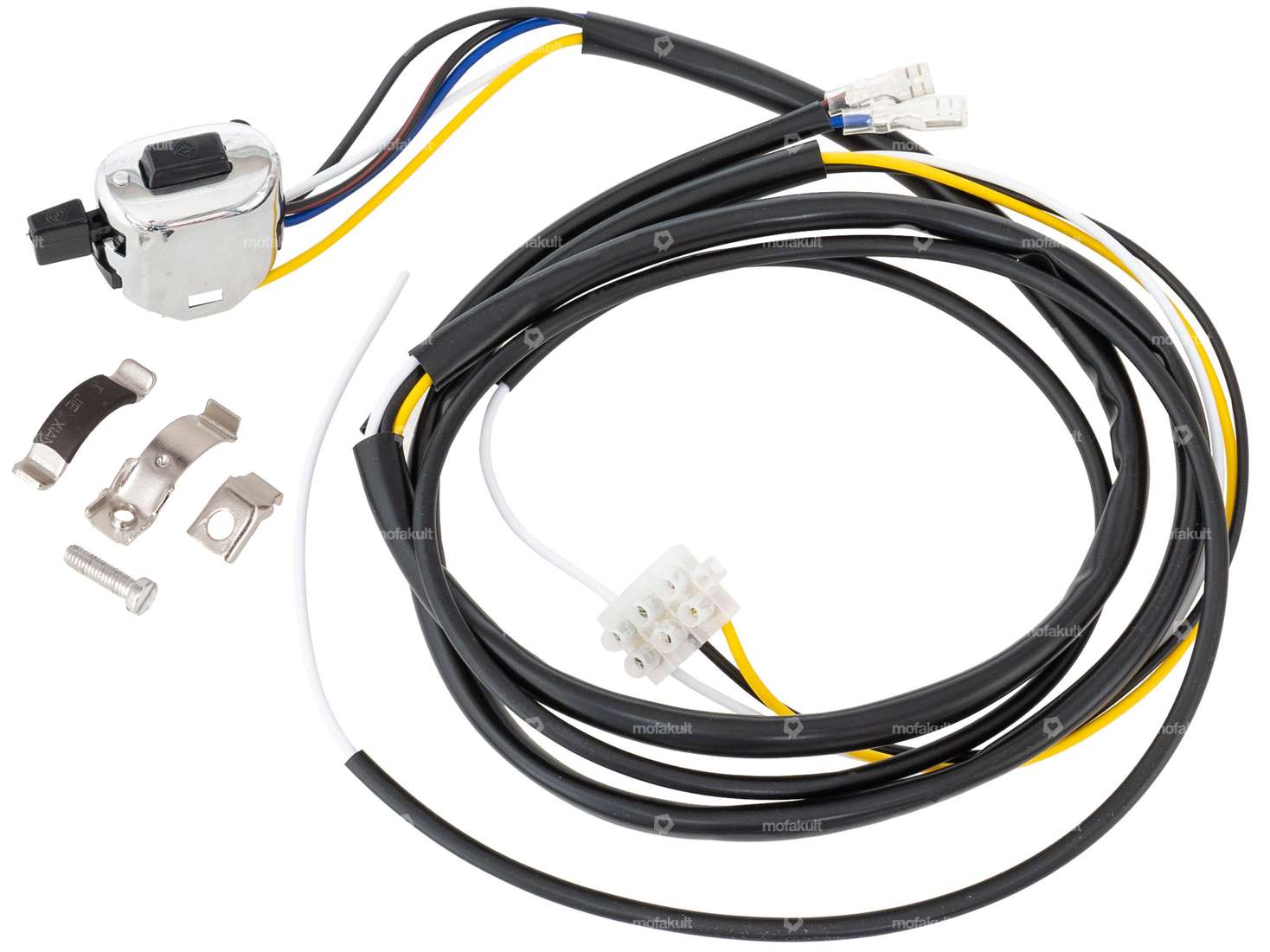

swiing® revival wiring harness MERIT light switch + 20 cm

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 47.30

Incl. 21% VAT.

Description

Complete wiring harness with connected MERIT light switch for your moped, moped and small motorcycle.

This wiring harness, equipped with all cable clamps and wire terminals, is a 1 to 1 replica of an original wiring harness.
The extra-long cables extend from the fork to the switch.

No adjustments are required during installation.

Cable lengths:
Cable fork to switch = 62 cm
Cable fork to lamp = 20 cm
Cable fork to end for motor = 90 cm
Length of backlight cable = 100 cm

Note: We recommend checking all stud screws in the switch and on the terminal and tightening them if necessary before installation.
The cable for the horn is not included in the scope of delivery.

Manufacturerswiing® revival parts
Number of cables5 pcs
Cable cross-section1.5 mm²
Ø Receptacle22 mm
Cable bifurcation to motor950 mm
Cable bifurcation to lamp240 mm
Cable bifurcation to switch600 mm
Tail light cable length1000 mm
Switch includedYes
Luster terminalYes
Area of applicationStandard
Universal
Puch
Sachs
Zündapp Belmondo
