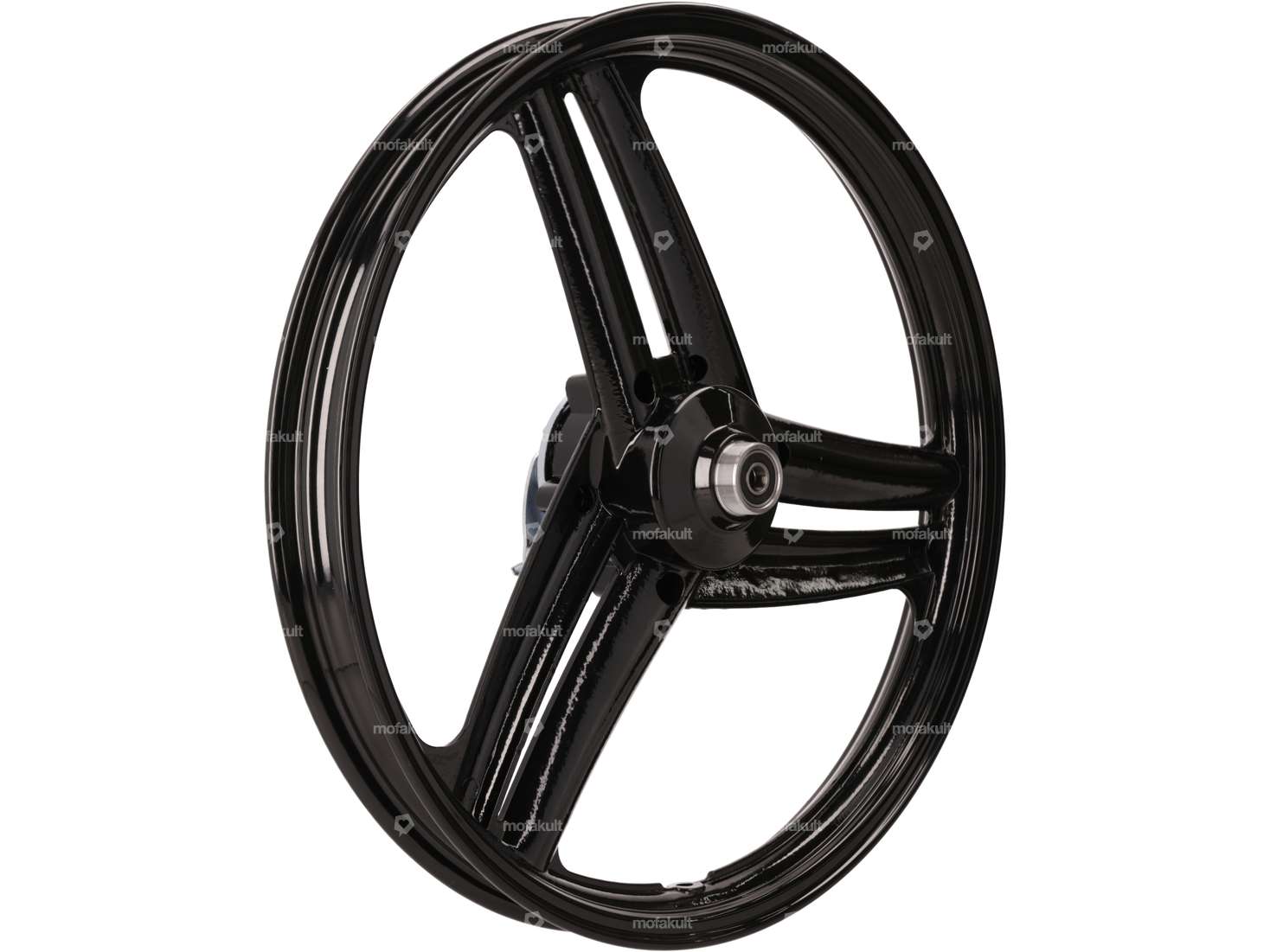

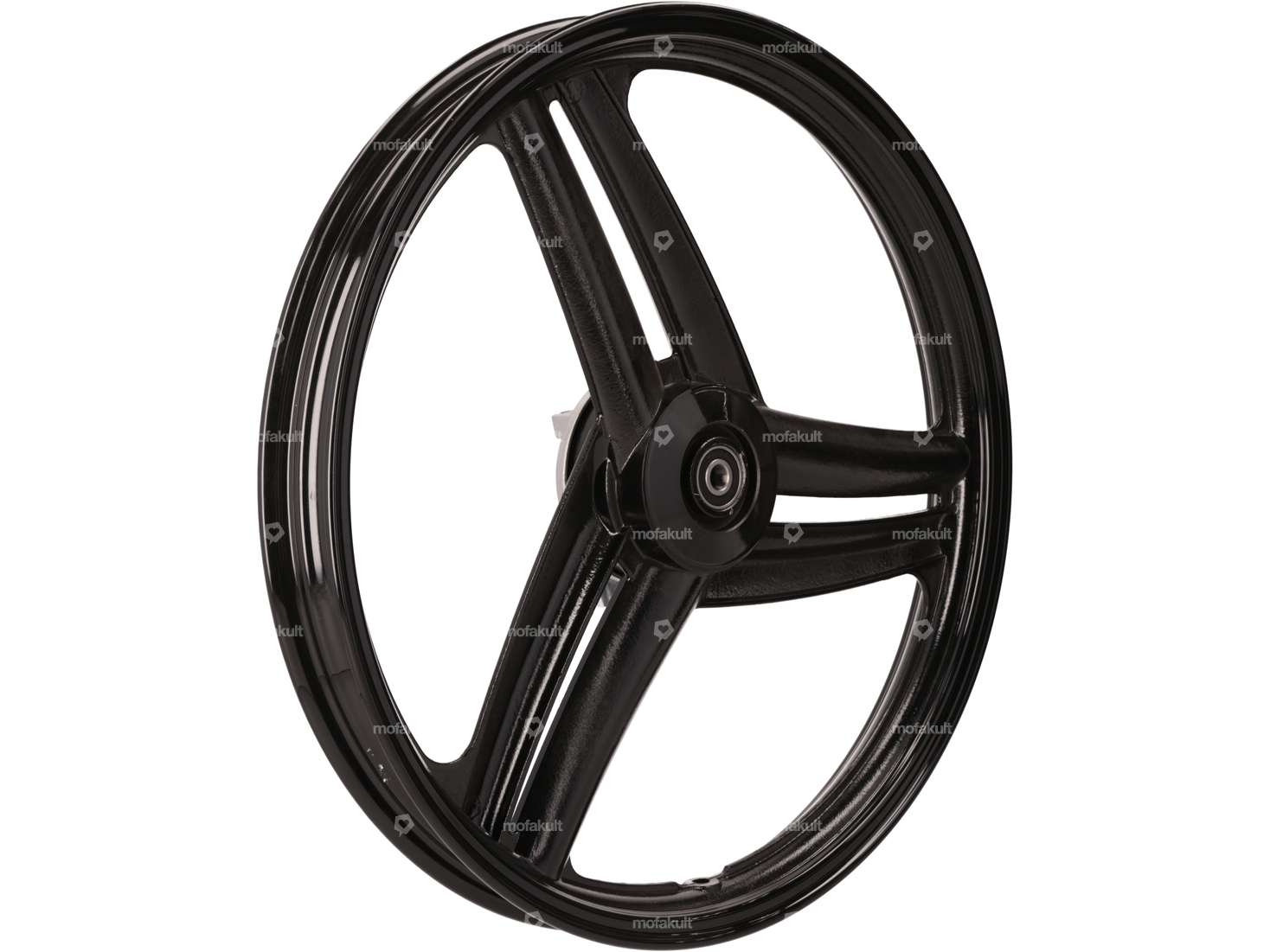

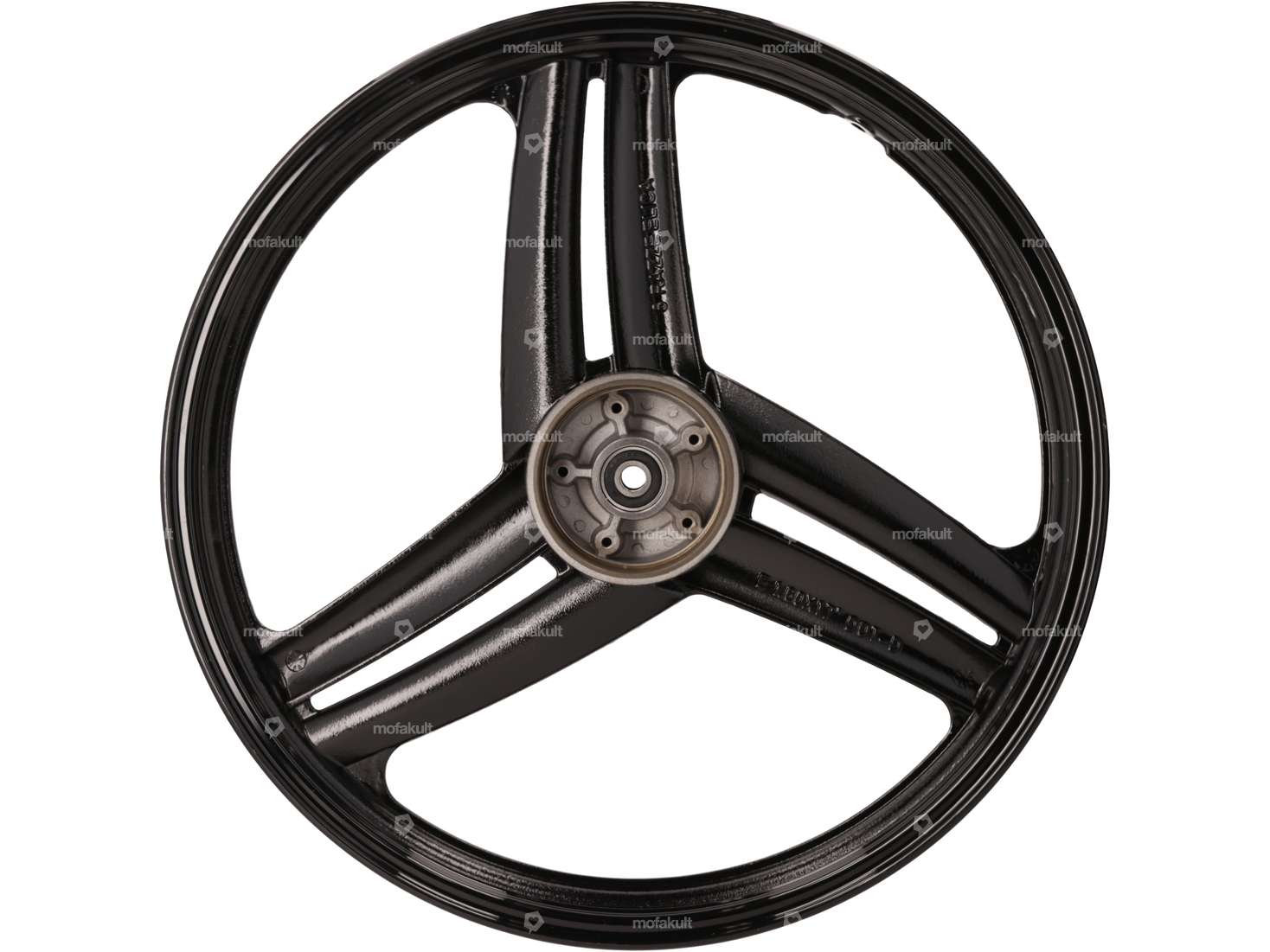

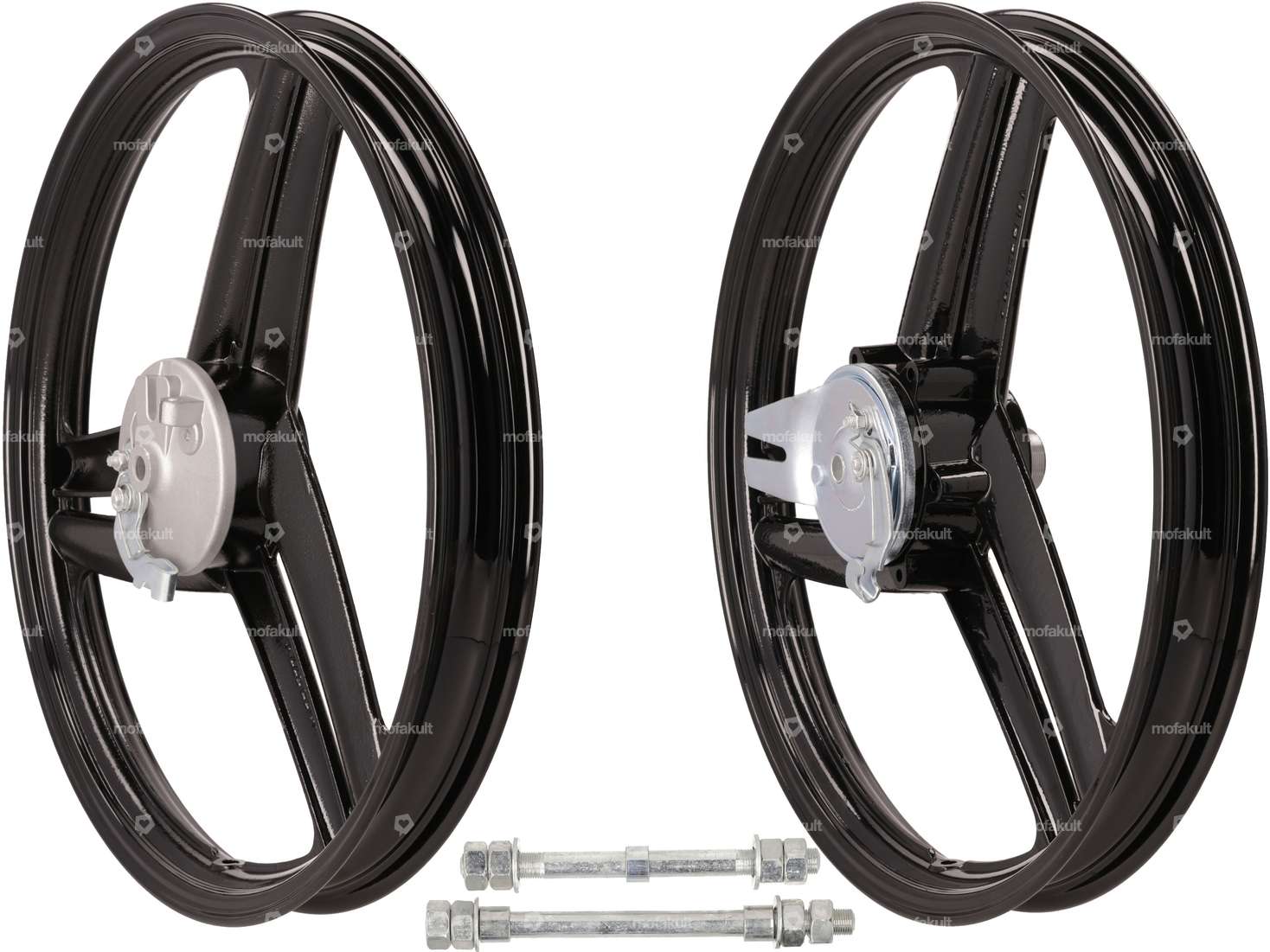

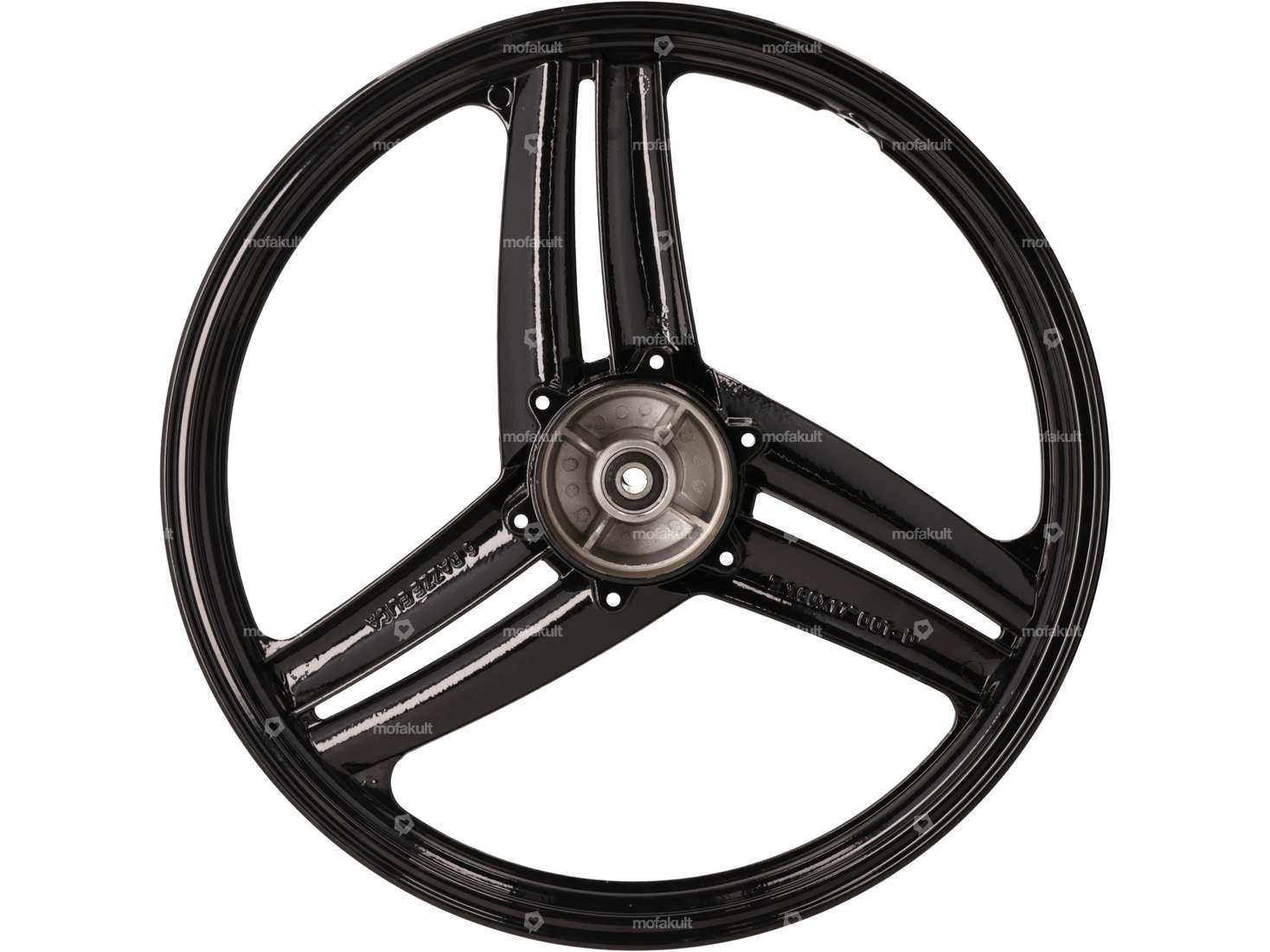

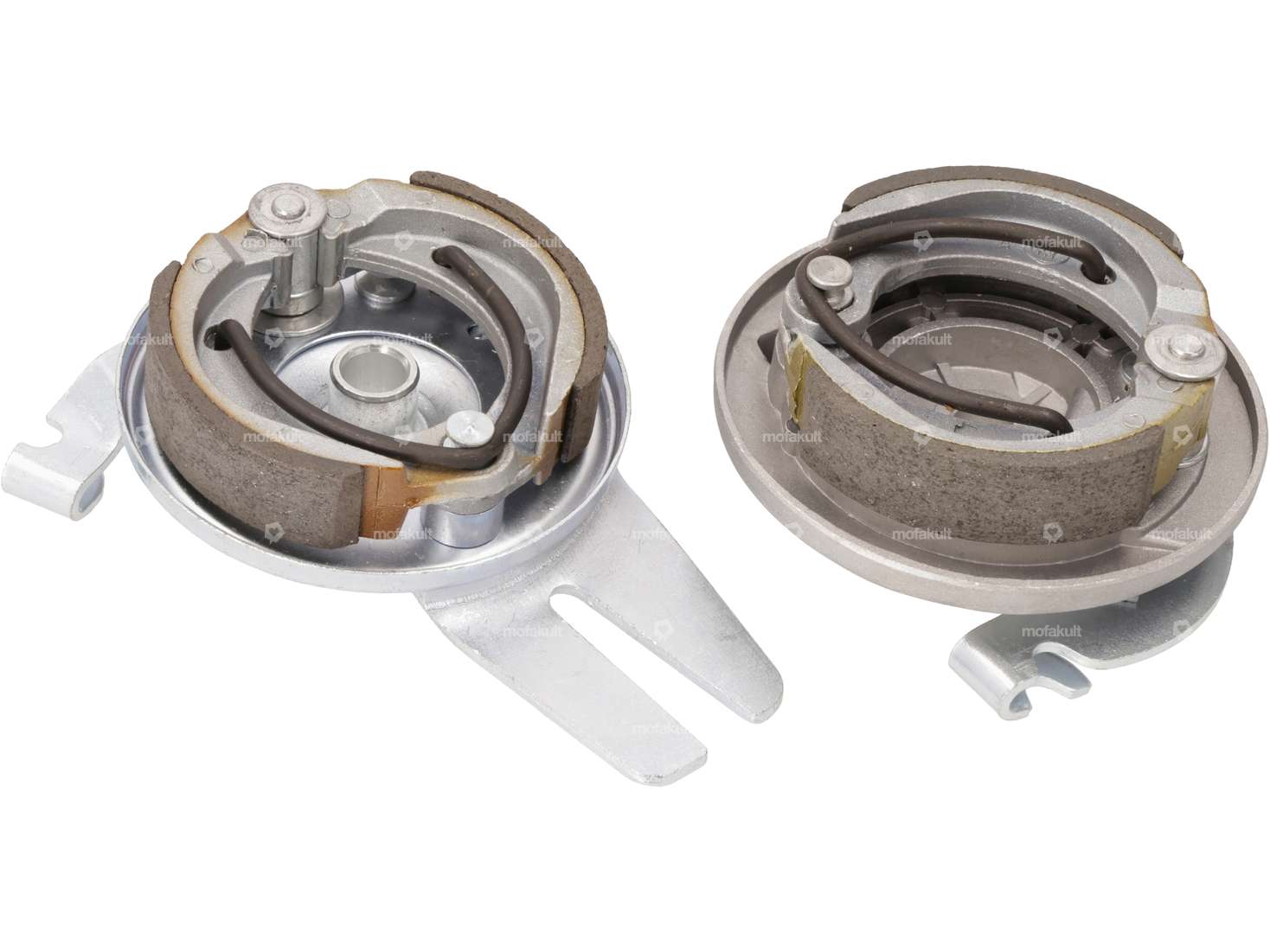

17 inch cast wheels front and rear with brake plate.
The aluminum rims are made to fit your Peugeot 103; fit with minor adjustments also under various other mopeds / mopeds / small motorcycles. Compare the dimensions listed below.
Ø outside: 457 mm

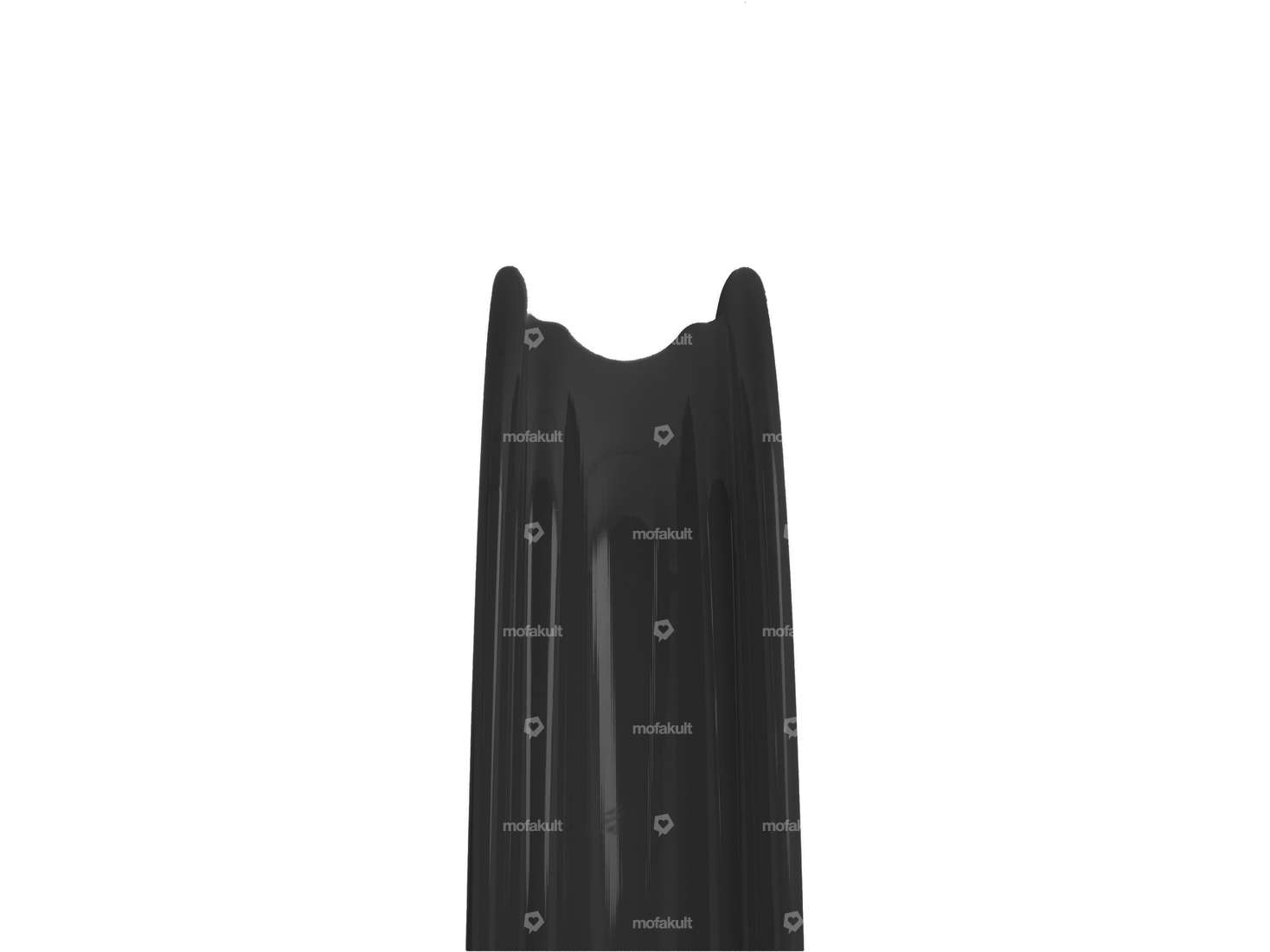

Rim width outside: 56 mm
Rim width inside: 40.6 mm (1.6”)
Ø inner bearing: 12 mm
Pitch circle sprocket mounting: 115 mm
Ø thread for freehub: 34.75 mm
Ø sprocket mount: 97.2 mm
Width of slot for brake cam: 8.25 mm
Ø brake drum f. / h.: 90 mm
Wheel axle length front: 155 mm
Wheel axle length rear: 185 mm
Note: The option to use a speedometer drive is unfortunately only possible with this rim combination with your technical skills.

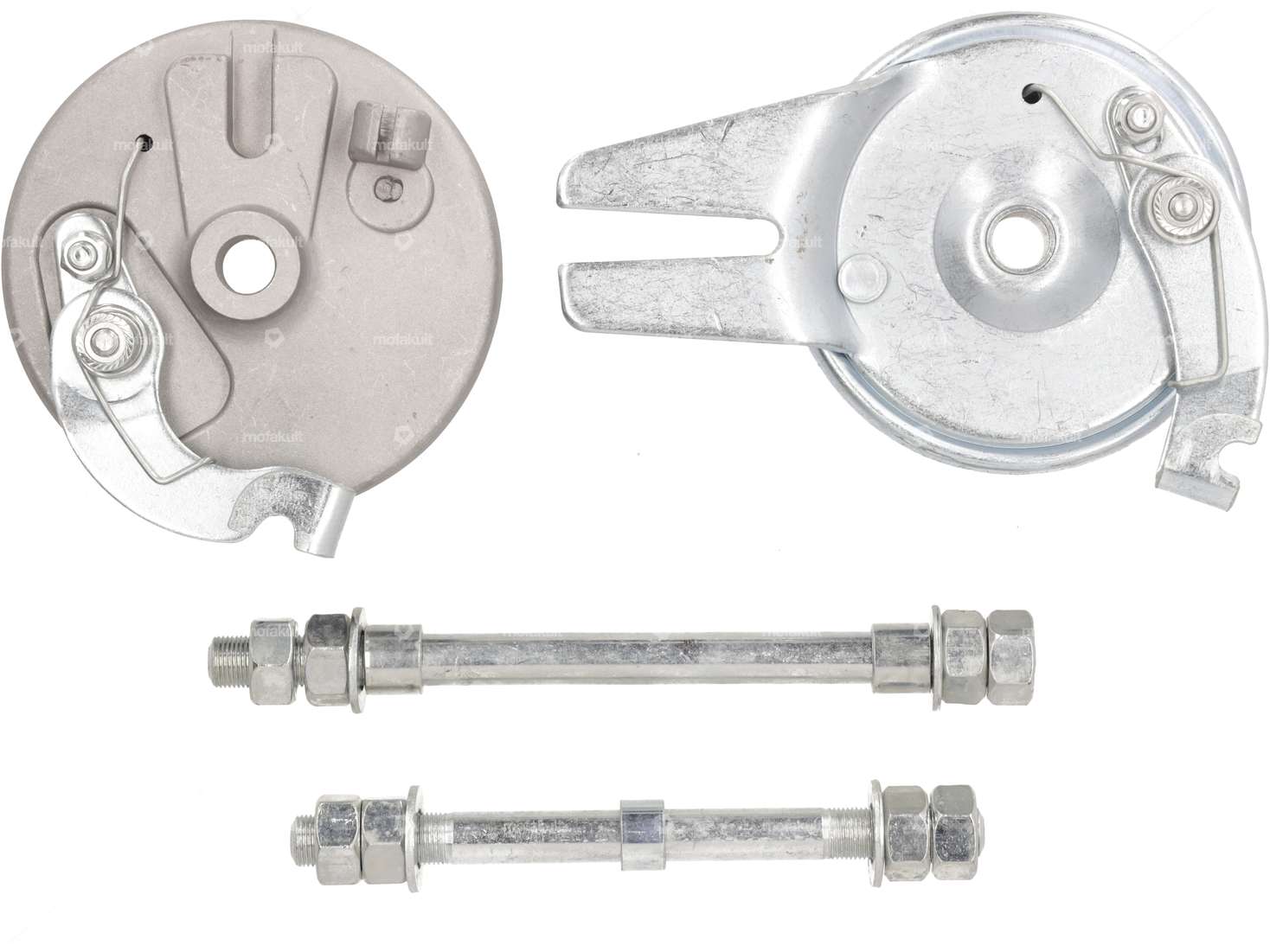

The wheel axle is also included in the scope of delivery and the ball bearings are already pressed in.
Sprockets, tires and hoses can be found under accessories.
| Nominal diameter | 457 mm |
| Ø axle | 11.8 mm |
| Material | Cast aluminum |
| Surface | powder-coated |
| Color | black |
| Rim well depth | 11.5 mm |
| Jaw width [inch] | 1.6 " |
| Ø Brake drum | 90 mm |
| Jaw width [mm] | 40.64 mm |
| Wheel size | 17 " |
| Overall width outside | 56 mm |
| Peugeot |
Accessories & related products

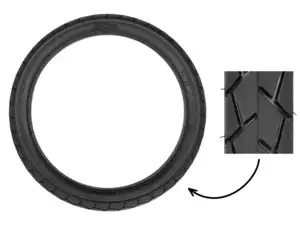

Mitas 2.50 x 17" MC11 semi-slick tires
Inventory-managed: No · Manufacturer: Mitas · Tire width: 2.5 " · Color: black · Width: 2 1/2 " · Old designation: 21 x 2.5 " · Speed index: J = 100 km/h · Load capacity index: 43 = 155 kg · Profile type: MC11 · Tire type: Semi-slick · White wall: No · Wheel size: 17 " · Tubeless (yes/no): Tubeless TL (tubeless insert) · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 59.20

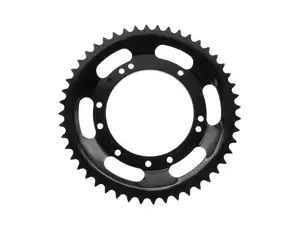

ESJOT sprocket 48 teeth black | Peugeot 103
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Color: black · Surface: powder-coated · Number of teeth: 48 pcs · Ø inside: 98 mm · Ø mounting hole: 6.5 mm · Ø bolt circle: 115 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs · Cranking (offset): 11 mm
EUR 59.20

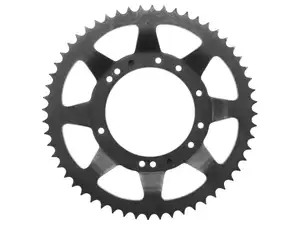

ESJOT sprocket 56 teeth black | Peugeot 103
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: raw · Number of teeth: 56 pcs · Ø inside: 98 mm · Ø mounting hole: 6.5 mm · Ø bolt circle: 115 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs · Cranking (offset): 11 mm
EUR 59.20
Hot

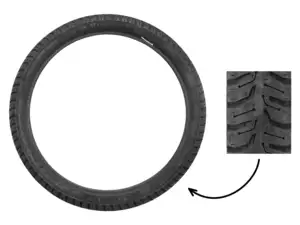

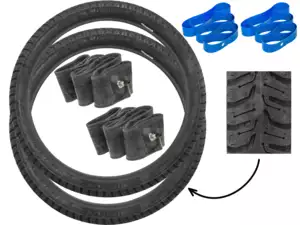

Michelin tire set 2.25 x 17"
Inventory-managed: Yes · Manufacturer: Michelin · Tire width: 2.25 " · Color: black · Tire width [mm]: 57.15 · Width: 2 1/4 " · Old designation: 21 x 2.25 " · Speed index: P = 150 km/h · Load capacity index: 38 = 132 kg · Profile type: City Extra · Tire type: Allround · White wall: No · Wheel size: 17 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 177.90

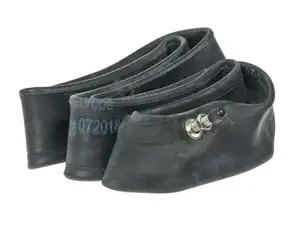

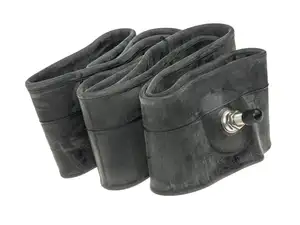

Heidenau 2.25 - 2.50 x 17" tube
