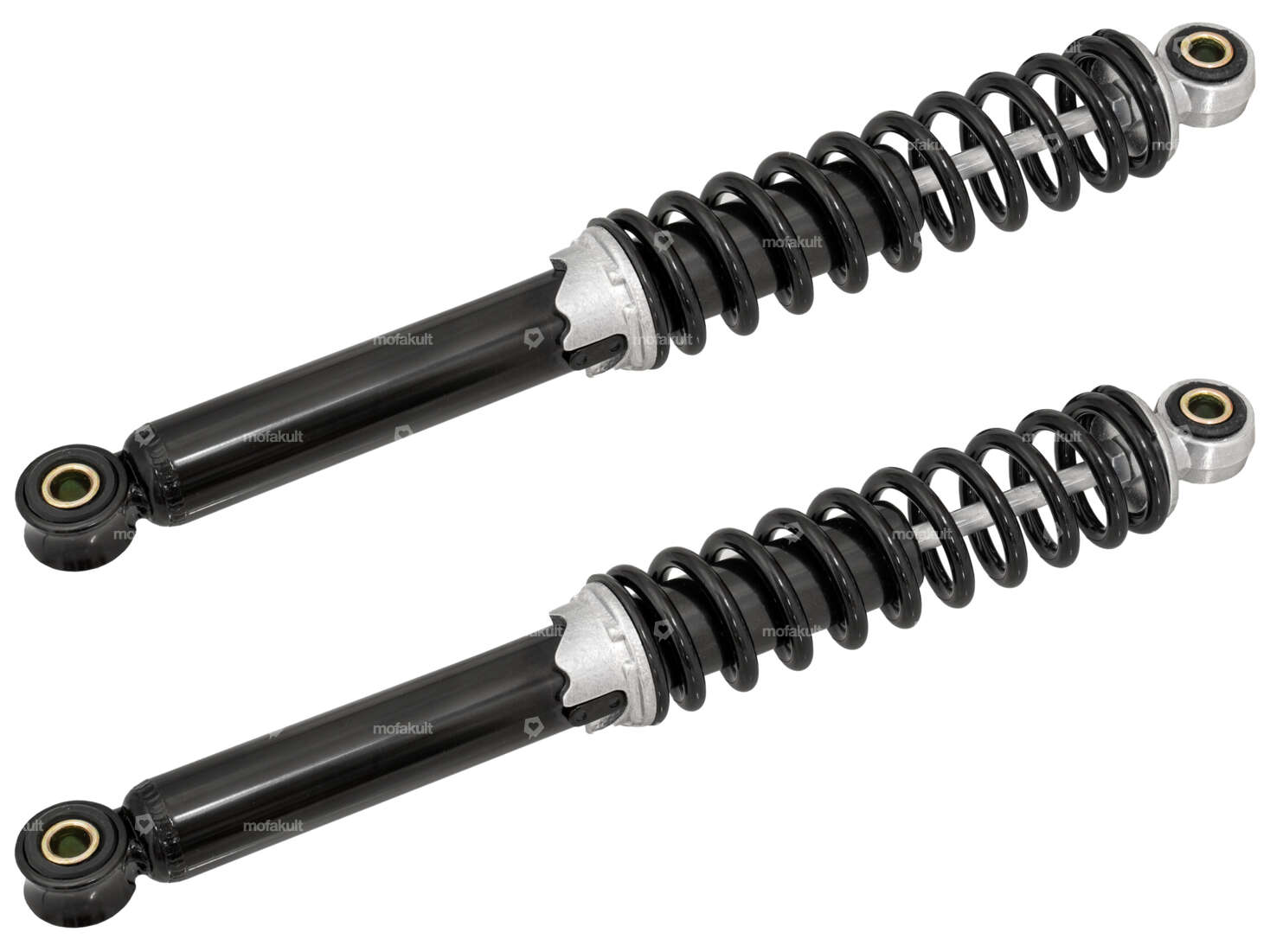

Black, adjustable shock absorbers for your moped, moped and small motorcycle.
The hardness or preload of the shock absorbers can be adjusted using the special spring mount.
Length (mount - mount): 340 mm
Outer diameter of coil spring: 49 mm
Holt diameter: 30 mm
Wall diameter for mounting: 10 mm
The rear springs should always be secured with large washers to prevent the plastic bushes from shifting if lateral forces occur.
The scope of delivery corresponds to one pair.
Rear springs from other manufacturers, the matching adjustment key as well as the washers and fastening material can be found in the accessories section.
Branded product from the manufacturer Xtreme.
| Ø outside | 49 mm |
| Manufacturer | Xtreme |
| Color | black |
| Surface | varnished |
| Damping type | Spring |
| Adjustable | Yes |
| Total length | 370 mm |
| Ø spars | 30 mm |
| Number of fixing points | 2 pcs |
| Ø Fastening inside | 10 mm |
| Hole spacing | 340 mm |
| Mounting type | Nuts & bolts |
Ratings
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: blue · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 26.00
EUR 2’600.00/l
YSS shock absorber Racing 35 cm (oil pressure)
Total length: 380 mm · Manufacturer: YSS · Material: Steel · Color: black · Surface: varnished · Damping type: Hydraulic (oil) · Mounting type: Nuts & bolts · Adjustable: Yes · Number of fixing points: 2 pcs · Hole spacing: 350 mm · Ø Fastening inside: 10 mm
EUR 166.00

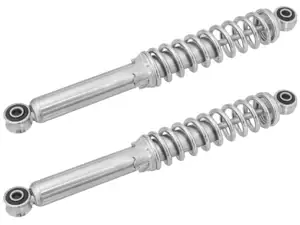

Xtreme shock absorber 34 cm chrome
