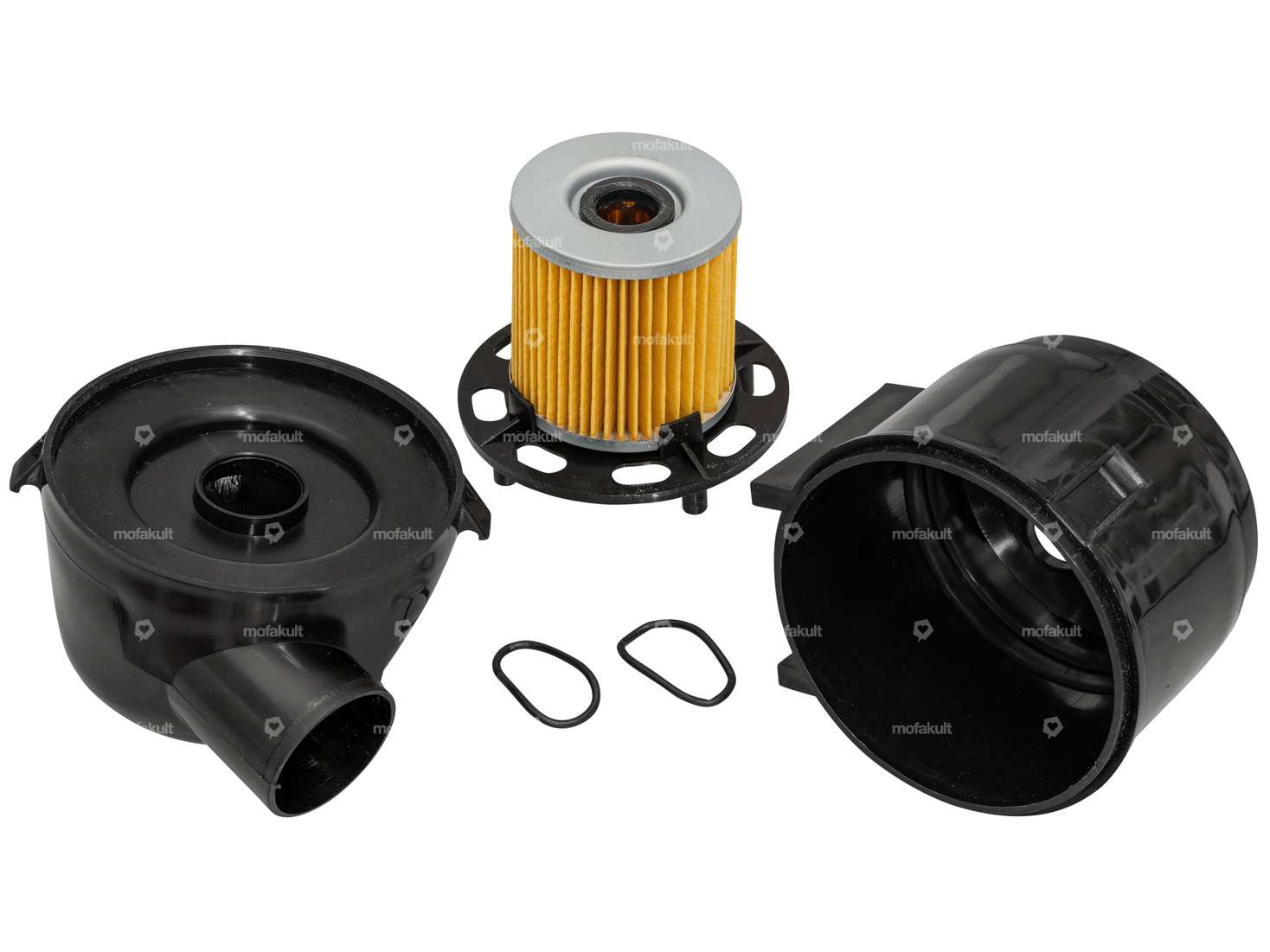

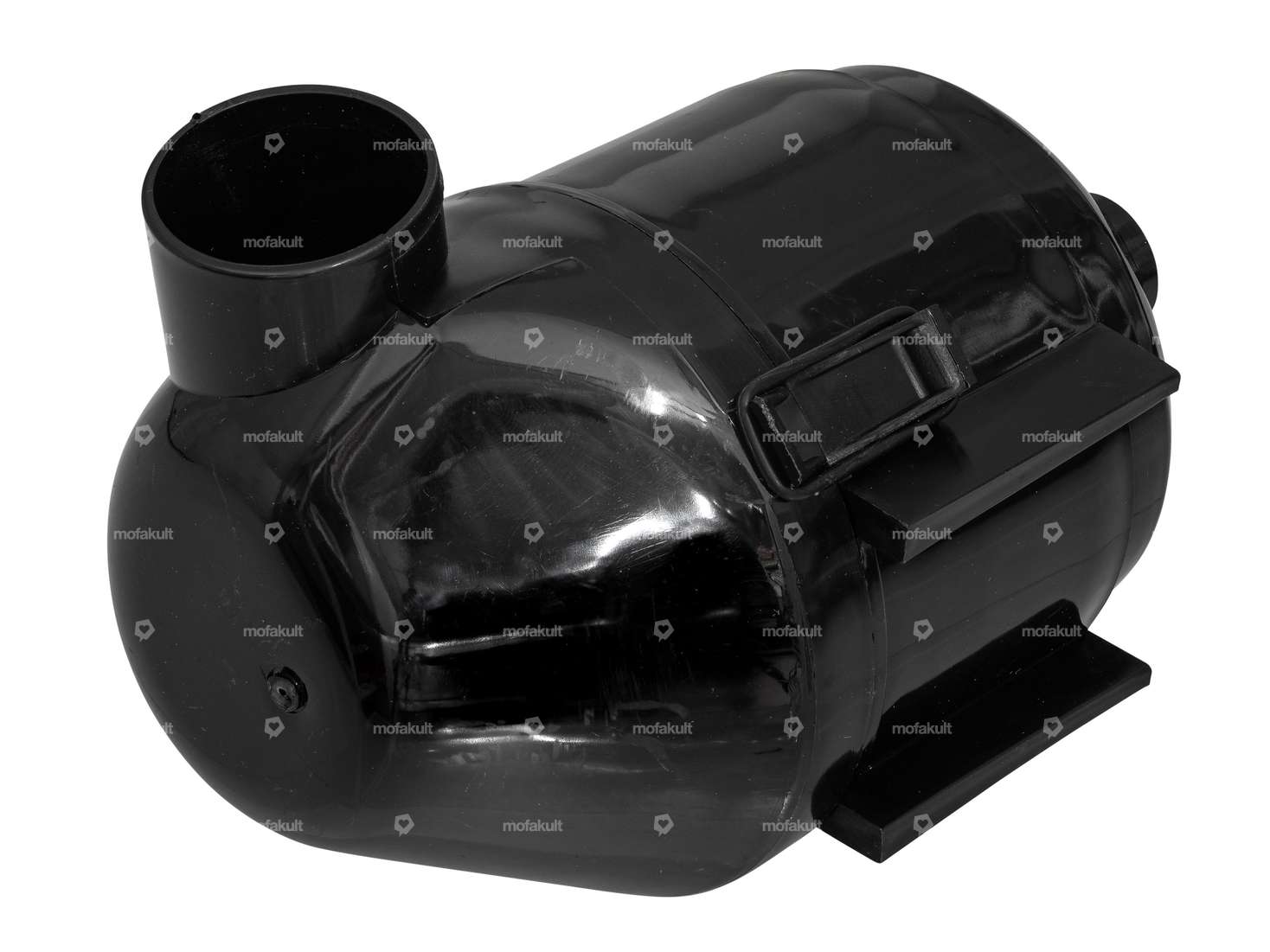

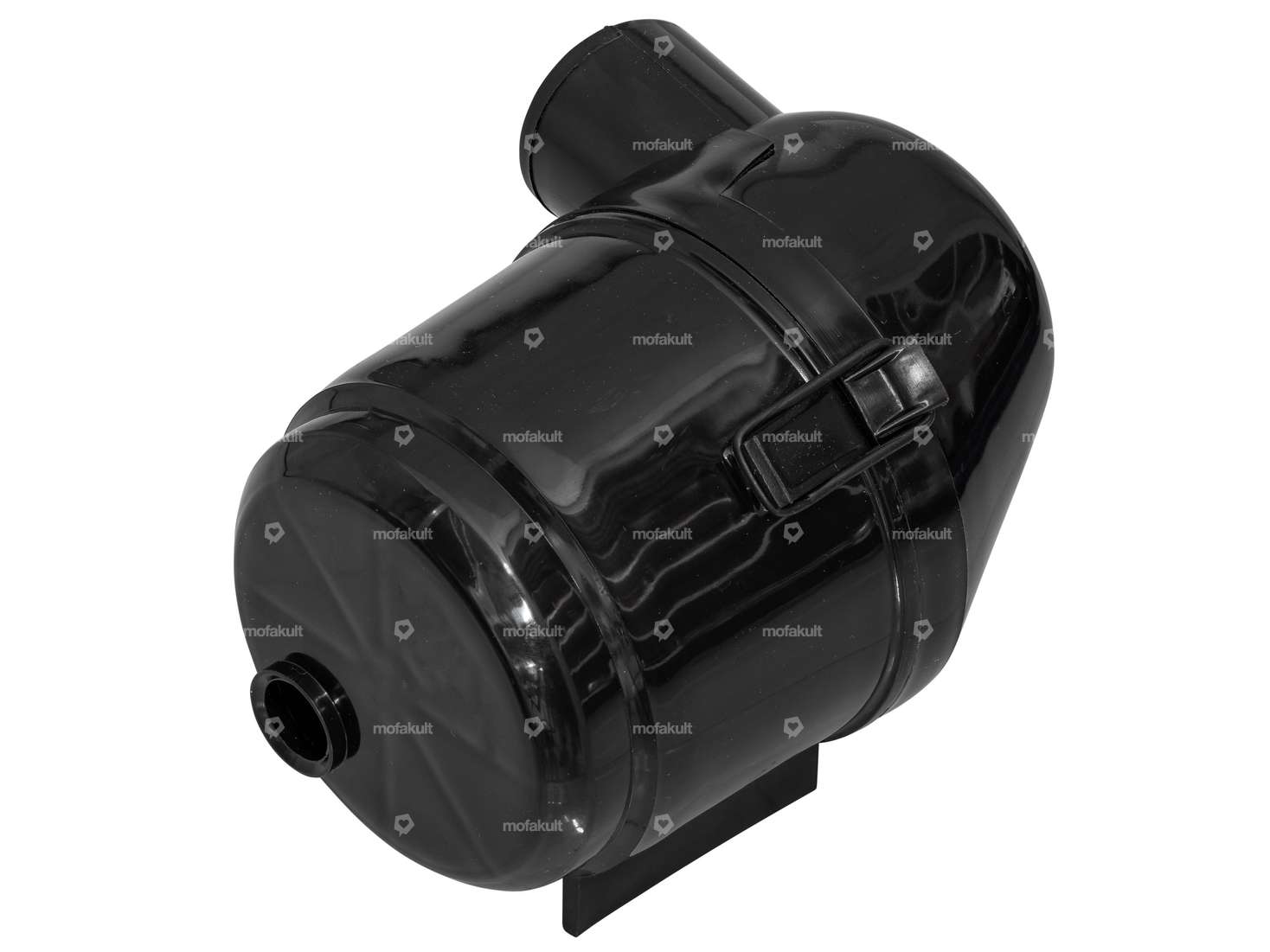

Air filter box | Puch Monza

Engine gasket set | Puch MS, VS, DS, MV, M

Number of components: 8 pcs · Area of application: Standard

38 mm cylinder head | Puch Supermaxi LG1/LG2, Monza

Ø cylinder: 40 mm · Total length: 165 mm · Width: 165 mm · Height: 55 mm · Decompressor: No

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Material: Rubber · Color: black

Crankshaft full cheeks | Puch MV, VS, MS, DS, Monza, X50 (3 & 4 speed)

Area of application: Tuning · Cheek type: Full cheeks · Number of gears: 3 pcs · Number of gears: 4 pcs · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm

40 mm cylinder kit aluminum | Puch Monza, X50

Nominal diameter: 40 mm · Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Silentblock 10/22/33 mm

Material: Rubber · Material: Steel · Ø outside: 22 mm · Ø inside: 10 mm · Total length: 33 mm

Air filter insert paper | Puch Monza

Area of application: Standard · Material: Paper

Intake manifold 17 mm | Puch Monza

Material: Aluminum · Ø External connection: 23 mm · Ø inside: 17 mm · Hole spacing inlet: 32 mm · Total height: 70 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Tuning

Silentblock engine mount | Puch MS50, VS50, MV50

Material: Rubber · Material: Steel · Total length: 17 mm · Ø inside: 8 mm · Ø outside: 20 mm
