Membrane system

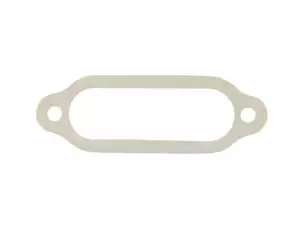

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.4 mm · Hole spacing inlet: 67 mm · Pony OEM number: A1840 · Sachs OEM no.: 0250 106 00

Membrane Standard | Solex

Manufacturer: Made in Italy · Material: Rubber · Component group Carburetor: Adjusting screws, float, etc. · Color: black

Athena gasket set 45 mm AJH diaphragm | Puch

Manufacturer: Athena · Ø cylinder: 45 mm · Area of application: Tuning · Hole spacing outlet: 42 mm · Number of components: 5 pcs · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 5.2 mm · Area of application: Standard · Hole spacing: 67 mm · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010

Diaphragm motor Beta 521 & 512 (A8114)

Manufacturer: Pony · Number of flaps: 2 pcs · Membrane material: Fiberglass · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Original

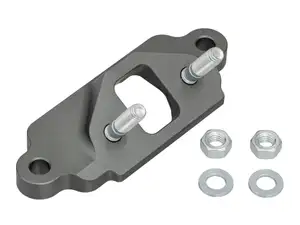

swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Ø inside: 17 mm · Thickness: 6.9 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Number of flaps: 2 pcs · Width: 80 mm · Total length: 29 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole spacing: 31 mm · Hole spacing: 67 mm

Polini 2-folding diaphragm insert

Thickness: 2 mm · Manufacturer: Polini · Number of flaps: 2 pcs · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Membrane plate Solex

Material: Plastic · Component group Carburetor: Adjusting screws, float, etc. · Color: white

Polini lung aluminum

Manufacturer: Polini · Material: Aluminum · Mounting type: Cable ties · Total length: 105 mm · Area of application: Tuning · Total height: 40 mm

Polini gasket diaphragm

Manufacturer: Polini · Ø cylinder: 45 mm · Place of use: Admission

Polini intake system 4-folding diaphragm PHBG | Puch

Ø inside: 19 mm · Manufacturer: Polini · Number of flaps: 4 pcs · Mounting type: Screws · Ø outside: 24 mm · Area of application: Tuning · Hole pattern [mm]: 56 x 30 mm / 39 x 36 mm

Polini 2-folding diaphragm | Tomos

Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Tomos OEM number: 222238

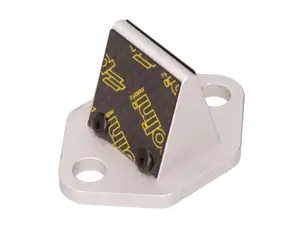

AKOA Membrane Carbon | Cilo Cross 521, 512 / Pony Cross 521, GTX 521 (A8114)

Manufacturer: AKOA · Material: Aluminum · Number of flaps: 2 pcs · Width: 33 mm · Membrane material: Carbon · Total length: 48 mm · Thick membrane platelets: 0.25 mm · Number of fixing points: 2 pcs · Area of application: Tuning · Hole spacing: 35 mm · Alternative version of the Pony OEM number: A8114

Membrane Racing Solex

Manufacturer: Made in France · Material: Rubber · Component group Carburetor: Adjusting screws, float, etc. · Color: red · Height: 0.4 mm · Mounting type: Screws

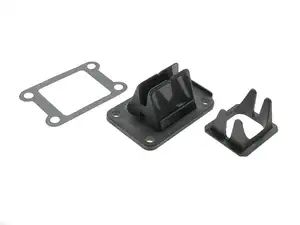

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Manufacturer: Stage6 · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Width: 49 mm · Membrane material: Carbon · Total length: 77 mm · Thick membrane platelets: 0.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 6.6 mm · Area of application: High End · Hole pattern [mm]: 60 x 35 mm

Athena diaphragm seal AJH | Puch

Thickness: 0.5 mm · Manufacturer: Athena · Material: Oiled paper · Ø screw holder: 6.7 mm · Place of use: Admission · Area of application: Tuning · Hole pattern [mm]: 40 x 62

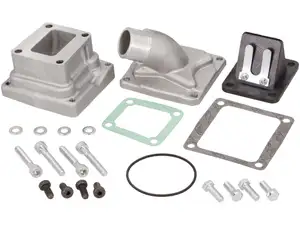

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø inside: 28.6 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Material: Plastic · Surface: glass bead blasted · Thread type: M5x0.8 (standard thread) · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Mounting type: Screws · Ø outside: 24 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.2 mm · Area of application: Racing · Area of application: Tuning

swiing® ingenious diaphragm insert carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Brass · Material: Carbon · Number of flaps: 2 pcs · Total length: 80.6 mm · Hole spacing: 67 mm · Width: 27 mm · Area of application: Racing · Area of application: Tuning · Alternative version of the Sachs OEM number: A2624

Intermediate flange cylinder Athena AJH | Puch

Material: Plastic · Color: black-matt · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 40

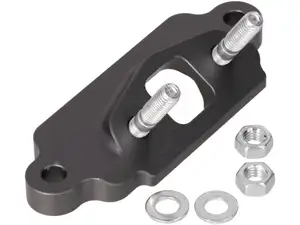

swiing® ingenious intermediate flange 13 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Ø inside: 13 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Thread type: M5x0.8 (standard thread) · Number of flaps: 2 pcs · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Standard · Area of application: Tuning · Hole spacing: 31 mm · Hole spacing: 67 mm

Malossi intake system 4-folding diaphragm PHBG | Puch / Peugeot 103 RCX, SPX

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Mounting type: Screws · Ø outside: 24 mm · Area of application: Tuning

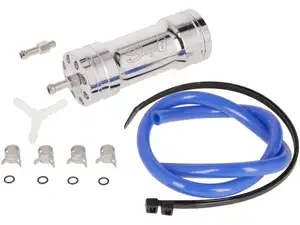

Stage6 lung aluminum

Ø inside: 4 mm · Manufacturer: Stage6 · Material: Aluminum · Camouflaged: No · Color: Chrome · Surface: chrome-plated · Ø External connection: 6 mm · Mounting type: Cable ties · Total length: 105 mm · Total length: 125 mm · Area of application: Tuning · Total height: 40 mm

Polini gasket diaphragm | Morini M1, M01 / M02

Thickness: 0.8 mm · Manufacturer: Polini · Hole spacing inlet: 45 mm

swiing® ingenious membrane plate 0.30 mm carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Width: 17 mm · Membrane material: Carbon · Total length: 53 mm · Thick membrane platelets: 0.3 mm · Number of fixing points: 1 pcs

Malossi 4-folding diaphragm insert Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm

Athena gasket set 2-folding diaphragm | Puch / Sachs

Thickness: 0.5 mm · Manufacturer: Athena · Material: Sealing paper · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 33 x 32 mm

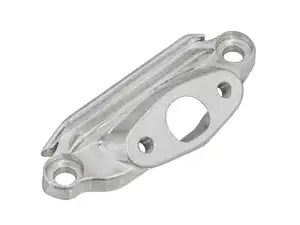

Intermediate flange diaphragm 12 mm | Sachs 502, 50/2, 50/3, 50/4 (A2621)

Ø inside: 12 mm · Material: Aluminum · Thread type: M5x0.8 (standard thread) · Number of flaps: 2 pcs · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Standard · Hole spacing: 31 mm · Hole spacing: 67 mm · Pony OEM number: A2621 · Sachs OEM no.: 0286 210 001

Malossi diaphragm plate 0.3 mm carbonite 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbonite · Total length: 100 mm · Thick membrane platelets: 0.3 mm · Area of application: Tuning

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Ø inside: 22 mm · Manufacturer: Athena · Material: Aluminum · Ø External connection: 26 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 40

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Polini 20 mm intake manifold 2-folding diaphragm Puch

Ø inside: 20 mm · Manufacturer: Polini · Material: Aluminum · Ø External connection: 25 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Total height: 46 mm

MBR plate inlet Gilardoni italkit steel

Ø inside: 21 mm · Thickness: 5 mm · Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Total length: 72.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

Membrane box for ADDY GME engine housing "der.pruefstand" | Puch E50

Material: Aluminum · Thread type: M6x1 (standard thread) · Width: 66 mm · Total length: 48 mm · Hole spacing: 52 mm · Hole pattern [mm]: 37 x 55

Malossi gasket set 4-folding diaphragm | Puch, Peugeot

Manufacturer: Malossi · Material: Sealing paper · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit | Puch

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm

swiing® ingenious diaphragm plate 0.25 mm carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Width: 17 mm · Membrane material: Carbon · Total length: 53 mm · Thick membrane platelets: 0.25 mm · Number of fixing points: 1 pcs

Malossi diaphragm plate 0.3 mm carbon 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbon · Total length: 100 mm · Thick membrane platelets: 0.3 mm · Area of application: Tuning

2-folding diaphragm insert Athena AJH | Puch

Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 40 mm

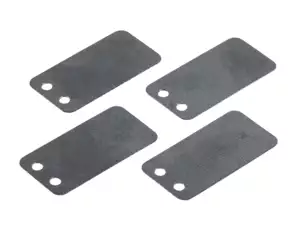

Malossi diaphragm plate carbonite | Minarelli, Morini

Manufacturer: Malossi · Material: Carbonite · Width: 20 mm · Membrane material: Carbonite · Total length: 38 mm · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 3 mm · Area of application: Tuning · Hole spacing: 8 mm

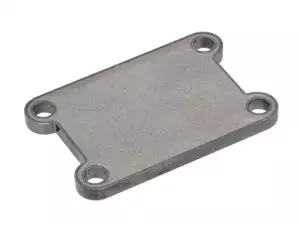

MBR cover diaphragm inlet Gilardoni italkit | Puch

Thickness: 5 mm · Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Total length: 72.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 6.3 mm · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

Polini CP intake manifold EVO REED side inlet | Piaggio Ciao, SI, Bravo, Grillo

Ø inside: 21 mm · Manufacturer: Polini · Material: Plastic · Color: black · Ø External connection: 33 mm · Hole pattern [mm]: 34 x 43

swiing® ingenious membrane plate 0.40 mm carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Width: 17 mm · Membrane material: Carbon · Total length: 53 mm · Thick membrane platelets: 0.4 mm · Number of fixing points: 1 pcs

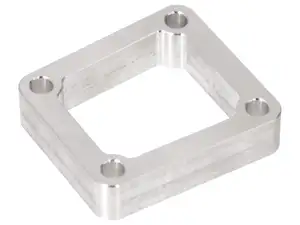

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Thickness: 12 mm · Material: Aluminum · Surface: blank · Width: 42.5 mm · Width: 46 mm · Total length: 50 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.4 mm · Area of application: Tuning · Hole pattern [mm]: 32 / 36 x 39

Malossi diaphragm plate 0.35 mm carbonite 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbonite · Total length: 100 mm · Thick membrane platelets: 0.35 mm · Area of application: Tuning

Malossi diaphragm plate 0.4 mm carbonite 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbonite · Total length: 100 mm · Thick membrane platelets: 0.4 mm · Area of application: Tuning

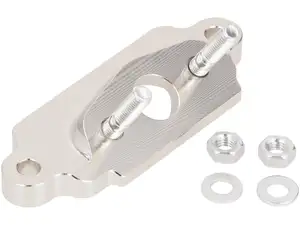

swiing® ingenious intermediate flange 12 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Thread type: M5x0.8 (standard thread) · Number of flaps: 2 pcs · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Standard · Hole spacing: 31 mm · Hole spacing: 67 mm

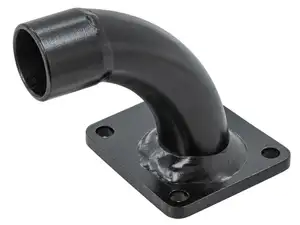

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Ø inside: 19 mm · Manufacturer: MLM · Material: Steel · Color: black · Surface: varnished · Ø External connection: 23 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Total height: 67 mm

Parmakit 2-folding diaphragm insert carbon

Manufacturer: Parmakit · Number of flaps: 2 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 40 mm

Stage6 reed valve block VForce 3 by Moto Tassinari

Manufacturer: Stage6 · Number of flaps: 8 pcs · Hole spacing: 52 mm

DMP 2 hinged membrane insert

Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.8 mm · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Polini 2-folding diaphragm Puch

Thickness: 2 mm · Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Ø mounting hole: 5.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

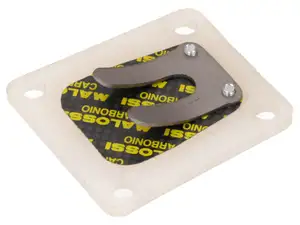

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Thickness: 3 mm · Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Surface: raw · Number of flaps: 1 pcs · Width: 43 mm · Width: 47 mm · Membrane material: Carbon · Total length: 50 mm · Thick membrane platelets: 0.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.4 mm · Area of application: Tuning · Hole pattern [mm]: 32 / 36 x 39

Gilardoni italkit 4-folding diaphragm original

Manufacturer: Gilardoni italkit · Number of flaps: 4 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 6.3 mm · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

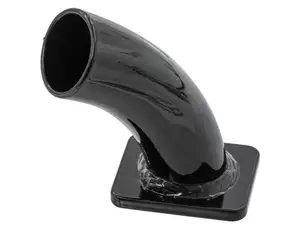

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Ø inside: 25.3 mm · Manufacturer: MLM · Material: Steel · Color: black · Surface: varnished · Ø External connection: 28.5 mm · Mounting type: Plug connection clamped · Area of application: Tuning · Total height: 80 mm
