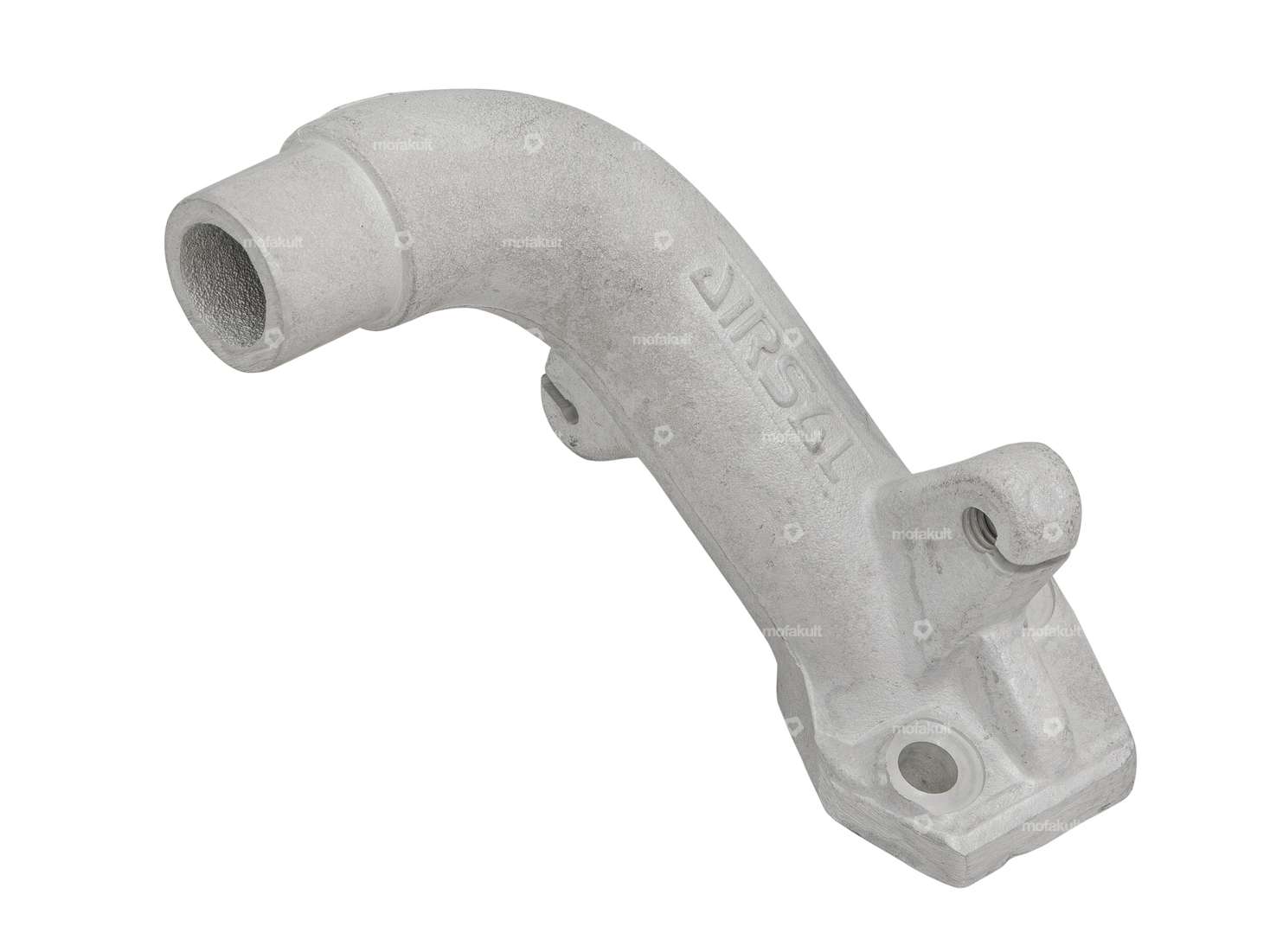

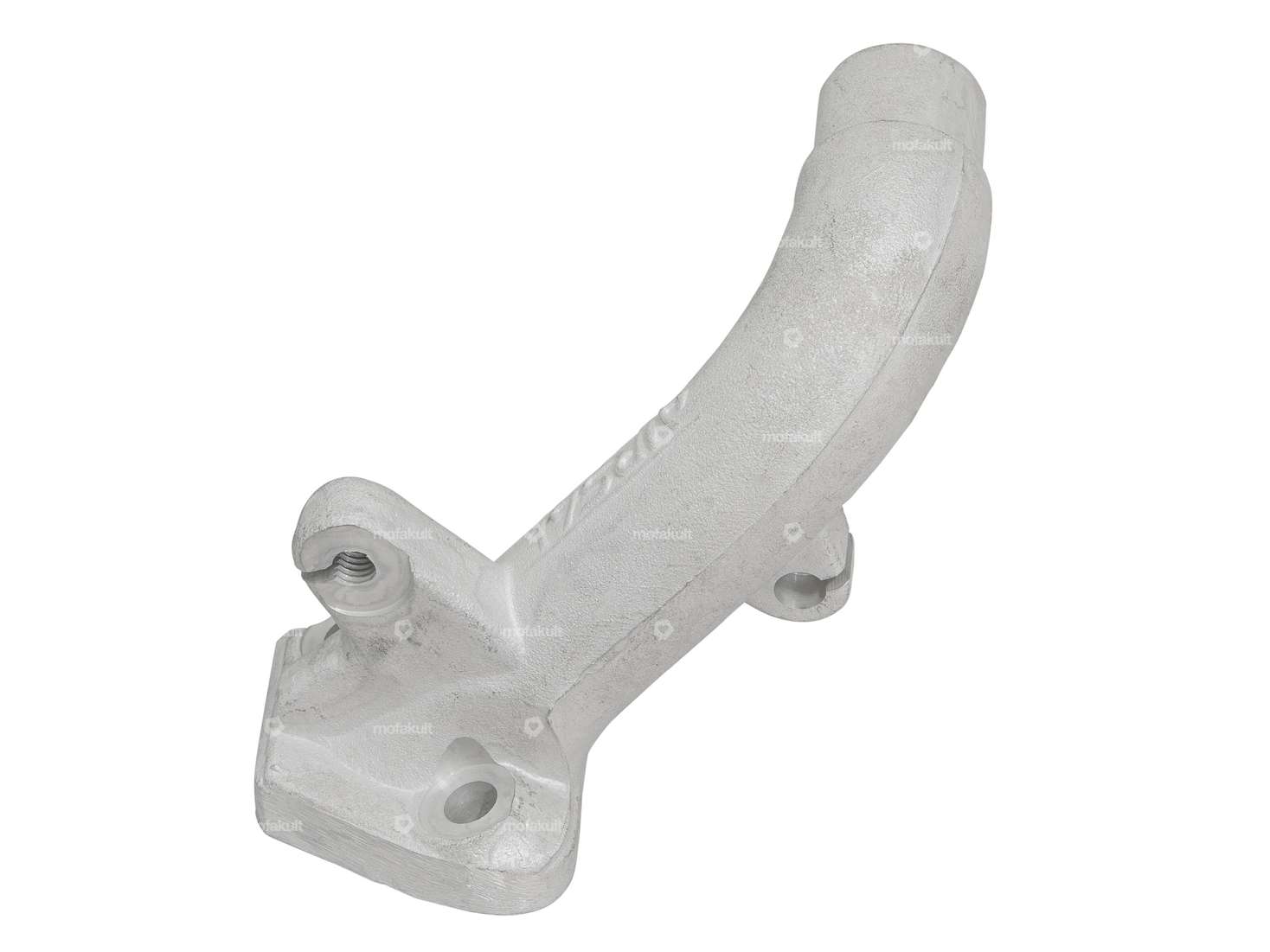

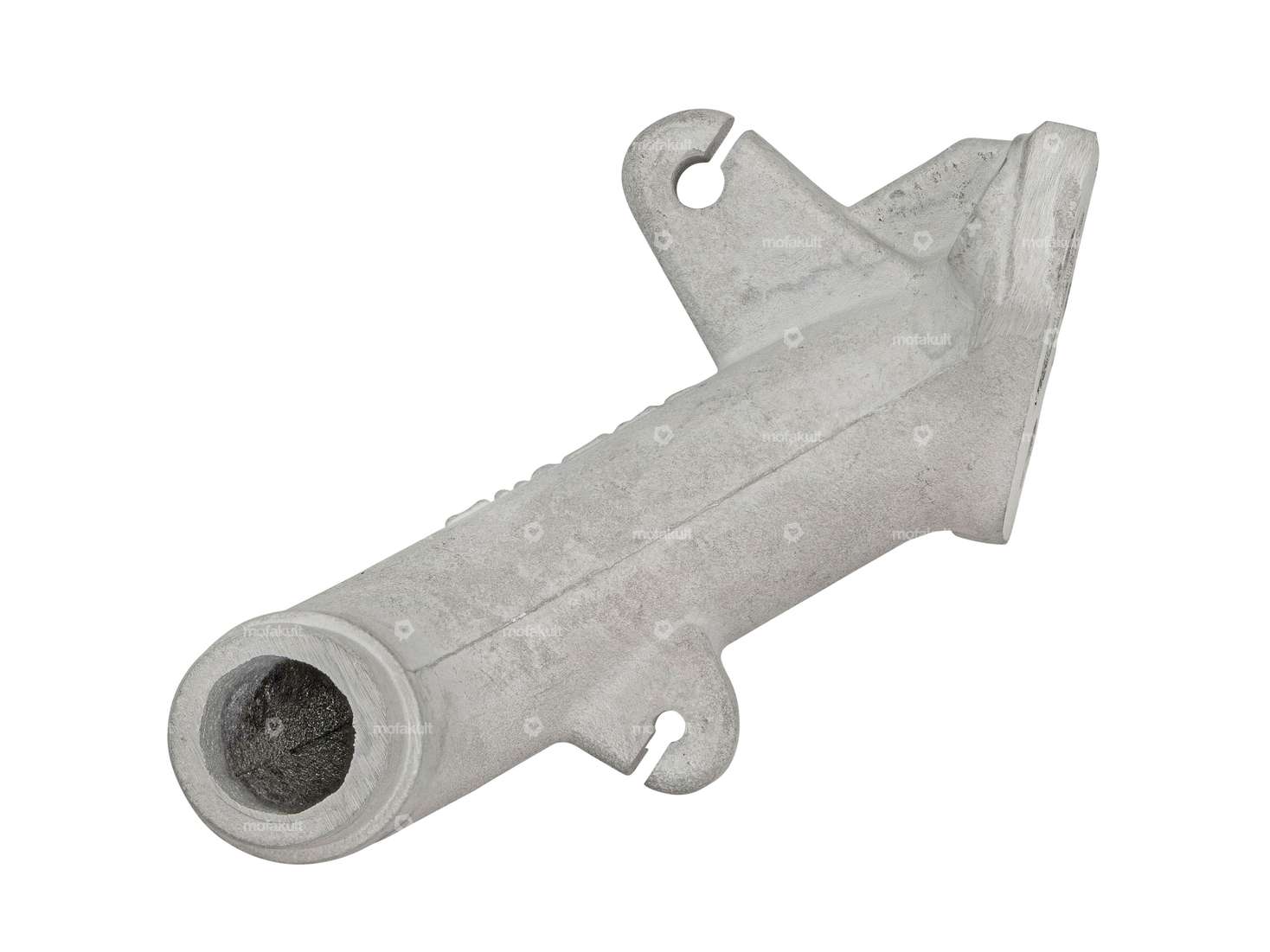

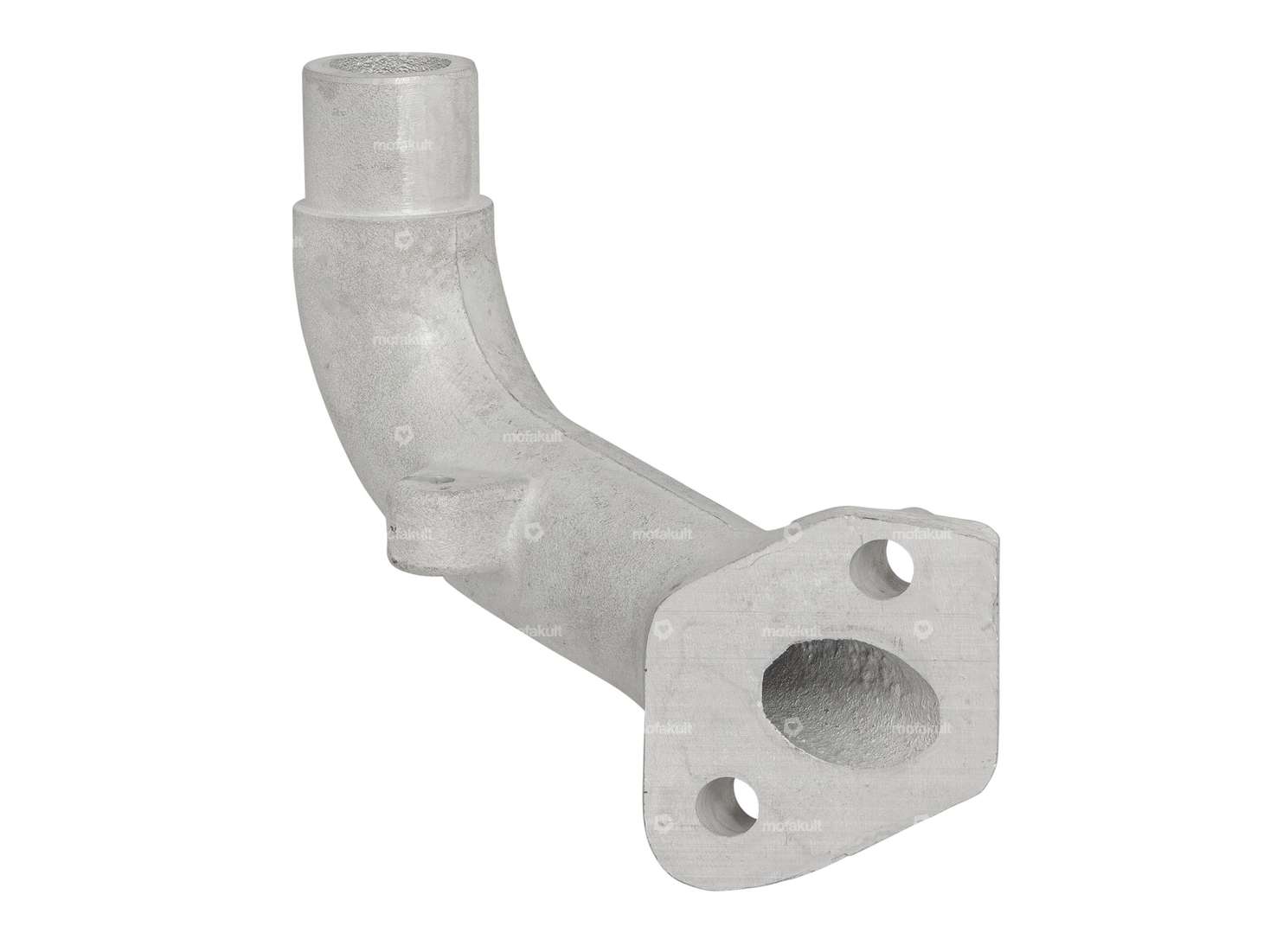

Airsal 14 mm intake manifold angled | Sachs 504, 505

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9

swiing® revival neck nut M6 galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Neck nut · Thread type: M6x1 (standard thread) · Drive: External hexagon · Width across flats SW: 10 mm · Height: 16 mm

Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 535, 508

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Nominal diameter: 43.5 mm · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 31 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Area of application: Tuning · Outlet type: clamped · Number of fixing points: 4 pcs

Athena intake manifold 15mm straight | Sachs 504, 505

Manufacturer: Athena · Material: Aluminum · Ø inside: 15 mm · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 2 pcs · Ø External connection: 20 mm

Airsal gasket set 43.5 mm | Sachs 504, 505

Manufacturer: Airsal · Number of components: 3 pcs · Thickness: 0.5 mm · Ø cylinder: 43.5 mm · Area of application: Tuning

Flange intake manifold CNC | Sachs 504, 505, 535

Material: Aluminum · Hole spacing inlet: 30 mm · Area of application: Tuning · Total height: 12.8 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Hole pattern [mm]: 23 x 11

MLM 15 mm intake manifold Dell'Orto SHA | Sachs 504, 505

Ø inside: 15 mm · Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø External connection: 19 mm · Hole spacing inlet: 30 - 32 mm · Area of application: Tuning · Height flange center hole: 45 mm · Mounting type: Screws · Number of fixing points: 2 pcs

Athena intake manifold 15mm aluminum angled | Sachs 504, 505

Manufacturer: Athena · Material: Aluminum · Ø External connection: 20 mm · Ø inside: 14.3 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Tuning

Airsal piston 43.5 mm | Sachs 504 / 505

Manufacturer: Airsal · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.5 mm · Ø piston pin (B): 12 mm · Compression height (C): 25.8 mm · Curvature (D): 4.25 mm · Total piston height (E): 52.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm

Spring washer M6 (6.2x11.8x1.6) galvanized

Material: Spring steel · Surface: galvanized (blue) · Area of application: Standard · Thread size: M6 · Ø inside: 6.4 mm · Nominal diameter (thread): 6 mm · Ø outside: 11.4 mm · Thickness: 1.8 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 3.94 mm · Manufacturer: KMC · Surface: blank / oiled · Material: Steel · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Color: gray · Ø bore: 4 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spraying · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

GPO 15 mm carburetor tuning | Puch

Manufacturer: GPO · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Nominal diameter: 15 mm · Carburetor type: SRE · Total length: 66 mm · Width: 50 mm · Ø fuel hose connection: 6 mm · Height: 95 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: No · Clamping screw torque (max.): 4 N/m

Black bench seat

Manufacturer: Made in Portugal · Total length: 300 mm · Material: Imitation leather · Ø Saddle tube holder: 22 mm · Color: black · Spring-loaded: No · Lettering: No · Width: 215 mm · Height: 80 mm · Height: 115 mm · Number of fixing points: 1 pcs

Magura cable holder

Ø Cable bushing: 4 mm · Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Material: Brass · Area of application: Standard · Surface: nickel-plated · Color: silver · Ø Bundle: 10 mm · Total length: 14.5 mm · Ø outside: 8 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

GPO rubber for swingarm mounting | Puch Maxi S, X30

Manufacturer: GPO · Material: Rubber · Color: black · Total length: 90 mm · Ø outside: 32 mm · Ø outside: 37 mm · Ø inside: 24 mm · Puch OEM number: 349.1.21.509.1

Inner cable Ø 1.2 mm x 200 cm with barrel nipple Ø 6 mm

Ø Stranded wire: 1.2 mm · Nipple shape: Barrel (transverse) · Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Brass · Material: Steel · Surface: galvanized (blue) · Cable length: 2000 mm · Area of application: Standard · Nipple length: 5.5 mm · Number of components: 1 pcs

Magura shift segment 2-speed shifter | Sachs / Zündapp

Surface: galvanized (blue) · Manufacturer: Magura · Material: Steel · Total length: 34.2 mm · Color: silver · Width: 14 mm · Height: 9.8 mm

Magura angle piece clutch lever

Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Width: 19.5 mm · Total length: 21.3 mm · Height: 9.7 mm · Color: silver
