For: Puch

10756

Airsal piston 46 mm | Puch

EUR 45.00

Incl. 21% VAT.

Description

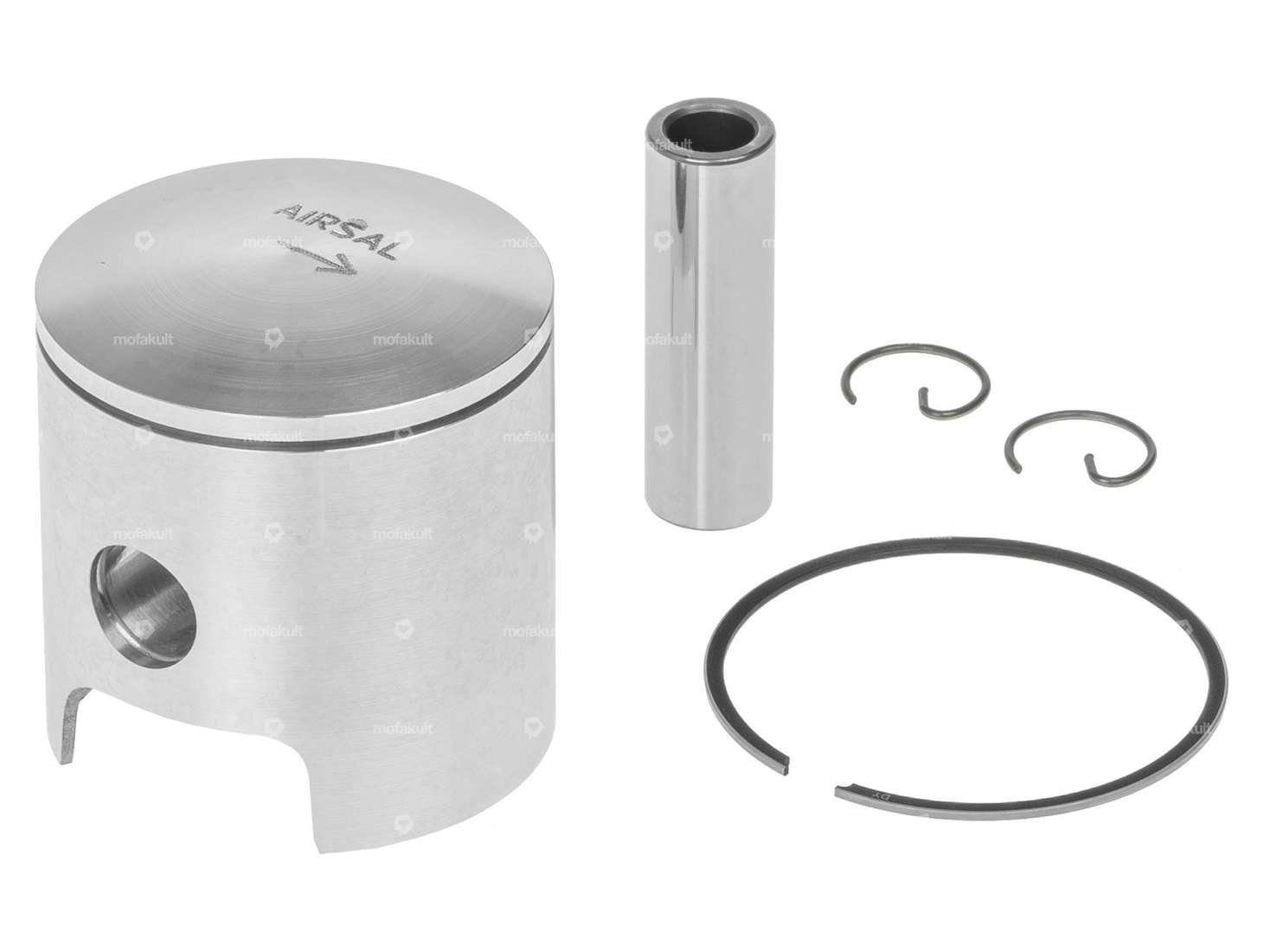

46.0 mm piston with an L-piston ring with internal fuse (IS) suitable for various Puch mopeds / mopeds.

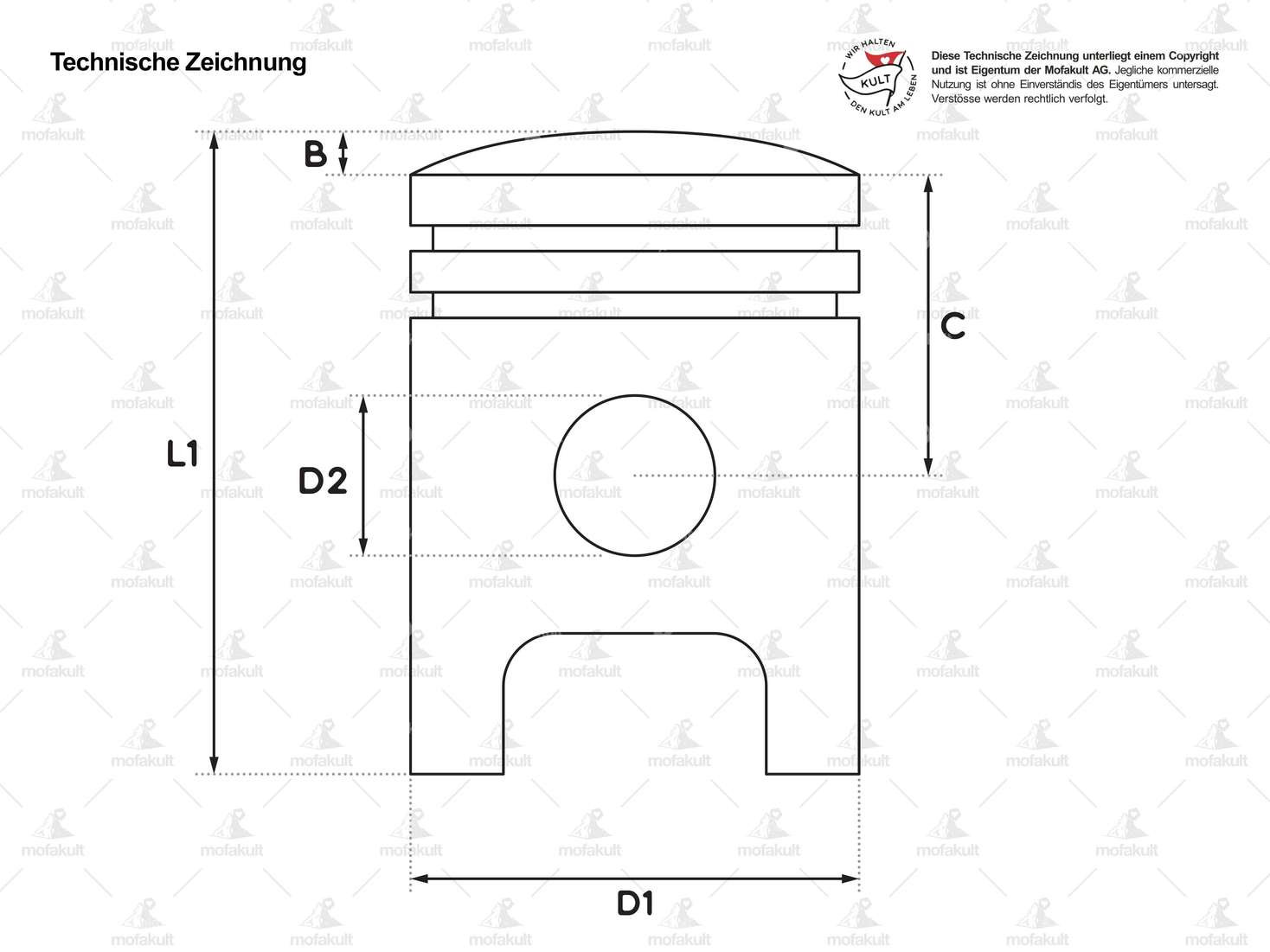

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter46 mm
ManufacturerAirsal
Ø outside piston (A)45.95 mm
Compression height (C)21.8 mm
Curvature (D)3.7 mm
Total piston height (E)48.6 mm
Number of piston rings (F)1 pcs
Piston ring moldL-ring
Piston ring impactInternal fuse (IS)
Ø piston pin (B)12 mm
Weight piston kit98 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
