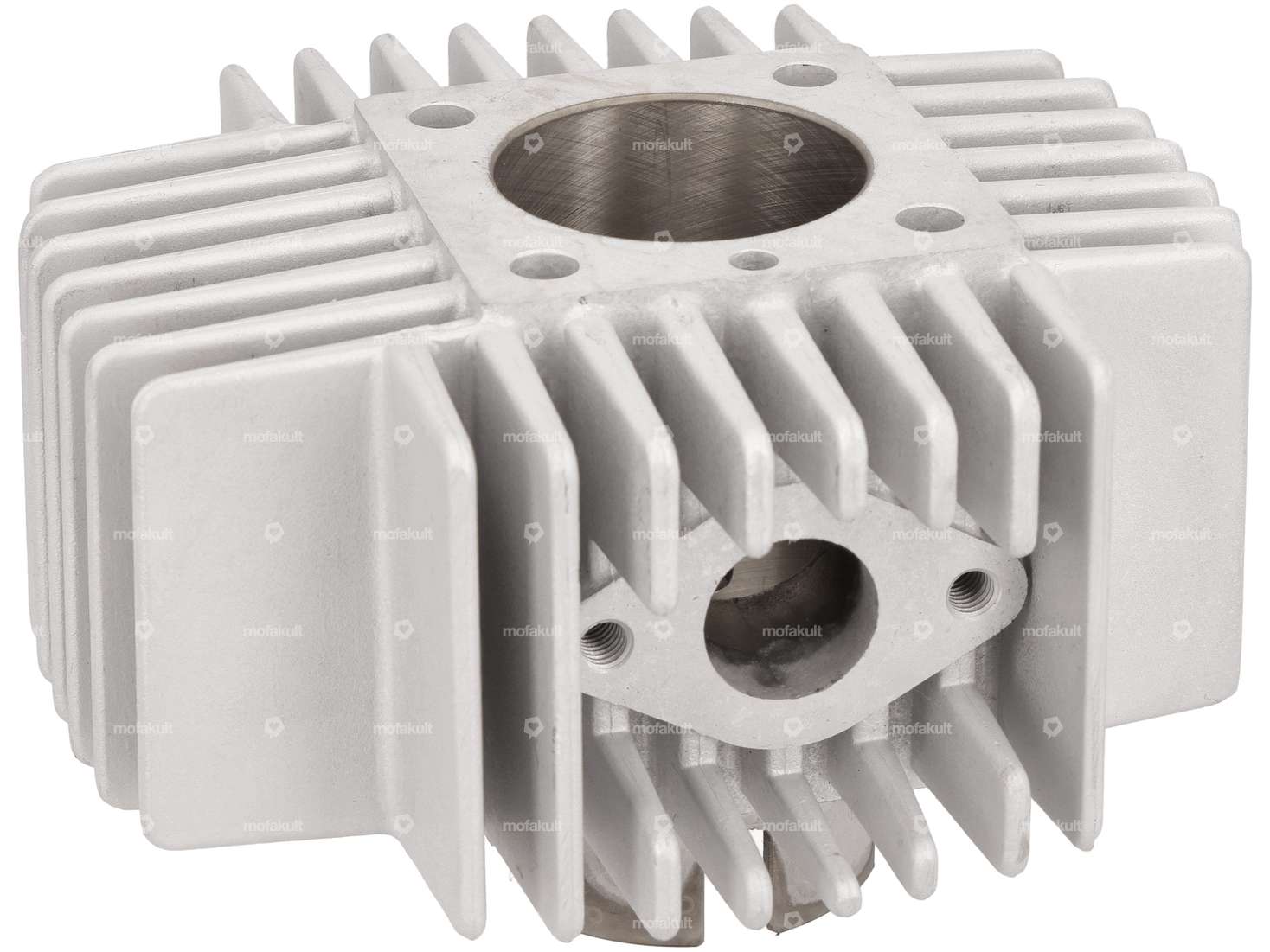

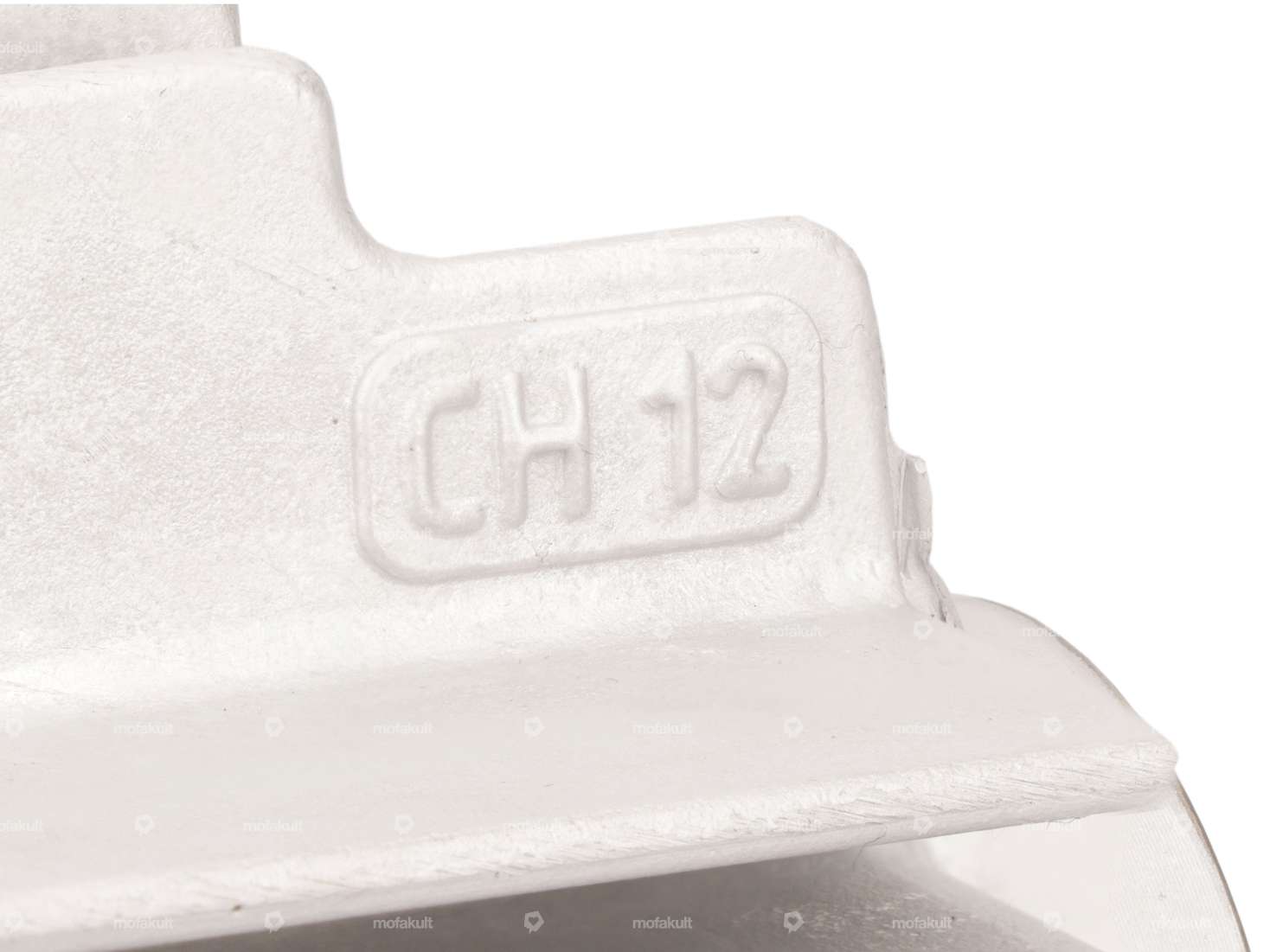

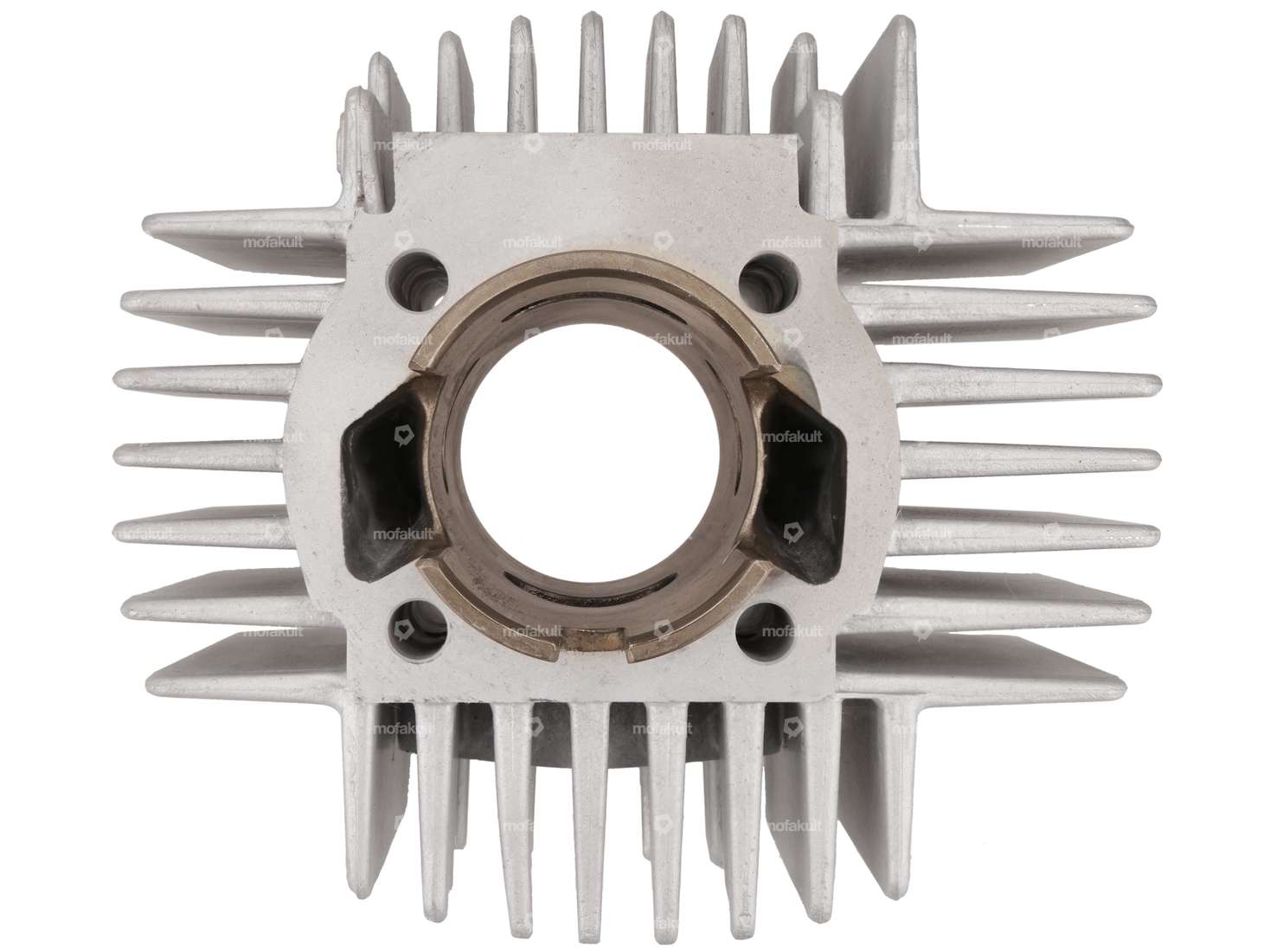

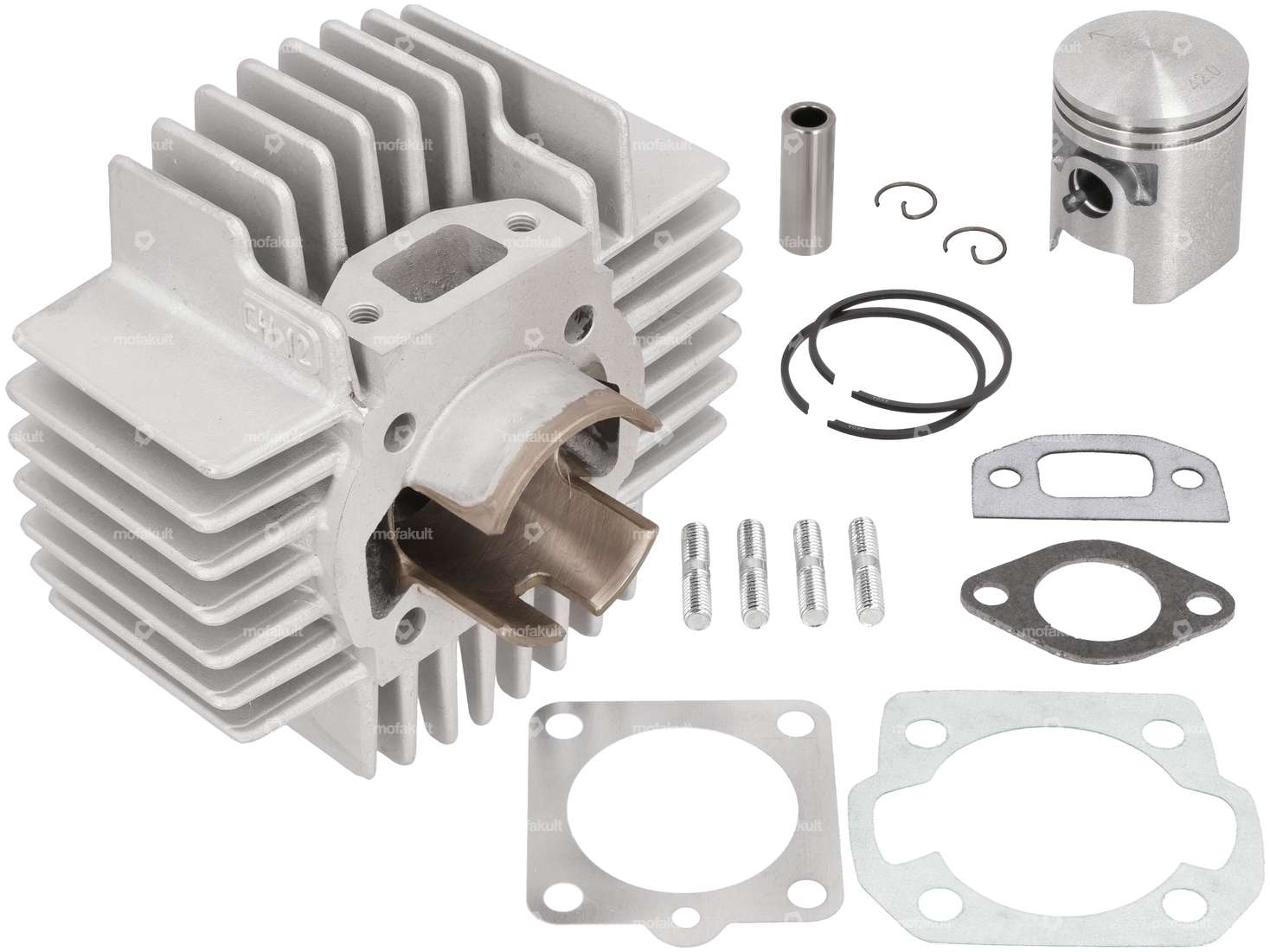

AKOA 42 mm cylinder kit CH12 camouflaged | Puch E50 / Z50 / ZA50

swiing® revival Stud Bolt Set M6x106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Diameter: 5.9 mm · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® ingenious 15 mm carburetor set camouflaged | Puch E50

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Ø Internal connection: 20 mm · Hole spacing inlet: 38 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Choke control: Hand choke · Area of application: Tuning · Nozzle thread: M3.5x0.6 (standard thread) · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Ø outside: 15 mm · Bearing cage: Silver cage · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

NGK B7HS spark plug short thread

Width across flats: 21 mm · Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Suppressed: No · Spark plug socket: SAE · Thread type: MF14x1.25 (fine pitch thread)

swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch Maxi, X30 Sport

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange

GPO gasket set cylinder 45 mm Puch

Manufacturer: GPO · Number of components: 4 pcs · Material: Aluminum · Material: Sealing carton · Area of application: Tuning · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Decompressor: Yes · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm

swiing® revival stud bolt set M6x30 (10.9 strength) galvanized

Manufacturer: swiing® revival parts · Diameter: 6 mm · Material: Steel · Surface: galvanized (blue) · Thread length: 12 mm · Width across flats: 10 mm · Total length: 30 mm · Nominal diameter (thread): 6 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Strength class: 8 · Strength class: 10.9

Solder wire Ø 2 mm Determination of the crimping edge (10 cm piece)

Diameter: 2 mm · Total length: 100 mm · Area of application: Workshop accessories

swiing® ingenious 17 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Mounting type: Plug connection clamped · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Nominal diameter: 17 mm · Carburetor type: SRF · Camouflaged: Yes · Ø Air filter connection: 27.5 mm · Mixed oil connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Nozzle size: 74 · Hole spacing inlet: 38 mm · Clamping screw torque (max.): 4 N/m

AKOA 42 mm Piston | Puch E50 / Z50 / ZA50 (Air-cooled) / ZA50 (Cat.)

Nominal diameter: 42 mm · Manufacturer: AKOA · Material: Aluminum · Ø outside piston (A): 41.95 mm · Compression height (C): 22.58 mm · Curvature (D): 3.36 mm · Total piston height (E): 52.52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.46 mm · Thick piston ring: 1.65 mm · Ø piston pin (B): 12 mm · Weight piston kit: 84.7 g

GPO control bearing set M26x1 | Puch

Color: silver · Ø inside: 26.8 mm · Ø outside: 41 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Thread type: MF26x1 (fine pitch thread)

GPO rubber for swingarm mounting | Puch Maxi S, X30

Color: black · Ø inside: 24 mm · Ø outside: 32 mm · Ø outside: 37 mm · Manufacturer: GPO · Material: Rubber · Total length: 90 mm · Puch OEM number: 349.1.21.509.1

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Bearing type: Plain bearing · Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Ø outside: 20.2 mm · Ø inside: 16.2 mm · Total length: 19 mm · Ø Bundle: 24.1 mm · Puch OEM number: 349.1.42.005.1

BOSCH breaker with cable | Bosch / Ducati

Manufacturer: BOSCH · Material: Steel · Cable available: Yes · Ø mounting hole: 4.5 mm · Ø axle: 4 mm · Cable length: 100 mm · Ø Internal flywheel: 90 mm · Number of fixing points: 1 pcs · Alternative version of the Pony OEM number: A4606 · Alternative version of the Pony OEM number: A4606A · BOSCH OEM number: 1 217 013 025 · Pony OEM number: A4607 · Sachs OEM no.: 0283 116 102 · Alternative version of the Sachs OEM number: 0983 106 000 · Alternative version of the Sachs OEM number: 2783 039 001 · BERU OEM number: 0 340 100 710

GPO 42 mm cylinder head tuning Malossi | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Ø cylinder: 42 mm · Surface: sandblasted · Total length: 135 mm · Number of fixing points: 4 pcs · Width: 125 mm · Height: 55 mm · Candle thread: short · Decompressor: No · Hole pattern [mm]: 44 x 44 · Camouflaged: Yes

VeeRubber 2.25 x 17" tires VRM087 (V087) Allround

Inventory-managed: No · Manufacturer: Vee Rubber · Tire width: 2.25 " · Color: black · Wheel size: 17 " · Width: 2 1/4 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: VRM-087 / V087 · Tire type: Allround · Old designation: 21 x 2.25 " · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

AKOA 42 mm Cylinder Head | Puch E50 / Z50 / ZA50 (Air-Cooled) / ZA50 (Cat.)

Manufacturer: AKOA · Material: Aluminum · Area of application: Tuning · Ø cylinder: 42 mm · Total length: 132.2 mm · Number of fixing points: 4 pcs · Width: 123.2 mm · Height: 54.5 mm · Candle thread: short · Decompressor: No · Hole pattern [mm]: 44 x 44
