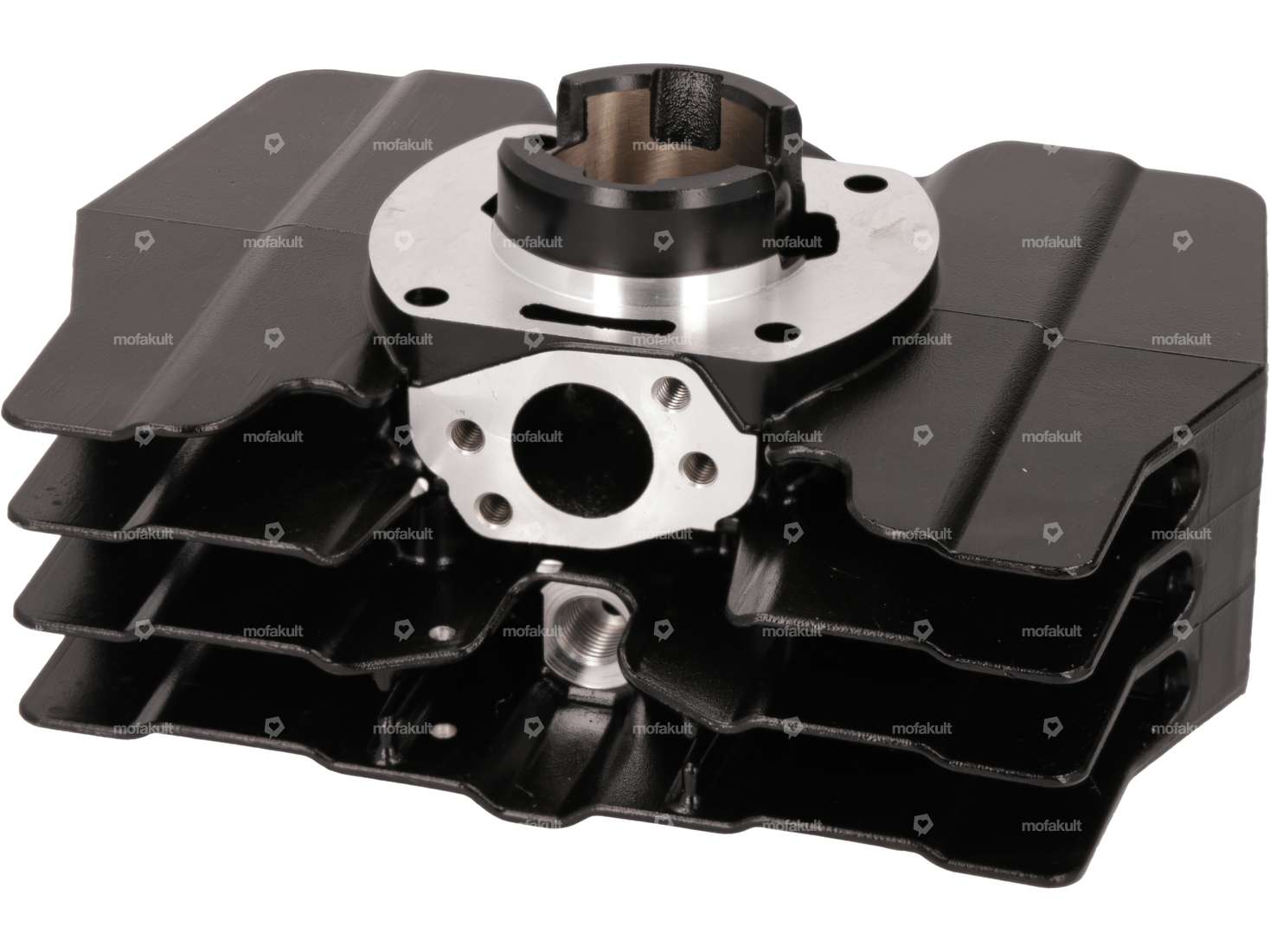

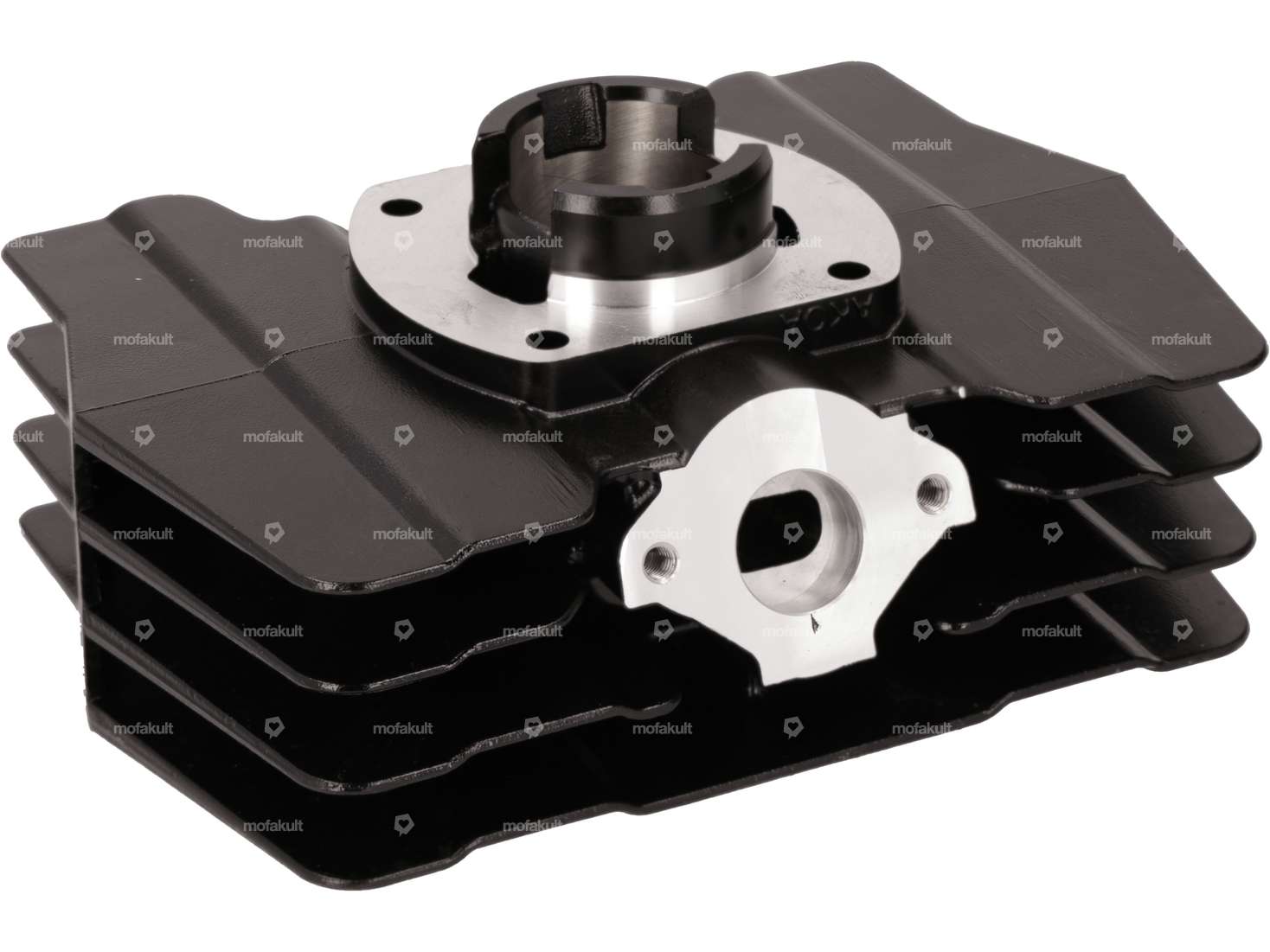

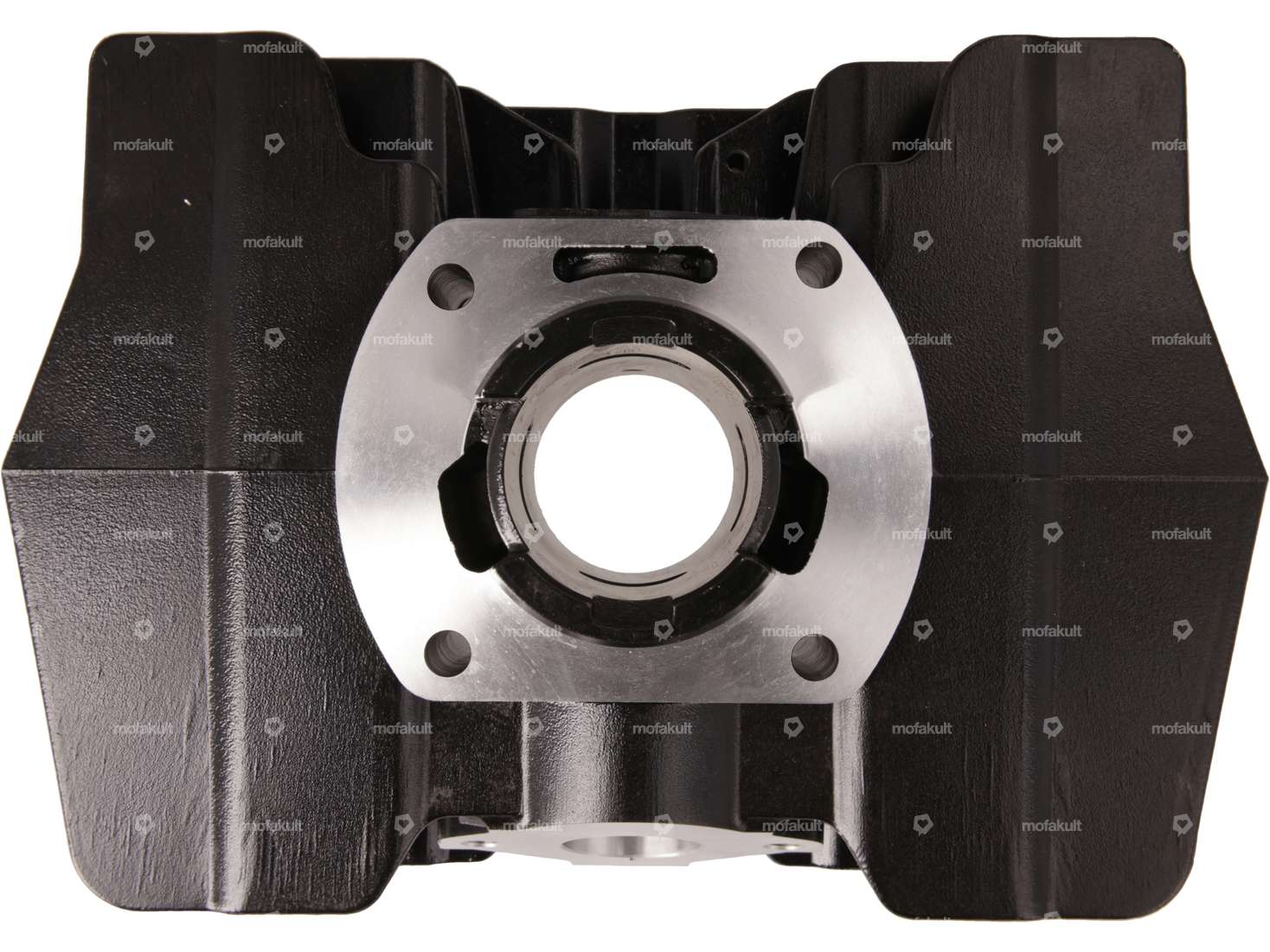

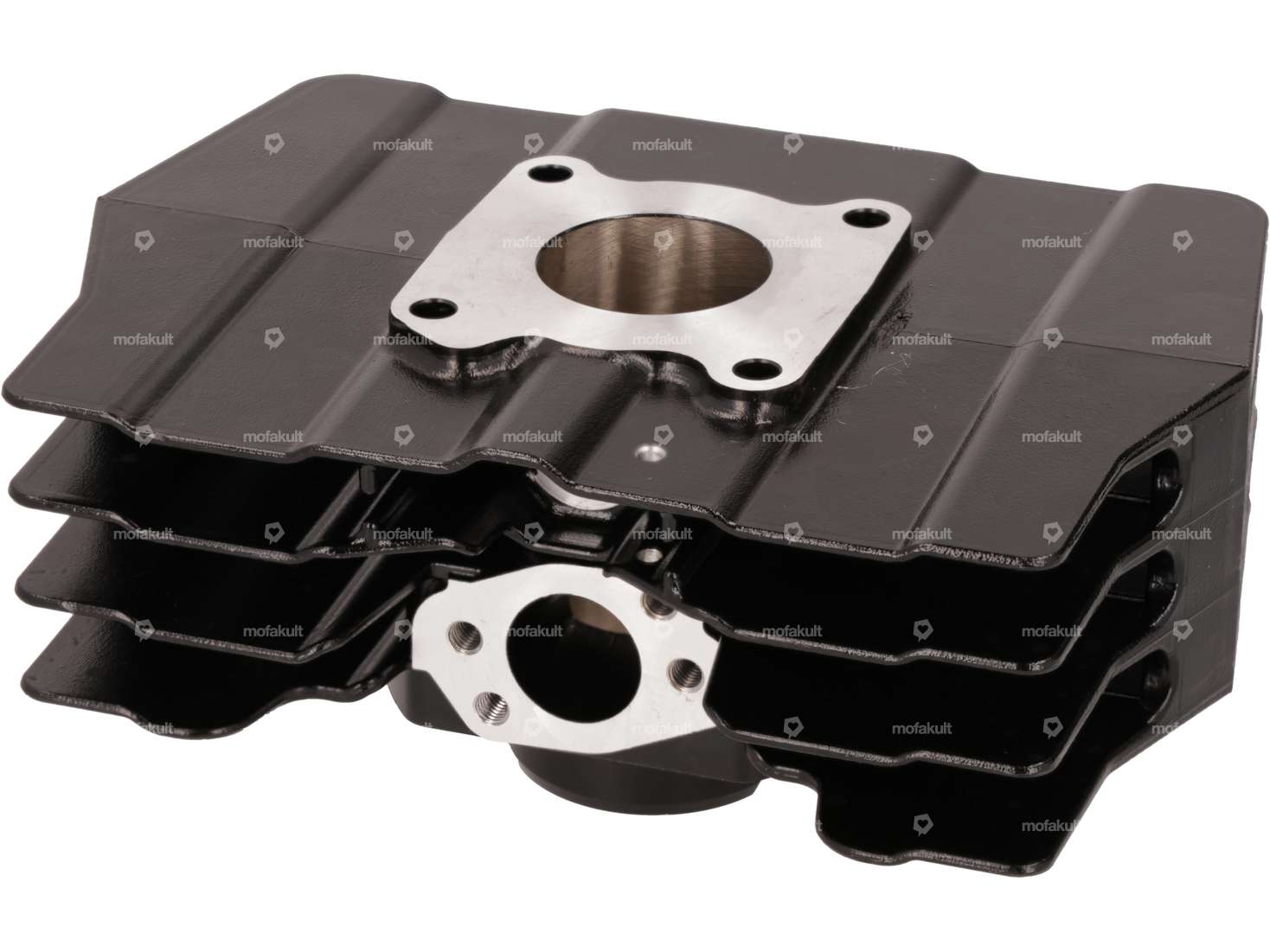

Reproduction of the wide wall cylinder with 50 cc displacement and narrow exhaust for your Pony moped / moped with Sachs 503 AB, AC or ADV engine.
The ports, timing and appearance are almost identical to the original. The replacement cylinder also has a bore for the deco valve.

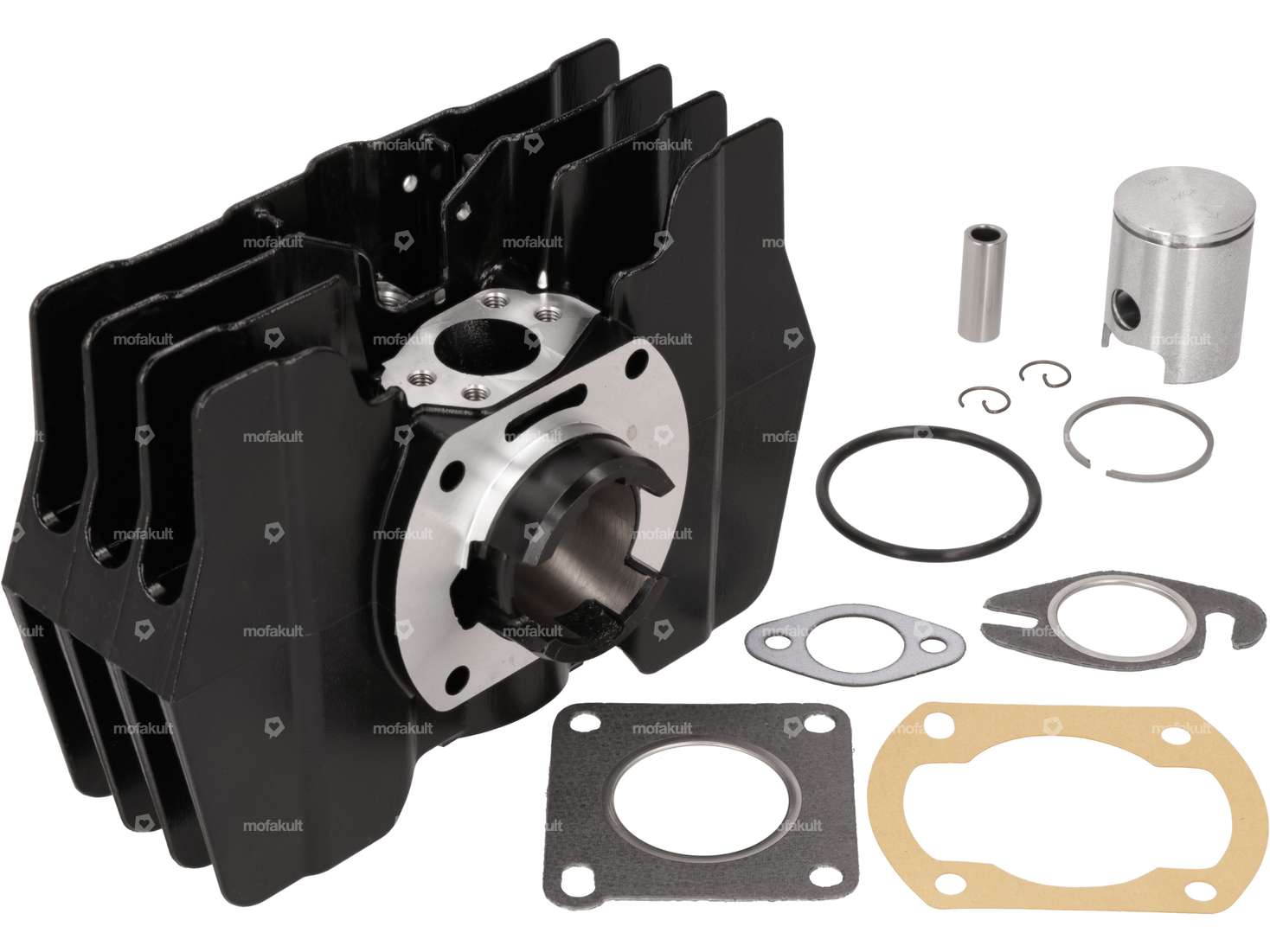

In addition to the piston, piston ring, clips and bolts, the scope of delivery also includes the required gaskets for the base, intake and exhaust. In addition, an O-ring and a reinforced graphite gasket for the cylinder cover are included, which can be used as required. It is still possible to use the original cylinder head.
Cylinder material: Cast aluminum
Piston material: Cast aluminum
Bore: 38 mm
Capacity: 49.90 cm³
Ø Cylinder neck: 52 / 50.5 mm
Inside outlet: 19.5 x 11 mm
Ø Outside outlet: 23 mm
Outlet thread: M6 x 1
Hole spacing outlet: 50.5 mm
Inlet hole spacing: 36 mm
Inlet thread: M6 x 1
Inlet window inside: 18 x 7 mm
Hole pattern: 56 x 56 mm
Ø Stud bolt hole: 6.9 mm
Piston bolt: 12 mm
Decompressor hole: yes, MF12x1.25 mm
Note: The inlet of the cylinder has a double hole pattern, so that sockets for both the AB / AC and the ADV engine can be fitted.
The narrow outlet is designed for AB / AC exhausts. A flame tube from the AB / AC engine must therefore be fitted to the ADV engine.
Matching attachments for the cylinder set can be found under accessories.
Original Pony spare part number: A2868
Branded product from the manufacturer AKOA.
Details
| Manufacturer | AKOA |
| Material | Aluminum |
| Surface | varnished, Nickel silicon carbide (known as Nikasil®) |
| Displacement | 50 ccm |
| Crankshaft stroke | 44 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 38 mm |
| Ø cylinder neck | 52 mm, 50.5 mm |
| Ø Outlet outside | 23 mm |
| Ø outlet inside | 19.5 mm, 11 mm |
| Inlet window | 18x7 mm |
| Thread inlet | M6x1 (standard thread) |
| Area of application | Standard |
| Decompressor | MF12x1.25 |
| Hole spacing outlet | 50.5 mm |
| Outlet type | slanted |
| Thread outlet | M6x1 (standard thread) |
| Hole spacing inlet | 36 mm |
| Pony OEM number | A2868 |
Suitable for the following models
| Sachs | 503 - AB, AC, ADV |
