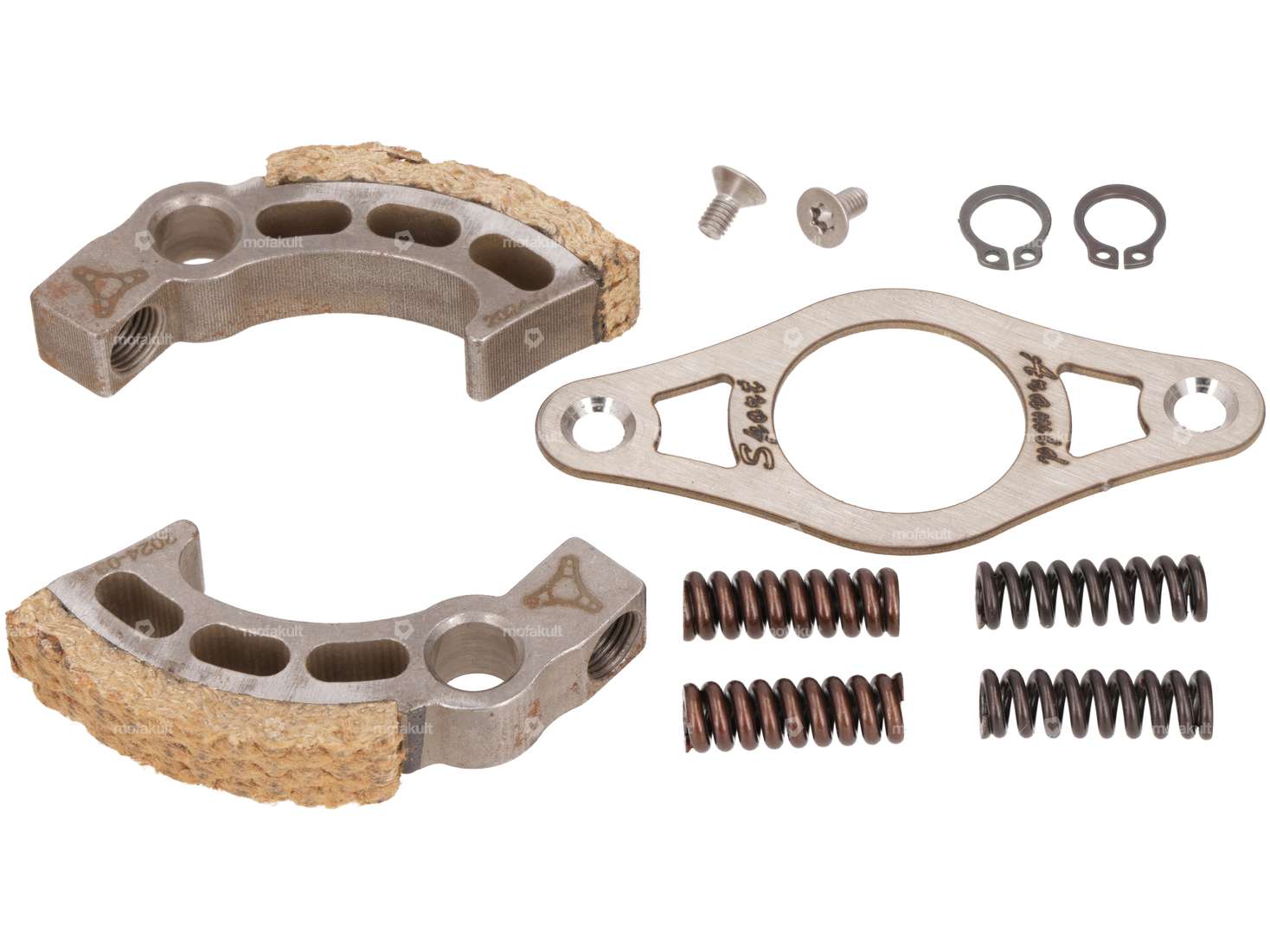

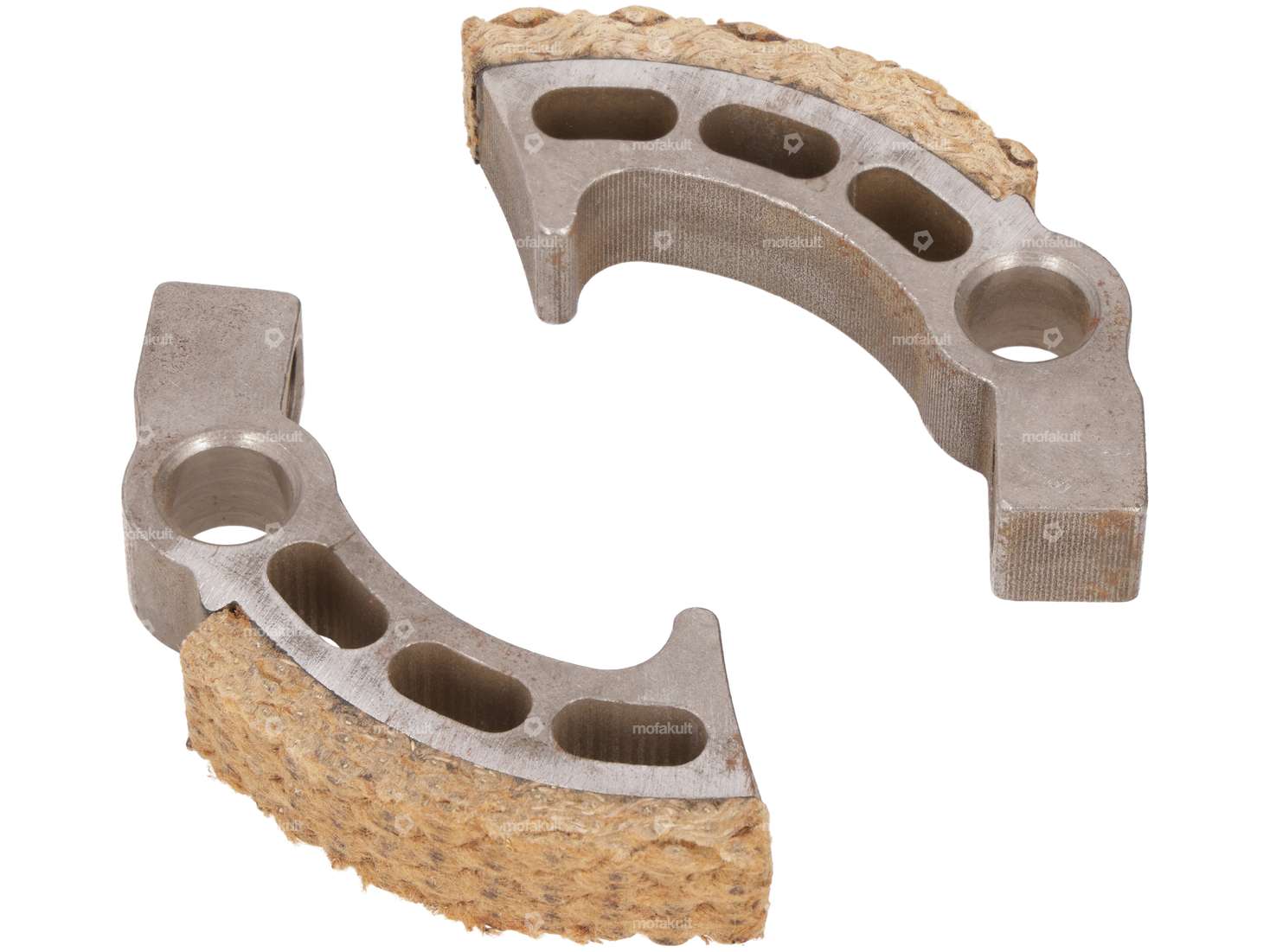

ASP clutch conversion kit "woven" 2-jaw Aramid | Puch E50

HK clutch "Racing" (with additional weight) Aramid | Puch E50

Ø outside: 93 mm · Manufacturer: HK Clutches · Material: Aluminum · Material: Chrome steel (known as Nirosta®) · Material: Steel · Material addition: Composite materials · Number of springs: 3 pcs · Ø inside: 12 mm · Ø inside: 14.6 mm · Number of jaws: 3 pcs · Recording type: Cone mounting · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Thickness: 21.2 mm

Clutch 2-jaw NOS | Puch E50

Manufacturer: Puch · Material: Steel · Material addition: Composite materials · Ø outside: 93.5 mm · Recording type: Cone mounting · Number of jaws: 2 pcs · Thickness: 19.3 mm · Number of springs: 2 pcs · Area of application: Original · Area of application: Standard · Puch OEM number: VM 477.0 · Puch OEM number: 349.1.12.004.0

ASP reinforcement plate clutch 2 jaws Inox | Puch E50

Manufacturer: ASP · Material: Chrome steel (known as Nirosta®) · Ø inside: 31 mm · Thickness: 1.55 mm

ASP clutch shoe "woven" Aramid | Puch E50

Manufacturer: ASP · Material addition: Aramid (colloquially known as Kevlar) · Number of jaws: 1 pcs · Thickness: 12 mm · Area of application: Racing · Area of application: Tuning

ASP clutch basket & spur gear set 19:94 teeth CNC | Puch E50

Manufacturer: ASP · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 19 pcs · Number of teeth: 94 pcs · Area of application: Tuning

ASP clutch conversion kit "sheet" 2-jaw Aramid | Puch E50

Manufacturer: ASP · Material: Steel · Material addition: Aramid (colloquially known as Kevlar) · Number of jaws: 2 pcs · Thickness: 12 mm · Number of springs: 4 pcs · Area of application: Racing · Area of application: Tuning

ASP plain bearing clutch basket | Puch E50

Manufacturer: ASP · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.8 mm · Puch OEM number: 349.1.12.011.1 · Puch OEM number: 349.2.12.011.1

ASP clutch springs reinforced 50 N/mm | Puch E50

Spring design: Pressure spring · Spring rate: 50 N/mm · Ø wire: 1.8 mm · Ø inside: 4.6 mm · Ø outside: 8.2 mm · Total length: 27 mm · Manufacturer: ASP · Number of components: 3 pcs · Material: Spring steel · Area of application: Racing · Area of application: Tuning

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Surface: varnished · Total height: 220 mm · Stand base - center mount (A): 207 mm · Color: black · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Tomos, Beta 521

Width across flats trigger: 27 mm · Width across flats Screw: 19 mm · Number of components: 1 pcs · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Total length: 55 mm · Total length: 75 mm · Strength class: 8.8 · Area of application: (Dis)assembly tool

Clutch lever | Puch E50

Area of application: Standard

NTN wheel bearing 12/28/8 rear cast hub Leleu | Puch Maxi

Bearing type: Deep groove ball bearing · Stock number: 6001 · Inner ring width: 12 mm · Manufacturer: NTN · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Plastic · Material: Steel · Surface: blank · Ø outside: 28 mm · Ø inside: 12 mm · Ball bearing closed: Yes · Width: 8 mm · Area of application: Standard

swiing® revival rear wheel spacer tube L=70 mm | Puch Maxi

Manufacturer: swiing® revival parts · Nominal diameter inside: 12 mm · Ø outside: 16 mm · Total length: 70 mm · Ø inside: 12.5 mm · Puch OEM number: 349.5.41.826.1

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Nut type: Hexagon nut 0.8D · Width across flats: 17 mm · Thread type: MF10x1 (fine pitch thread) · Height: 8 mm

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Thickness: 2 mm · Number of fixing points: 2 pcs · Ø inside: 22 mm · Ø mounting hole: 6.7 mm · Hole spacing: 38 - 42.5 mm

MBR clutch basket 19 teeth Racing angled | Puch E50

Manufacturer: MBR · Material: Steel · Ø Receptacle: 31.1 mm · Toothing type: helical toothed · Recording type: Interlocking · Color: silver · Number of teeth: 19 pcs · Ø outside: 100.5 mm · Ø inside: 15 mm · Ø inside: 17 mm · Height: 49 mm · Area of application: Tuning

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Weight: 968 g · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Thread type: MF10x1 (fine pitch thread) · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Number of gears: 1 pcs

GPO gasket outlet metal ring 18 - 22 mm | Puch

Manufacturer: GPO · Place of use: Outlet · Thickness: 2 mm · Number of fixing points: 2 pcs · Ø inside: 22.15 mm · Ø mounting hole: 6 mm · Hole spacing: 38 - 43 mm
