Multi-plate clutch

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Pony OEM number: A1325 · Sachs OEM no.: 0239 015 000

Spring cup clutch Sachs 50/2, 503 2AL/2BL (A3884)

Pony OEM number: A3884 · Sachs OEM no.: 0659 006 000

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Area of application: High End · Area of application: Standard · Material: Steel · Thread type: MF20.8x1 LH (fine/left-hand thread) · Ø outside: 35 mm · Stock number: E15 · Ø inside: 15 mm · Width: 8 mm · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105

swiing® revival clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

Manufacturer: swiing® revival parts · Material: Composite materials · Area of application: Standard · Material: Steel · Ø inside: 29.7 mm · Ø inside: 36 mm · Ø outside: 93.7 mm · Recording type: Interlocking · Number of slats: 2 pcs · Thickness: 3.3 mm · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

swiing® revival intermediate slat | Puch Z50

Ø inside: 46 mm · Ø inside: 51 mm · Manufacturer: swiing® revival parts · Material: Steel · Ø outside: 70 mm · Thickness: 1.5 mm

swiing® revival drawbar 2-slats High End | Puch Z50

Manufacturer: swiing® revival parts · Area of application: High End · Material: Aluminum · Material: Steel · Surface: anodized · Surface: blackened · Color: black · Color: red · Total length: 35 mm · Ø outside: 44.8 mm

swiing® ingenious reinforcement set clutch (+40%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Spring steel · Area of application: Tuning · Surface: coated · Number of springs: 9 pcs · Thickness: 1.4 mm · Ø outside: 8.75 mm · Ø inside: 5.6 mm

GPO clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

Manufacturer: GPO · Thickness: 3.3 mm · Area of application: Standard · Material: Composite materials · Material: Steel · Recording type: Interlocking · Ø inside: 29.6 mm · Ø inside: 35.6 mm · Ø outside: 93 mm · Number of slats: 2 pcs · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

swiing® ingenious clutch spring reinforced +20% (Version 2.0) | Puch Z50

Spring design: Pressure spring · Material: Spring steel · Surface: coated · Total length: 20.5 mm · Ø wire: 4.6 mm · Manufacturer: swiing® ingenious parts · Ø outside: 39 mm · Area of application: Tuning · Ø inside: 30 mm · Color: blue · Number of components: 1 pcs

swiing® revival intermediate blade | Sachs 50/2 ML, 503 2AL/2BL (A1908)

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Pony OEM number: A1908 · Sachs OEM no.: 0259 015 000

swiing® revival clutch plates (2 pcs.) | Puch Z50

Manufacturer: swiing® revival parts · Area of application: Tuning · Ø inside: 51 mm · Ø outside: 70 mm · Ø outside: 75 mm · Number of slats: 2 pcs · Thickness: 2.5 mm

swiing® ingenious clutch spring reinforced +40% (Version 2.0) | Puch Z50

Spring design: Pressure spring · Material: Spring steel · Surface: coated · Total length: 23.5 mm · Ø wire: 4.5 mm · Manufacturer: swiing® ingenious parts · Ø outside: 39 mm · Area of application: Tuning · Ø inside: 30 mm · Color: red · Number of components: 1 pcs

swiing® revival intermediate slat 3-slat version | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Puch OEM number: 329.1.12.112.1

swiing® ingenious reinforcement set clutch (+20%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Spring steel · Surface: coated · Number of springs: 9 pcs · Thickness: 1.4 mm · Ø inside: 5.9 mm · Ø outside: 8.85 mm

GPO clutch trigger (M27x1.25 / M20x1) | Sachs 502, 503

Width across flats (trigger): 27 mm · Manufacturer: GPO · Material: Steel · Surface: blackened · Thread type: MF20x1 (fine pitch thread) · Thread type: MF27x1.25 (fine pitch thread) · Width across flats Screw: 19 mm · Total length: 57 mm · Area of application: (Dis)assembly tool · Strength class: 8.8

Surflex clutch plate set | Puch Z50

Manufacturer: Surflex · Area of application: Original · Material: Composite materials · Material: Steel · Recording type: Interlocking · Number of slats: 2 pcs · Thickness: 2.75 mm · Ø inside: 46.3 mm · Ø inside: 51.3 mm · Ø outside: 69.6 mm · Ø outside: 74.8 mm

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Area of application: Standard · Number of slats: 2 pcs

swiing® revival clutch spring | Zündapp Belmondo (Type 247)

Spring design: Pressure spring · Ø outside: 10.8 mm · Manufacturer: swiing® revival parts · Total length: 21.6 mm

Cotter pins Pull pin Puch Z50

Manufacturer: Puch · Ø outside: 2.5 mm · Total length: 32 mm

NewFren clutch plates | Sachs 50/2, 503 2AL/2BL (A3887)

Manufacturer: NewFren · Material: Composite materials · Material: Steel · Thickness: 3.3 mm · Recording type: Interlocking · Number of slats: 2 pcs · Ø outside: 93.8 mm · Ø inside: 30 mm · Ø inside: 36 mm · Area of application: Standard · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

Reinforcement set 3 springs clutch | Sachs 50/2 & 503

Spring design: Pressure spring · Number of components: 6 pcs

swiing® revival drawbar 3-slats High End | Puch Z50

Ø outside: 44.7 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Material: Steel · Area of application: High End · Surface: anodized · Surface: blackened · Color: black · Color: red · Total length: 34.9 mm

swiing® revival clutch plates (2 pcs.) thick | Sachs 502, 503 2AL/2BL

Manufacturer: swiing® revival parts · Material: Composite materials · Material: Steel · Area of application: Tuning · Ø inside: 29.3 mm · Ø inside: 36 mm · Ø outside: 93.7 mm · Recording type: Interlocking · Number of slats: 2 pcs · Thickness: 3.8 mm · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

swiing® revival spring cup clutch | Zündapp Belmondo (Type 247)

Manufacturer: swiing® revival parts · Height: 7.8 mm · Ø outside: 12 mm · Ø outside: 15 mm · Area of application: Standard

Reinforced intermediate plate clutch | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: Made in Europe · Material: Steel · Number of slats: 2 pcs · Number of slats: 3 pcs · Alternative version of the Pony OEM number: A1908 · Alternative version of the Sachs OEM number: 0259 015 000

Reinforcement set 9 springs clutch | Sachs 50/2 & 503

Spring design: Pressure spring · Number of components: 12 pcs

swiing® revival spring basket 3-slat version | Puch Z50

Color: red · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Area of application: Standard · Ø outside: 62 mm · Ø inside: 24.3 mm · Height: 28.5 mm

Nut & spring washer clutch hub | Sachs

Nut type: Hexagon nut · Thread type: MF12x1 (fine pitch thread) · Width across flats SW: 17 mm · Drive: External hexagon

Clutch lock plate | Sachs 50/2 & 503 (A1907)

Material: Steel · Color: black · Area of application: Standard · Pony OEM number: A1907 · Sachs OEM no.: 0259 014 000

swiing® revival clutch set reinforced | Puch Z50

Thickness: 2.5 mm · Manufacturer: swiing® revival parts · Ø outside: 70 mm · Ø outside: 75 mm · Number of springs: 1 pcs · Ø inside: 51 mm · Number of slats: 2 pcs

Clutch plates | Sachs 504, 505, 535 (A4292)

Ø inside: 37 mm · Ø outside: 61 mm · Ø outside: 65.6 mm · Thickness: 3.4 mm · Number of slats: 2 pcs · Area of application: Standard

Clutch hub 17 teeth | Sachs 50/2, 503 2AL, 2BL (A1911)

Number of teeth: 17 pcs · Recording type: Wedge connection · Area of application: Standard · Pony OEM number: A1911 · Sachs OEM no.: 0259 024 000

NewFren clutch plate | Sachs 504, 505, 535 (A4292)

Manufacturer: NewFren · Number of slats: 1 pcs · Area of application: Standard

swiing® ingenious Clutch Reinforcement Set (+50%) | Zündapp Belmondo 247

Manufacturer: swiing® ingenious parts · Number of springs: 10 pcs · Area of application: Tuning

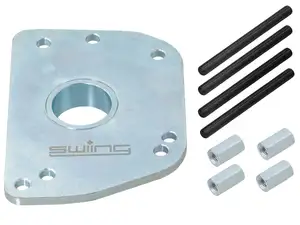

swiing® ingenious assembly tool clutch spring | Puch Z50

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Area of application: Special tool · Width: 96 mm · Total length: 130 mm · Thickness: 6 mm · Thread type: M6x1 (standard thread) · Number of components: 9 pcs

swiing® revival clutch plates (3 pcs.) | Puch Z50

Manufacturer: swiing® revival parts · Ø inside: 51 mm · Ø outside: 70 mm · Ø outside: 75 mm · Number of slats: 3 pcs · Thickness: 2.5 mm · Puch OEM number: 050.1224.2

swiing® revival spring basket | Puch Z50

Manufacturer: swiing® revival parts · Material: Aluminum · Area of application: Standard · Surface: anodized · Ø inside: 24.3 mm · Ø outside: 62 mm · Color: red · Height: 26 mm · Puch OEM number: 050.1205

swiing® revival clutch & intermediate plate set (2 pcs.) | Puch Z50

Manufacturer: swiing® revival parts · Thickness: 1.5 mm · Thickness: 2.5 mm · Number of slats: 2 pcs · Ø inside: 46 mm · Ø inside: 51 mm · Ø outside: 70 mm · Ø outside: 75 mm

NewFren clutch plates (1A quality) | Puch X30

Manufacturer: NewFren · Number of slats: 2 pcs · Area of application: Standard

swiing® revival locking tab incl. adjusting screws clutch | Sachs 50/2, 503 HG

Manufacturer: swiing® revival parts · Area of application: Standard · Alternative version of the Pony OEM number: A1371 · Alternative version of the Sachs OEM number: 0240 043 002

Spring washer clutch | Sachs 50/2, 503 AC/ADV/AAL (A1661)

Manufacturer: Sachs · Pony OEM number: A1661 · Sachs OEM no.: 0245 105 000

GPO clutch plates 2 pcs. | Zündapp Belmondo

Manufacturer: GPO · Number of slats: 2 pcs · Ø outside: 103.5 mm · Ø inside: 74.5 mm · Thickness: 2.9 mm · Area of application: Standard

Clutch pressure plate | Sachs 50/2, 503 2AL/2BL (A4023)

Material: Steel · Area of application: Standard · Pony OEM number: A4023 · Sachs OEM no.: 0686 018 005

swiing® revival clutch spring 2-disc version (Version 2.0) | Puch Z50

Spring design: Pressure spring · Ø wire: 4 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Color: gray · Surface: raw · Number of components: 1 pcs · Ø inside: 30.5 mm · Ø outside: 39 mm · Total length: 19.5 mm · Area of application: Original · Area of application: Standard

Clutch spring reinforced | Sachs 504/2, 505/2

Manufacturer: Made in Germany · Material: Spring steel · Area of application: Tuning · Number of springs: 1 pcs · Ø outside: 58.5 mm · Thickness: 1.1 mm · Ø inside: 27.5 mm · Sachs OEM no.: 0239 142 000

ADDY clutch plate (4-plate clutch) green sintered technology (stage 3) | Sachs 503

Manufacturer: ADDY · Material: Composite materials · Ø outside: 94 mm · Recording type: Interlocking · Ø inside: 63.5 mm · Ø inside: 68.5 mm · Number of slats: 4 pcs · Thickness: 3.5 mm · Area of application: Tuning

swiing® revival clutch & intermediate plate set (3 pcs.) | Puch Z50

Manufacturer: swiing® revival parts · Ø inside: 46 mm · Ø inside: 51 mm · Ø outside: 70 mm · Ø outside: 75 mm · Number of slats: 3 pcs · Thickness: 1.5 mm · Thickness: 2.5 mm

Inner lamella 2.5 mm | Sachs 535 (A4458)

Manufacturer: Sachs · Thickness: 2.5 mm · Area of application: Original

GPO clutch plates 3.8 mm special | Sachs manual

Manufacturer: GPO · Thickness: 3.8 mm · Number of slats: 2 pcs · Area of application: Standard

M8 locking plate clutch | Puch X30 Velux

Material: Steel · Ø outside: 20.1 mm · Number of lobes: 1 pcs · Thickness: 1 mm · Ø inside: 8.15 mm · Thread size: M8

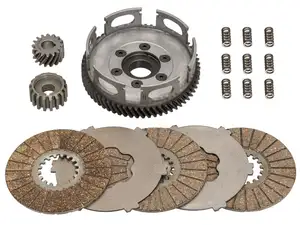

3-plate clutch | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: Made in Europe · Material: Composite materials · Material: Steel · Area of application: Tuning · Number of springs: 9 pcs · Recording type: Interlocking · Ø inside: 29.6 mm · Ø inside: 35.3 mm · Number of slats: 3 pcs · Thickness: 3.8 mm · Ø outside: 110.5 mm

ADDY clutch plate (4-plate clutch) red cork-rubber (stage 2) | Sachs 503

Manufacturer: ADDY · Material: Cork · Material: Rubber · Ø outside: 94 mm · Recording type: Interlocking · Ø inside: 63.5 mm · Ø inside: 68.5 mm · Number of slats: 4 pcs · Thickness: 3.5 mm · Area of application: Tuning

swiing® revival clutch spring 3-disc version | Puch Z50

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Ø outside: 39 mm · Total length: 23.25 mm

Spring plate clutch | Sachs 50/2 ML, 503 2AL/2BL (A3882)

Material: Steel · Height: 9.1 mm · Ø inside: 39 mm · Ø outside: 90 mm · Ø outside: 98.5 mm · Area of application: Standard · Pony OEM number: A3882 · Sachs OEM no.: 0659 004 000
