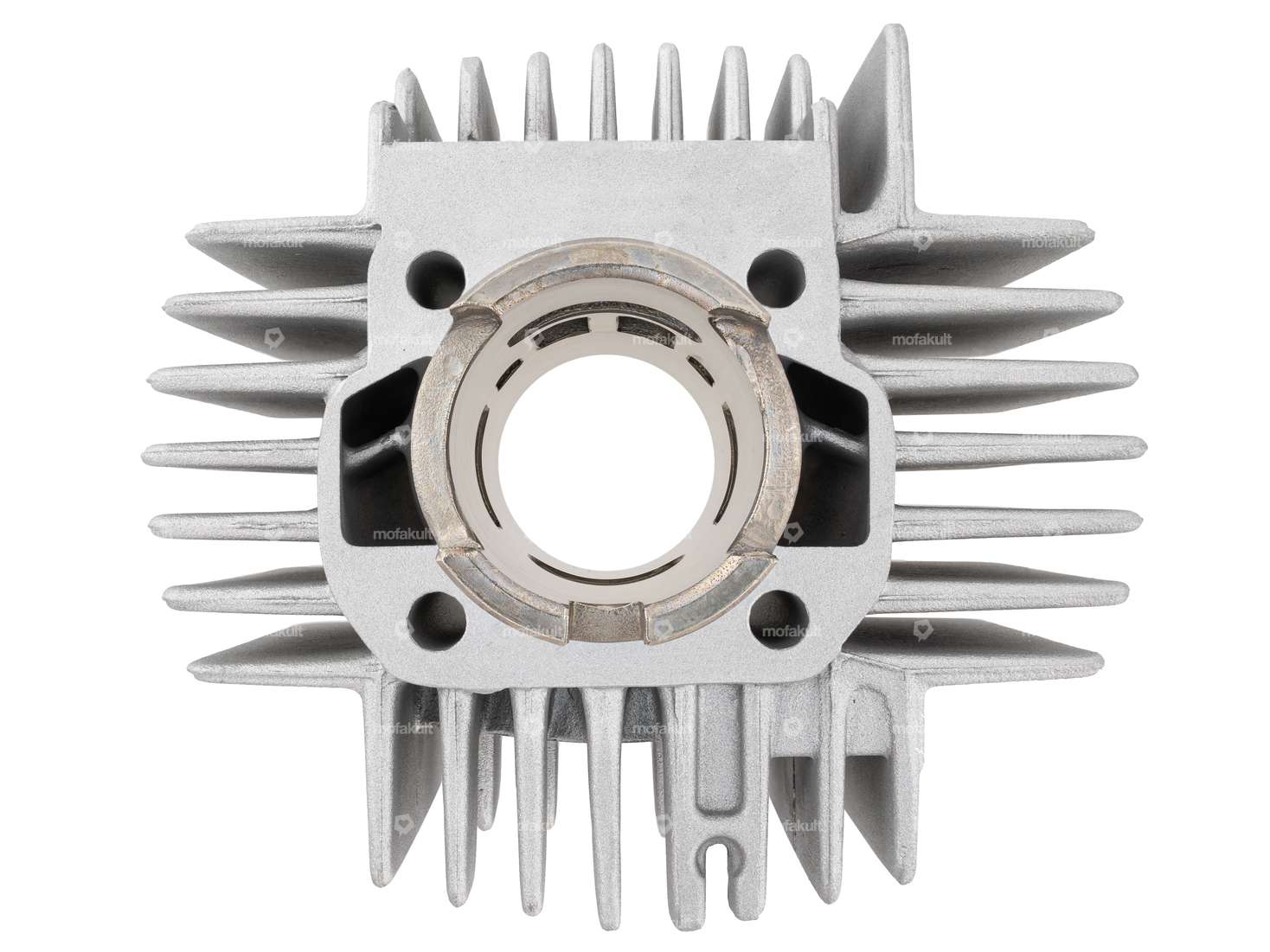

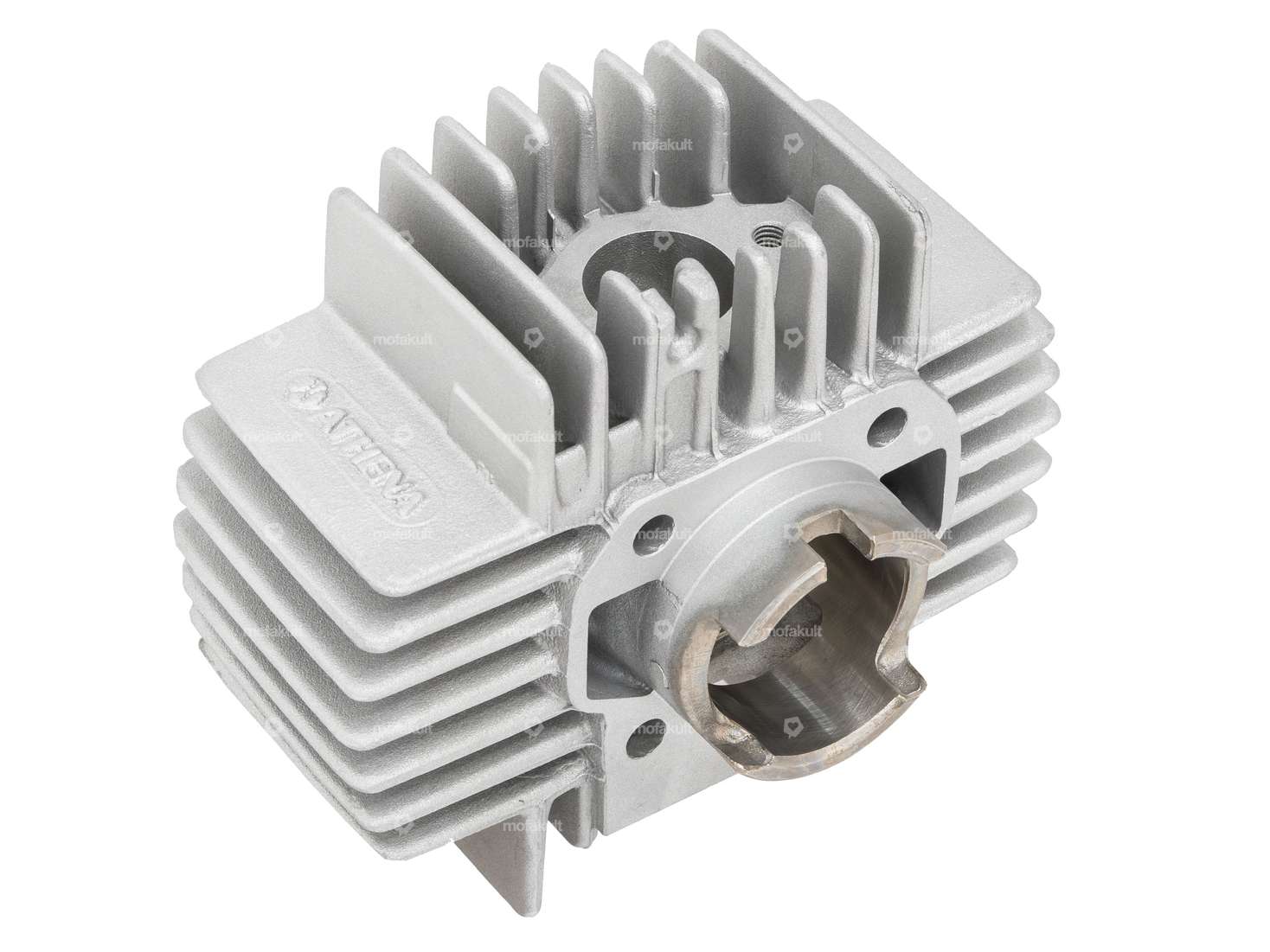

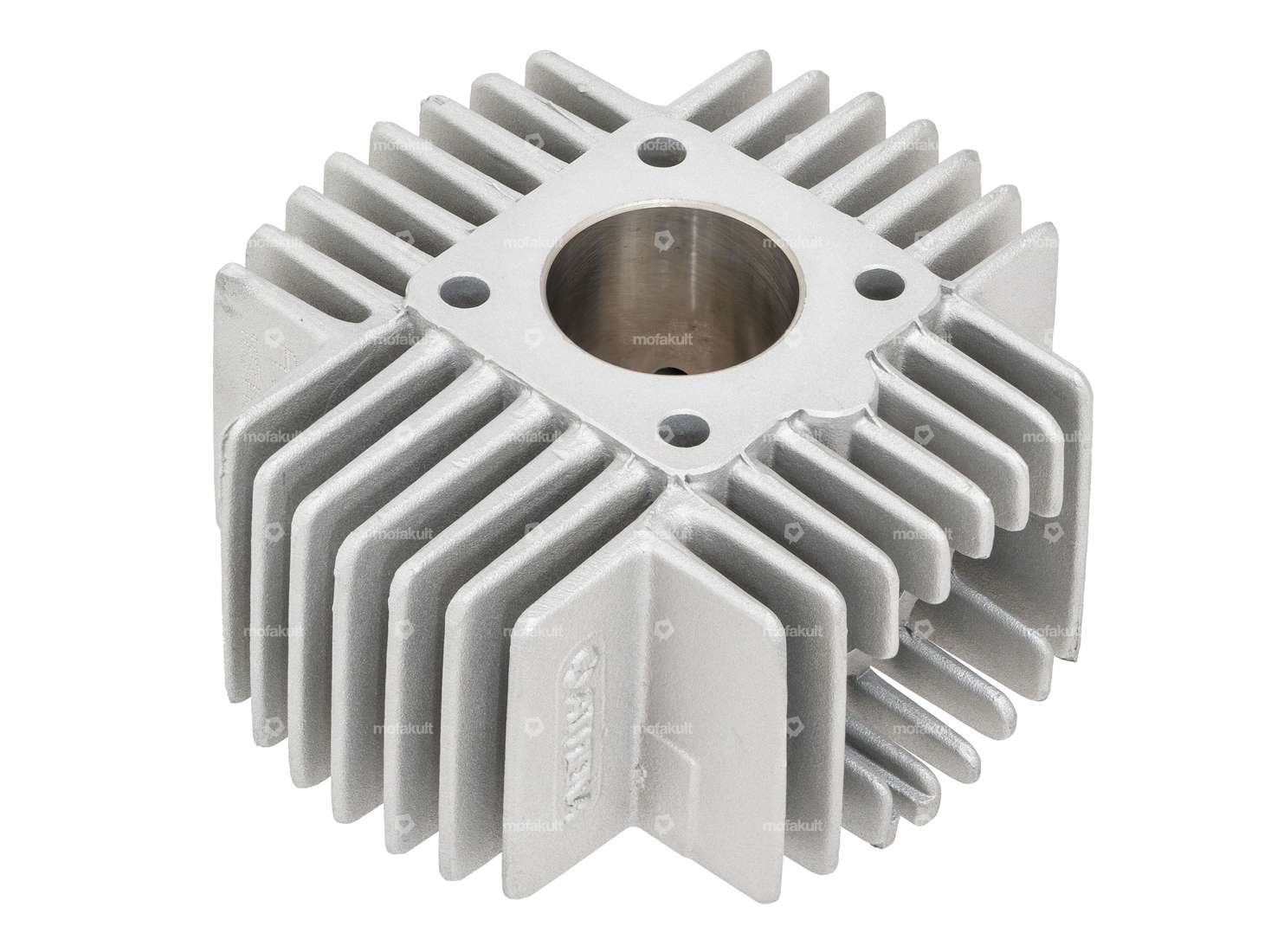

High-quality 50 cc cylinder kit from the quality brand Athena suitable for various Puch mopeds.
With 38 mm bore, 6 ports and slotted intake.
The cooling fins are as original, therefore camouflaged.

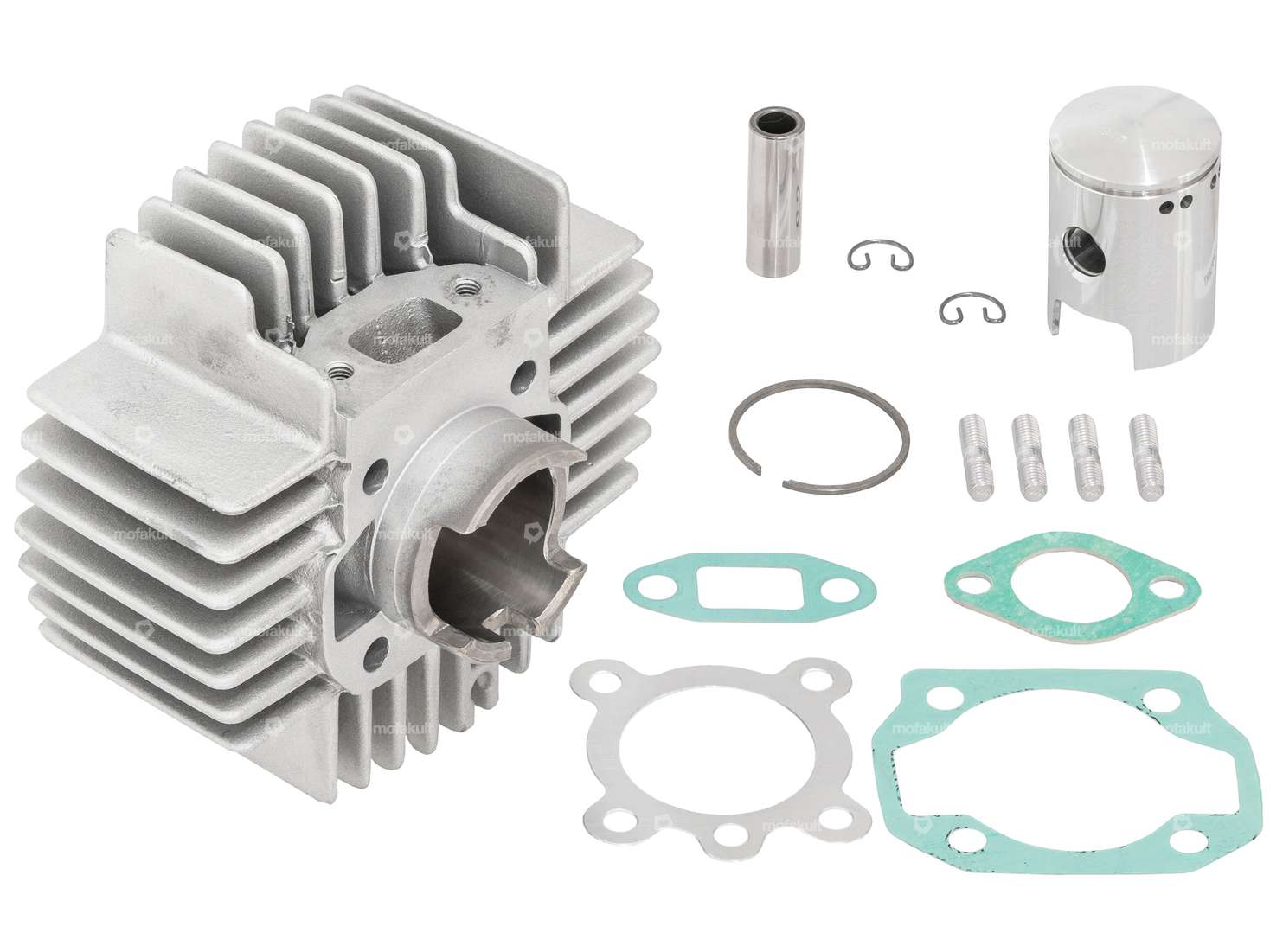

Scope of delivery according to picture 1.
Quality product from the Italian manufacturer Athena.
| Material | Aluminum |
| Surface | sandblasted |
| Nominal diameter | 38 mm |
| Manufacturer | Athena |
| Camouflaged | Yes |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 47.7 mm |
| Number of fixing points | 4 pcs |
| Area of application | Tuning |
| Inlet window | 22 x 14 |
| Ø piston pin (B) | 12 mm |
| Ø outlet inside | 24.4 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing outlet | 42 mm |
| Hole spacing inlet | 38 mm |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH
Width: 125 mm · Manufacturer: GPO · Material: Aluminum · Area of application: Standard · Surface: sandblasted · Ø cylinder: 38 mm · Height: 55 mm · Number of fixing points: 4 pcs · Total length: 135 mm · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No
EUR 38.90

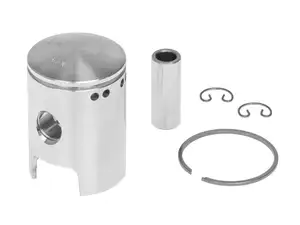

Athena piston 38 mm #B | Puch
