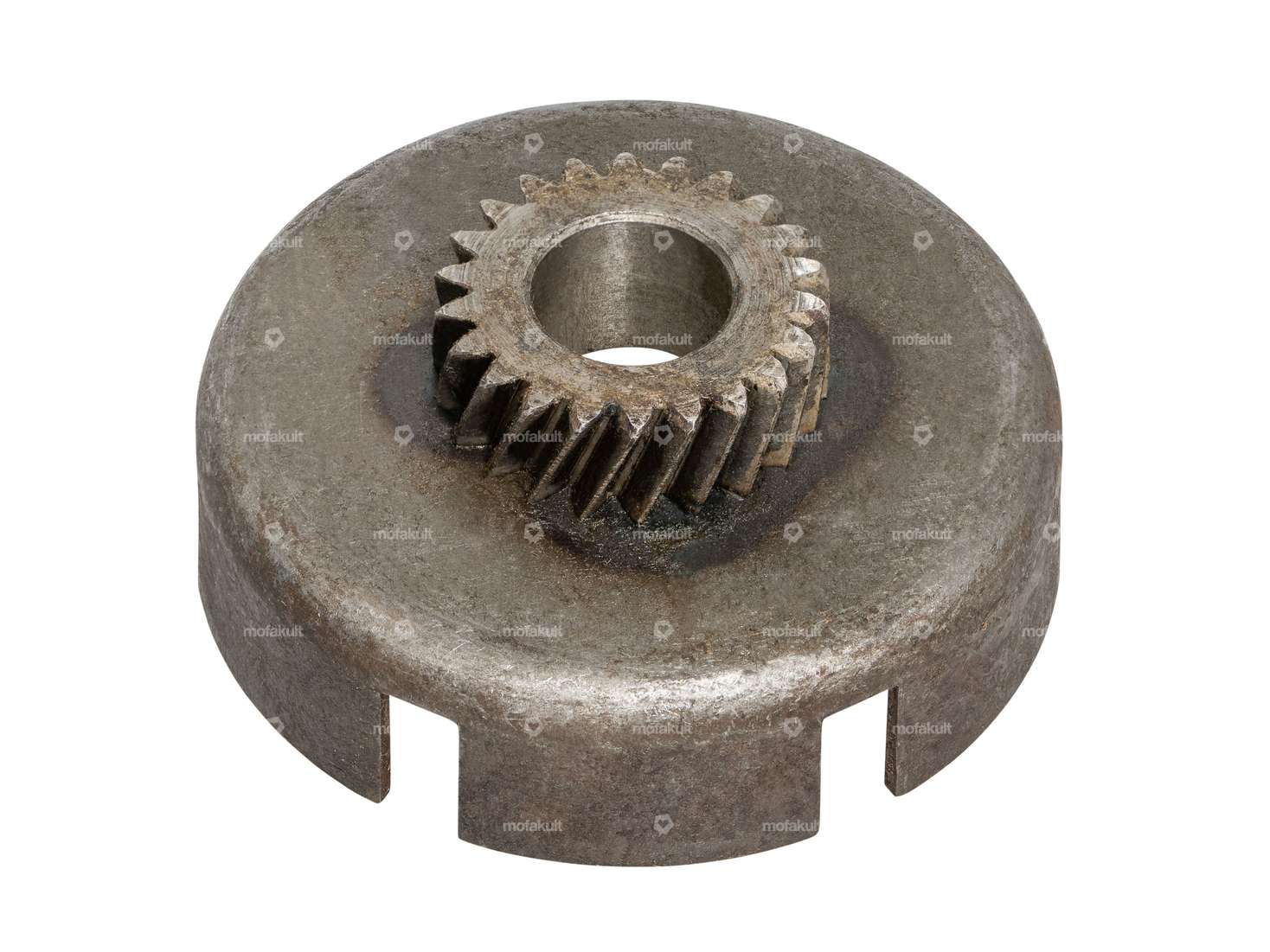

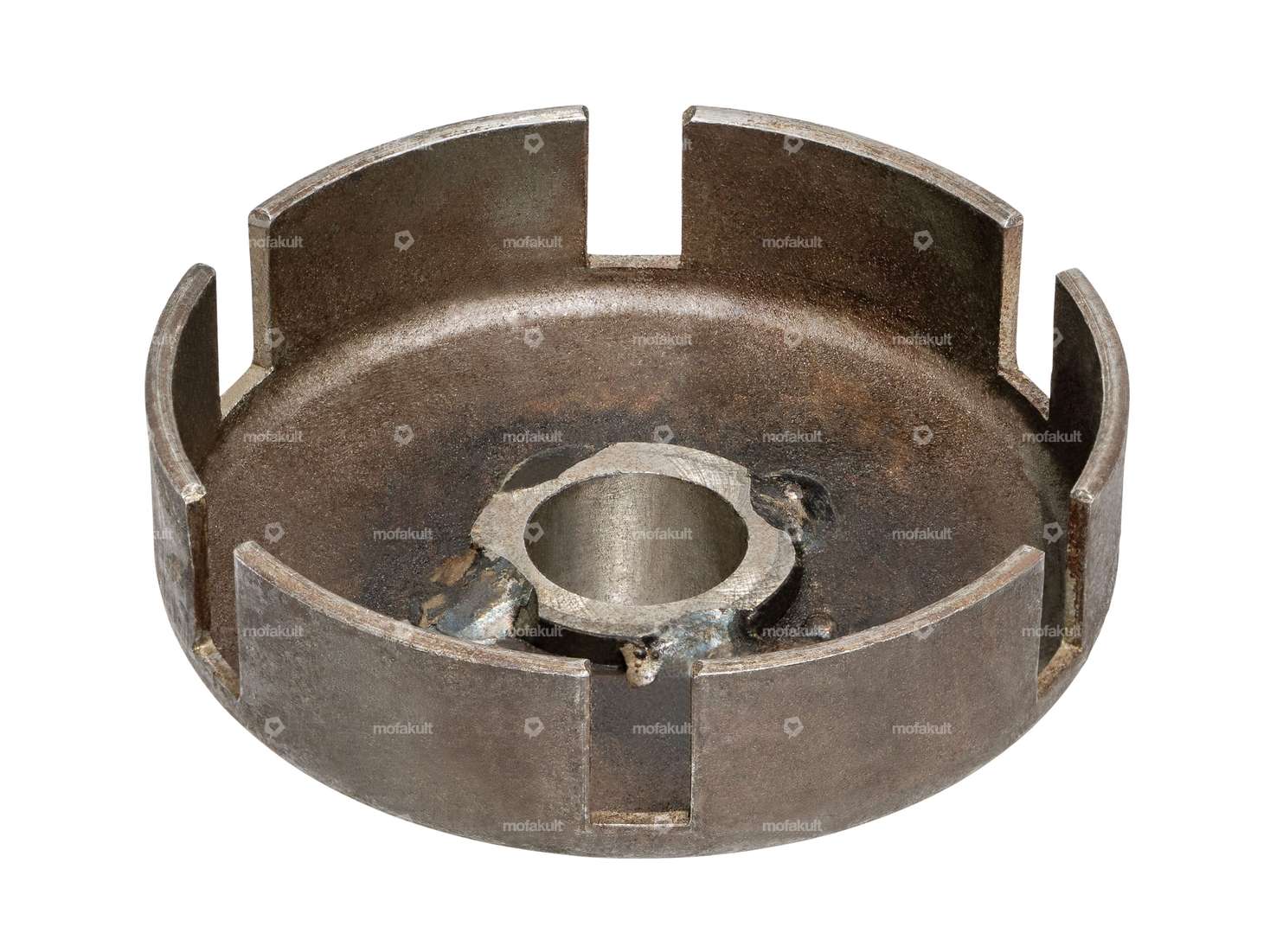

Clutch basket 22 teeth (3-plate) NOS | Puch Z50

swiing® revival plain bearing clutch basket | Puch Z50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Total height: 16.2 mm

Circlip spring basket Z50 clutch

Fuse type: Inside · Place of use: Clutch · Manufacturer: Puch · Material: Spring steel · Nominal diameter: 45 mm

M22 sealing ring 22.5/26.6/1.5 Fiber

Ø inside: 22 mm · Ø outside: 27 mm · Thickness: 1.5 mm · Material: Fiber · Surface: raw

M8 locking plate clutch | Puch X30 Velux

Ø inside: 8.15 mm · Ø outside: 20.1 mm · Thickness: 1 mm · Material: Steel · Thread size: M8 · Number of lobes: 1 pcs

Clutch hub | Puch Z50 engine

Area of application: Standard · Recording type: Interlocking · Toothing type: straight toothed

Surflex clutch plate set | Puch Z50

Manufacturer: Surflex · Ø inside: 46.3 mm · Ø inside: 51.3 mm · Ø outside: 69.6 mm · Ø outside: 74.8 mm · Thickness: 2.75 mm · Material: Composite materials · Area of application: Original · Material: Steel · Recording type: Interlocking · Number of slats: 2 pcs

Clutch basket 22 teeth NOS | Puch Z50

Manufacturer: Puch · Height: 26.9 mm · Area of application: Original · Material: Steel · Toothing type: helical toothed · Number of teeth: 22 pcs

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Number of slats: 2 pcs · Area of application: Standard

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Ø bore: 4 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø Pin: 3.94 mm

Petcock straight intermediate piece black

Material: Aluminum · Possible lever positions: open / closed · Material lever: Aluminum · Surface: varnished · Installation direction: vertical / vertical · Outlet direction: below · Mounting type: Plug connection · Ø fuel hose connection: 6 mm

Cut cable set Black | Sachs Automatic

Nipple shape: Cylinder · Nipple shape: Pears · Manufacturer: Made in Germany · Quantity: 4 pcs · Material: Steel · Color: black · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Total length: 1600 mm · Total length: 1650 mm · Total length: 1850 mm · Total length: 2200 mm

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing type: Shoulder bearing · Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank · Stock number: BO15 · Width: 10 mm · Ø inside: 15 mm · Ø outside: 40 mm · Ball bearing closed: No · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001

NSK 6201 ball bearing 12/32/10

Bearing cage: Sheet steel cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Surface: blank · Ø inside: 12 mm · Stock number: 6201 · Bearing type: Shoulder bearing · Width: 10 mm · Ø outside: 32 mm · Ball bearing closed: No · Area of application: Standard

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Width: 3.5 mm · Ø inside: 14.96 mm · Place of use: Pinion shaft · Ø outside: 31.5 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

swiing® revival spring basket 3-slat version | Puch Z50

Manufacturer: swiing® revival parts · Ø inside: 24.3 mm · Ø outside: 62 mm · Height: 28.5 mm · Material: Aluminum · Area of application: Standard · Surface: anodized · Color: red

swiing® ingenious brake shoes Ø 90 x 17 Racing slotted

Slotted: Yes · Manufacturer: swiing® ingenious parts · Area of application: Racing · Color: silver · Ø drum: 90 mm · Springs included: Yes · Ø locating bolt: 10 mm · Width: 17 mm · Number of springs: 1 pcs

swiing® revival draw bolt 3-slat version High End | Puch Z50

Manufacturer: swiing® revival parts · Ø outside: 44.7 mm · Material: Aluminum · Area of application: High End · Material: Steel · Surface: anodized · Color: black · Surface: blackened · Color: red · Total length: 34.9 mm
