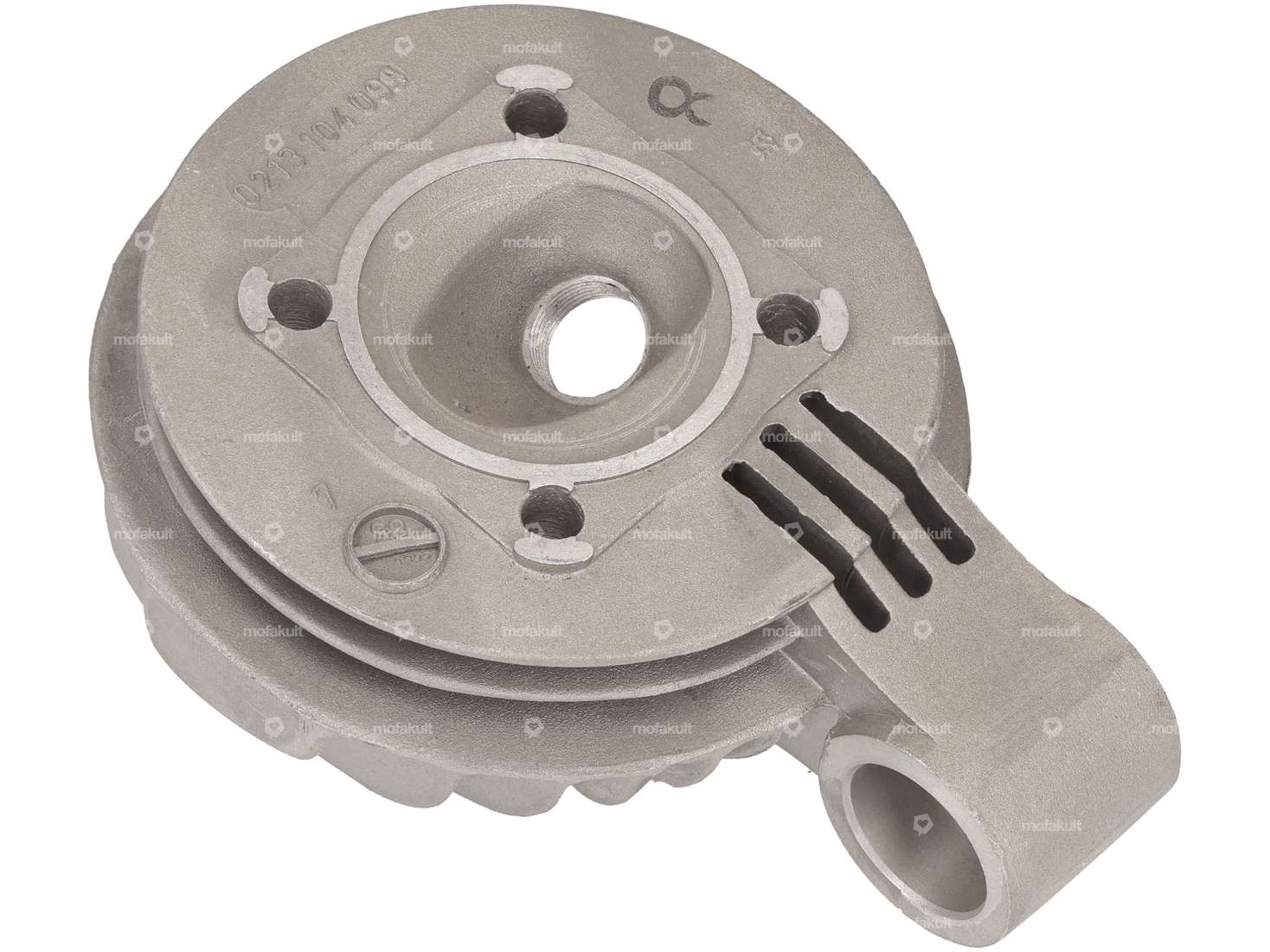

Original cylinder head for mopeds / mopeds with blown Sachs 50/2 & 50/3 engines.
New from 40-year old stock. The cylinder cover may therefore show slight signs of storage, but these do not impair its functionality in any way.
The cooling fins have an outer diameter of 95 mm.
Number on the underside of the cylinder head: 0213 104 099
NOS – New from old stock.
Original Sachs spare part number: A1069 / A1070 / 0213 104 006 / 0213 106 000
| Manufacturer | Sachs |
| Ø outside | 95 mm |
| Area of application | Original |
| Number of fixing points | 4 pcs |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
