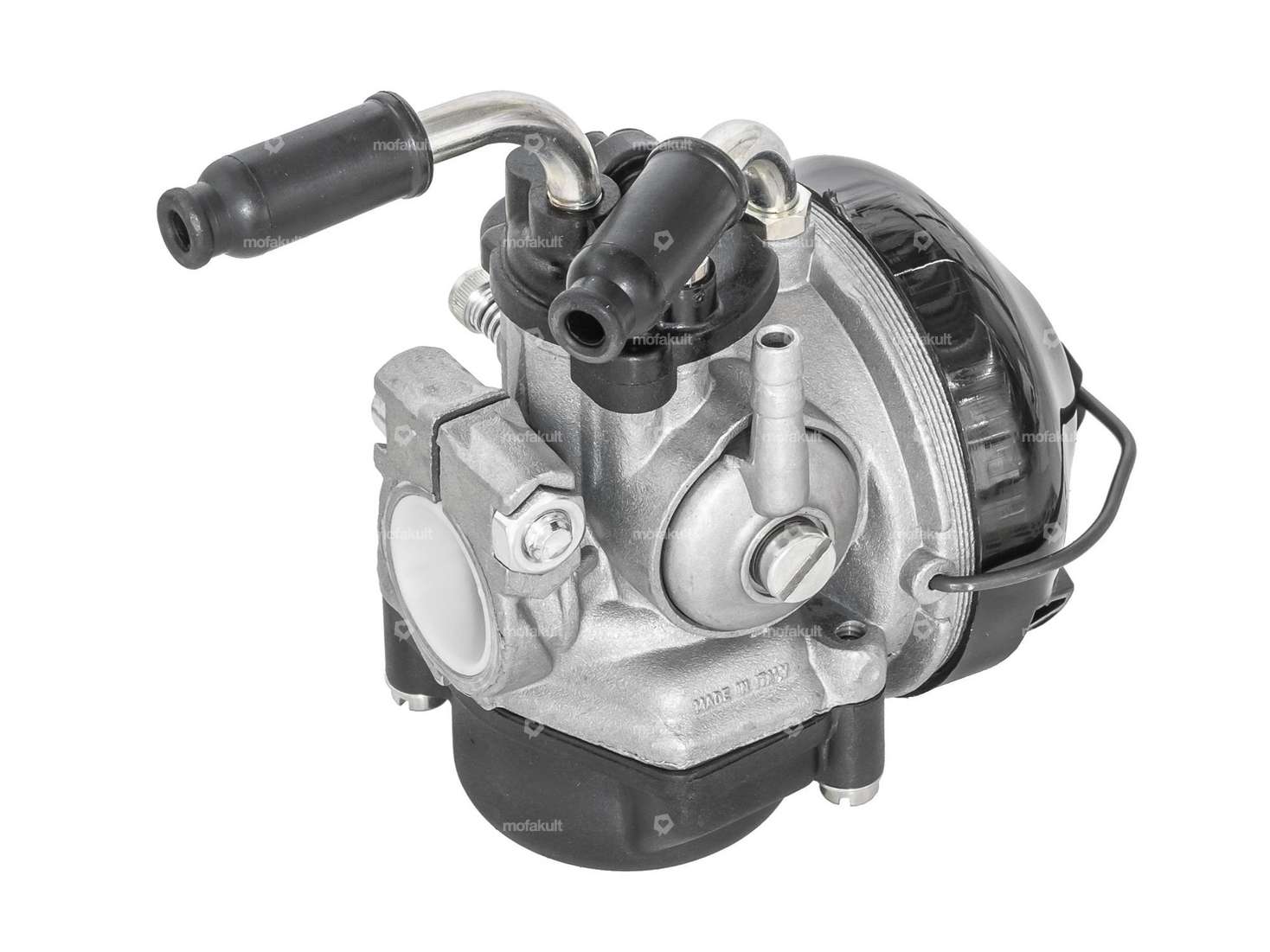

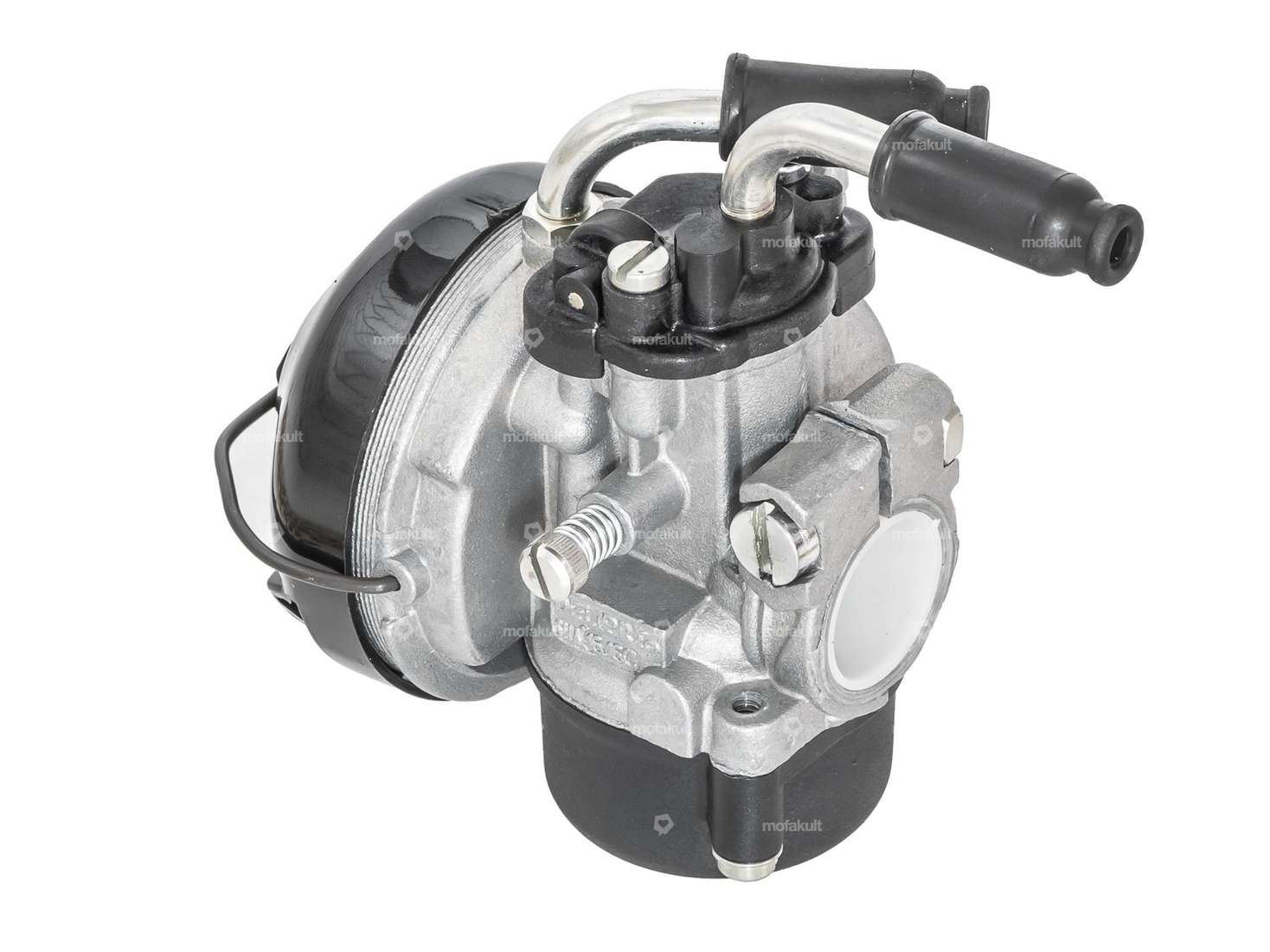

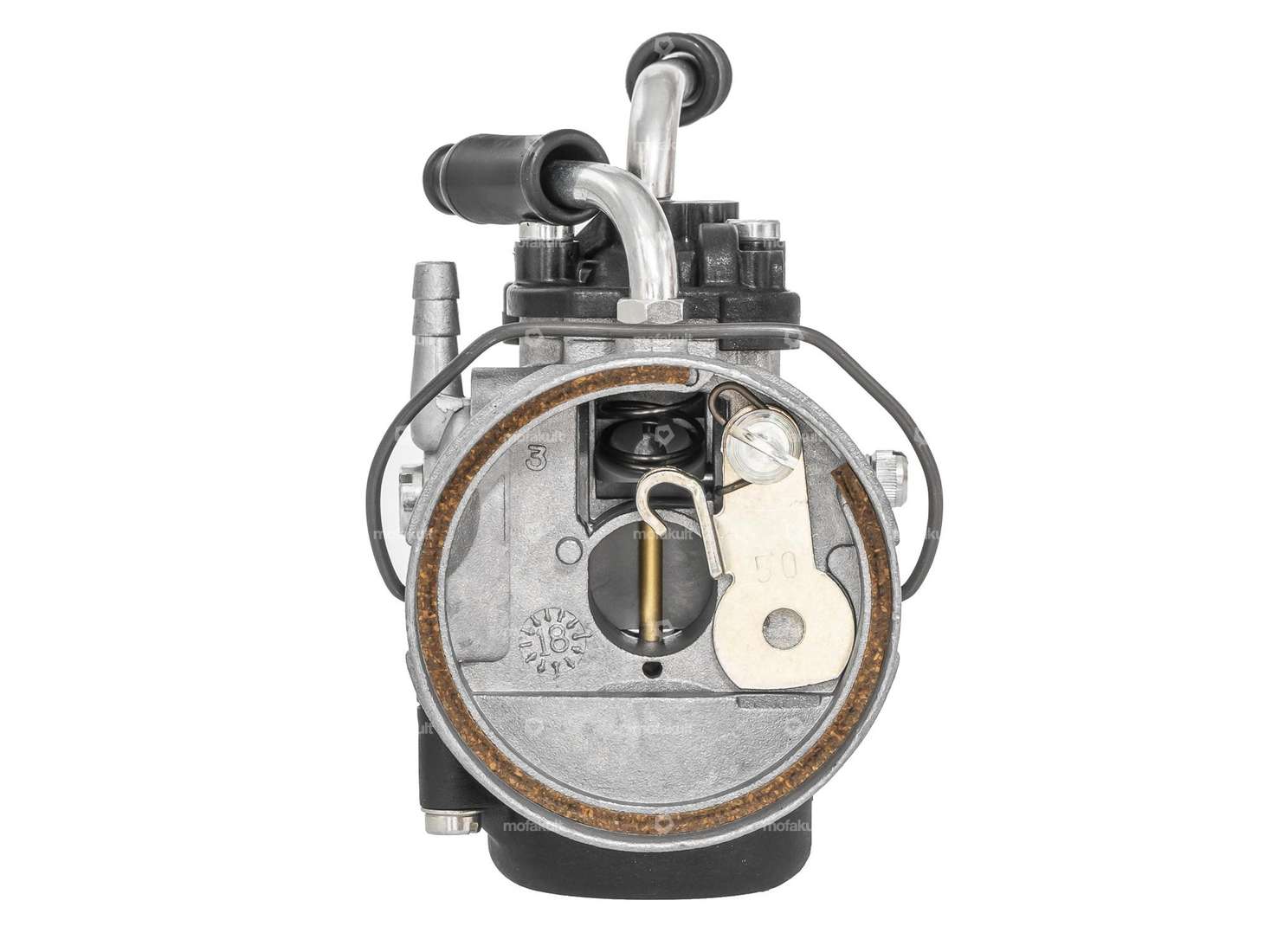

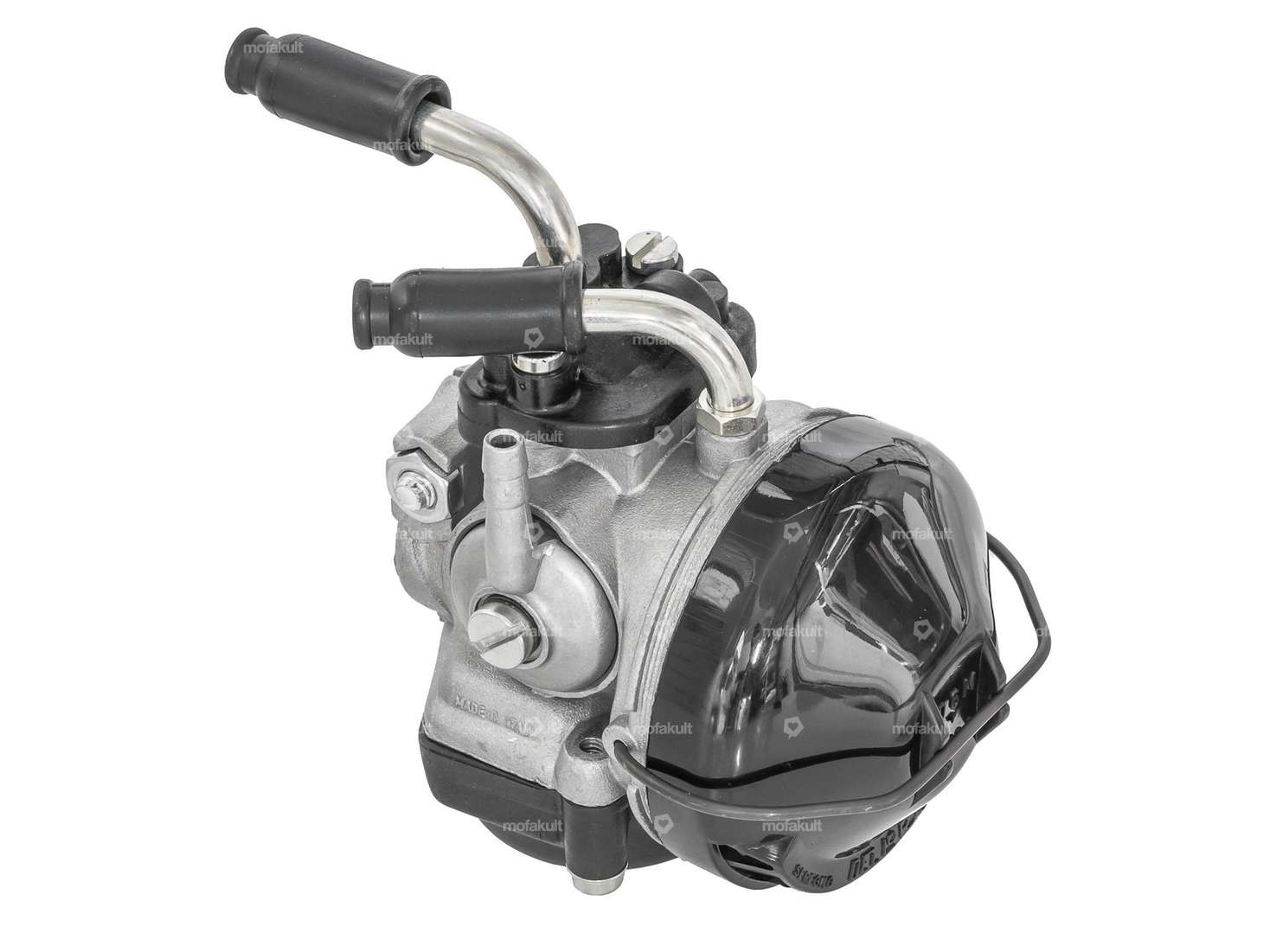

The Dell'Orto 16 / 16 SHA racing carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.
The integrated air filter screen can be easily removed for cleaning purposes.
The tuning carburettor has a cable-operated choke / start slide.
Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 70
Inlet connection diameter: 19 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 16 mm
Ø passage on intake manifold side: 16 mm
Total height: 84 mm (without pipe bend)
Total length: 82 mm
Total width: 70 mm
For matching nozzles and alternative air filters, see accessories.
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 16 mm |
| Manufacturer | Dell'Orto |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SHA |
| Mounting type | Plug connection clamped |
| Total length | 82 mm |
| Width | 70 mm |
| Ø without reducing sleeve | 21 mm |
| Height | 84 mm |
| Ø Internal connection | 19 mm |
| Ø Inside entrance | 16 mm |
| Ø Output inside | 16 mm |
| Ø Air filter connection | 59 mm |
| Ø fuel hose connection | 6 mm |
| Area of application | Tuning |
| Choke control | Cable choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 70 |
| Universal | |
| Tomos |
