For: Tomos

30380

DMP 38 mm cylinder kit slanted exhaust 12 mm KoBo | Tomos Sprint, Quadro, Fun Sport'R, Classic

Home
| Motor
| Cylinder
| Cylinder & racing set
EUR 116.30

Incl. 21% VAT.

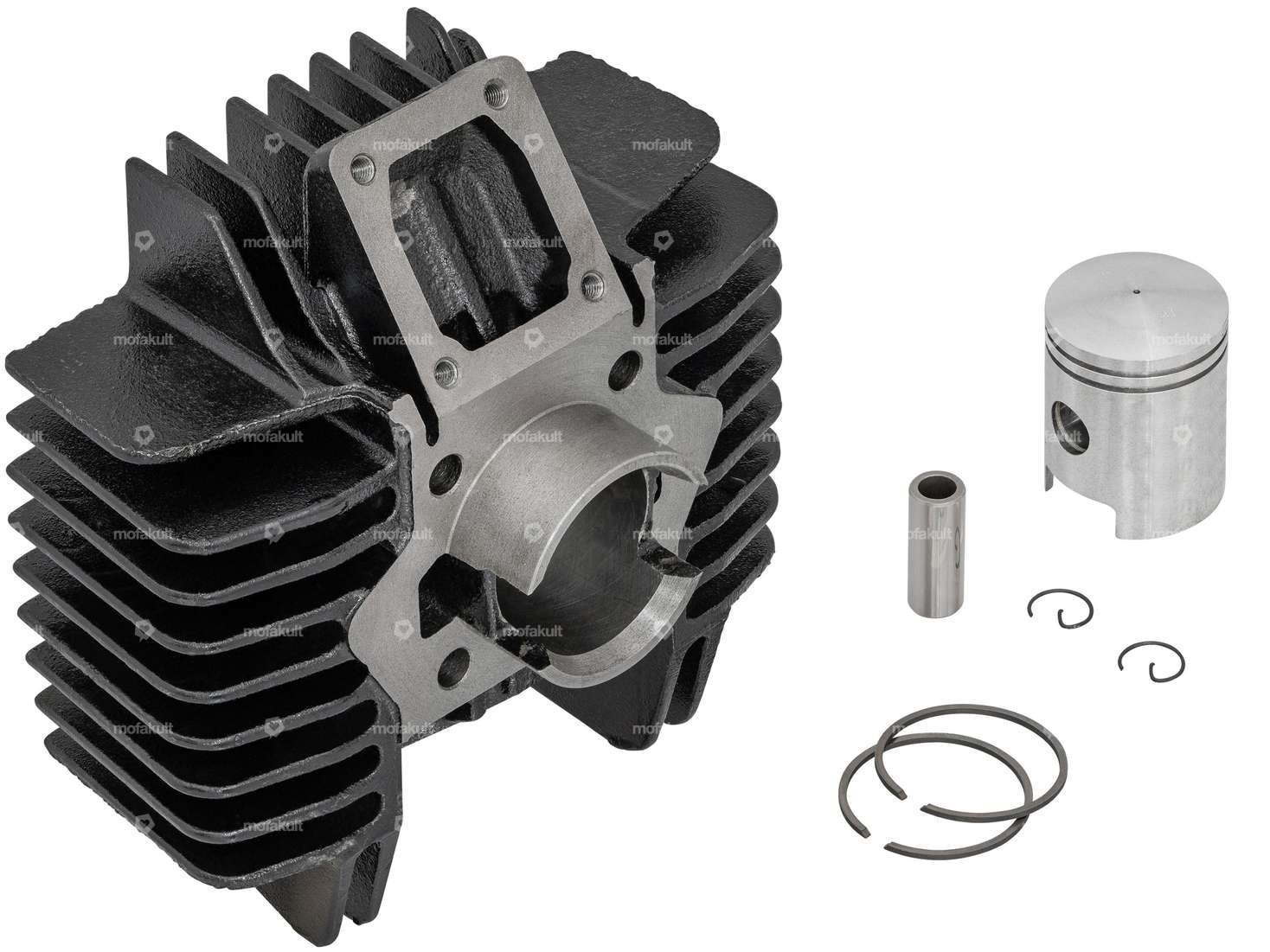

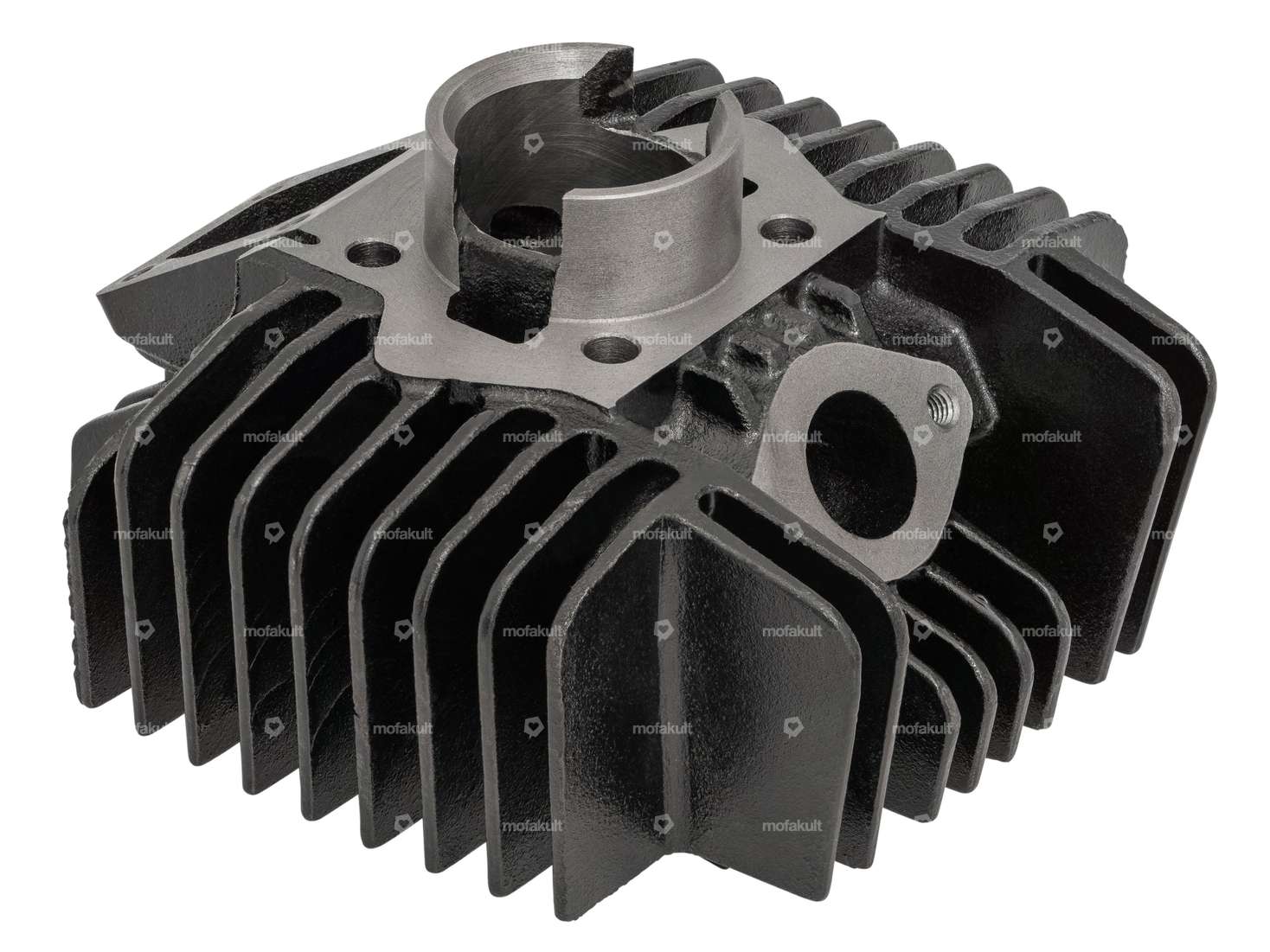

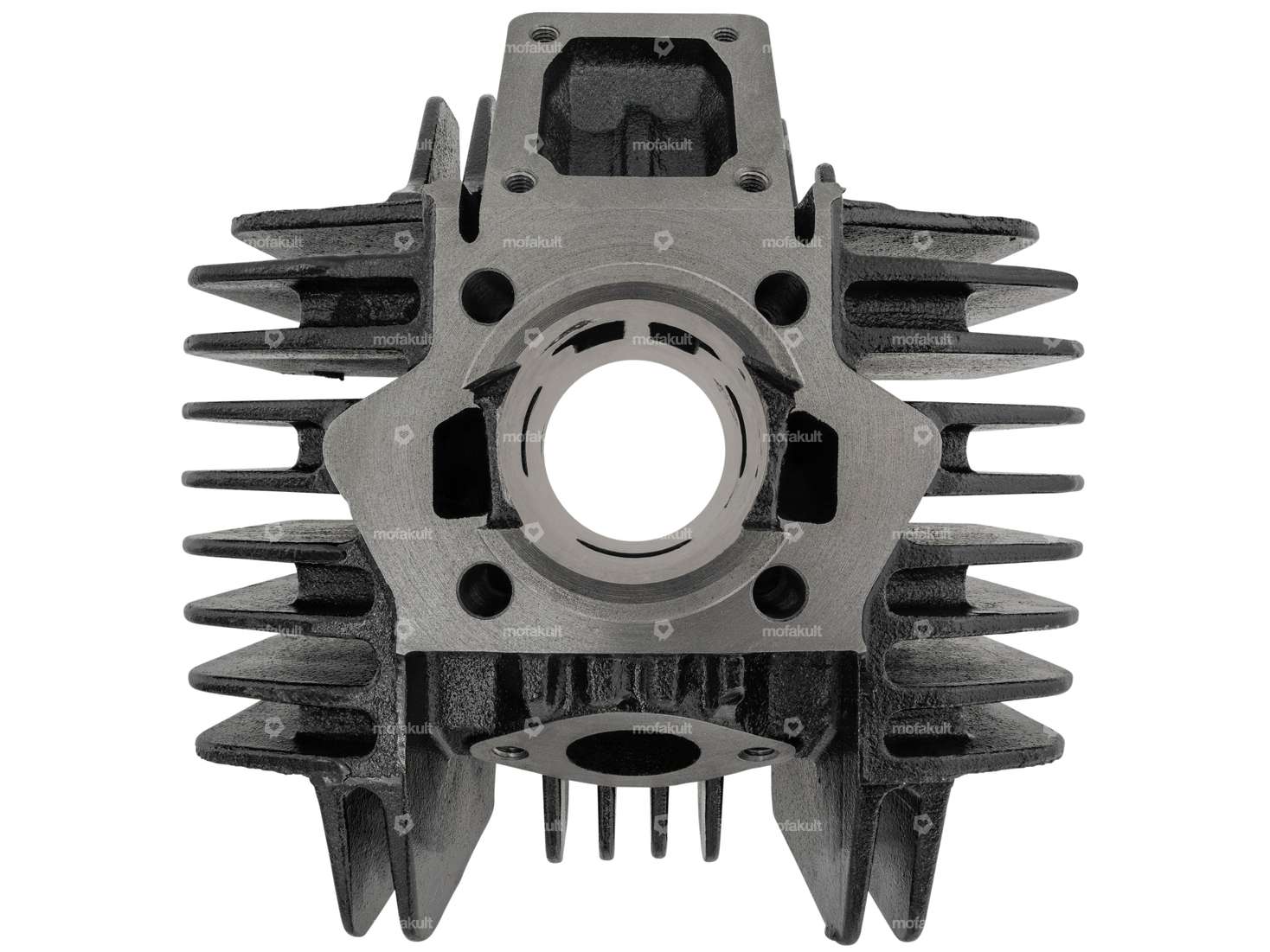

Cylinder made of solid gray cast iron including piston and accessories, suitable for Tomos Sprint, Quadro, FunSport, Classic mopeds / mopeds.

Dimensions of the cylinder set:
Distance between stud bolts: 44 x 44 mm
Bore: 38 mm
Ø piston pin: 12 mm (Axe 12)
Distance between exhaust stud bolts: 41 mm
Exhaust flange angle: inclined (inclined exhaust)

Note: This is the 30 km/h variant without additional piston window. You will need to mill these yourself if required. We also recommend that you check the edges in the cylinder and deburr them slightly if necessary, as they are somewhat sharp-edged in places.

Alternative cylinders and the matching gasket can be found in the accessories section.

Branded product from the manufacturer DMP.

Details

Nominal diameter38 mm
ManufacturerDMP
MaterialGray cast iron
Surfacevarnished
Displacement50 ccm
Crankshaft stroke43 mm
Thread inletM5x0.8 (standard thread)
Ø piston pin (B)12 mm
Outlet typeslanted
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
Number of fixing points4 pcs
Hole pattern [mm]44 x 44
CamouflagedYes
Area of applicationStandard
Tomos OEM number229402
