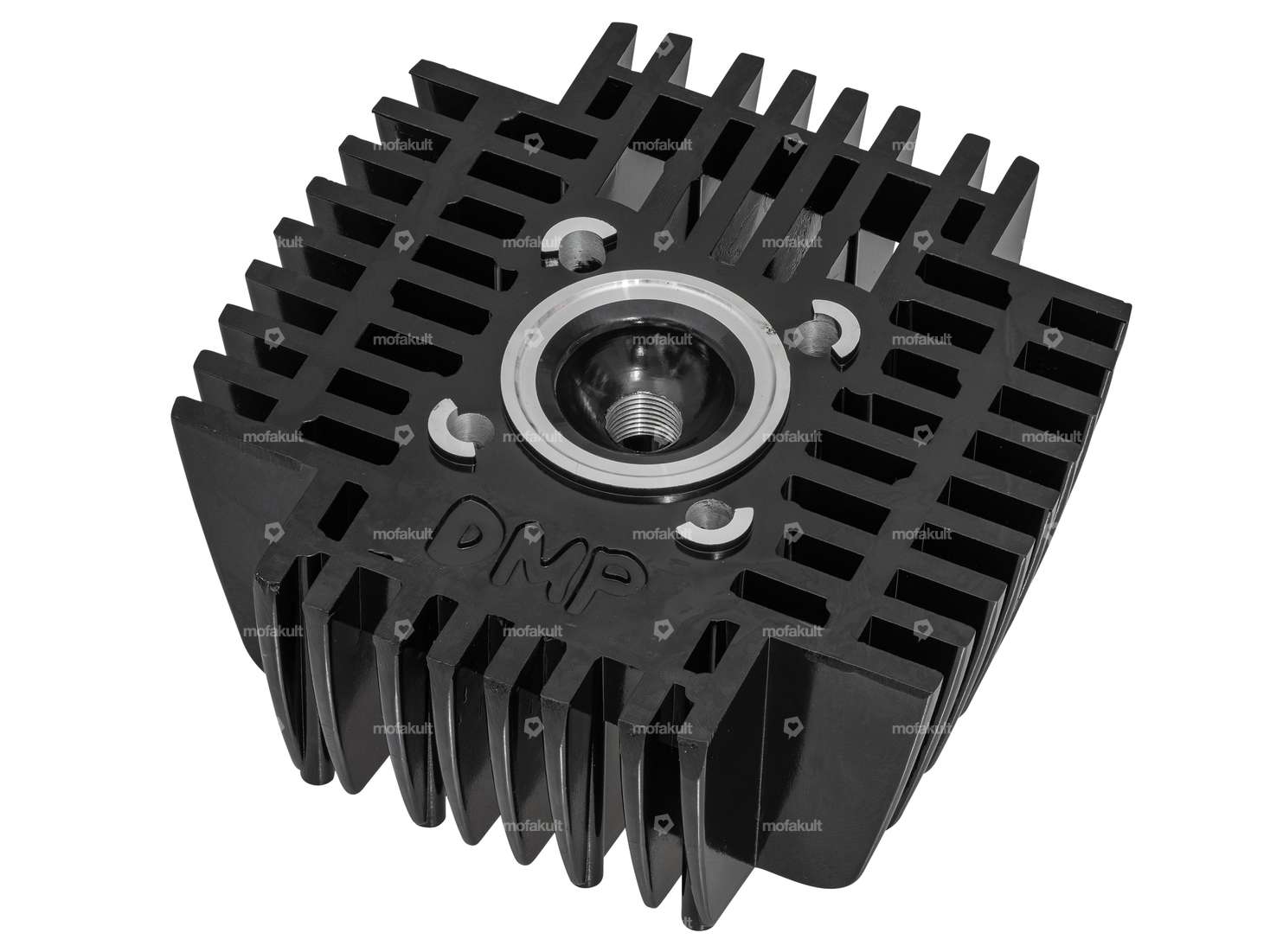

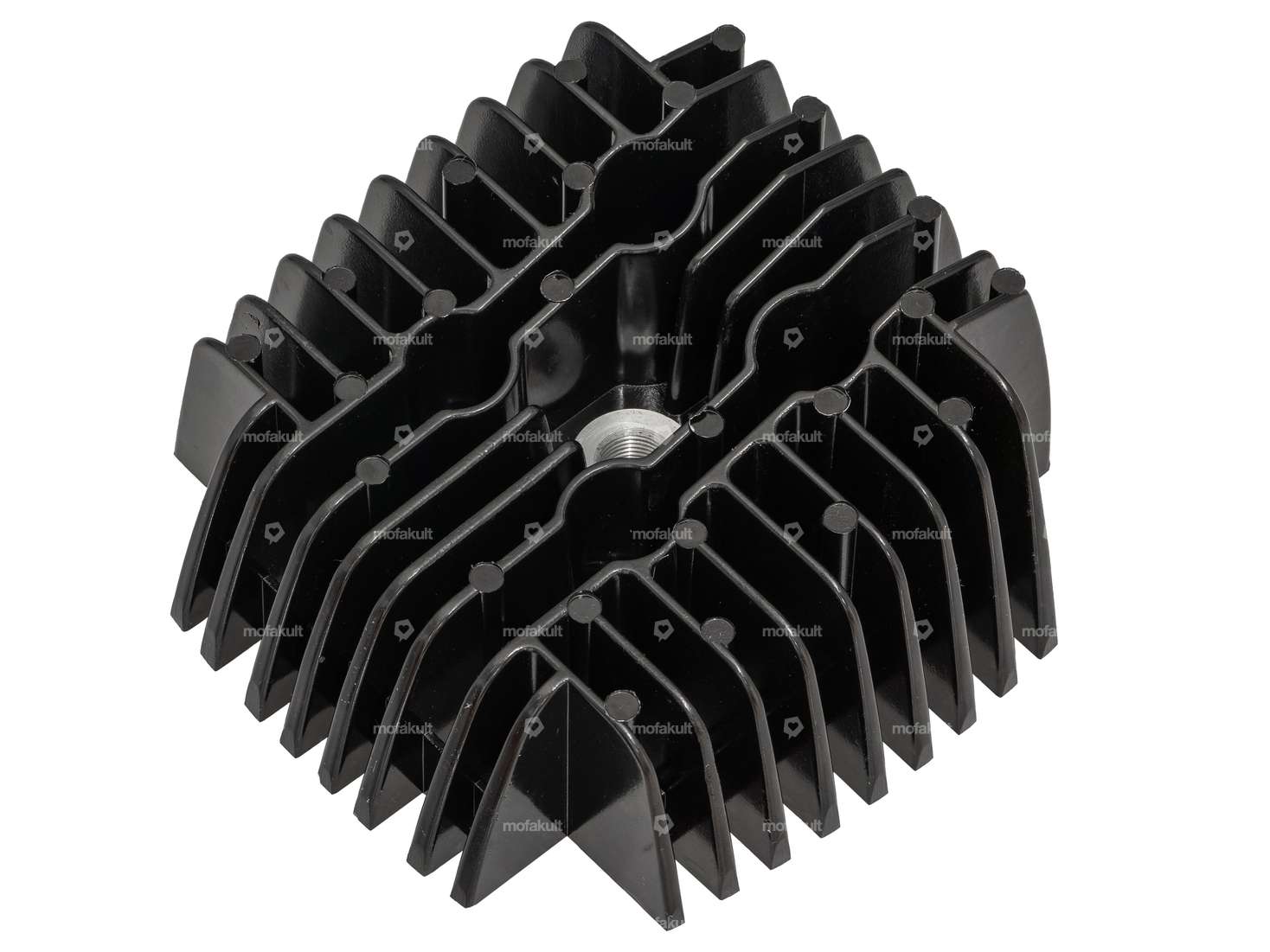

DMP 44 mm cylinder head (higher compression) | Tomos

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Manufacturer: Elring · Area of application: Chemistry · Color: green · Contents: 70 ml · Gap dimension (max.): 0.2 mm · Temperature resistance (min.): -55 - 250 °C

Airsal 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Nominal diameter: 44 mm · Manufacturer: Airsal · Material: Aluminum · Displacement: 65 ccm · Surface: sandblasted · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Inlet window: 29.5 x 37.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning

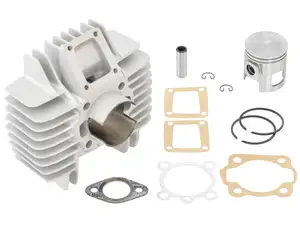

GPO 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Nominal diameter: 44 mm · Manufacturer: GPO · Material: Aluminum · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Surface: sandblasted · Ø cylinder neck: 47.8 mm · Ø outlet inside: 22.8 mm · Inlet window: 35.5 x 29.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning

Airsal gasket set 38 / 44 mm Tomos A35 mm Tomos

Manufacturer: Airsal · Ø cylinder: 38 mm · Ø cylinder: 44 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm · Area of application: Tuning

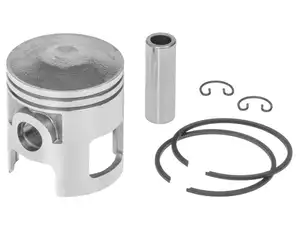

GPO piston 44 mm (12 mm KoBo) | Tomos A3/A35

Nominal diameter: 44 mm · Manufacturer: GPO · Ø outside piston (A): 43.96 mm · Compression height (C): 21.9 mm · Curvature (D): 4.15 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Manufacturer: Elring · Area of application: Chemistry · Material: Silicone · Color: gray · Contents: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 315 °C

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Manufacturer: Elring · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm

45 mm cylinder head Racing (with O-ring & centering) | Tomos

Area of application: Racing · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 30 mm · Diameter: 5.95 mm · Thread length: 12 mm · Strength class: 10.9 · Thread type: M6x1 (standard thread)

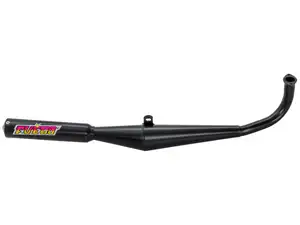

Jamarcol Fuego exhaust 28 mm black | Tomos

Manufacturer: Jamarcol · Material: Steel · Surface: varnished · Color: black · Ø Silencer: 50 mm · Total length: 770 mm · Ø Internal connection: 25 mm · Mounting type: Welded lug · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Ø outside: 70 mm · Flame tube attachment: Flange · Number of fixing points: 1 pcs

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

Dell'Orto 15/15 SHA carburetor hand choke (with air filter)

Nominal diameter: 15 mm · Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SHA · Color: black · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 21 mm · Total length: 82 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 18 mm · Ø Output inside: 15 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 59 mm · Mixed oil connection: No · Vacuum connection: No · Width: 70 mm · Choke control: Hand choke · Height: 100 mm · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 68 · Area of application: Racing · Area of application: Tuning

Airsal 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Nominal diameter: 44 mm · Manufacturer: Airsal · Material: Aluminum · Displacement: 65 ccm · Surface: sandblasted · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Inlet window: 29.5 x 37.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning

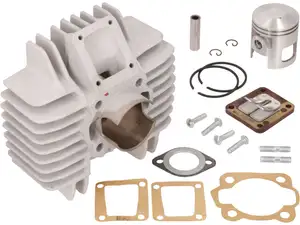

Airsal 44 mm cylinder kit tuning 10 mm KoBo | Tomos A35

Nominal diameter: 44 mm · Manufacturer: Airsal · Material: Aluminum · Displacement: 65 ccm · Surface: sandblasted · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Inlet window: 29.5 x 37.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 10 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning

GPO 14 mm intake manifold separate lubrication (camouflaged) | Tomos

Manufacturer: GPO · Material: Aluminum · Ø inside: 14.5 mm · Ø External connection: 18 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

GPO 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Nominal diameter: 44 mm · Manufacturer: GPO · Material: Aluminum · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Surface: sandblasted · Ø cylinder neck: 47.8 mm · Ø outlet inside: 22.8 mm · Inlet window: 35.5 x 29.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning

Airsal tuning set 44 mm (budget) | Tomos A35

Nominal diameter: 44 mm · Manufacturer: Airsal · Manufacturer: DMP · Manufacturer: Dell'Orto · Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® revival parts · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning
