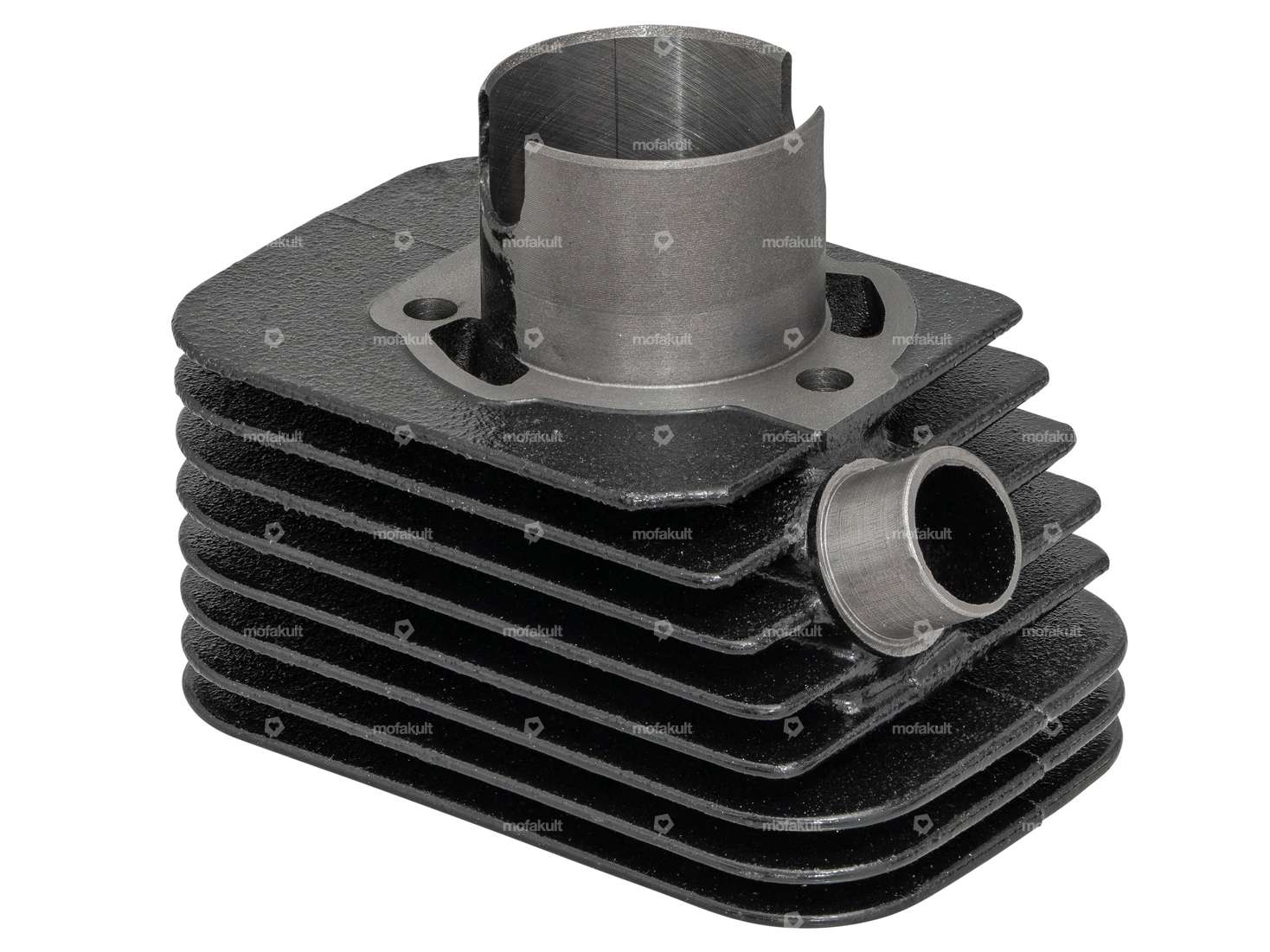

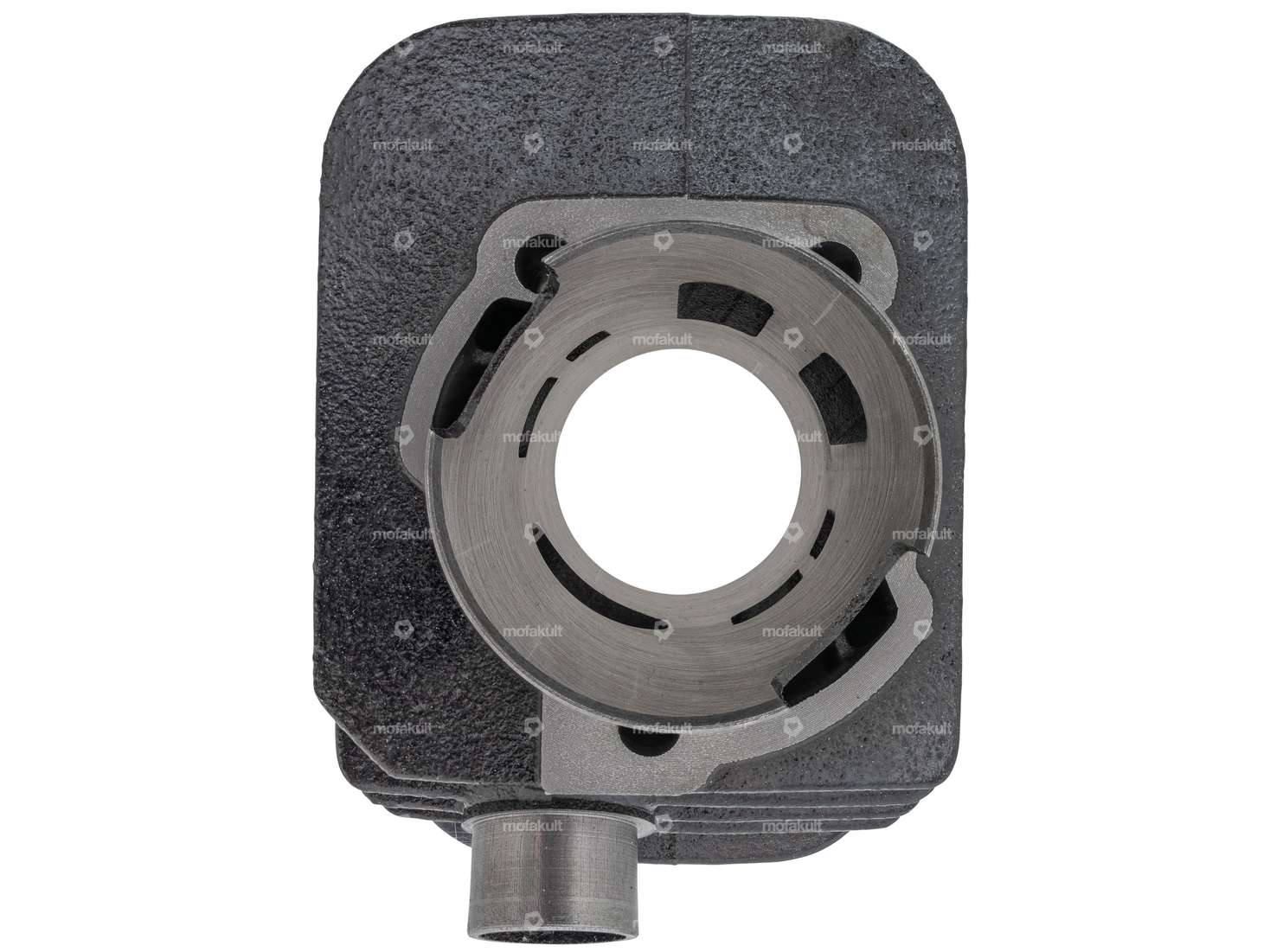

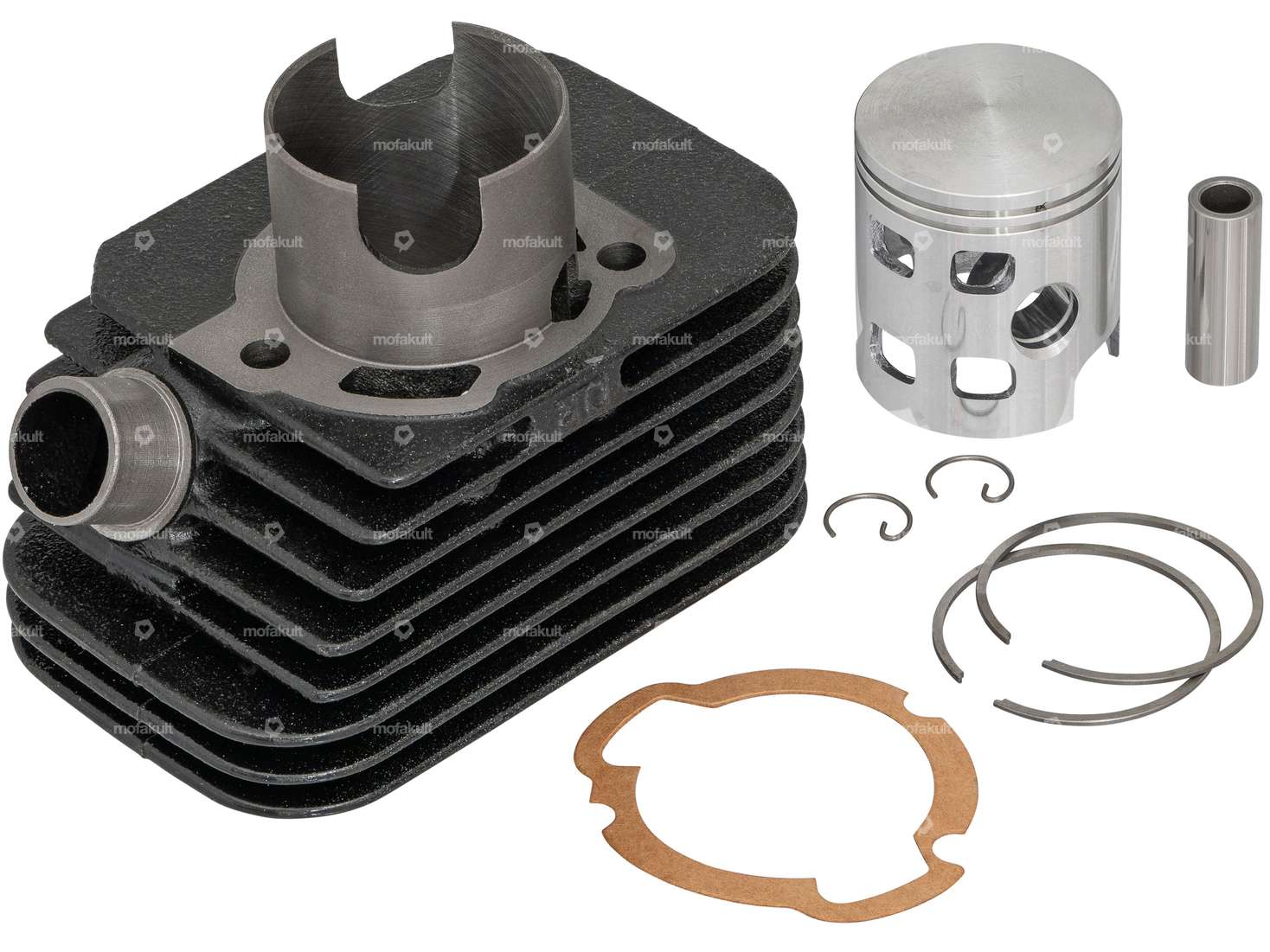

High-quality 43 mm cast iron racing cylinder suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped
.The racing cylinder with 65 cc displacement is ideal for a tuning setup for everyday use. The tuning cylinder has 6 overflow channels, which guarantee plenty of power across the entire rev range.
Ø piston pin: 12 mm
Notes:
In order to achieve optimum performance, the intake on the engine housing and the area of the overflow channels should be adjusted accordingly. You will find a corresponding tutorial for the intake linked below.
A 12/12 carburetor should also be used as a minimum.
It is recommended to fit a cylinder head with a larger diameter.
Suitable cylinder heads as well as replacement pistons and mixing oil can be found in the accessories section.
Quality product from the Italian manufacturer DR Racing Parts.
| Manufacturer | DR Racing Parts |
| Material | Gray cast iron |
| Camouflaged | No |
| Surface | varnished |
| Displacement | 65 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 43 mm |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 22.3 mm |
| Hole pattern [mm] | 55 x 34 |
| Ø outlet inside | 18 mm |
| Number of fixing points | 3 pcs |
| Outlet type | clamped |
| Decompressor | Yes |
| Area of application | Tuning |
| Piaggio |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 23.50

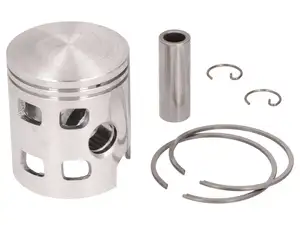

DR 43 mm piston (12 mm KoBo) Piaggio Ciao, SI, Bravo, Boxer
