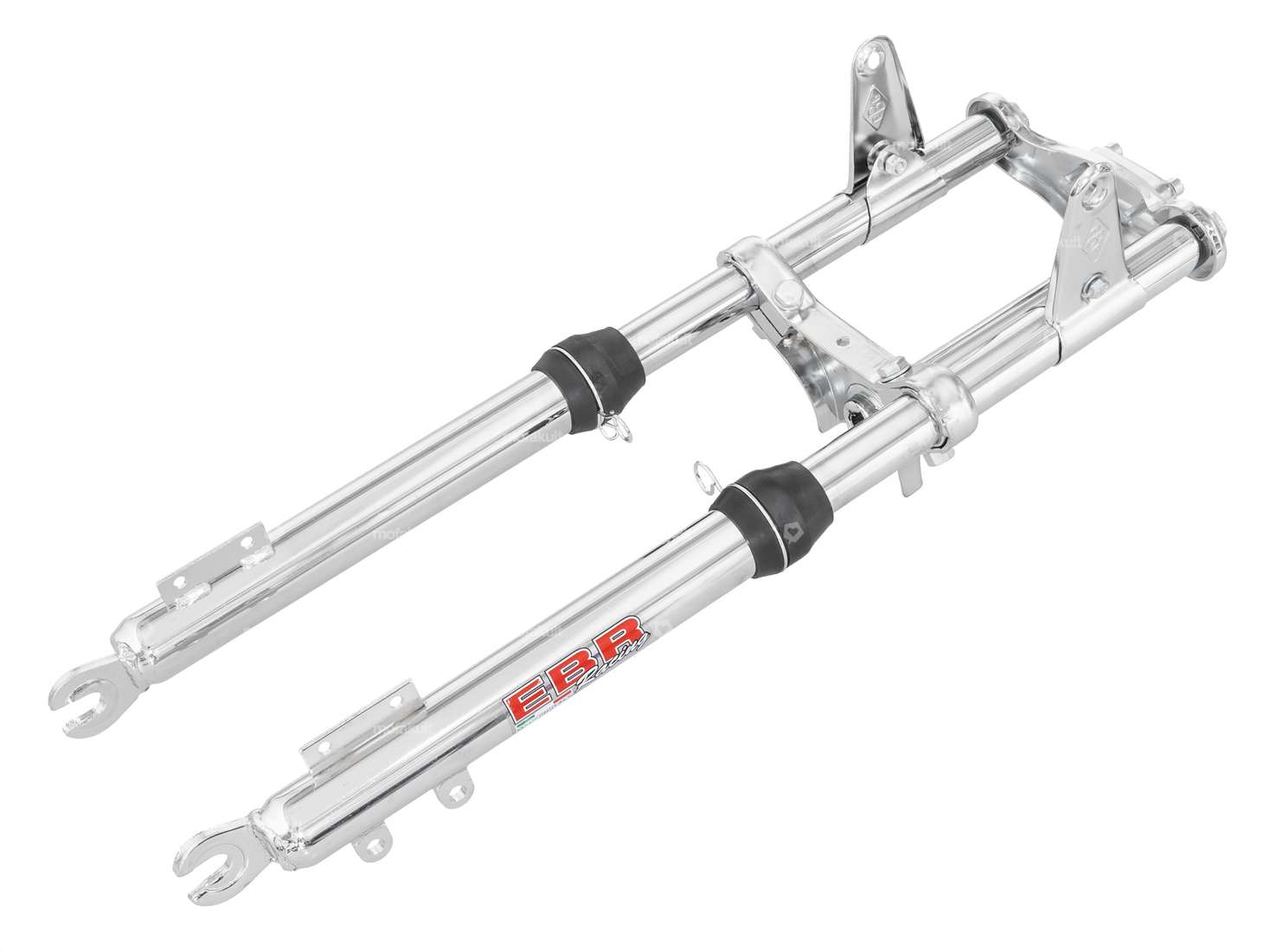

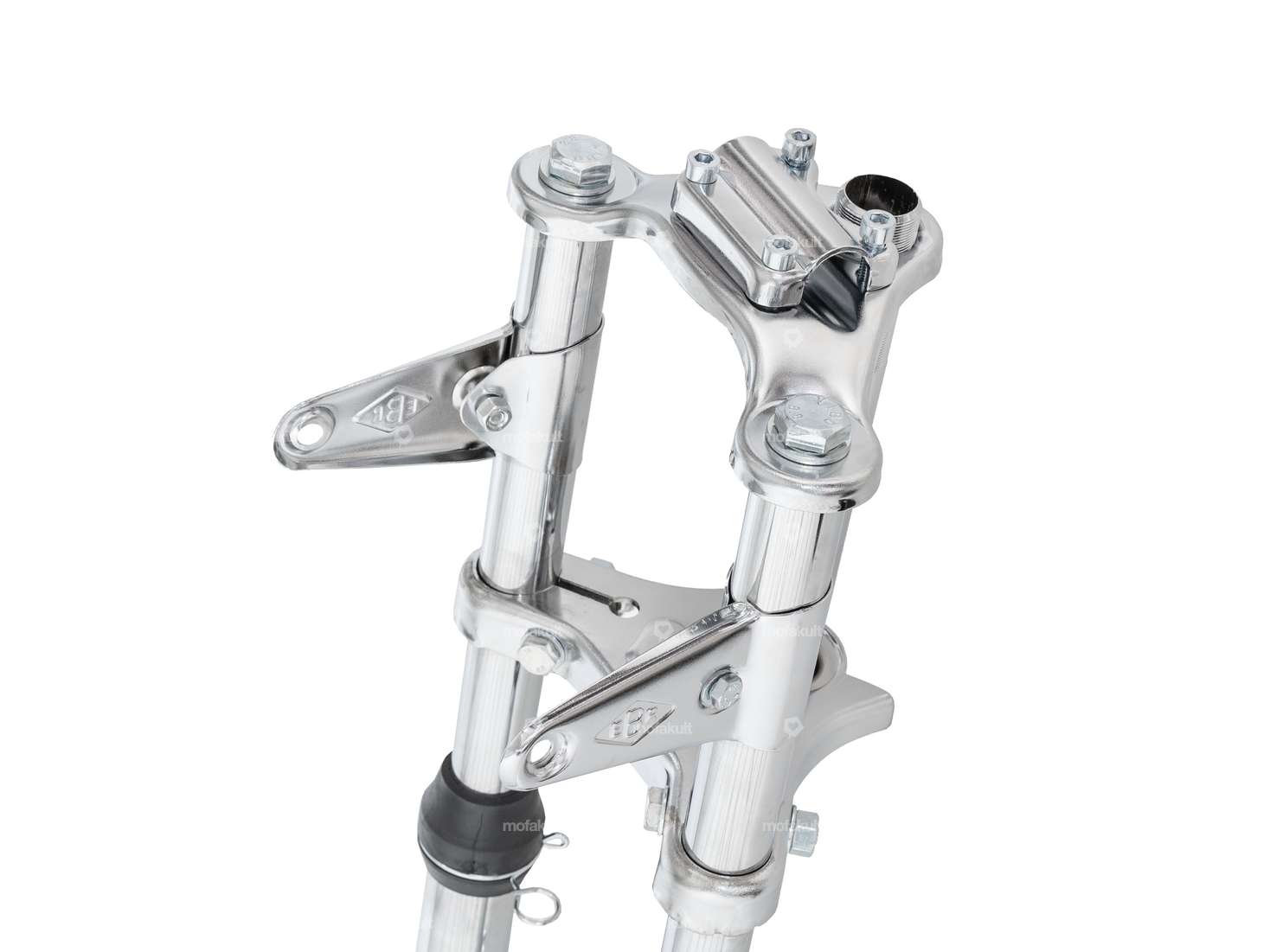

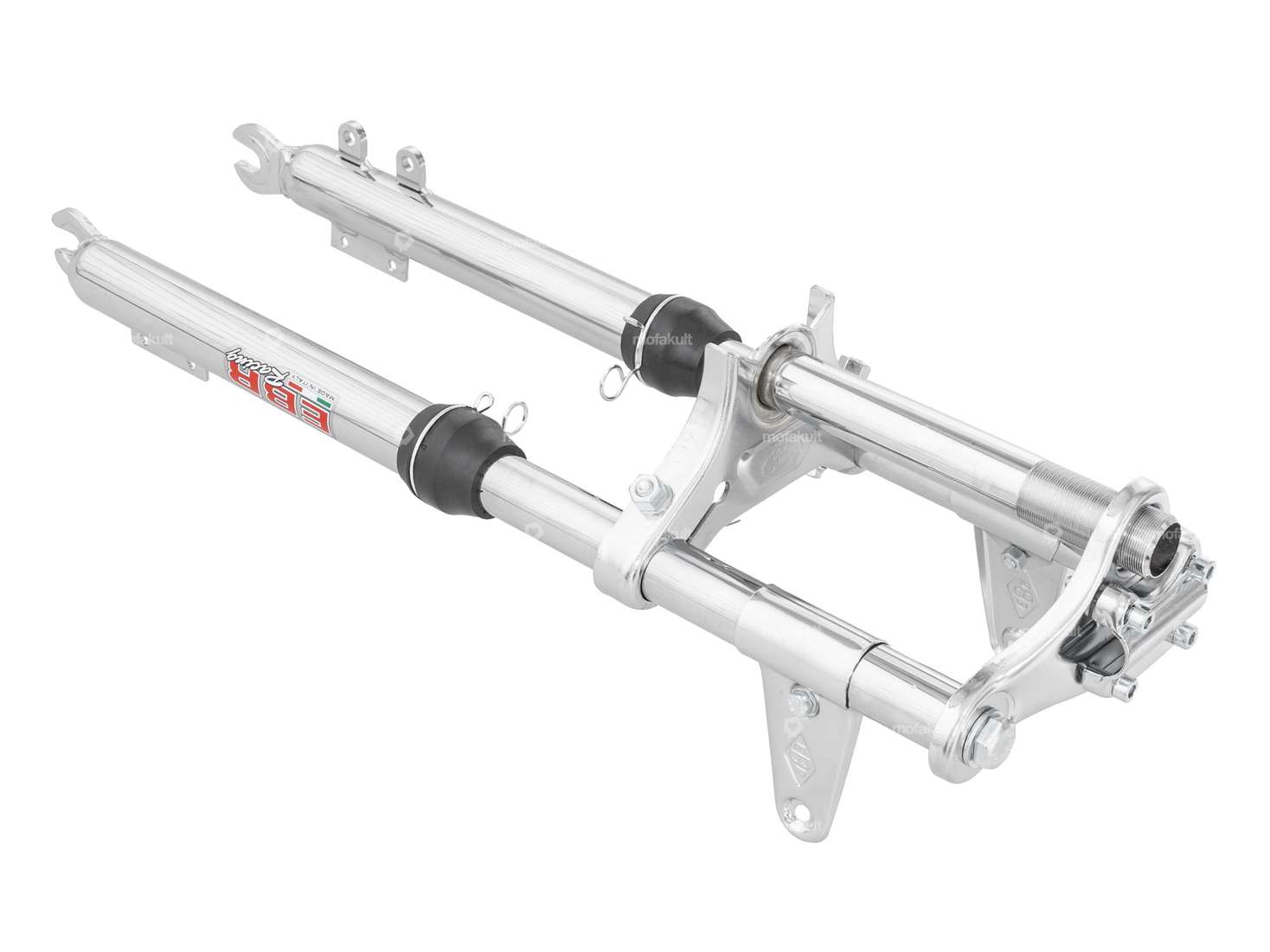

EBR fork reinforced chrome (with tabs for disc brake) | Puch

GPO screw set fork reinforced Inox

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Number of components: 24 pcs · Drive: External hexagon · Screw head: Hexagon

GPO control bearing set M26x1 | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø inside: 26.8 mm · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø outside: 41 mm · Ø mounting frame: 31 mm · Color: silver

swiing® revival 17" rear fender Inox | Puch Maxi N

Color: Chrome · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Folding the ends: closed folded · Folding the ends: not folded · Wheel size: 17 " · Shape of the mudguard: angular · Mounting type: Nuts & bolts · Total length over ends: 625 mm · Scope: 940 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 285 mm

Airsal 44 mm cylinder kit 65 ccm camouflaged | Puch

Manufacturer: Airsal · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 44 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Inlet window: 24 / 20 x 15 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Area of application: Tuning · Decompressor: Yes

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Diameter: 5.95 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

GPO gasket set | Puch E50

Manufacturer: GPO · Number of components: 7 pcs · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Area of application: Standard · Decompressor: Yes

GPO rear mudguard attachment 17" | Puch Maxi N

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 300 mm · Wheel size: 17 " · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø mounting hole: 6 mm

swiing® revival ignition cover "Puch" emblem chrome | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Height: 48 mm · Ø outside: 130 mm · Ø inside: 125 mm · Number of fixing points: 2 pcs · Alternative version of the Puch OEM number: 349.3.10.034.2

swiing® revival mudguard arch 17" front chrome

Manufacturer: swiing® revival parts · Outer width: 130 mm · Material: Steel · Surface: chrome-plated · Ø outside: 14 mm · Wheel size: 17 " · Color: Chrome · Distance mudguard - center hole: 212 mm · Distance mudguard - center hole: 247 mm · Ø mounting hole: 5.9 mm · Ø mounting hole: 6.4 mm · Hole spacing: 35 mm · Wide intake: 115 mm · Mounting type: Nuts & bolts · Total length: 270 mm · Number of fixing points: 6 pcs

Brake caliper, brake hose & brake lever for EBR forks

Color: gray · Material: Cast aluminum · Surface: varnished · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Thread type: M8x1.25 (standard thread) · Brake lever length (lever length): 162 mm · Cable length: 900 mm · Ø Handlebars: 22 mm · Hole spacing: 32 mm · Hole spacing: 60 mm

Disc brake set for cast rim & EBR fork | Puch

Manufacturer: Quenching · Ø outside: 240 mm · Cable length: 850 mm · Ø Handlebars: 22 mm
