logo_swiing ingenious parts

For: Puch

24932

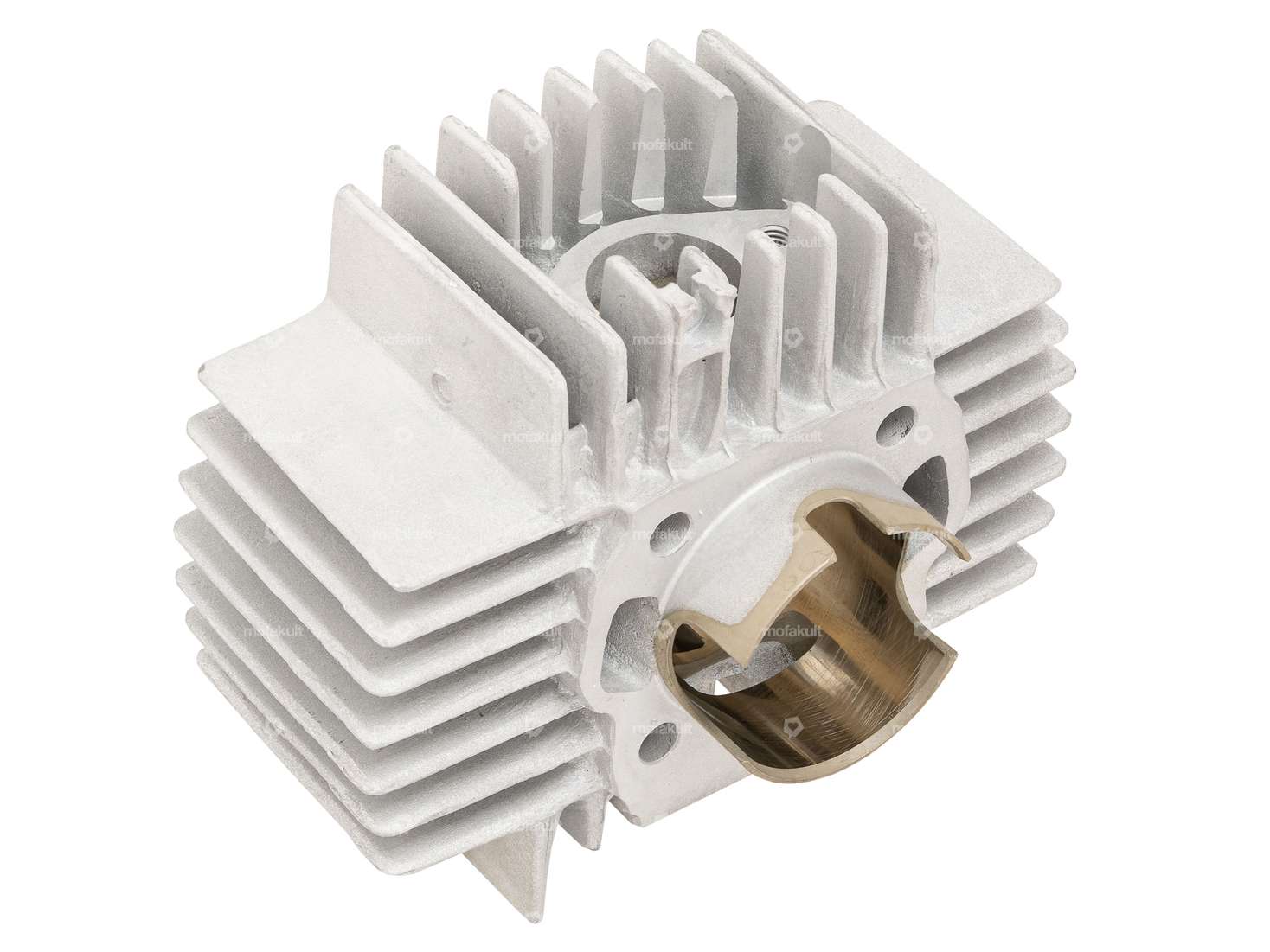

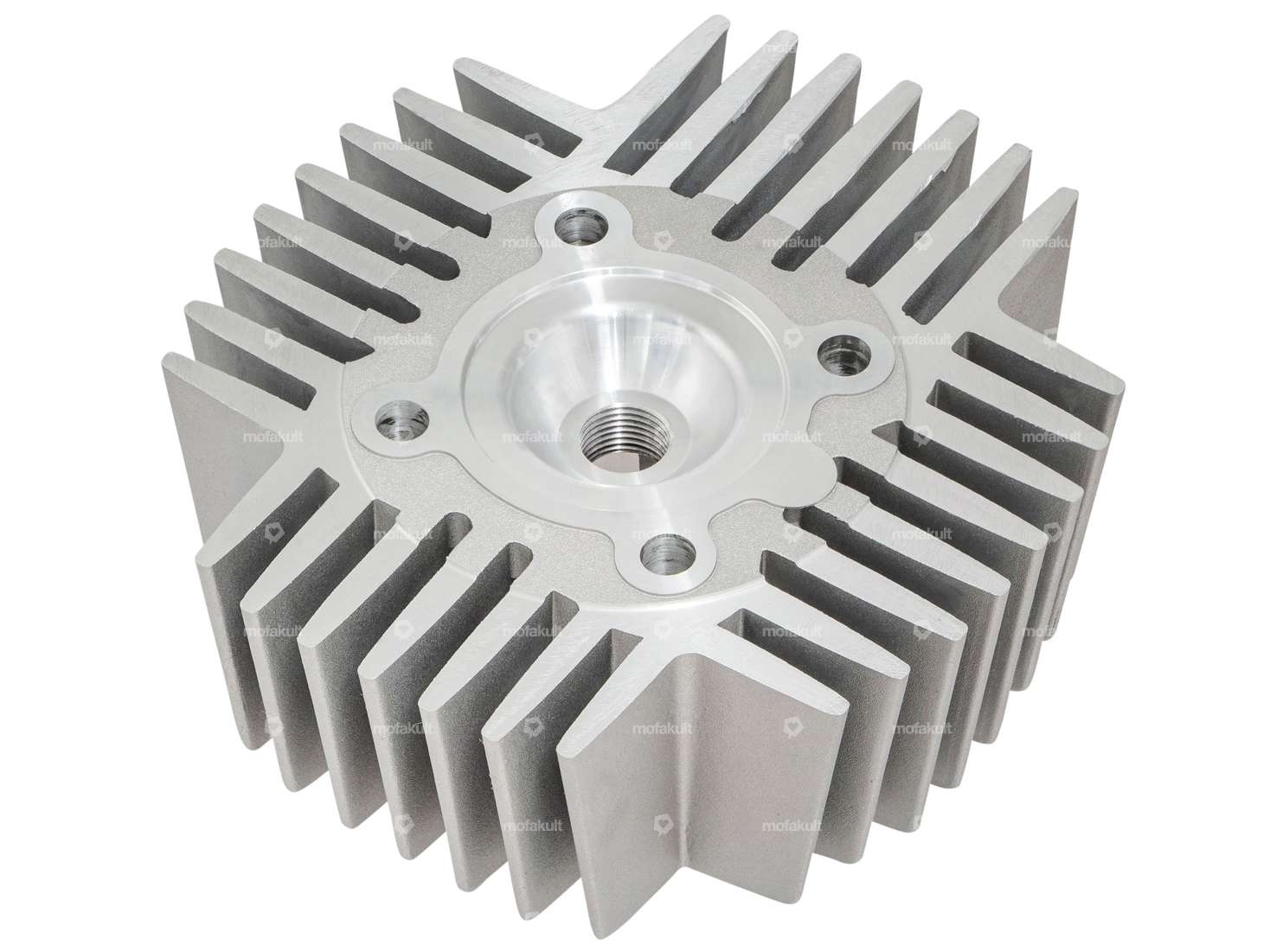

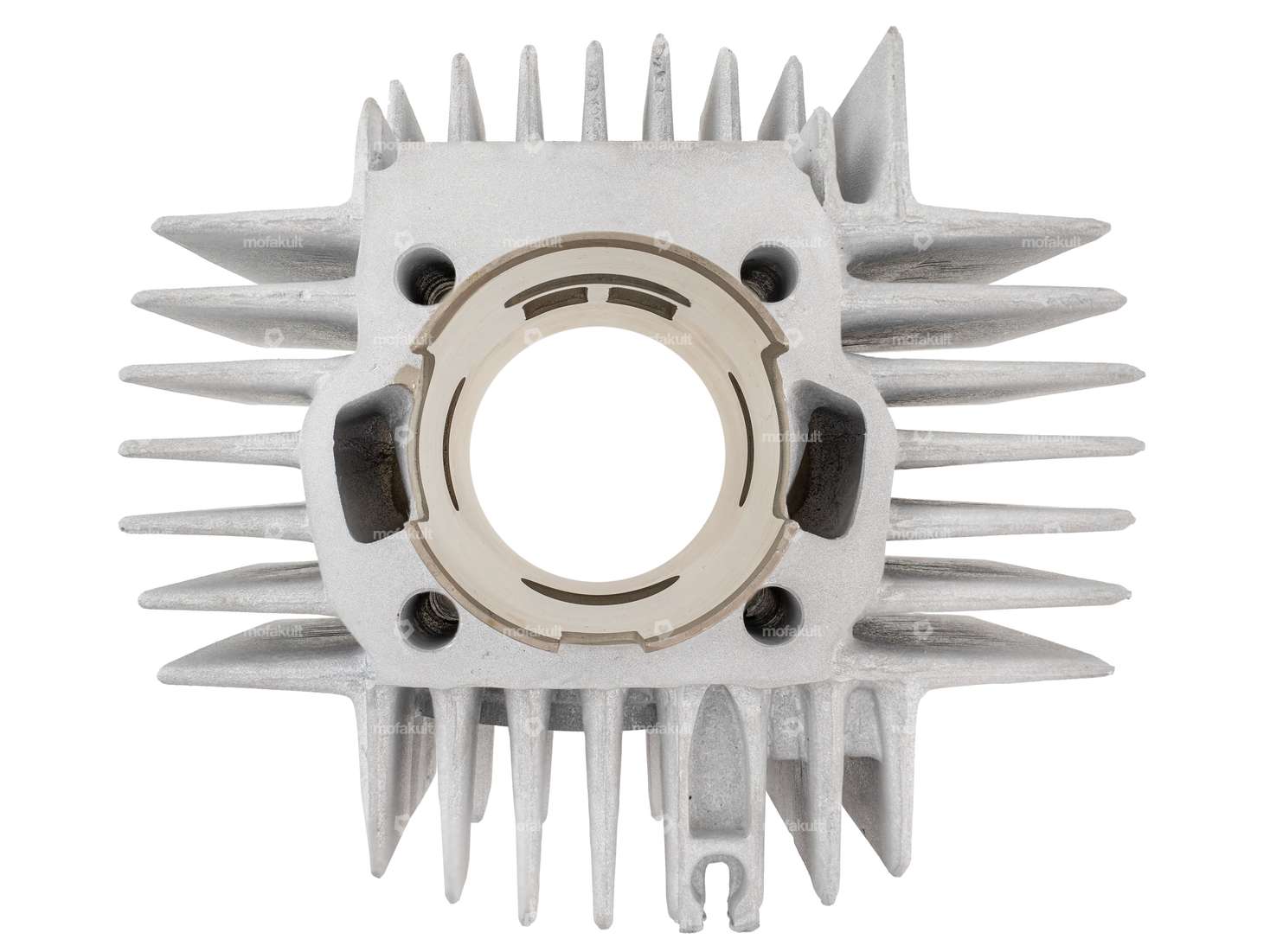

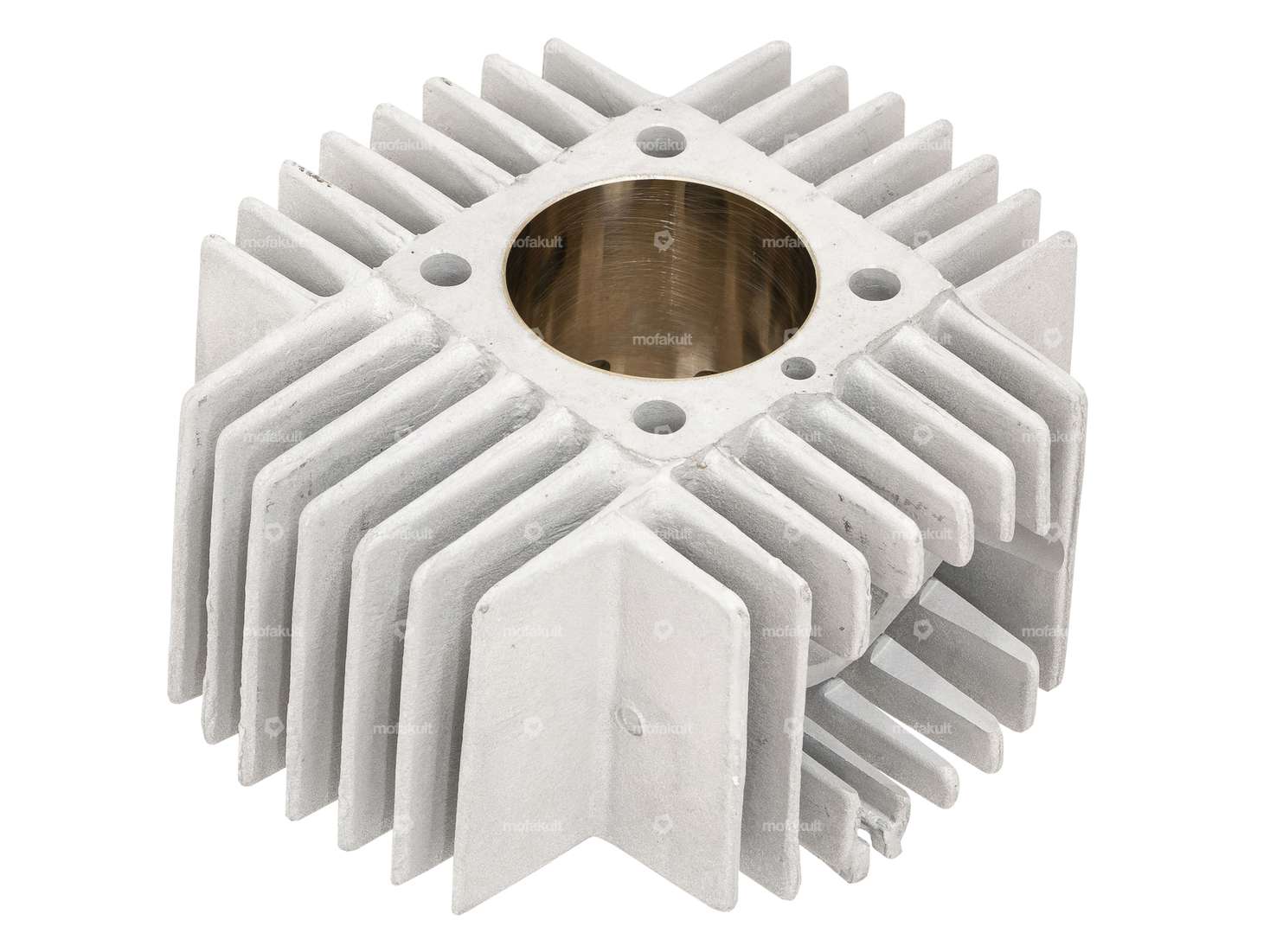

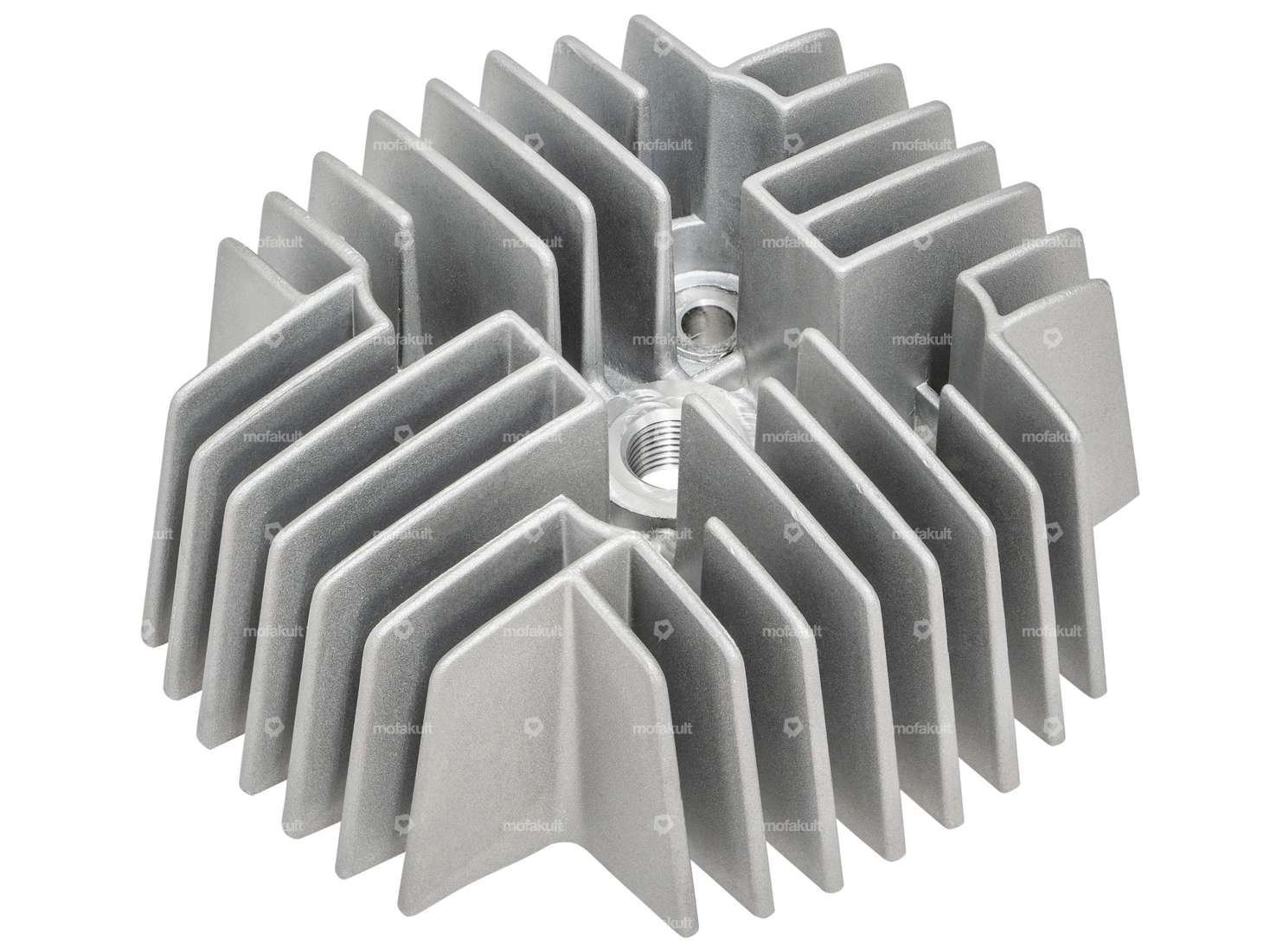

swiing® ingenious 45 mm cylinder kit CH12 camouflaged | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 142.30

Incl. 21% VAT.

Optionally suitable

Description

First-class racing kit with 70 cc displacement, suitable for your Puch Maxi S / N, X30 Sport NS / NL, X30 Sport NG-2A or Supermaxi moped, moped.

The 45 mm tuning cylinder has a large intake and exhaust as well as optimized timing. In combination with a 17 mm carburettor, this allows significantly more power to be achieved than with the original cylinder.
Compared to other products on the market, the sealing surface in the exhaust area has been enlarged and refreshed. This also makes it possible to fit a 28 mm exhaust manifold, which significantly increases performance even further.

Download Montageanleitung
swiing® ingenious 45 mm cylinder kit CH12 camouflaged | Puch

For: Puch

swiing® ingenious 45 mm cylinder kit CH12 camouflaged | Puch

15500

Hole pattern [mm]: 44 x 44 · Inlet window: 23.6 / 21.2 x 14.7 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning

Nominal diameter45 mm
Manufacturerswiing® ingenious parts
MaterialAluminum
Surfacesandblasted
Displacement70 ccm
Crankshaft stroke43 mm
Ø cylinder neck48 mm
Ø outlet inside25 mm
Area of applicationTuning
Hole spacing inlet38 mm
Number of fixing points4 pcs
Inlet window23 / 21 x 14 mm
Thread inletM6x1 (standard thread)
Ø piston pin (B)12 mm
Outlet typestraight
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
Hole pattern [mm]44 x 44
DecompressorNo
CamouflagedYes
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
