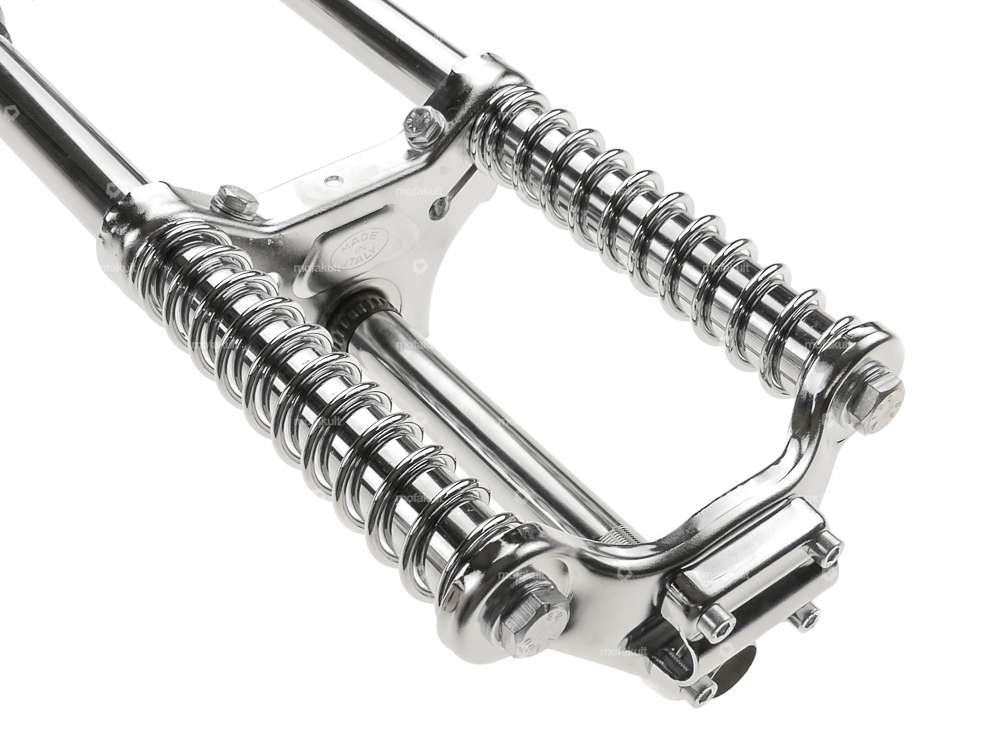

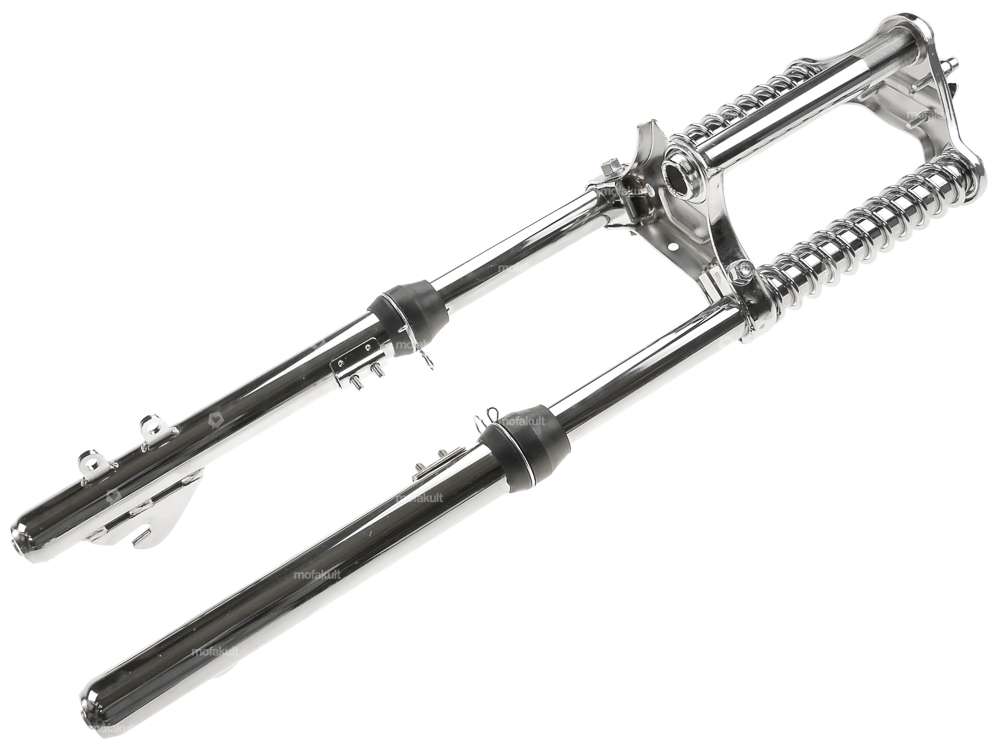

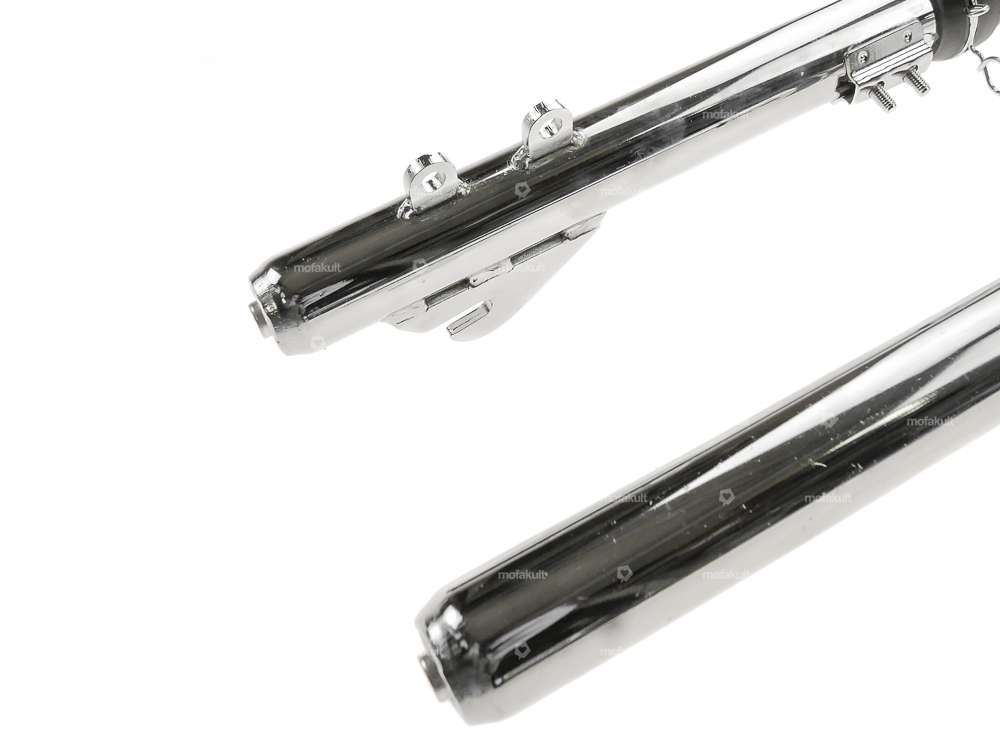

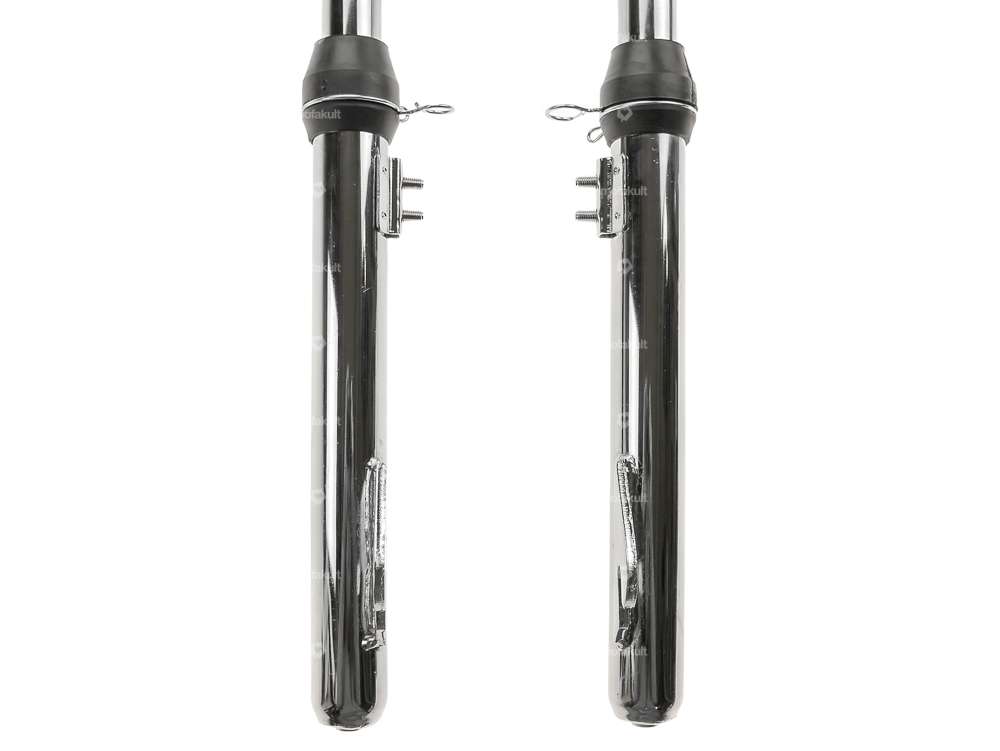

EBR fork reinforced (with tabs for disc brake) chrome | Piaggio Ciao

EBR fork reinforced chrome | Piaggio Ciao

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Thread type: FG25.4 (1" 24G) · Adjustable: No · Ø outer head tube: 25 mm · Total length: 650 mm · Ø head tube inside: 21 mm · Fork bridge - center wheel axle: 400 mm · Thread length: 58 mm · Color: Chrome

Eurol ball bearing grease 110 g

Temperature resistance (min.): -30 - 120 °C · Manufacturer: Eurol · Area of application: Chemistry · Area of application: Fat · Contents [g]: 110 g

GPO control bearing set | Piaggio Ciao

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø inside: 27 mm · Ø mounting frame: 30.05 mm · Ø outside: 41.4 mm · Ø outside: 42 mm · Ø ball [inch] / [mm]: 5/32" (4.00 mm) · Height: 10.5 mm · Height: 17 mm · Thread type: FG25.4 (1" 24G)

EBR fork reinforced black | Piaggio Ciao

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Adjustable: No · Color: black · Spar end distance (center-center): 140 mm · Ø outer head tube: 25.65 mm · Ø head tube inside: 21.1 mm · Ø spars: 28 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 385 mm · Total length: 610 mm · Total length: 675 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: FG25.4 (1" 24G) · Thread length: 58 mm

EBR fork hydraulic reinforced black (with tabs for disc brake) | Piaggio Ciao

Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Thread type: FG25.4 (1" 24G) · Color: black · Adjustable: Yes · Spar end distance (center-center): 150 mm · Surface: chrome-plated · Surface: varnished · Ø outer head tube: 25.4 mm · Total length: 635 mm · Total length: 660 mm · Ø head tube inside: 21 mm · Ø spars: 28 mm · Head tube length: 220 mm · Fork bridge - center wheel axle: 390 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread length: 58 mm

GPO screw set fork reinforced Inox

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Drive: External hexagon · Screw head: Hexagon · Number of components: 24 pcs

EBR fork ULTRA LANG black | Piaggio Ciao

Manufacturer: EWC · Material: Steel · Color: Chrome · Thread type: FG25.4 (1" 24G) · Color: black · Surface: chrome-plated · Surface: varnished · Total length: 830 mm · Ø head tube inside: 21.5 mm · Head tube length: 200 mm

EBR Fork ULTRA LANG Chrome | Piaggio Ciao

Manufacturer: EWC · Material: Steel · Color: Chrome · Thread type: FG25.4 (1" 24G) · Surface: chrome-plated · Total length: 830 mm · Ø head tube inside: 21.5 mm · Head tube length: 200 mm

swiing® ingenious brake lever front wheel EBR telescopic fork | Piaggio Ciao

Manufacturer: swiing® ingenious parts · Total length: 60 mm · Thickness: 4 mm · Place of use: Brake anchor plate · Material: Steel · Surface: galvanized (blue)

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Color: gray · Surface: blank / oiled · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Ø bore: 4 mm · Chain lock type: Spring lock · Ø Pin: 3.94 mm

GPO sprocket 13 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Recording type: Interlocking · Number of teeth: 13 pcs · Total thickness: 4.6 mm · Ø inside: 13.7 mm · Ø inside: 16.9 mm

GPO sprocket 12 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Recording type: Interlocking · Number of teeth: 12 pcs · Total thickness: 4.6 mm · Ø inside: 13.7 mm · Ø inside: 16.9 mm

Adhesive kit tank & frame black PVC carrier film | Puch Maxi S

Place of use: Frame (+ tank) · Material: Polyvinyl chloride (PVC) · Color: black · Color: white · Width: 123 mm · Width: 230 mm · Width: 330 mm · Height: 26 mm · Height: 60 mm · Height: 65 mm · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant

Exhaust gasket original | Puch

Place of use: Outlet · Material: Sealing carton · Thickness: 1.8 mm · Ø mounting hole: 6.3 mm · Ø inside: 18 mm · Ø inside: 22 mm · Hole spacing: 42.5 mm · Number of fixing points: 2 pcs

Handlebar fork plate 40 cm curved with chrome strut

Manufacturer: Made in Germany · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 22 mm · Fork plate holder length: 100 mm · Width: 730 mm · Height: 400 mm · Length handlebar ends: 150 mm · Clamping diameter: 22 mm · Crossbar: Yes · Mounting type: Fork plate

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Valve type: TR4 Auto valve · Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 "

Lusito brake lever left / right aluminum

Manufacturer: Lusito · Material: Aluminum · Color: silver

swiing® revival nozzle set M4 (76 - 86) Bing 18, Bing 85

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 6 pcs · Carburetor type: 17 Catalyst · Carburetor type: 18 Catalyst · Carburetor type: 85 · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M4x0.7 (standard thread) · Nozzle size: 54 · Nozzle size: 76 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Area of application: Standard · Material: Plastic · Material: Steel · Number of components: 3 pcs
