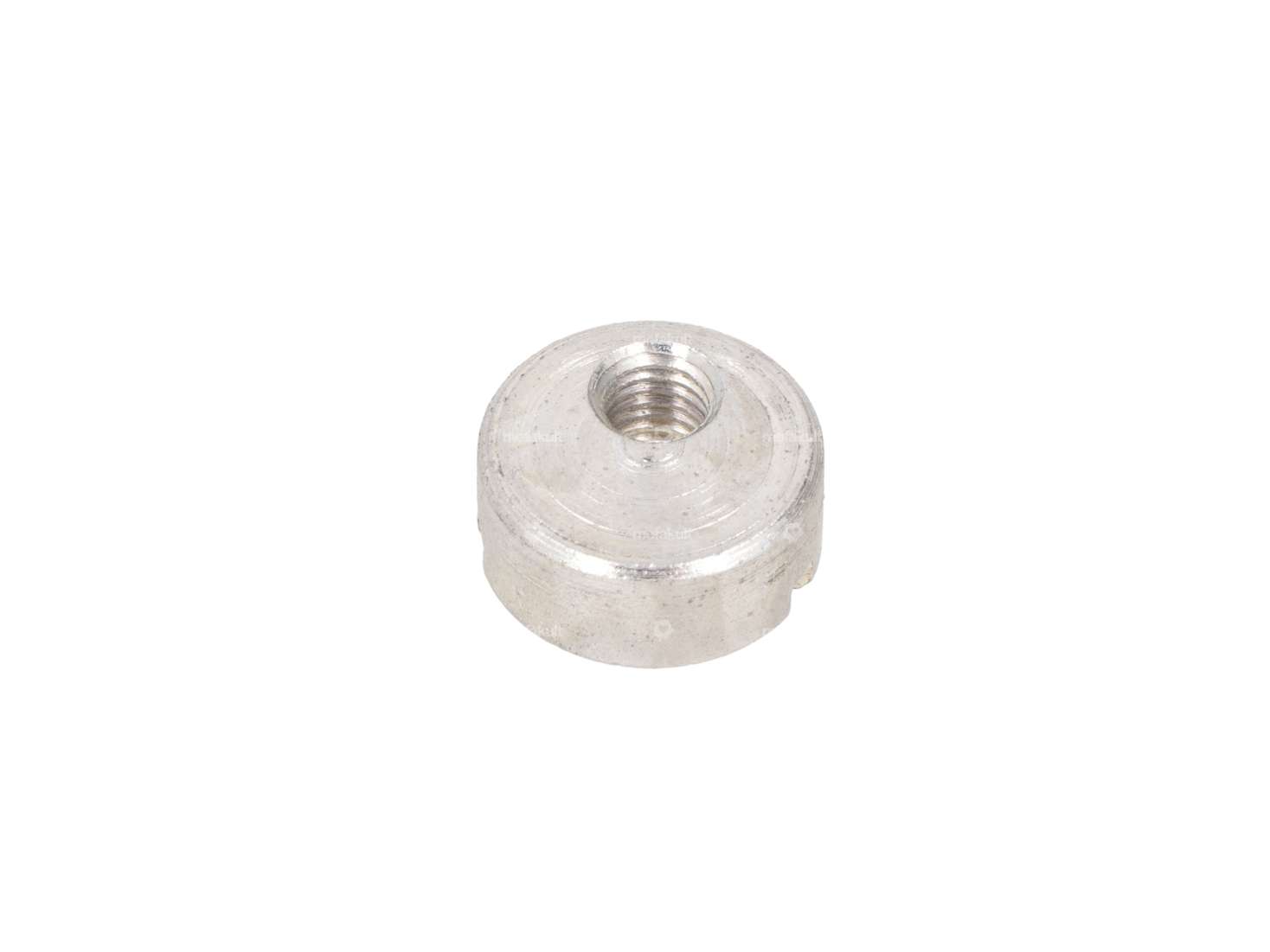

Eccentric nut | Sachs 503 AB/ABL (A5611)

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Material: Brass · Material: Steel · Surface: blank · Stock number: BO15 · Bearing type: Shoulder bearing · Width: 10 mm · Ø inside: 15 mm · Ball bearing closed: No · Ø outside: 40 mm · Area of application: Standard · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001

NTN 608 Ball bearing 8/22/7

Bearing cage: Sheet steel cage ball-guided · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Stock number: 608 · Bearing type: Deep groove ball bearing · Width: 7 mm · Ø inside: 8 mm · Ø outside: 22 mm

swiing® revival clamp body reinforced | Sachs 503 AB, AC, ADV, ABL (A1196)

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Number of teeth: 24 pcs · Ø inside: 19 mm · Height: 10.9 mm · Ø outside: 26.8 mm · Pony OEM number: A1196 · Sachs OEM no.: 0232 186 100

swiing® revival screw plug M14x1 gray | Sachs 503 2AL/2BL/AAL/AC/ABL, 504, 505, 535 (A4243)

Material: Plastic · Color: gray · Manufacturer: swiing® revival parts · Drive: Slot · Screw head: Panhead · Thread type: MF14x1 (fine pitch thread) · Pony OEM number: A4243 · Sachs OEM no.: 0240 140 207 · Sachs OEM no.: 0240 140 107

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Material: Steel · Total length: 23 mm · Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Diameter: 4.9 mm · Thread length: 6 mm · Thread length: 12 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

GPO gasket set engine small | Sachs 503

Manufacturer: GPO · Number of components: 8 pcs · Hole spacing inlet: 32 mm · Hole pattern [mm]: 60 x 40 · Area of application: Standard

Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)

Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Width: 5.5 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 30 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100

Jasil crankshaft | Sachs 503 AB-CH / ABL CH (A2901 / A2902)

Material: Steel · Manufacturer: Jasil · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 84 mm · Weight: 875 g · Number of gears: 2 pcs · Total length of crankpin on clutch side: 101.15 mm · Total length crankpin ignition side: 64.1 mm · Thread length: 11 mm · Ø crank webs: 85 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Area of application: Standard · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 30.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 51 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14 mm · Ø 3rd step (on the clutch side): 8 mm · Length of shoulder (ignition side): 34 mm · Alternative version of the Pony OEM number: A2900 · Pony OEM number: A2901 · Pony OEM number: A2902 · Alternative version of the Sachs OEM number: 0288 115 002 · Alternative version of the Sachs OEM number: 0288 115 102

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 30 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
