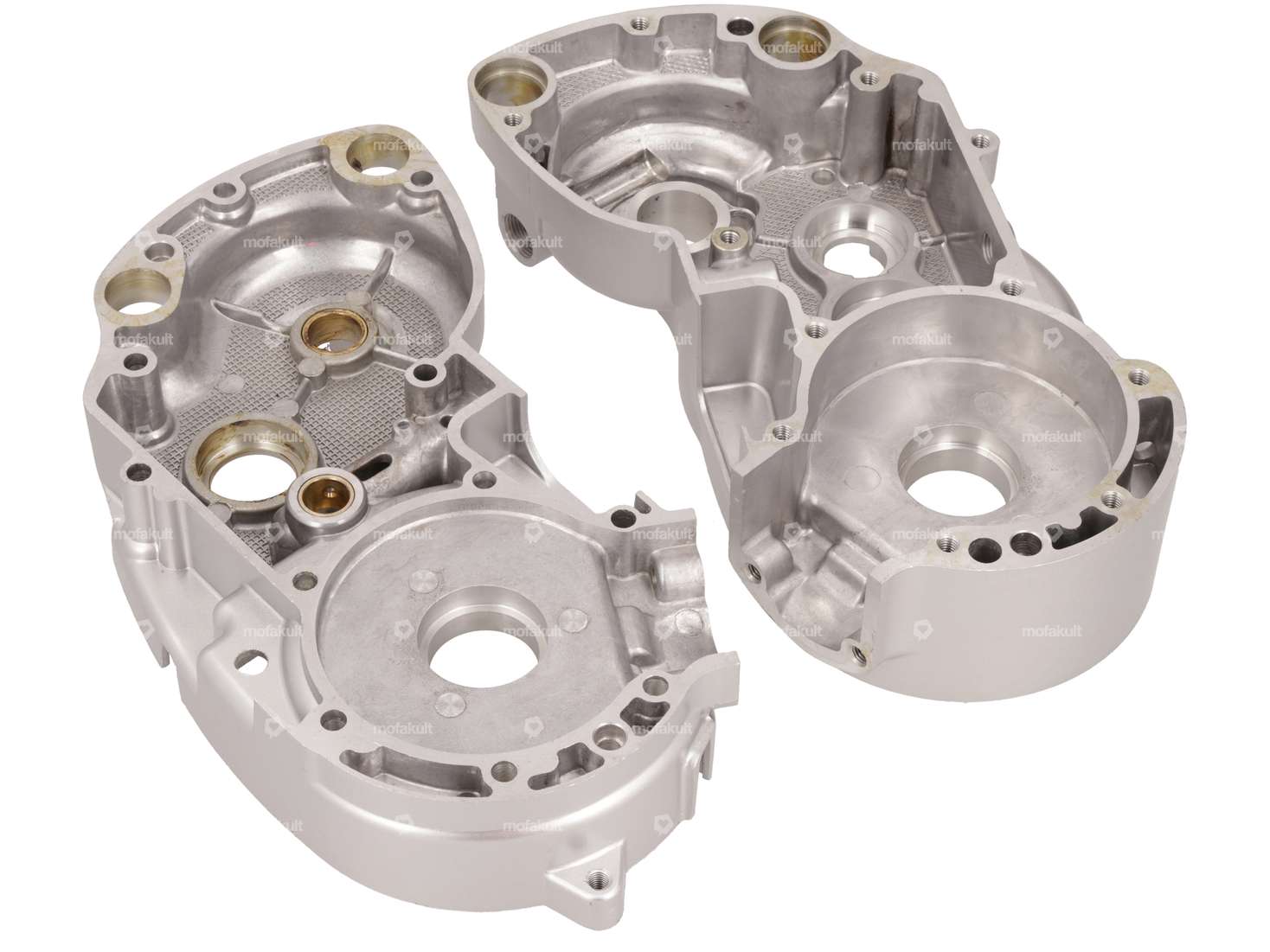

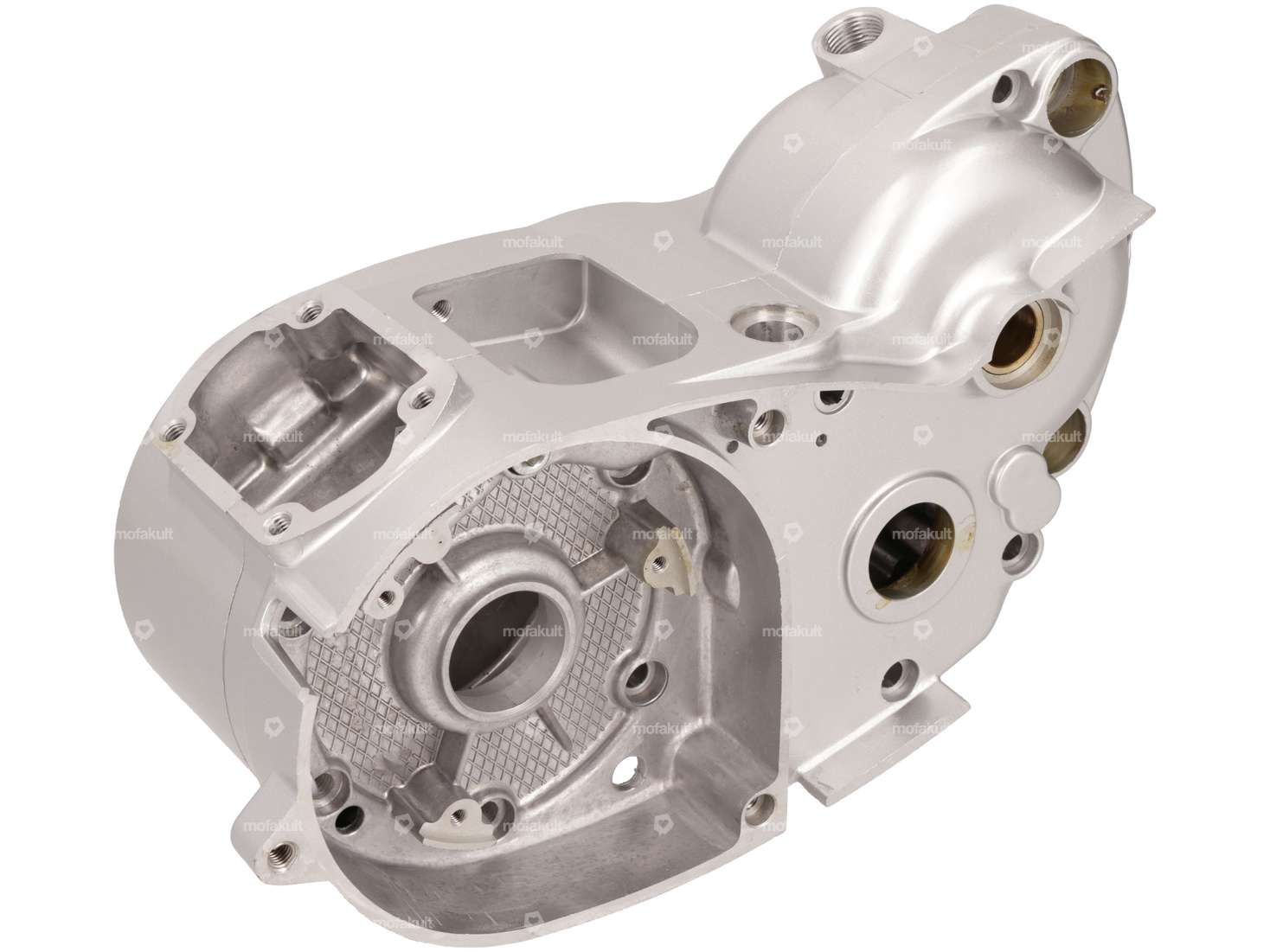

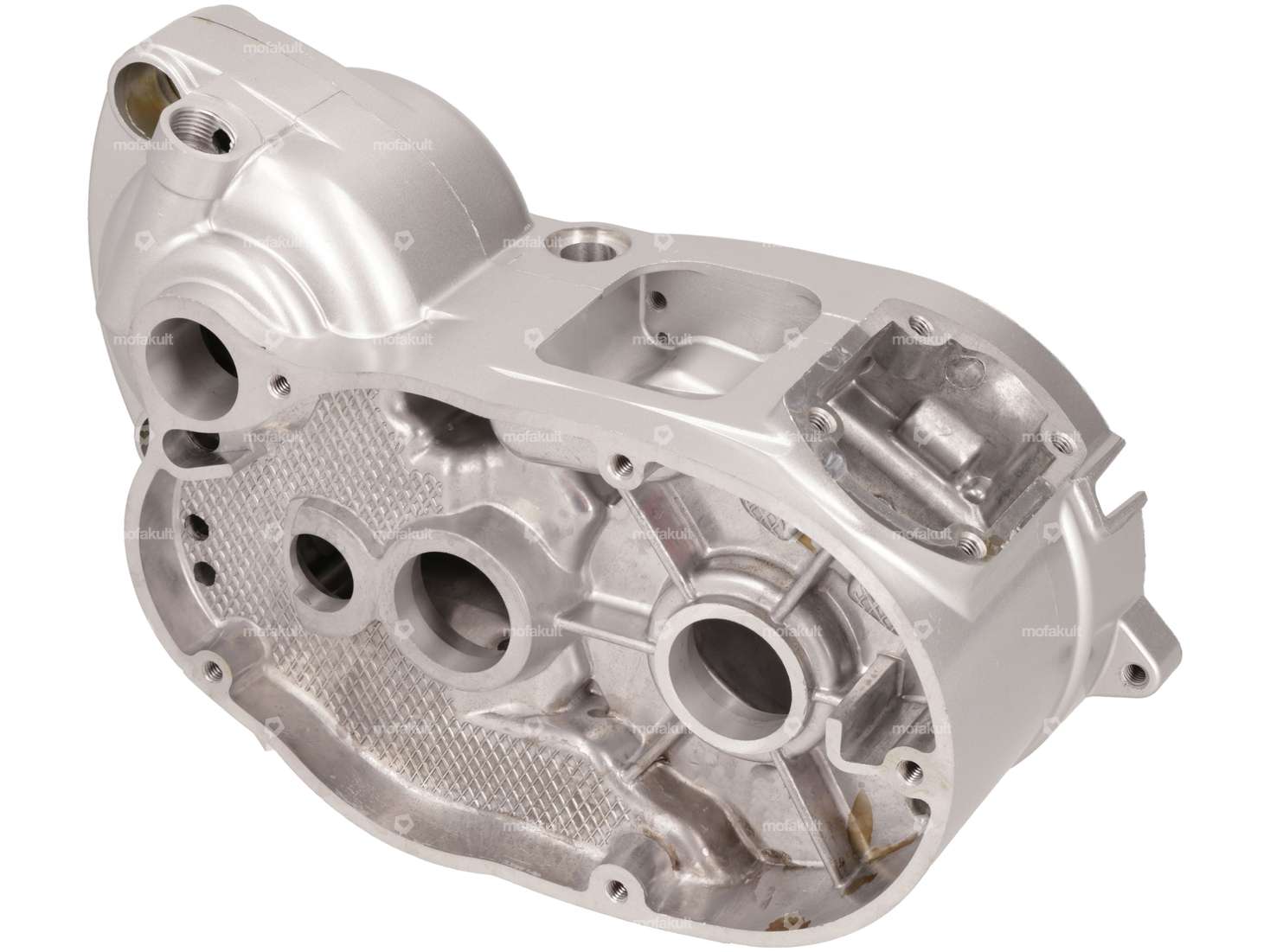

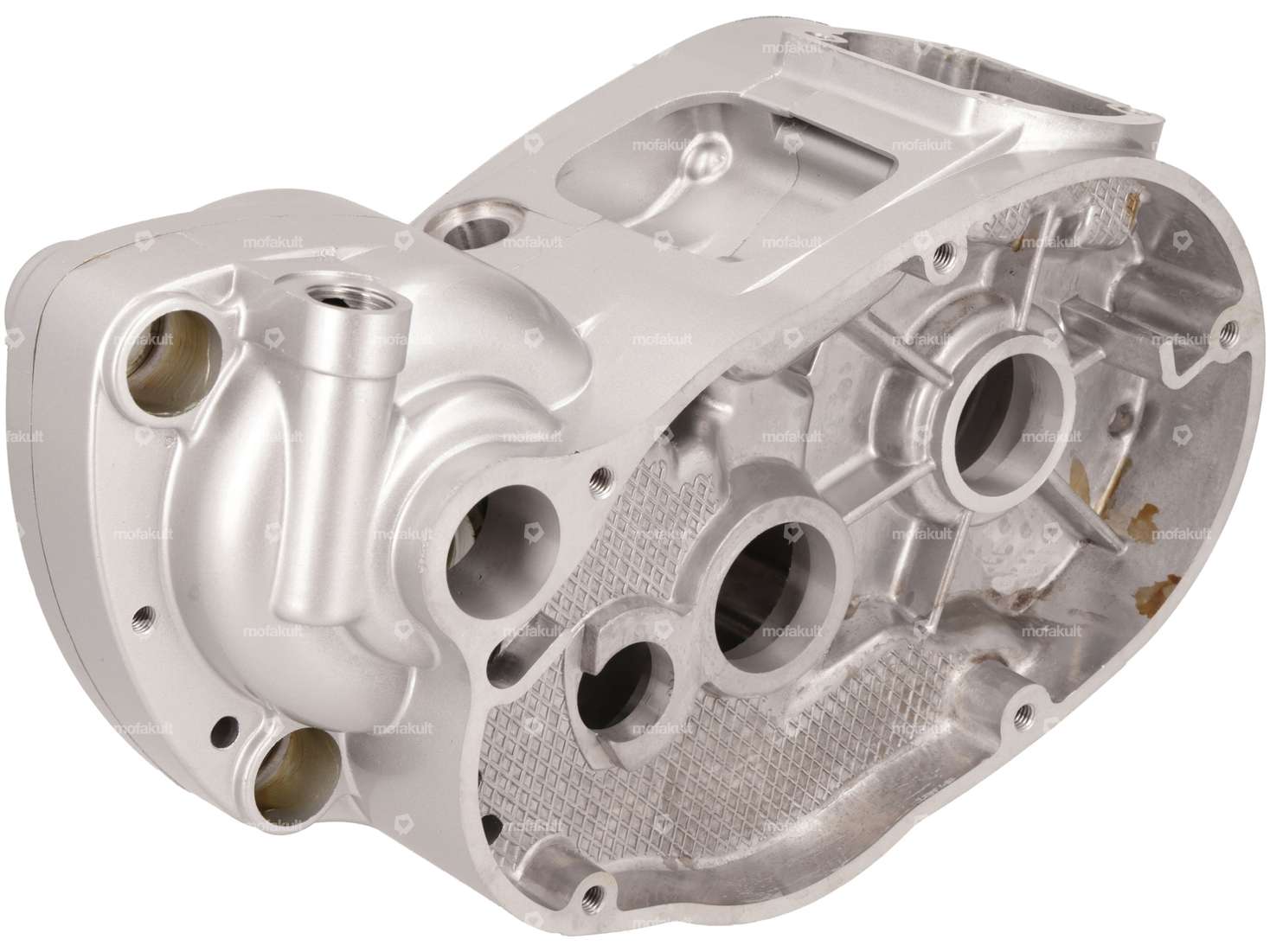

Engine housing 3-speed manual transmission | Sachs 50/3

swiing® revival crankshaft "Original" | Sachs 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Thread length: 8 mm · Thread length: 11 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Area of application: Standard · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Weight: 901 g · Length of shoulder (ignition side): 34 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Pony OEM number: A2565 · Sachs OEM no.: 0286 139 400

swiing® revival screw set Motor Inox | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®)

NSK crankshaft bearing set | Sachs 50/2

Manufacturer: NSK · Manufacturer: Sachs · Number of components: 4 pcs

Engine overhaul kit small | Sachs 502, 50/2

Manufacturer: NSK · Number of components: 18 pcs · Area of application: Standard

swiing® revival engine seal | Sachs 502, 50/2, 50/3, 50/4 (A1828)

Thickness: 0.4 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Ø inside: 86 mm · Color: sand-colored · Total length: 250 mm · Number of components: 1 pcs · Number of fixing points: 16 pcs · Width: 170 mm · Pony OEM number: A1828 · Sachs OEM no.: 0250 088 100

swiing 41 mm cylinder kit Racing fan-cooled | Sachs 50/2, 50/3, 50/4 (DE)

Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Camouflaged: No · Area of application: Racing

swiing® revival stud bolt set M6x30 (strength 10.9) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Thread type: M6x1 (standard thread) · Surface: galvanized (blue) · Diameter: 6 mm · Width across flats SW: 10 mm · Drive: External hexagon · Total length: 30 mm · Thread length: 12 mm · Strength class: 8 · Strength class: 10.9

swiing® revival bleed screw M16x1.25 aluminum | Sachs 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Color: silver · Total length: 14 mm · Drive: External hexagon · Screw head: Hexagon · Thread type: MF16x1.25 (fine pitch thread) · Width across flats SW: 17 mm

Speedometer 60 km/h Ø 48 mm black / chrome

Manufacturer: Made in Germany · Material: Metal · Material: Plastic · Total height: 70 mm · Surface: chrome-plated · Color: Chrome · Color: black · Color: red · Color: white · Ø outside: 50.4 mm · Maximum speed: 60 Km/h · Lighting: Light slit · 4-edge speedometer cable: 1.8 mm · Ø Receptacle: 48 mm · Thread type: MF10x1 (fine pitch thread) · Depth: 50 mm

swiing® revival wheel axle LELEU & Grimeca wheel hub cast wheel rear | Puch

Manufacturer: swiing® revival parts · Material: Steel · Thread type: MF12x1 (fine pitch thread) · Surface: galvanized (blue) · Ø outside: 11.8 mm · Width across flats SW: 19 mm · Total length: 185 mm · Thread length: 26 mm · Thread length: 52.5 mm · Ø shaft: 11.9 mm · Shank length: 100 mm

GPO bulb 6V - 15/15W (BA20d) 2-filament full/dipped beam

Manufacturer: GPO · Tension: 6 V · Bulb holder: BA20d · Performance: 15 W · Color: white · Total length: 62 mm · Ø base: 20 mm · Test mark: none · Ø Lamp head: 35 mm · LED: No

swiing® revival rubber plug ignition coil

Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Pony OEM number: A4663 · Sachs OEM no.: 2865 003 000

swiing® revival wheel axle M10.5x1 x 175 coaster brake Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Thread type: MF10.5x1 (fine pitch thread) · Total length: 175 mm · Ø shaft: 10.5 mm · Shank length: 95.6 mm · Thread length: 34 mm · Thread length: 45 mm

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Ø axle: 5 mm · Cable available: No · Number of fixing points: 1 pcs · Ø mounting hole: 4.5 mm · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Capacity: 0.26 µF · Area of application: Original · Area of application: Standard · Ø outside: 18 mm · Mounting type: Tab for screwing · Connection type: Cable for screwing · Height: 26 mm · Ø mounting hole: 4.4 mm · Total height: 31 mm · Piaggio OEM number: 102939

Gearbox gasket | Piaggio Ciao, SI, Bravo, Boxer

Material: Sealing paper · Surface: blank · Thickness: 0.2 mm · Place of use: Gear hub · Area of application: Standard

GPO LED bulb 6V (BA15s) white 1-phase

Manufacturer: GPO · Tension: 6 V · Bulb holder: BA15s · Color: white · Total length: 48 mm · Ø base: 15 mm · Test mark: none · Ø Lamp head: 18 mm · LED: Yes

swiing® ingenious bearing conversion kit front wheel | Pony GTX 521, Cross 521

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 11.25 mm · Ball bearing closed: Yes
