For: Puch

15026

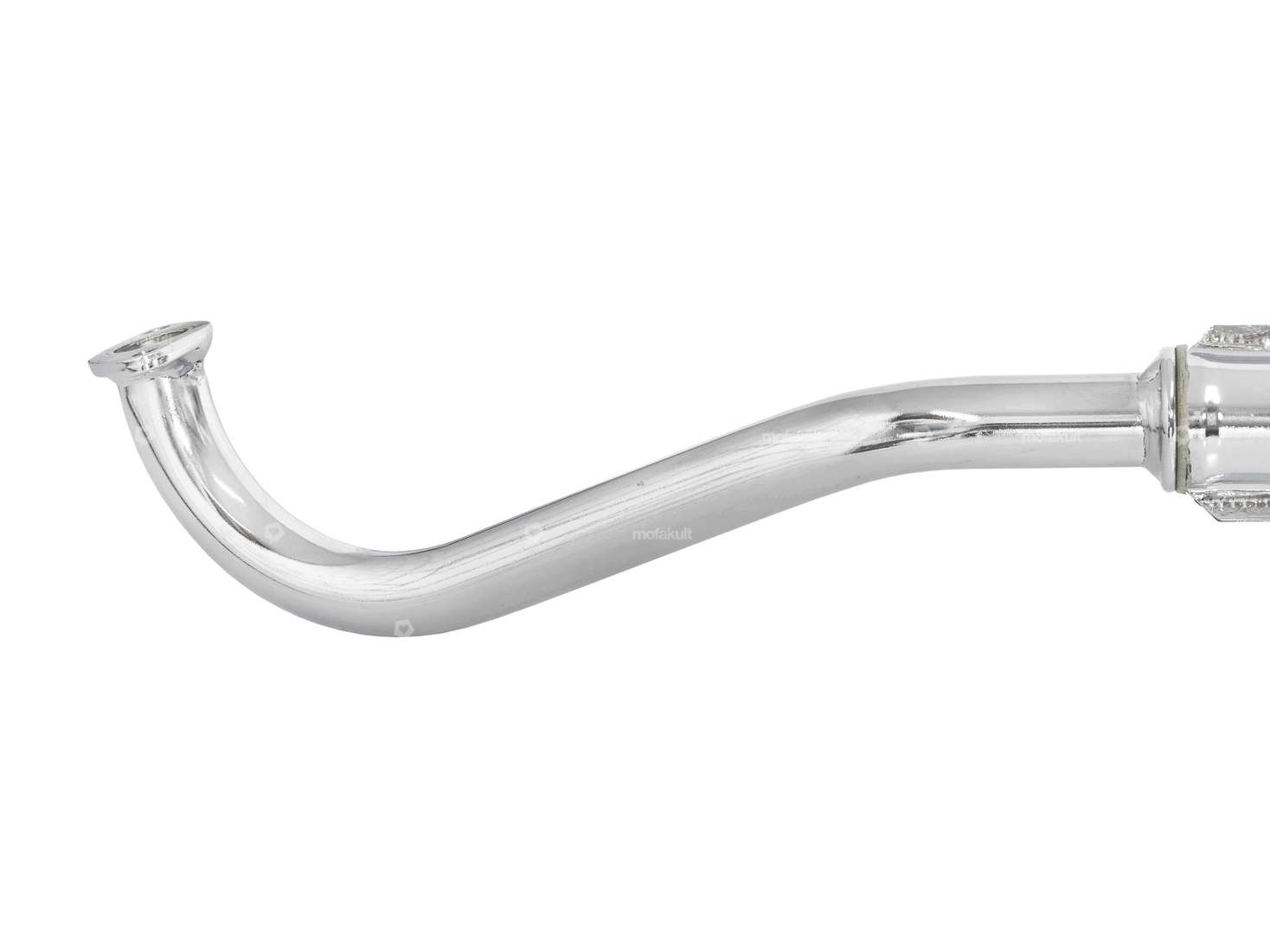

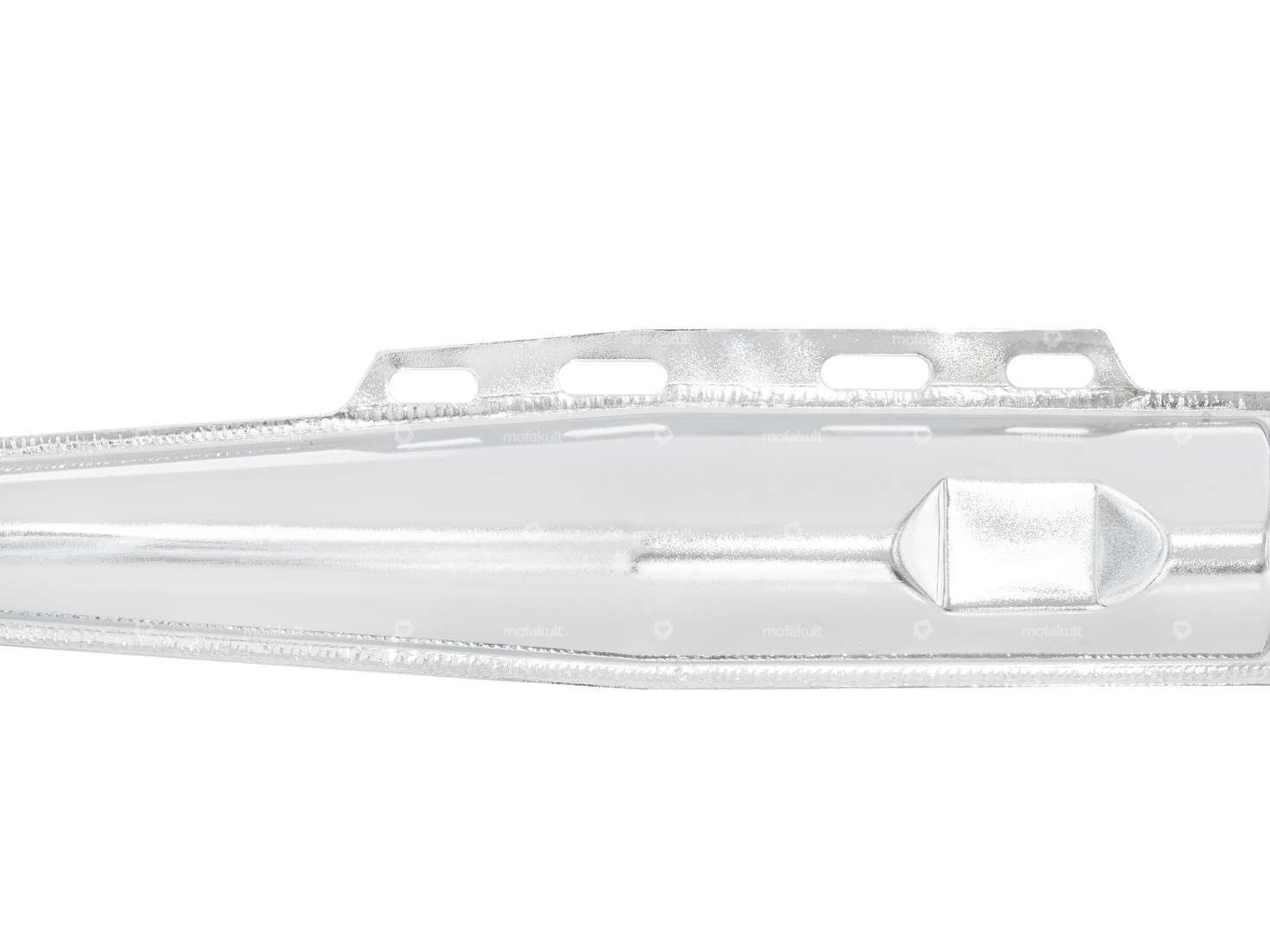

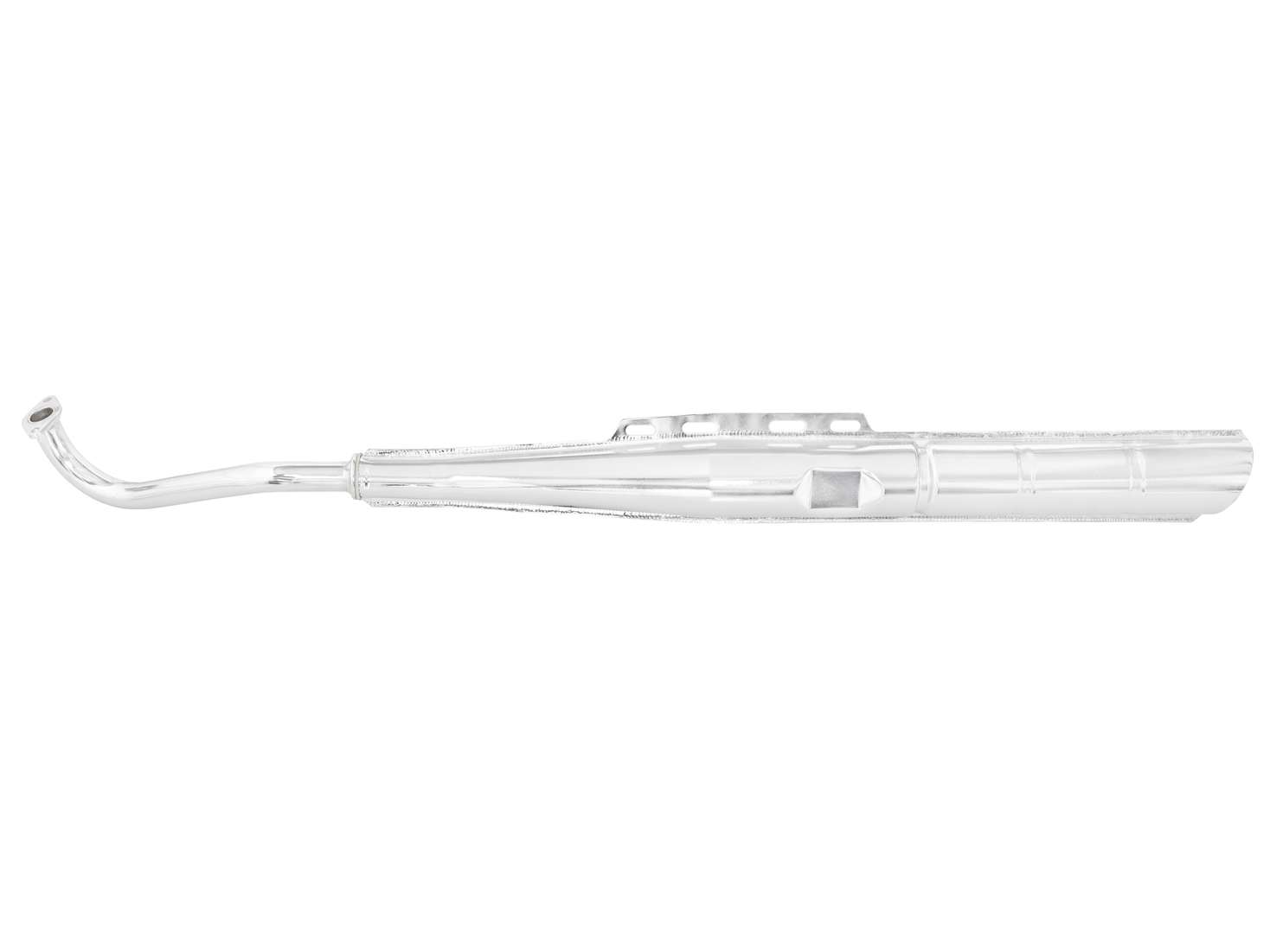

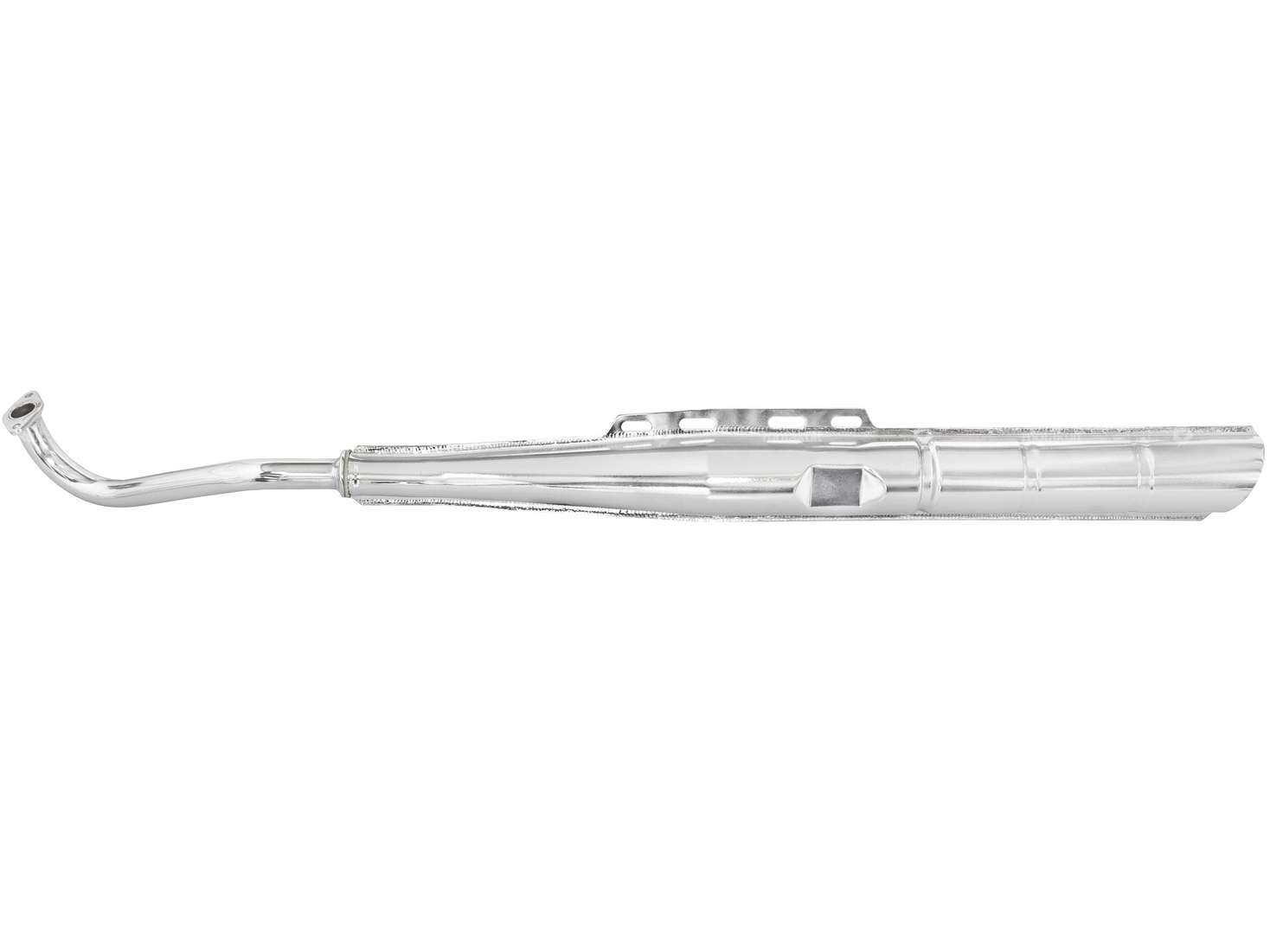

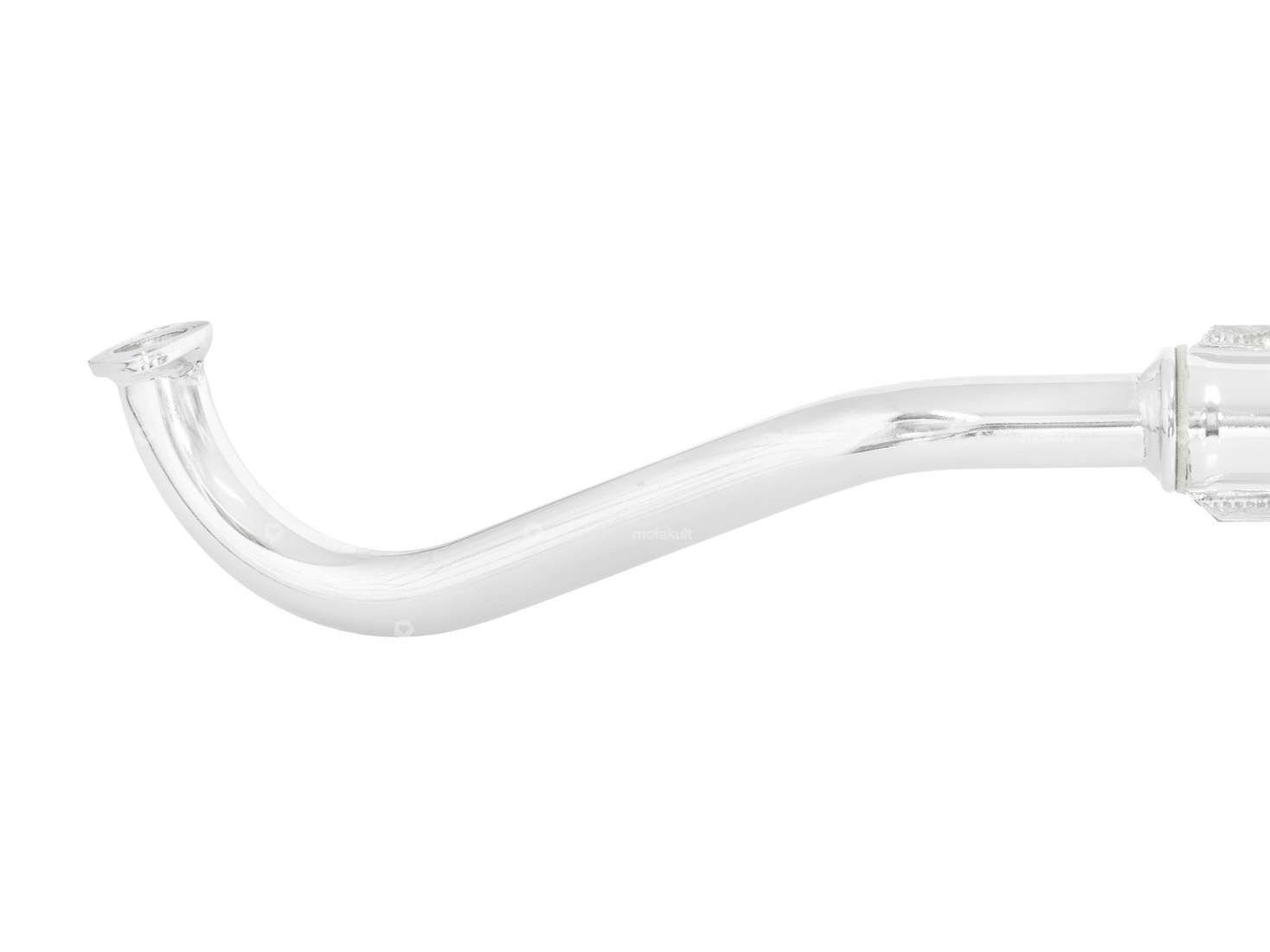

Exhaust 22 mm | Puch Supermaxi LG1/LG2

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 88.90

Incl. 21% VAT.

Description

Special 22 mm exhaust suitable for Puch Supermaxi LG1 / LG2 mopeds.

With a slanted mounting flange so that it can be fitted to the Puch Supermaxi cylinders mentioned.
Not suitable for conventional Puch Maxi cylinders.

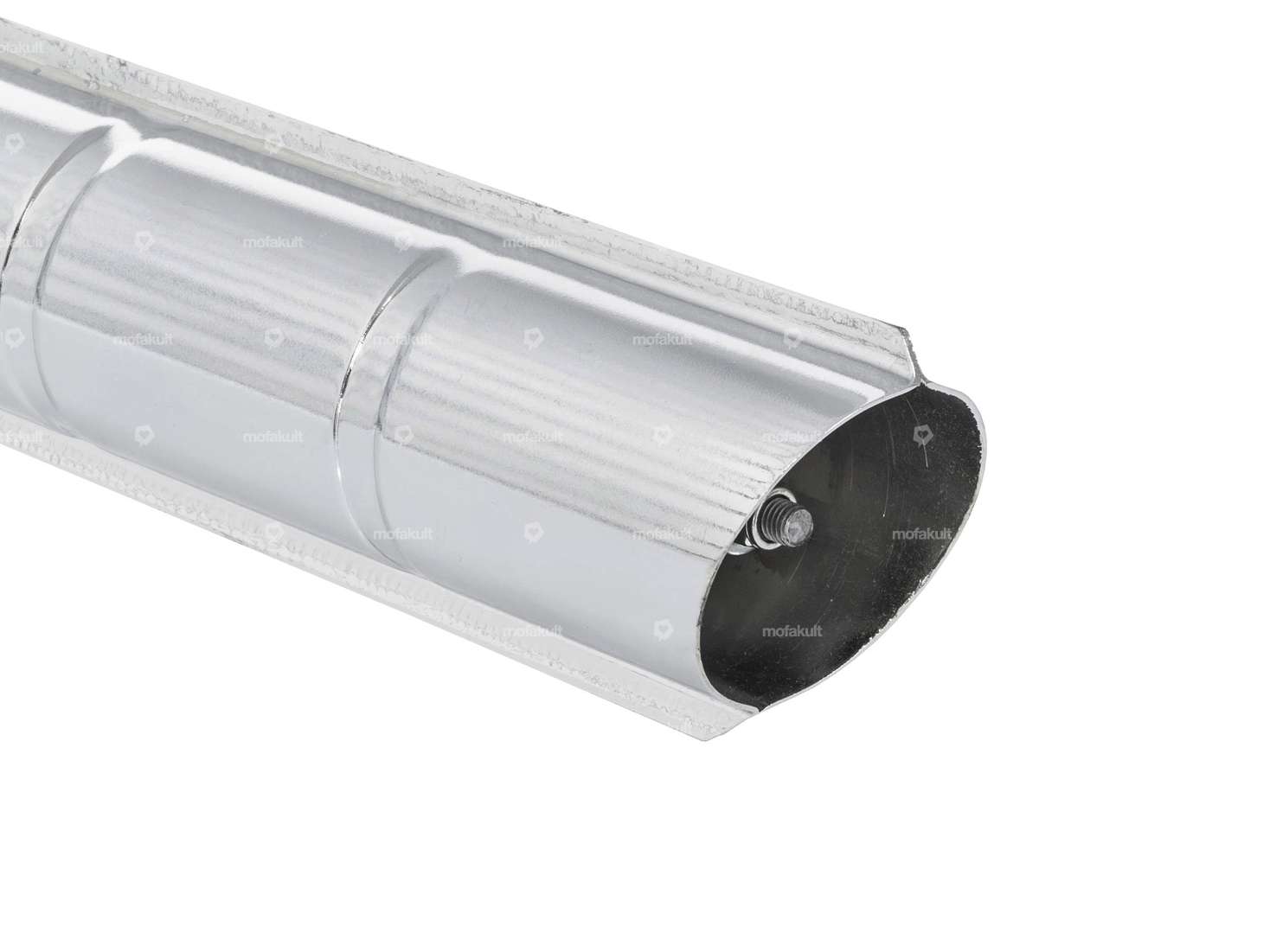

The M7 bolt at the end of the flame tube must be locked with an additional nut, otherwise the nut may loosen and the muffler insert may fall out.

Attention: The sound of the replica exhausts can be slightly louder than the original, so you can wrap wool around the muffler to help. You can find this in the accessories below.

A quality product made in Portugal.

ManufacturerMade in Portugal
Mounting typeWelded lug
Number of fixing points4 pcs
MaterialSteel
Surfacechrome-plated
ColorChrome
Ø outside56.5 mm
Total length915 mm
Ø Silencer58 mm
Ø Flame tube outside22 mm
Ø Internal connection19 mm
Flame tube attachmentFlange
Puch

E50

ZA50 (air-cooled)
