Brake mechanism

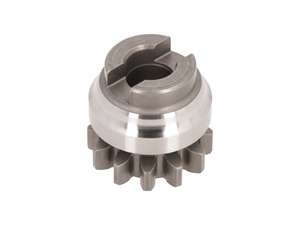

swiing® revival brake cone coaster brake

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Number of teeth: 12 pcs · Ø inside: 10.6 mm · Ø outside: 27.5 mm · Puch OEM number: 320.4.41.013.1 · Sachs OEM no.: F1514

swiing® revival thrust washer 10.7/19/1.8 coaster brake

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø outside: 19 mm · Ø inside: 10.7 mm · Thickness: 1.8 mm

swiing® revival shim ring coaster 3.5 mm | Puch / Sachs

Manufacturer: swiing® revival parts · Surface: gas nitrided · Nominal diameter (thread): 10 mm · Thickness: 3.5 mm · Ø inside: 10.7 mm · Ø outside: 19 mm

Clamp clamp 19 - 21 mm Brake anchor plate Inox

Material: Chrome steel (known as Nirosta®) · Width: 15 mm · Ø inside: 19 - 21 mm

Clamp clamp 16 - 18 mm Brake anchor plate

Manufacturer: Made in Germany · Width: 15 mm · Ø inside: 16 - 18 mm

swiing® revival spacer ring back pedal (19/10.7/8)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 11 mm · Ø outside: 19 mm · Ø inside: 10.7 mm · Total length: 8 mm

swiing® revival shim ring coaster brake 7 mm | Puch / Sachs

Manufacturer: swiing® revival parts · Surface: gas nitrided · Thickness: 7 mm · Ø inside: 10.7 mm · Ø outside: 19 mm

Plastic insert for clamp (20 x 45 mm)

Manufacturer: Made in Germany · Material: Plastic · Color: black · Total length: 45 mm · Width: 20 mm

Nut M8x1 half-height Inox

Material: Chrome steel (known as Nirosta®) · Nut type: Hexagon nut · Thread type: MF8x1 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 13 mm

swiing® ingenious assembly aid sprocket back pedal

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø outside: 93.9 mm · Ø inside: 80 mm · Area of application: Special tool · Height: 50 mm

Washer under sprocket coaster brake NOS

Manufacturer: Puch · Ø outside: 41 mm · Thickness: 1.7 mm · Ø inside: 35 mm · Nominal diameter (thread): 35 mm

swiing® revival driver Kickback

Manufacturer: swiing® revival parts

Snap ring pedal sprocket (back pedal)

Manufacturer: Sachs · Place of use: Resignation

Clamp clamp 16 - 18 mm Brake anchor plate Inox

Manufacturer: Made in Germany · Material: Chrome steel (known as Nirosta®) · Ø inside: 16 - 18 mm · Width: 15 mm

swiing® revival dust cover for coaster brake cam Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Ø outside: 20 mm · Ø inside: 17.4 mm · Ø bore: 8 mm · Puch OEM number: 320.4.41.009.0 · Sachs OEM no.: F1637

swiing® revival clutch bushing back pedal

Manufacturer: swiing® revival parts · Material: Steel · Surface: burnished · Number of teeth: 28 pcs · Ø inside: 10.6 mm · Ø outside: 27.5 mm · Puch OEM number: 320.4.41.022.2 · Sachs OEM no.: 0872 117 000

Brake cam coaster brake NOS

Manufacturer: Puch

swiing® revival washer under sprocket back pedal

Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Nominal diameter (thread): 35 mm · Ø outside: 41 mm · Ø inside: 35 mm · Thickness: 1.75 mm

swiing® revival drive cone back pedal

Manufacturer: swiing® revival parts · Material: Steel · Puch OEM number: 320.4.41.023.1 · Sachs OEM no.: F.1513 · Sachs OEM no.: 0806 101 000

Clamp clip 14 - 16 mm Brake anchor plate Inox

Manufacturer: Made in Germany · Material: Chrome steel (known as Nirosta®) · Width: 15 mm · Ø inside: 14 - 16 mm

Clamp clamp 13 - 14 mm Brake anchor plate Inox

Material: Chrome steel (known as Nirosta®) · Manufacturer: Made in Germany · Width: 15 mm · Ø inside: 13 - 14 mm

swiing® revival revision set back pedal | Puch / Sachs / Hercules / Zündapp

Manufacturer: swiing® revival parts

swiing® revival front brake lever LELEU | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 88 mm · Brake lever length (lever length): 66.5 mm

Brake cam & brake lever front wheel NOS | Hercules Prima, Optima

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Total length: 82 mm · Brake lever length (lever length): 65 mm · Hercules OEM number: 0878 227 000

Coaster hub HR 90V with sprocket 32 t. (with water damage) NOS | Puch x30 Velux Automat

Manufacturer: Sachs · Ø drum: 90 mm · Thread type: MF10.5x1 (fine pitch thread) · Ø axle: 10.5 mm · Color: silver · Number of spoke holes: 36 pcs · Area of application: Original · Puch OEM number: 320.5.41.002.0

Rubber brake pedal (1A quality) | Puch RL, SR, M50, M125

Manufacturer: Made in Italy · Material: Rubber · Surface: ribbed · Place of use: Brake · Color: black · Total length: 45 mm · Height: 55 mm

Coaster hub with sprocket 37 T. NOS | Zündapp Belmondo / Hercules

Manufacturer: Sachs · Material: Aluminum · Material: Steel · Ø drum: 90 mm · Surface: chrome-plated · Surface: galvanized (blue) · Thread type: MF10.5x1 (fine pitch thread) · Ø axle: 10.5 mm · Ø bolt circle: 105.5 mm · Number of spoke holes: 36 pcs · Area of application: Original

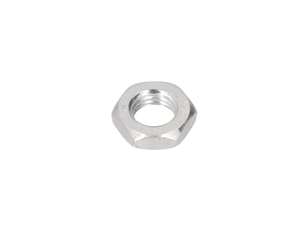

Nut M8x1 half-height galvanized

Material: Steel · Surface: galvanized (blue) · Thread type: MF8x1 (fine pitch thread) · Nut type: Hexagon nut 0.5D · Drive: External hexagon · Height: 3.8 mm · Width across flats SW: 13 mm · Strength class: 4

Coaster hub HR 90V with sprocket 34 t. NOS | Puch X30 Velux HG

Manufacturer: Sachs · Ø drum: 90 mm · Thread type: MF10.5x1 (fine pitch thread) · Ø axle: 10.5 mm · Color: silver · Number of spoke holes: 36 pcs · Area of application: Original · Puch OEM number: 320.5.41.002.0

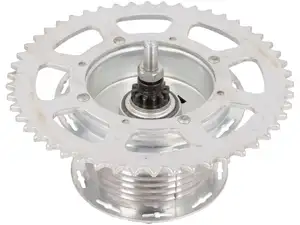

Coaster hub with sprocket 50 t. for 17 inch NOS | Sachs 504 HG

Manufacturer: Sachs · Ø drum: 90 mm · Surface: chrome-plated · Surface: galvanized (blue) · Thread type: MF10.5x1 (fine pitch thread) · Ø axle: 10.5 mm · Ø bolt circle: 105.5 mm · Number of spoke holes: 36 pcs · Area of application: Original

Wheel hub rear wheel rod brake (with slight damage) wide version (DE version) NOS

Manufacturer: Sachs · Area of application: Original · Ø drum: 90 mm · Color: silver · Ø axle: 12 mm · Number of spoke holes: 36 pcs · Thread type: MF12x1 (fine pitch thread) · Ø spoke hole: 3.2 mm

Front wheel hub NOS | Hercules MK3M

Material: Aluminum · Ø drum: 118 mm · Width: 46 mm · Width: 97 mm · Ø outside: 160 mm · Number of spoke holes: 36 pcs · Area of application: Original · Ø Receptacle: 12 mm · Ø spoke hole: 4 mm

Brake plate coaster wheel (empty)

Manufacturer: Sachs · Surface: varnished · Ø outside: 90 mm

Clamp clamp 19 - 22 mm Brake anchor plate

Ø inside: 19 - 22 mm · Width: 15 mm

Wheel hub rear wheel rod brake (with heavy damage) wide version (DE version) NOS

Manufacturer: Sachs · Ø drum: 90 mm · Thread type: MF12x1 (fine pitch thread) · Ø axle: 12 mm · Color: silver · Number of spoke holes: 36 pcs · Area of application: Original · Ø spoke hole: 3.2 mm
